DESCRIPTION
VLB14/16 is an Industrial-Robot from i-Cow. It is built for Intralogistics, Lifting, Material-Handling. Key figures: 1700 kg, 1400 kg payload.

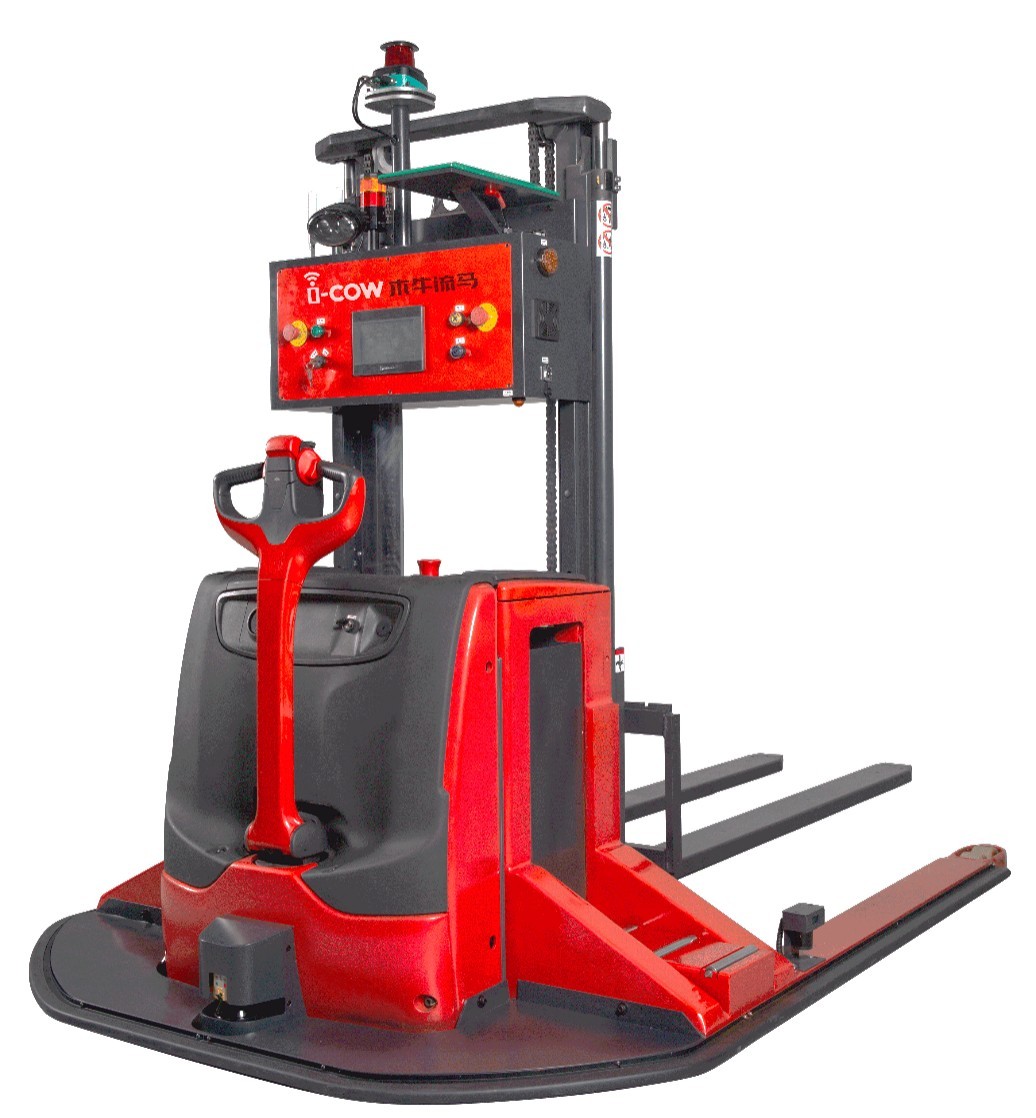

The VLB14/16 is a wide-leg stacker mobile robot from i-Cow (Muniu Liuma), an autonomous forklift that lifts pallets onto racks and conveyors and picks them back down. It is rated for 1,400 kg at a 600 mm load centre, lifts to 2924 mm, weighs 1,700 kg and measures 2,380 x 1,610 x 2,123 mm. Its forks measure 43 x 121 x 1150 mm (thickness x width x length). It travels at up to 1.5 m/s with ±10 mm positioning accuracy and a minimum turning radius of 1808 mm, runs on a 24 V, 210 Ah battery, and is dispatched with i-Cow's other AGVs through its multi-vehicle scheduling system, which runs mixed fleets on one shared map and supports the VDA 5050 interface. The figures above are for the VLB14; the same page lists VLB16 variants with different capacities.
FEATURES
- Rated load 1,400 kg at 600 mm load centre
- Lift height 2924 mm
- Overall dimensions 2380 x 1610 x 2123 mm (L x W x H)
- Service weight 1,700 kg
- Forks 43/121/1150 mm (e/s/l)
- Turning radius 1808 mm
- Travel speed 0-1.5 m/s
- positioning accuracy ±10 mm
- Battery 24 V / 210 Ah
- Multi-vehicle scheduling on one shared map
- VDA 5050 interface
- Variants on page: VLB14, VLB16
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 1700 kg |
|---|---|
| Dimensions | L 2.38 m × W 1.61 m × H 2.12 m |
| Payload | 1400 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.4 km/h |
| Environment | Indoor factories and warehouses |
| Sensing & Compute | |
| Connectivity | Fleet scheduling system; VDA 5050 |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 1700 kg |
|---|---|
| Dimensions | L 2.38 m × W 1.61 m × H 2.12 m |
| Payload | 1400 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.4 km/h |
| Environment | Indoor factories and warehouses |
| Sensing & Compute | |
| Connectivity | Fleet scheduling system; VDA 5050 |
Images
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the VLB14/16?
The VLB14/16 is a wide-leg stacker mobile robot from i-Cow (Muniu Liuma), an autonomous forklift that lifts pallets onto racks and conveyors and picks them back down. It is rated for 1,400 kg at a 600 mm load centre, lifts to 2924 mm, weighs 1,700 kg and measures 2,380 x 1,610 x 2,123 mm.
Who makes the VLB14/16?
The VLB14/16 is made by i-Cow, a robotics company based in China.
How much does the VLB14/16 cost?
i-Cow has not publicly announced pricing for the VLB14/16. You can enquire through RobotAIGeek for current pricing.
What is the VLB14/16 used for?
The VLB14/16 is designed for intralogistics, lifting, material-handling, and pallet-transportation. It is used in automotive, electronics, energy, and warehouse & logistics settings.
What is the payload capacity of the VLB14/16?
The VLB14/16 has a payload capacity of 1,400 kg.
How much does the VLB14/16 weigh?
The VLB14/16 weighs 1,700 kg.
How fast is the VLB14/16?
The VLB14/16 can move at speeds of up to 5.4 km/h.
