DESCRIPTION
VLB10M is an Industrial-Robot from i-Cow. It is built for Intralogistics, Lifting, Material-Handling. Key figures: 950 kg, 1000 kg payload.

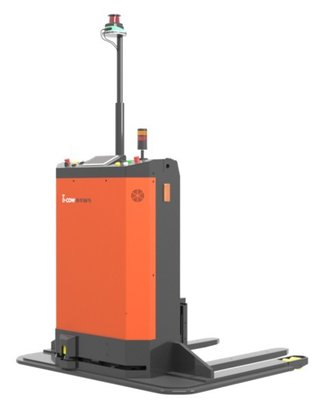

The VLB10M is a mini wide-leg stacker mobile robot from i-Cow (Muniu Liuma), an autonomous forklift that lifts pallets onto racks and conveyors and picks them back down. It is rated for 1,000 kg at a 600 mm load centre, lifts to 1800 mm, weighs 950 kg and measures 1,765 x 1,598 x 2,350 mm. Its forks measure 40 x 110 x 1200 mm (thickness x width x length). It travels at up to 1.5 m/s with ±10 mm positioning accuracy and a minimum turning radius of 1350 mm, runs on a 24 V, 210 Ah battery, and is dispatched with i-Cow's other AGVs through its multi-vehicle scheduling system, which runs mixed fleets on one shared map and supports the VDA 5050 interface.
FEATURES
- Rated load 1,000 kg at 600 mm load centre
- Lift height 1800 mm
- Overall dimensions 1765 x 1598 x 2350 mm (L x W x H)
- Service weight 950 kg
- Forks 40/110/1200 mm (e/s/l)
- Turning radius 1350 mm
- Travel speed 0-1.5 m/s
- positioning accuracy ±10 mm
- Battery 24 V / 210 Ah
- Multi-vehicle scheduling on one shared map
- VDA 5050 interface
- Variants on page: VLB10M, VLB15M
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 950 kg |
|---|---|
| Dimensions | L 1.76 m × W 1.6 m × H 2.35 m |
| Payload | 1000 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.4 km/h |
| Environment | Indoor factories and warehouses |
| Sensing & Compute | |
| Connectivity | Fleet scheduling system; VDA 5050 |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 950 kg |
|---|---|
| Dimensions | L 1.76 m × W 1.6 m × H 2.35 m |
| Payload | 1000 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.4 km/h |
| Environment | Indoor factories and warehouses |
| Sensing & Compute | |
| Connectivity | Fleet scheduling system; VDA 5050 |
Images
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the VLB10M?
The VLB10M is a mini wide-leg stacker mobile robot from i-Cow (Muniu Liuma), an autonomous forklift that lifts pallets onto racks and conveyors and picks them back down. It is rated for 1,000 kg at a 600 mm load centre, lifts to 1800 mm, weighs 950 kg and measures 1,765 x 1,598 x 2,350 mm.
Who makes the VLB10M?
The VLB10M is made by i-Cow, a robotics company based in China.
How much does the VLB10M cost?
i-Cow has not publicly announced pricing for the VLB10M. You can enquire through RobotAIGeek for current pricing.
What is the VLB10M used for?
The VLB10M is designed for intralogistics, lifting, material-handling, and pallet-transportation. It is used in automotive, electronics, energy, and warehouse & logistics settings.
What is the payload capacity of the VLB10M?
The VLB10M has a payload capacity of 1,000 kg.
How much does the VLB10M weigh?
The VLB10M weighs 950 kg.
How fast is the VLB10M?
The VLB10M can move at speeds of up to 5.4 km/h.
