VertiDrive V400

BlastOne

Cleaning-Robots

NetherlandsReleased

★Not rated yet

Compare

Sources:

blastone.com.au

Industries:

Energy Construction Manufacturing

Uses:

CleaningSurface preparation: abrasive blasting, UHP waterjetting and washing of steel

Price:

Not announced

Model:

VertiDrive V400 magnetic crawler robot

DESCRIPTION

VertiDrive V400 is a Cleaning-Robots from BlastOne. It is built for Cleaning, Surface preparation: abrasive blasting, UHP waterjetting and washing of steel. Key figures: 88 kg, 150 kg payload.

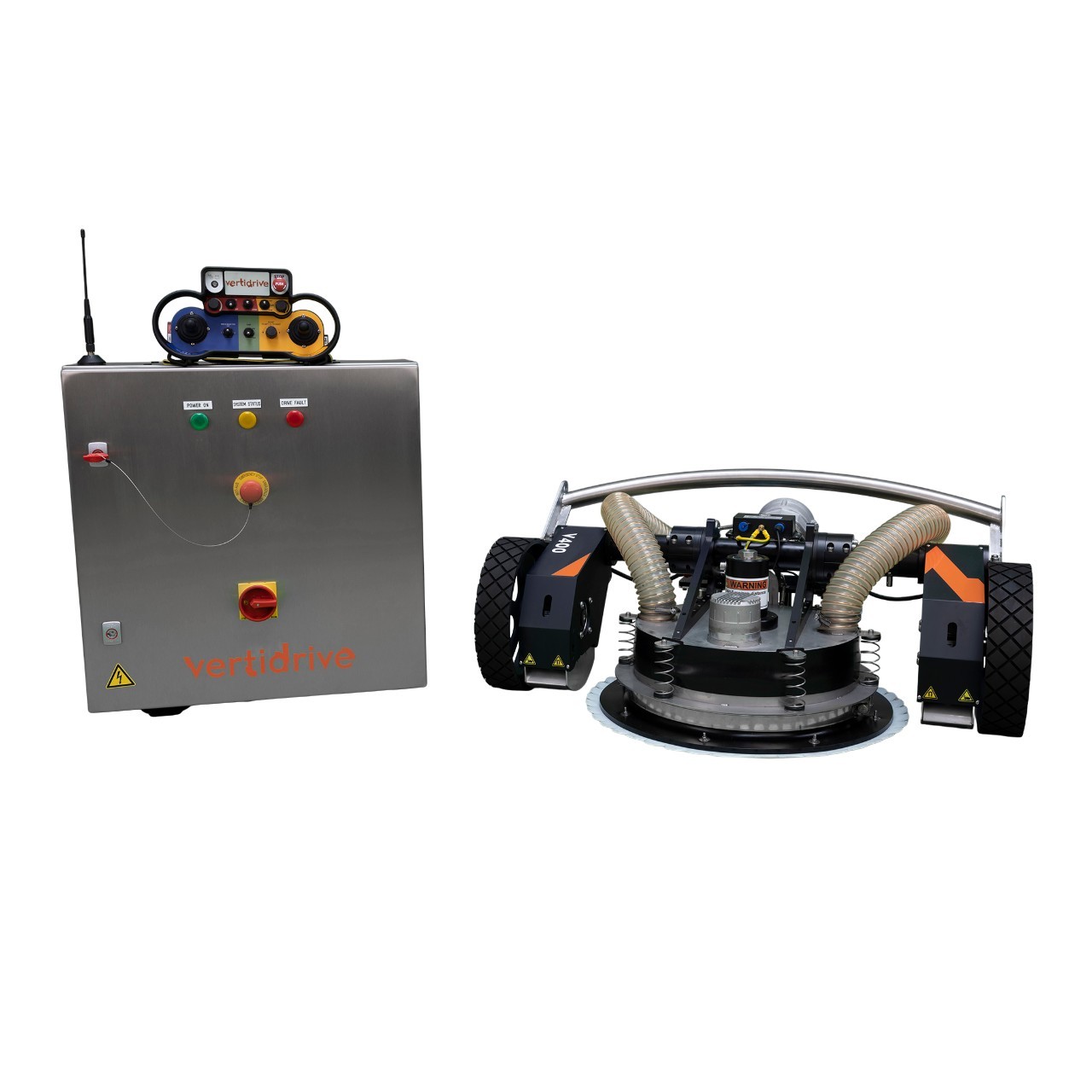

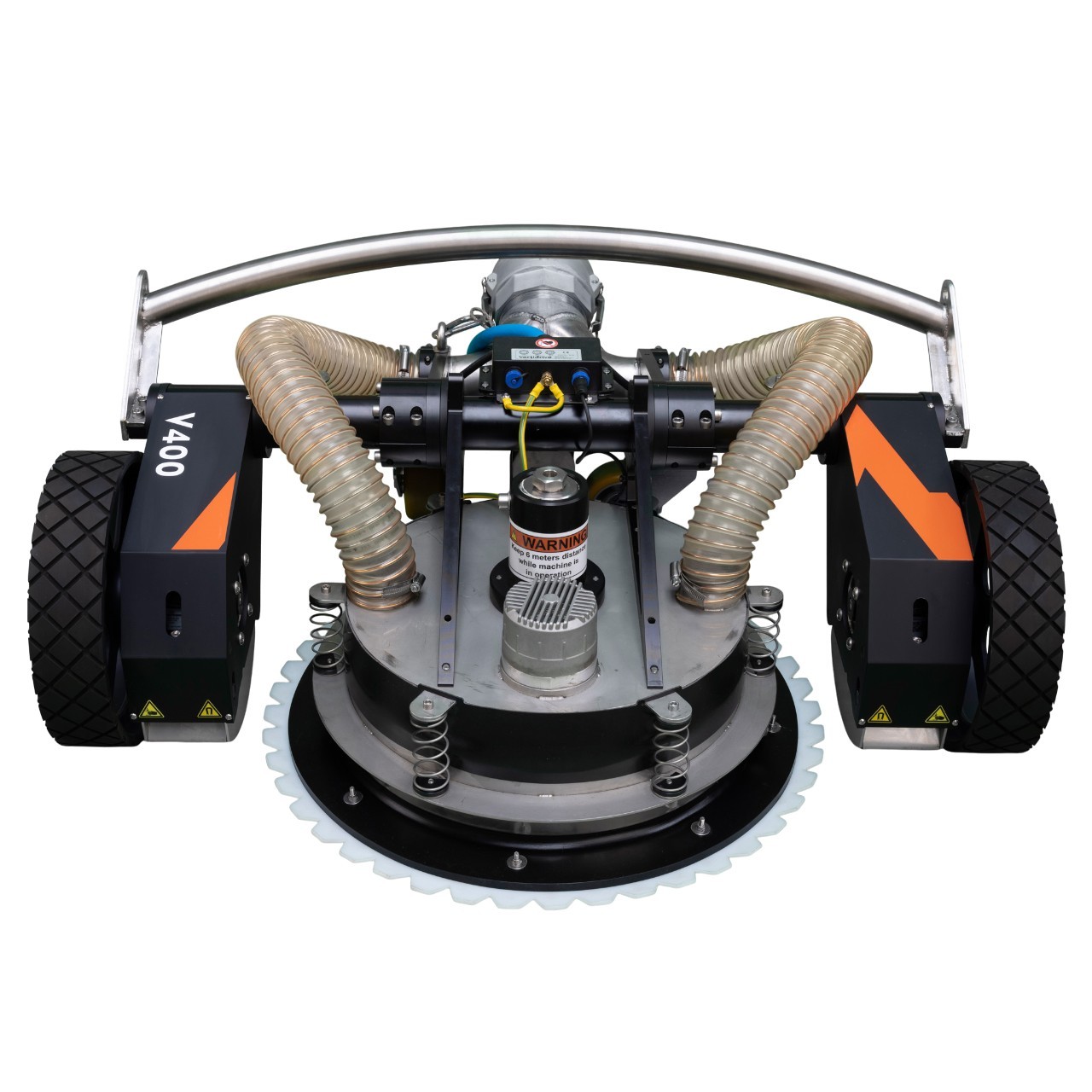

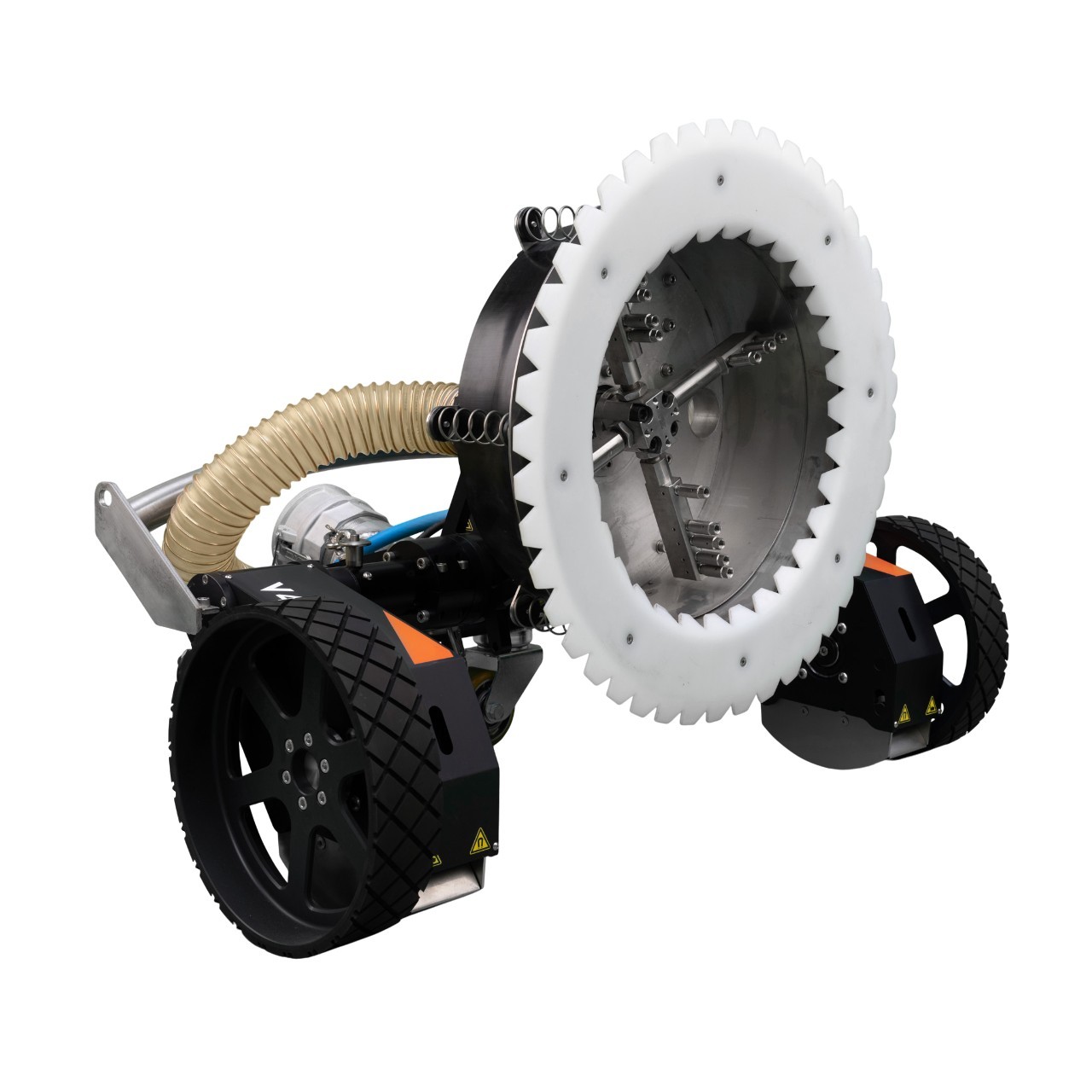

The VertiDrive V400 is VertiDrive's newer magnetic crawler platform for enclosed ultra-high-pressure water blasting and washing. A closed blast can with a self-rotating cross of up to 16 M10 nozzles strips coatings at up to 3,000 bar and 40 l/min over a 400 mm width, averaging about 45 m2 per hour, and with the VertiDrive skid-mount vacuum system it collects the waste water and leaves the surface dry and free of flash rust. Magnets with up to 300 kg holding force, adjustable from 4 to 12 mm, carry the 88 kg robot and up to 150 kg of payload upside down, vertically or horizontally at up to 5 m/min, and it keeps working in winds up to 50 knots.\nTwo 315 W drive motors run on 70 V DC from an IP66 control box; the robot itself is IP65, it is driven from a Hetronic Nova XL remote up to 100 m away over a 50 m umbilical (extendable to 100 m), and it works from -20 to +35 C, or +50 C with the cooled control box.

FEATURES

UHP water blasting up to 3,000 bar @ 40 l/min
self-rotating cross with 16 x M10 nozzles
400 mm cleaning width
average 45 m2 (484 ft2) per hour
Closed blast can
vacuum system collects waste water and prevents flash rust
Robot 900 x 990 x 420 mm
88 kg
payload 150 kg
Magnets up to 300 kg holding force, adjustable 4-12 mm
upside down, vertical and horizontal
Max. driving speed 5 m/min
min. 10 m radius
works in winds up to 50 knots
2 x 315 W drive motors
70 V DC motors / 24 V DC logic
200-240 or 100-120 VAC input
Robot IP65, control box and remote IP66
20 to +35 C (+50 C with cooling)
Hetronic Nova XL remote, 100 m range
50 m umbilical (max. 100 m)

TECHNICAL SPECIFICATIONS

Physical
Weight	88 kg
Dimensions	L 900 mm × W 990 mm × H 420 mm
Payload	150 kg
Mobility
Movement Type	Wheeled
Speed	0.3 km/h
Environment	Ship hulls, storage tanks and large steel structures; outdoor sites
Power
Charging Type	Mains power via control box and umbilical
Sensing & Compute
Connectivity	Wireless remote control

Manufacturer-sourcedThird-party sourcedUnsourcedSource status is based on this robot's listed sources.

ROBOT FORUMS

Loading forums...

TECHNICAL SPECIFICATIONS

Physical
Weight	88 kg
Dimensions	L 900 mm × W 990 mm × H 420 mm
Payload	150 kg
Mobility
Movement Type	Wheeled
Speed	0.3 km/h
Environment	Ship hulls, storage tanks and large steel structures; outdoor sites
Power
Charging Type	Mains power via control box and umbilical
Sensing & Compute
Connectivity	Wireless remote control

Manufacturer-sourcedThird-party sourcedUnsourcedSource status is based on this robot's listed sources.

FREQUENTLY ASKED QUESTIONS

What is the VertiDrive V400?

Who makes the VertiDrive V400?

The VertiDrive V400 is made by BlastOne, a robotics company based in Netherlands.

How much does the VertiDrive V400 cost?

BlastOne has not publicly announced pricing for the VertiDrive V400. You can enquire through RobotAIGeek for current pricing.

What is the VertiDrive V400 used for?

The VertiDrive V400 is designed for cleaning and surface preparation: abrasive blasting, uhp waterjetting and washing of steel. It is used in energy, construction, and manufacturing settings.
