DESCRIPTION
VertiDrive M7 is a Cleaning-Robots from BlastOne. It is built for Cleaning, Surface preparation: abrasive blasting, UHP waterjetting and washing of steel. Key figures: 100 kg payload.

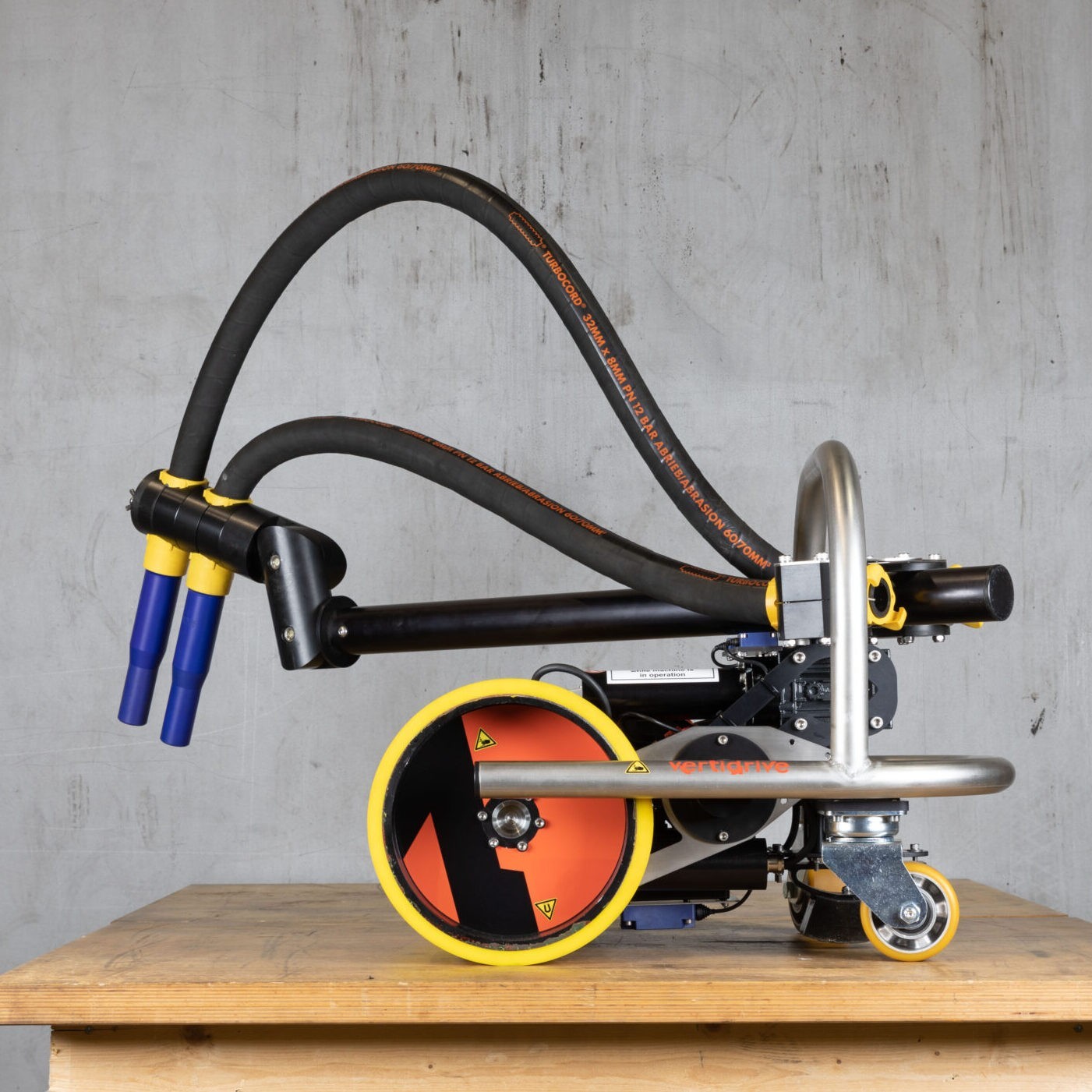

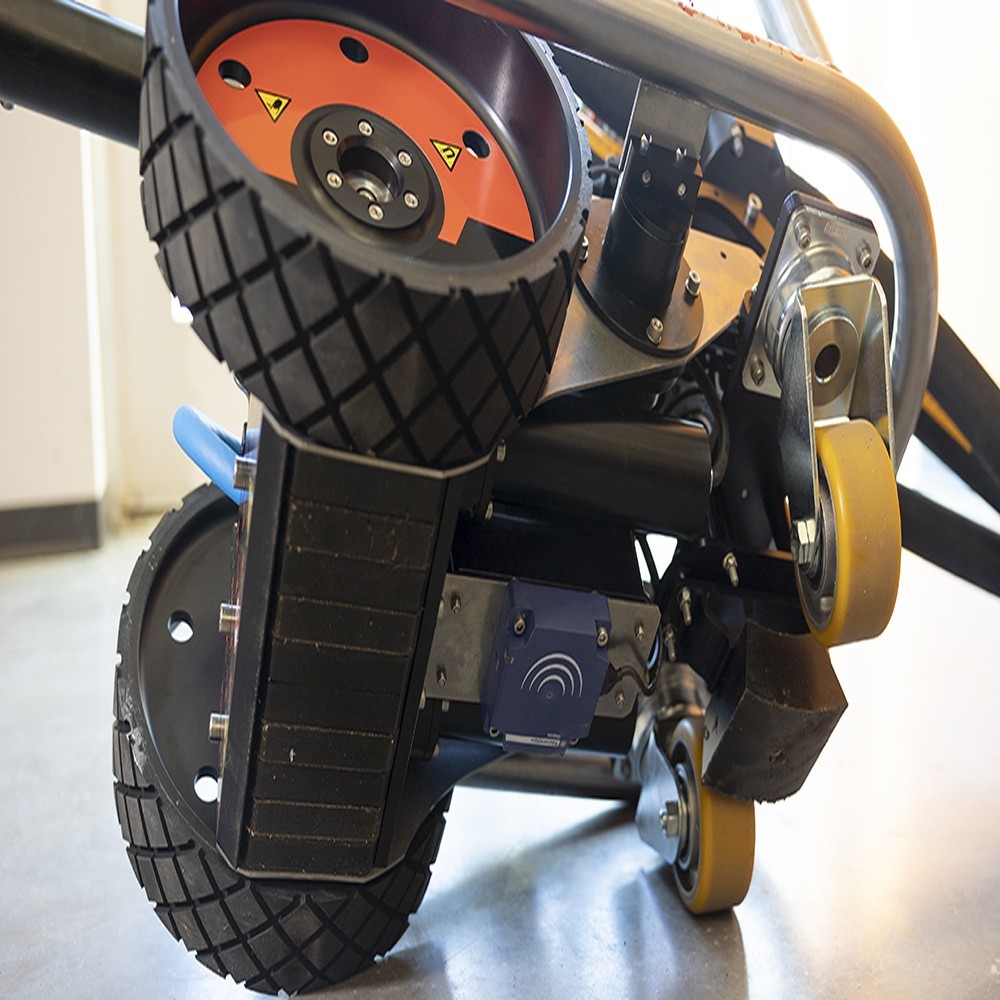

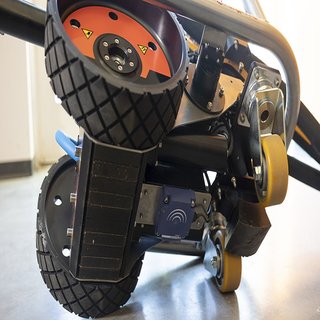

The VertiDrive M7 (M7.1) is a compact magnetic crawler robot for large-scale blasting of ship hulls, storage tanks and other steel structures. Permanent magnets let it drive on horizontal, vertical and overhead surfaces - even upside down - and a multidirectional swing arm sweeps a 1,500 mm blast pattern, covering up to 60 m2 per hour and doing the work of about three blasters. Its blast, HP/UHP hydroblasting and washing tools are interchangeable; a narrower wheelbase and smaller working radius than the M3 suit tight spaces, it runs on 70 V DC motors, and it is controlled wirelessly so operators stay out of harm's way.
FEATURES
- Up to 60 m2 (646 ft2) per hour
- 1,500 mm blast pattern
- Does the work of about three blasters
- Works upside down, vertically and horizontally on steel via permanent magnets
- Interchangeable abrasive blasting, HP/UHP hydroblasting and washing
- Narrower wheelbase and smaller working radius than the M3
- 70 V DC motors
- payload 100 kg
- Wireless remote control
TECHNICAL SPECIFICATIONS
| Physical | |
| Payload | 100 kg |
|---|---|
| Mobility | |
| Movement Type | Wheeled |
| Environment | Ship hulls, storage tanks and large steel structures; outdoor sites |
| Sensing & Compute | |
| Connectivity | Wireless remote control |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
| Physical | |
| Payload | 100 kg |
|---|---|
| Mobility | |
| Movement Type | Wheeled |
| Environment | Ship hulls, storage tanks and large steel structures; outdoor sites |
| Sensing & Compute | |
| Connectivity | Wireless remote control |
Images
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the VertiDrive M7?
The VertiDrive M7 (M7.1) is a compact magnetic crawler robot for large-scale blasting of ship hulls, storage tanks and other steel structures.
Who makes the VertiDrive M7?
The VertiDrive M7 is made by BlastOne, a robotics company based in Netherlands.
How much does the VertiDrive M7 cost?
BlastOne has not publicly announced pricing for the VertiDrive M7. You can enquire through RobotAIGeek for current pricing.
What is the VertiDrive M7 used for?
The VertiDrive M7 is designed for cleaning and surface preparation: abrasive blasting, uhp waterjetting and washing of steel. It is used in energy, construction, and manufacturing settings.
What is the payload capacity of the VertiDrive M7?
The VertiDrive M7 has a payload capacity of 100 kg.
