DESCRIPTION
VAC Crawler is a Cleaning-Robots from Deep Trekker. It is built for Cleaning, Inspection. Key figures: 15 kg.

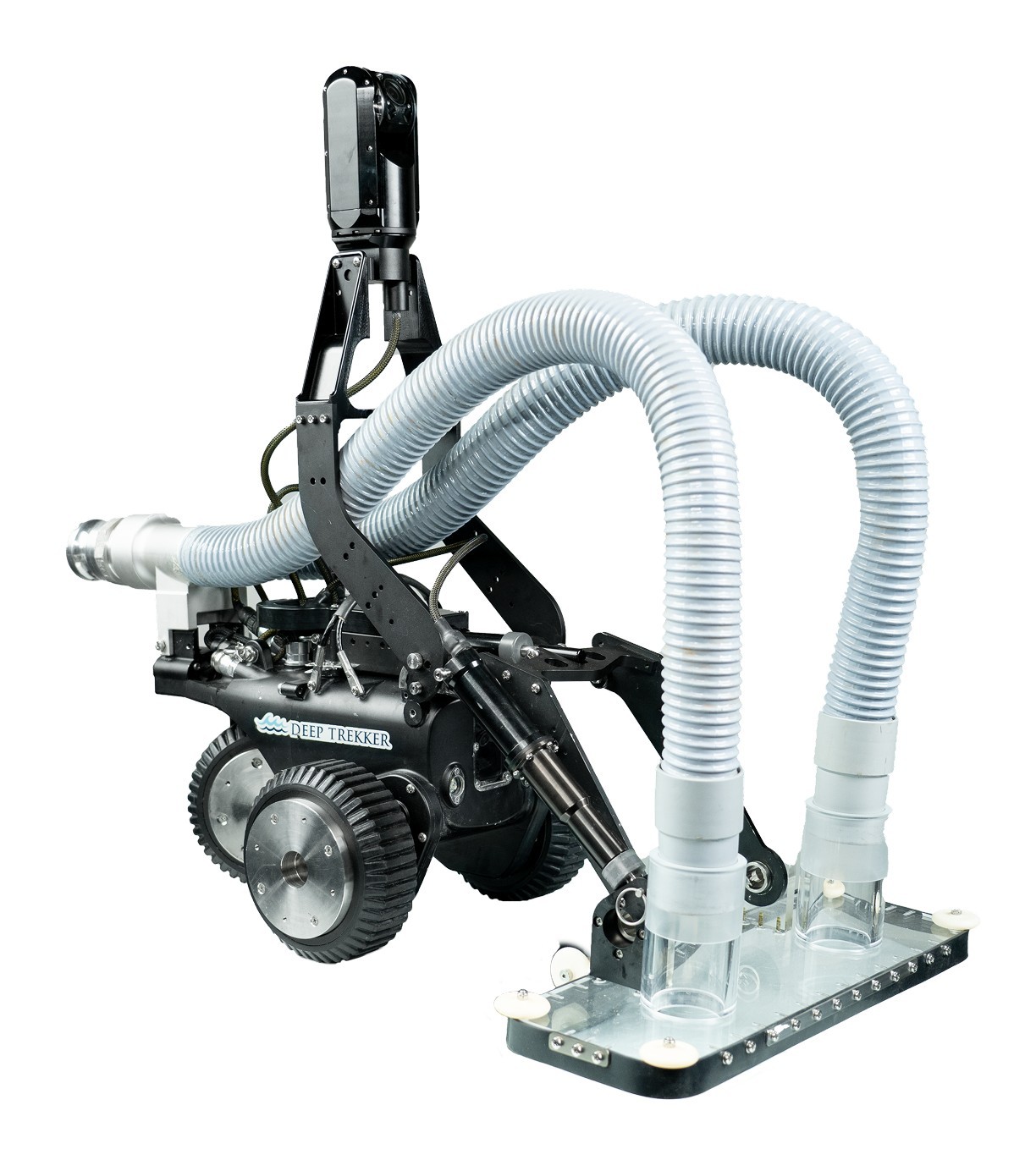

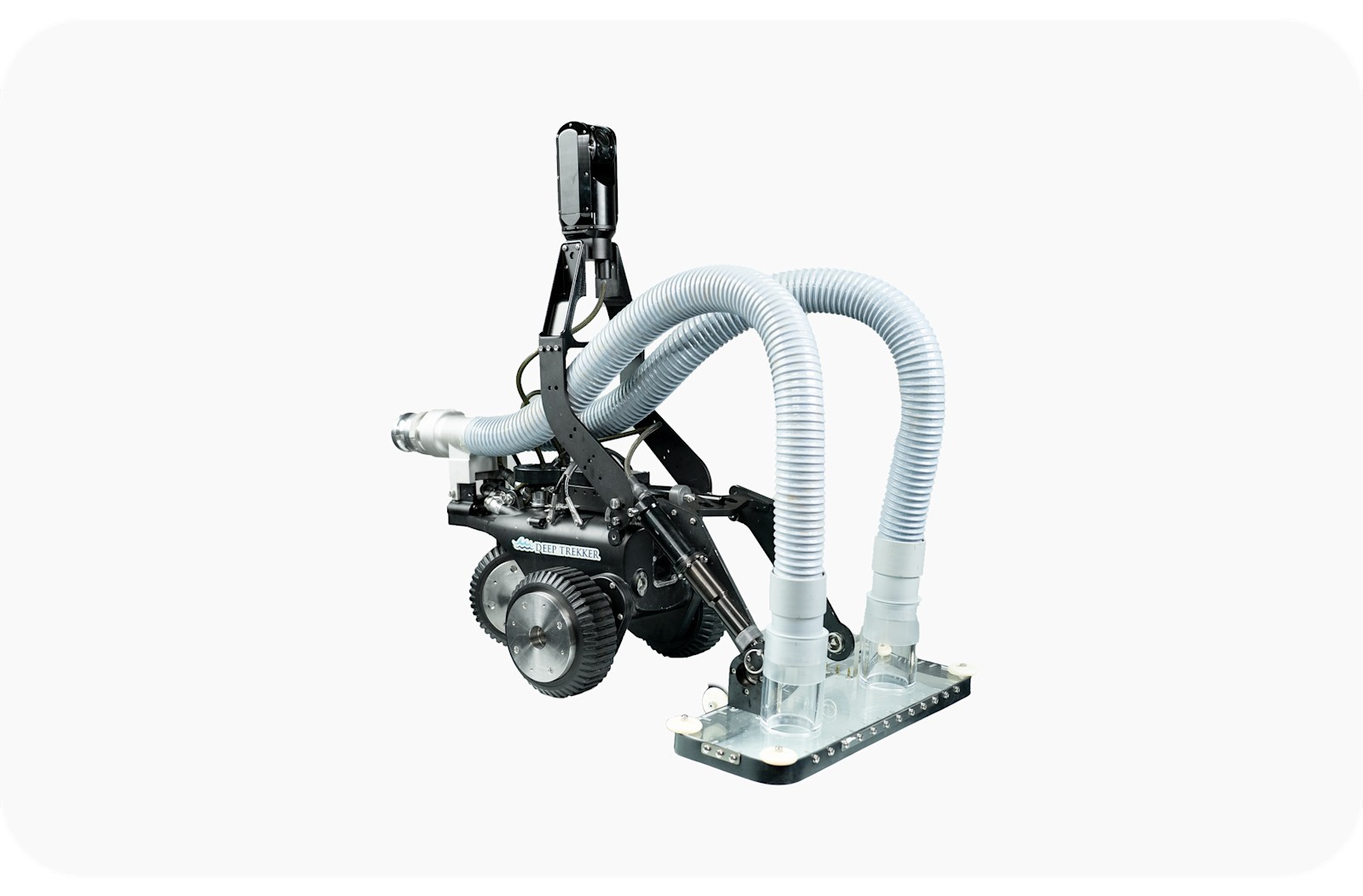

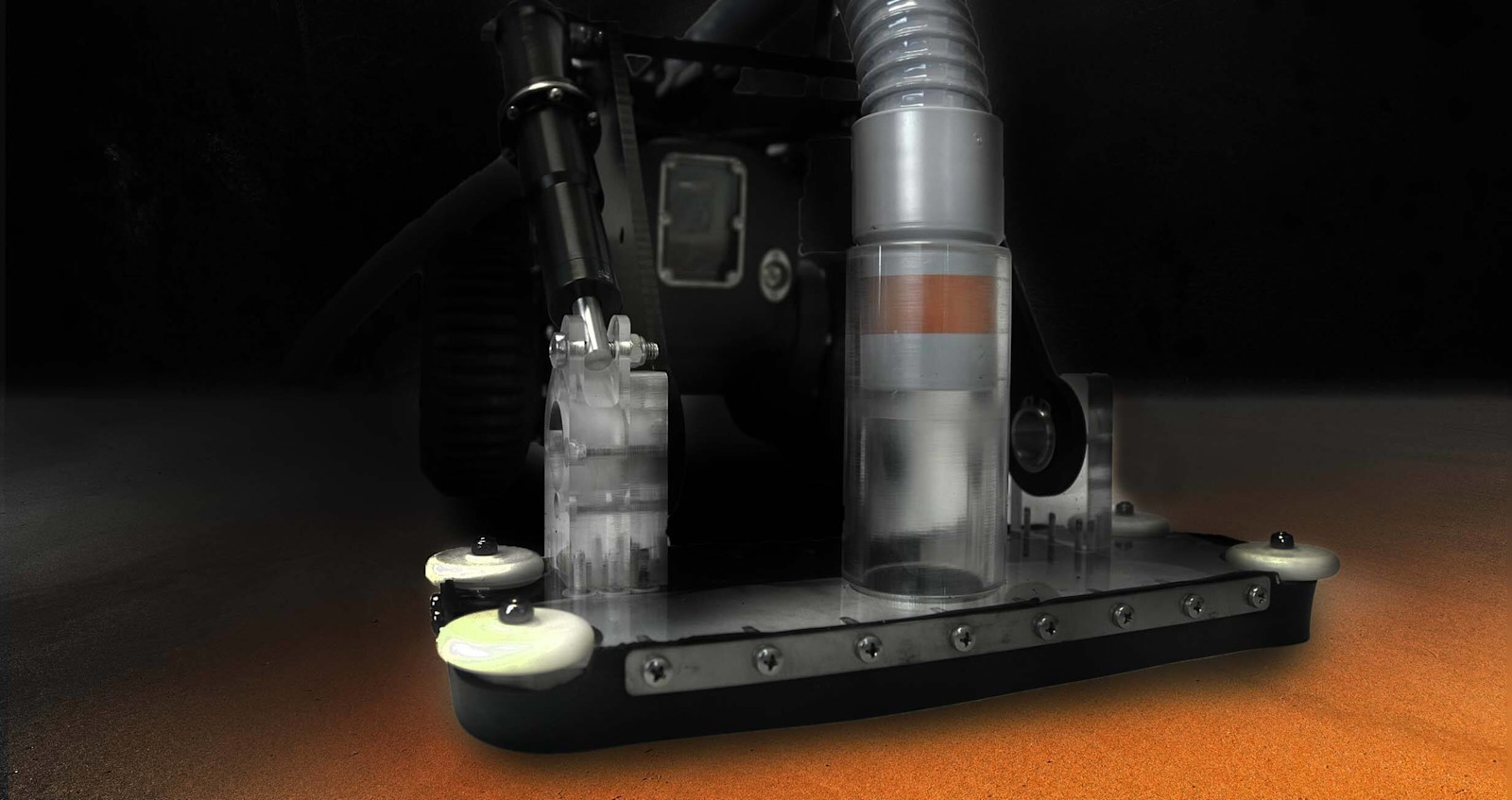

The VAC crawler is Deep Trekker's tank-cleaning robot for removing sediment from the floors of potable water storage tanks and towers without draining them or sending in divers, so utilities avoid losing large volumes of water. Vacuum hoses and attachments on the crawler pull sediment up to the surface while an enhanced 4K camera and 900-lumen lights show the pilot the tank floor. It measures 710 x 406 x 228 mm, weighs 15 kg and is fully submersible to 50 m, driving on rubber 2WD wheels at up to 12 m per minute with a zero turning radius, steerable and infinitely variable control with cruise control, and two planetary gear motors on magnetically coupled final drives. Lithium batteries at 19.2 V power it, sensors report incline, roll, leaks and camera pan and tilt, and a 6.2 mm polyurethane tether up to 400 m with 150 kg breaking strength runs from an IP68 reel. The system packs into two cases.
FEATURES
- Potable-water tank and tower cleaning without draining
- 710 x 406 x 228 mm (L x W x H)
- 15 kg
- submersible to 50 m (164 ft)
- Rubber 2WD wheels
- 0 mm turn radius
- speed 12 m/min
- Enhanced 4K camera
- 900 lumens lighting
- 19.2 VDC lithium batteries
- 2 planetary gear motors
- magnetically coupled drives
- Sensors: incline, roll, leak, camera pan/tilt
- Various vacuum attachments
- Tether 6.2 mm polyurethane, 50-400 m, 150 kg breaking strength
- IP68 reel (75 m standard)
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 15 kg |
|---|---|
| Dimensions | L 710 mm × W 406 mm × H 228 mm |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 0.72 km/h |
| Environment | Potable water tanks and towers (to 50 m depth) |
| Sensing & Compute | |
| Sensors | incline, roll, leak, 4K camera |
| Connectivity | Tether 50-400 m |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 15 kg |
|---|---|
| Dimensions | L 710 mm × W 406 mm × H 228 mm |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 0.72 km/h |
| Environment | Potable water tanks and towers (to 50 m depth) |
| Sensing & Compute | |
| Sensors | incline, roll, leak, 4K camera |
| Connectivity | Tether 50-400 m |
Images
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the VAC Crawler?
The VAC crawler is Deep Trekker's tank-cleaning robot for removing sediment from the floors of potable water storage tanks and towers without draining them or sending in divers, so utilities avoid losing large volumes of water.
Who makes the VAC Crawler?
The VAC Crawler is made by Deep Trekker, a robotics company based in Canada.
How much does the VAC Crawler cost?
Deep Trekker has not publicly announced pricing for the VAC Crawler. You can enquire through RobotAIGeek for current pricing.
What is the VAC Crawler used for?
The VAC Crawler is designed for cleaning and inspection. It is used in facilities and government settings.
How much does the VAC Crawler weigh?
The VAC Crawler weighs 15 kg.
How fast is the VAC Crawler?
The VAC Crawler can move at speeds of up to 0.72 km/h.
