DESCRIPTION
U3200AX is an Industrial-Robot from Asseco CEIT. It is built for Intralogistics, Lifting, Material-Handling. Key figures: 3200 kg payload.

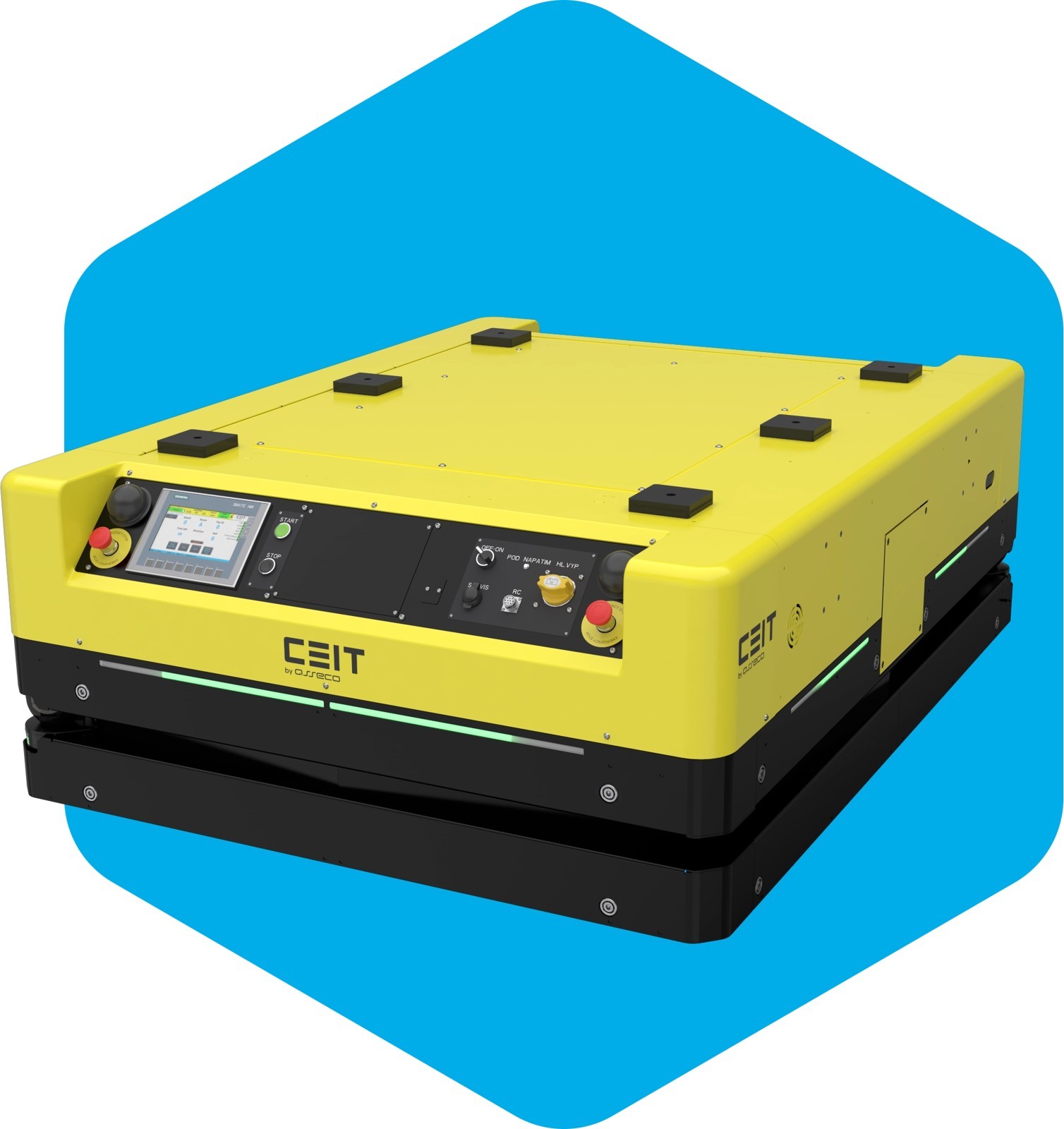

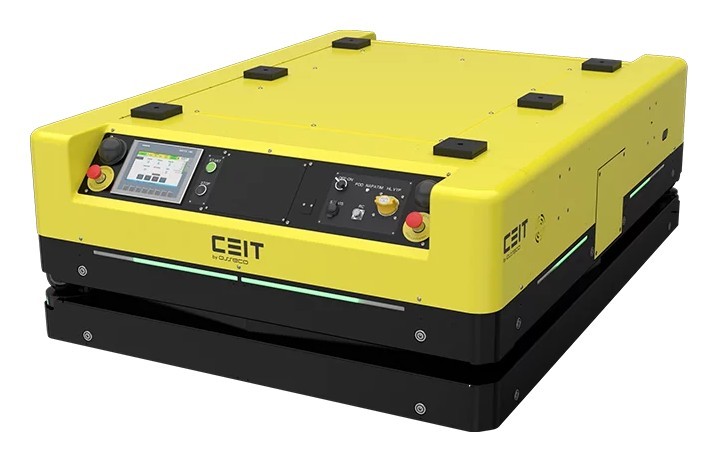

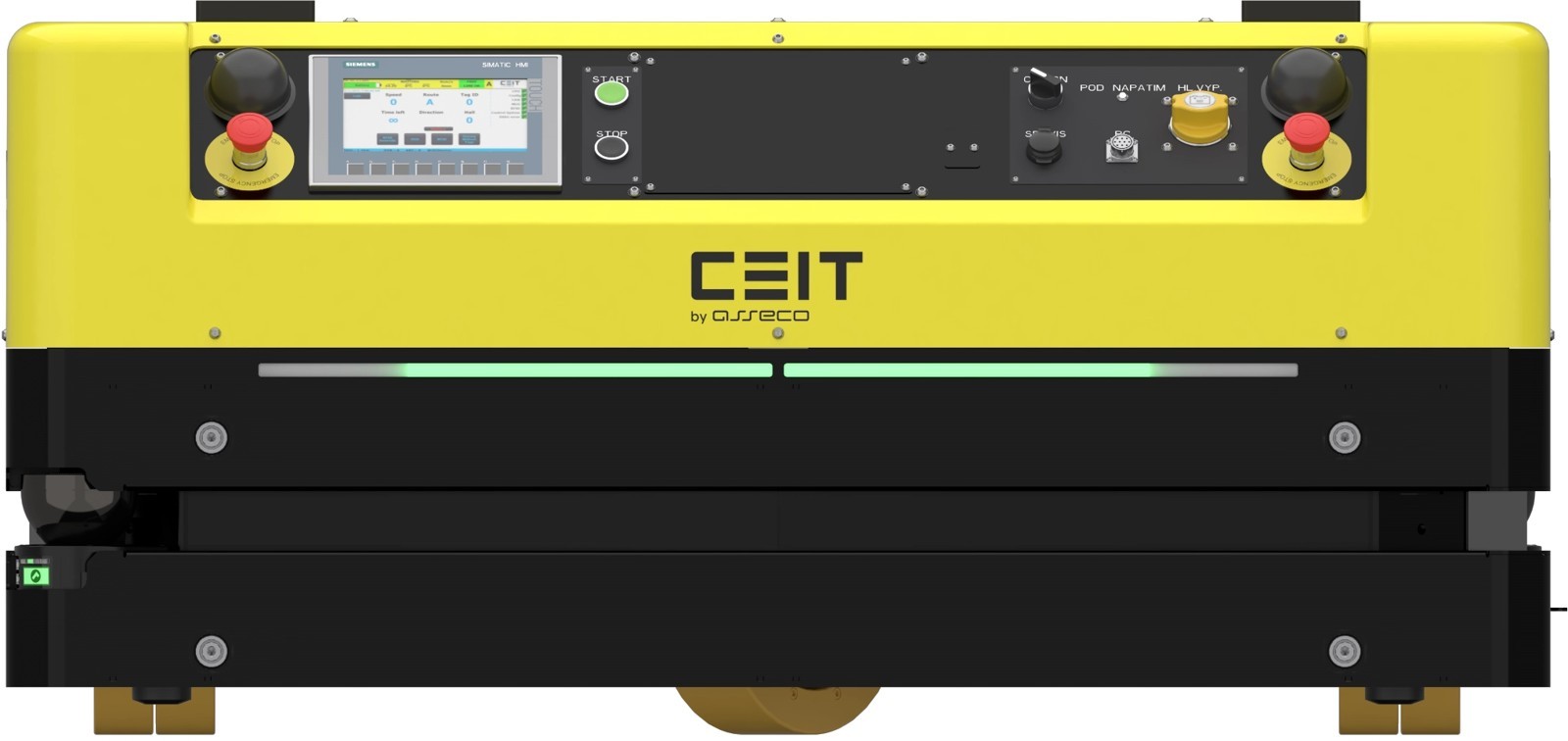

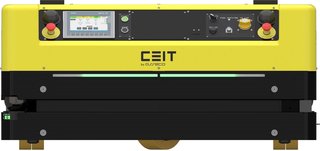

U3200AX is Asseco CEIT's heavy fixed-platform under-run AGV for battery manufacturing and heavy automotive components: it carries up to 3,200 kg, travels at up to 1.5 m/s, positions within +/-10 mm and turns within 0.9 m. The AX drives forward, backward and rotates on the spot; the U3200OX version is fully omnidirectional and can creep slowly for assembly directly on the platform. It navigates by contour, uses two 270-degree SICK scanners (optional 2D scanner and 3D camera) with wireless safety communication to production lines, runs on lithium batteries with wireless or contact charging, and supports VDA 5050.
FEATURES
- Load capacity 3,200 kg (fixed platform)
- Max. speed 1.5 m/s
- min. turning radius 0.9 m
- positioning +/-10 mm
- AX: forward, backward, on-the-spot rotation
- OX: omnidirectional
- Contour navigation
- SICK 2 x 270 deg safety scanners
- optional 2D scanner and 3D camera
- Wireless safety communication with production lines
- Lithium batteries
- automatic wireless or contact charging
- Touchscreen and universal remote control
- VDA 5050
- 5G-compatible
- CE
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Dimensions | L 1.7 m × W 1.3 m × H 600 mm |
|---|---|
| Payload | 3200 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.4 km/h |
| Environment | Factories and warehouses (indoor) |
| Power | |
| Charging Type | Automatic - wireless or contact |
| Sensing & Compute | |
| Sensors | SICK safety laser scanners (2 x 270 deg), optional 3D camera |
| Connectivity | 5G-compatible |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Dimensions | L 1.7 m × W 1.3 m × H 600 mm |
|---|---|
| Payload | 3200 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.4 km/h |
| Environment | Factories and warehouses (indoor) |
| Power | |
| Charging Type | Automatic - wireless or contact |
| Sensing & Compute | |
| Sensors | SICK safety laser scanners (2 x 270 deg), optional 3D camera |
| Connectivity | 5G-compatible |
Images
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the U3200AX?
U3200AX is Asseco CEIT's heavy fixed-platform under-run AGV for battery manufacturing and heavy automotive components: it carries up to 3,200 kg, travels at up to 1.5 m/s, positions within +/-10 mm and turns within 0.9 m.
Who makes the U3200AX?
The U3200AX is made by Asseco CEIT, a robotics company based in Slovak Republic.
How much does the U3200AX cost?
Asseco CEIT has not publicly announced pricing for the U3200AX. You can enquire through RobotAIGeek for current pricing.
What is the U3200AX used for?
The U3200AX is designed for intralogistics, lifting, material-handling, and transport. It is used in automotive, warehouse & logistics, and manufacturing settings.
What is the payload capacity of the U3200AX?
The U3200AX has a payload capacity of 3,200 kg.
How fast is the U3200AX?
The U3200AX can move at speeds of up to 5.4 km/h.
