DESCRIPTION
TUNA is a Service-Robots from EyeROV. It is built for Filming, Search-And-Rescue, Surveying.

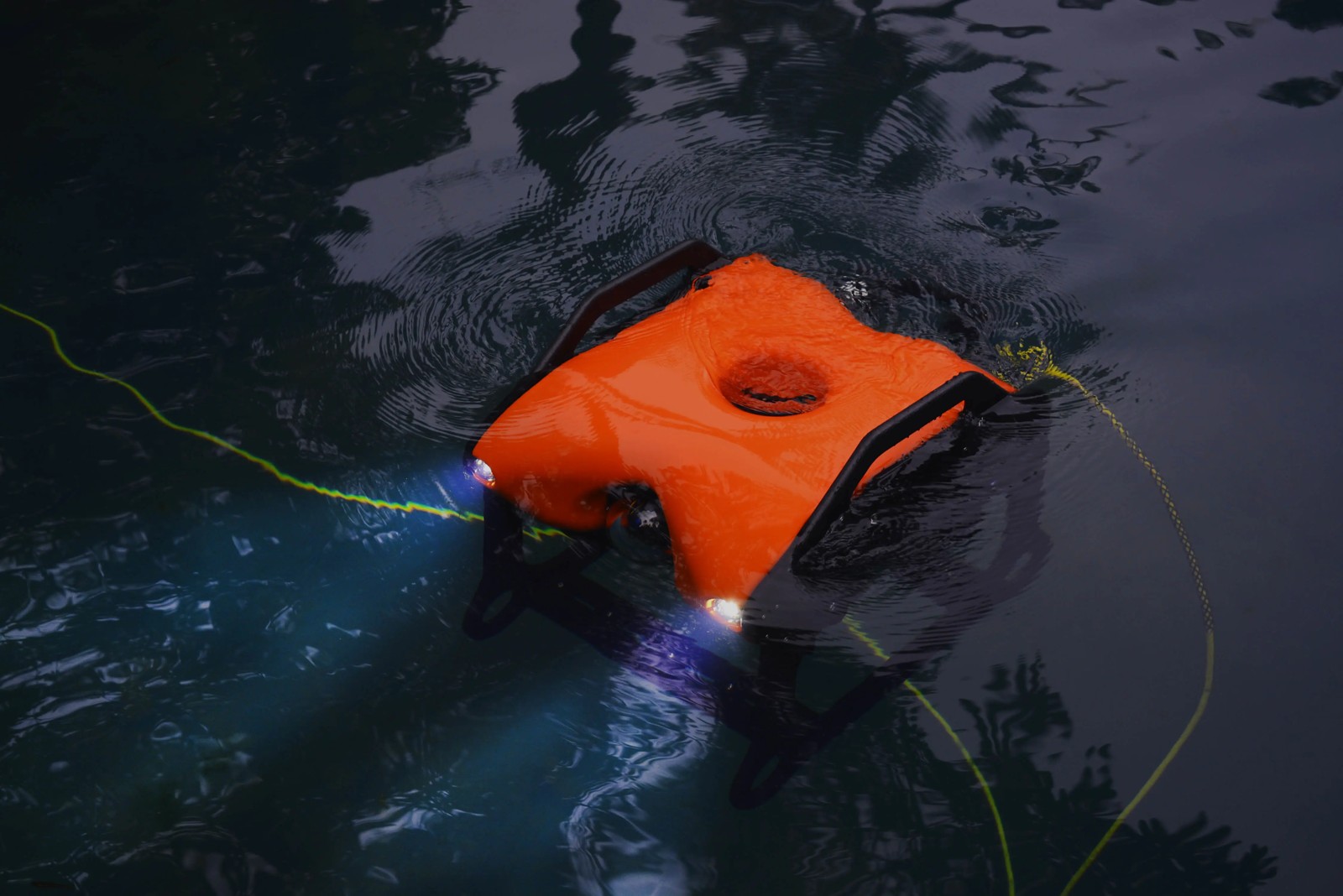

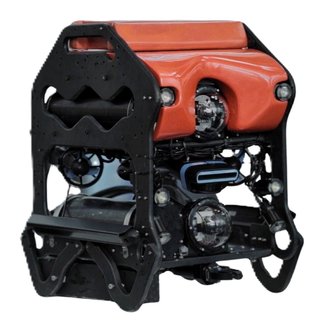

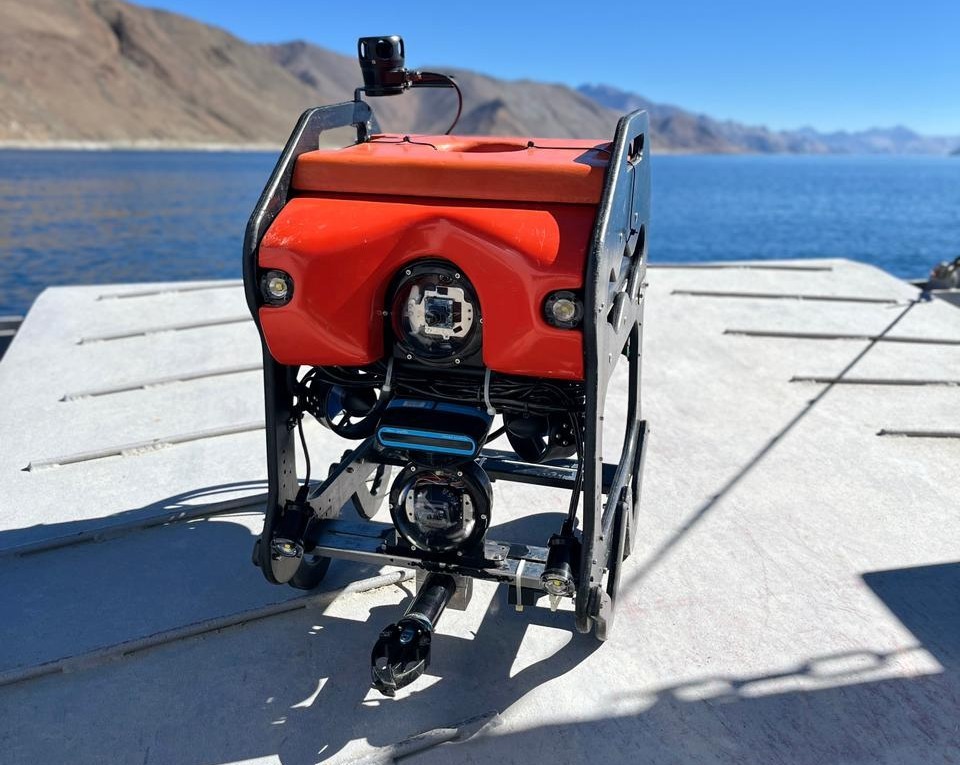

TUNA is a compact observation-class remotely operated vehicle (ROV) from EyeROV for inspecting submerged infrastructure in shallow to mid-depth water. EyeROV both sells it and uses it for its own inspection services. The vehicle is rated to 100 m, travels at up to 2 knots and is connected to the surface by a 75 m neutrally buoyant tether. It carries a single 4K low-light camera with 10x zoom on a tilt mechanism and 3,000 lumens of LED lighting. Auto-depth and auto-heading modes hold the vehicle steady while the pilot concentrates on the inspection. The vehicle measures 500 x 400 x 550 mm. TUNA is flown from an ordinary laptop with a joystick, using EyeROV's i-Control Hub software for live video and depth, orientation and navigation data. Optional payloads are an imaging sonar for poor visibility, an underwater positioning system and an echo sounder. Typical jobs are dam, tunnel, pipeline and bridge-foundation inspection, port and ship-hull surveys, coral-reef monitoring and search and rescue.
FEATURES
- Observation-class ROV
- Depth rating 100 m
- Speed 2 knots
- 75 m neutrally buoyant tether
- One 4K low-light camera with 10x zoom
- Camera tilt mechanism
- 3,000-lumen LED lights
- Auto depth
- Auto heading
- Autonomous navigation features (maker claim)
- Dimensions 500 x 400 x 550 mm
- Control station: customer's laptop with included software suite
- Joystick controller for remote control
- i-Control Hub piloting software
- Optional imaging sonar
- Optional underwater positioning system
- Optional echo sounder
- Accessories: storage cases, manuals, spare parts
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Dimensions | L 500 mm × W 400 mm × H 550 mm |
|---|---|
| Mobility | |
| Movement Type | Aquatic |
| Speed | 3.71 km/h |
| Environment | Fresh and sea water down to 100 m, including turbid water |
| Sensing & Compute | |
| Sensors | 4K low-light camera with 10x zoom and tilt, Depth and heading sensing, Optional imaging sonar, Optional underwater positioning system, Optional echo sounder |
| Connectivity | 75 m neutrally buoyant tether |
| Software / AI | i-Control Hub piloting software |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Dimensions | L 500 mm × W 400 mm × H 550 mm |
|---|---|
| Mobility | |
| Movement Type | Aquatic |
| Speed | 3.71 km/h |
| Environment | Fresh and sea water down to 100 m, including turbid water |
| Sensing & Compute | |
| Sensors | 4K low-light camera with 10x zoom and tilt, Depth and heading sensing, Optional imaging sonar, Optional underwater positioning system, Optional echo sounder |
| Connectivity | 75 m neutrally buoyant tether |
| Software / AI | i-Control Hub piloting software |
Images
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the TUNA?
TUNA is a compact observation-class remotely operated vehicle (ROV) from EyeROV for inspecting submerged infrastructure in shallow to mid-depth water. EyeROV both sells it and uses it for its own inspection services.
Who makes the TUNA?
The TUNA is made by EyeROV, a robotics company based in India.
How much does the TUNA cost?
EyeROV has not publicly announced pricing for the TUNA. You can enquire through RobotAIGeek for current pricing.
What is the TUNA used for?
The TUNA is designed for filming, search-and-rescue, surveying, and inspection. It is used in energy, government, research, and construction settings.
How fast is the TUNA?
The TUNA can move at speeds of up to 3.71 km/h.
