DESCRIPTION
TSV-X is a Mobile-Robots from DFKI Industrials. It is built for Exploration, Inspection, Monitoring. Key figures: 9.5 kg, 3 kg payload.

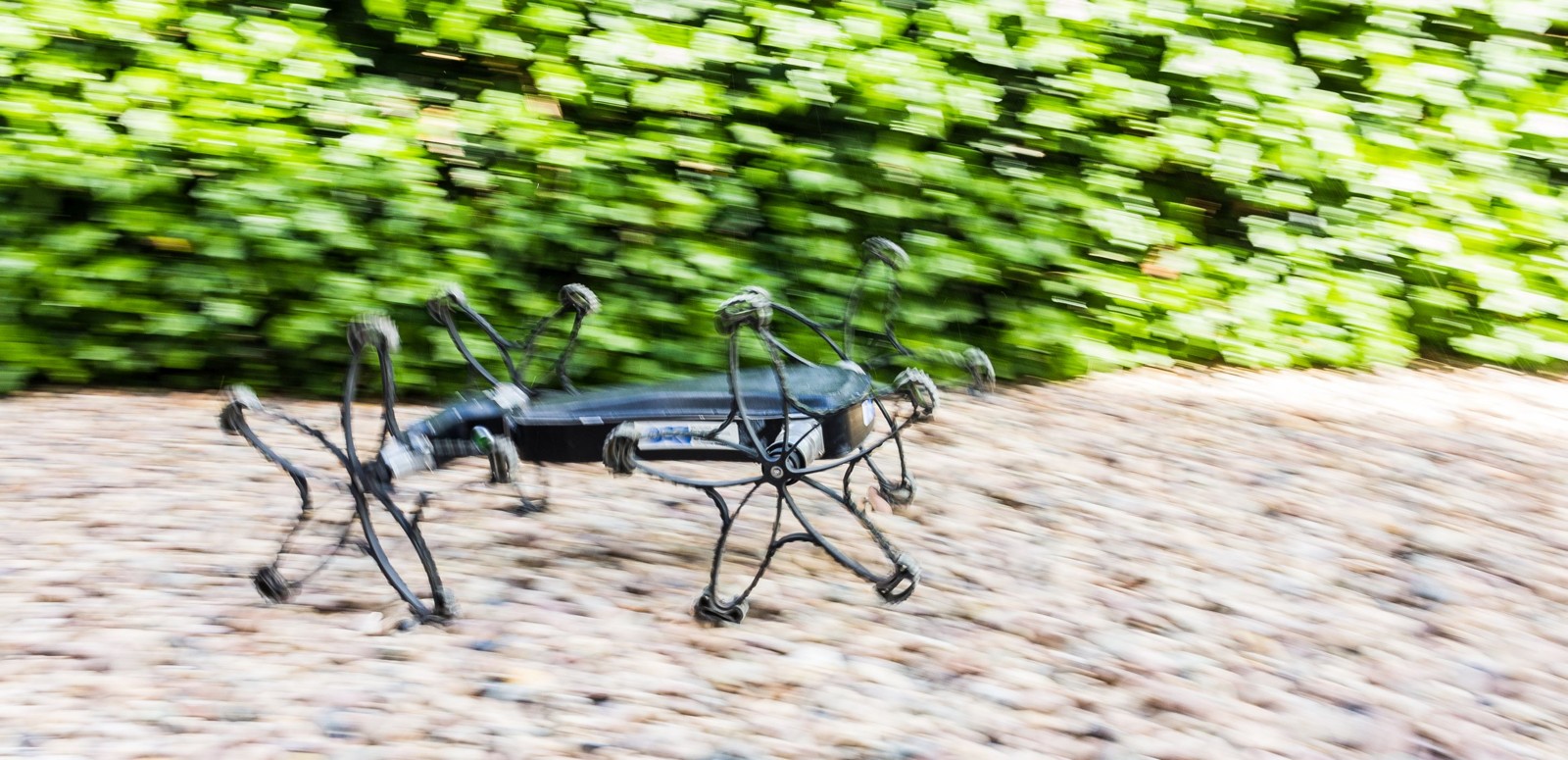

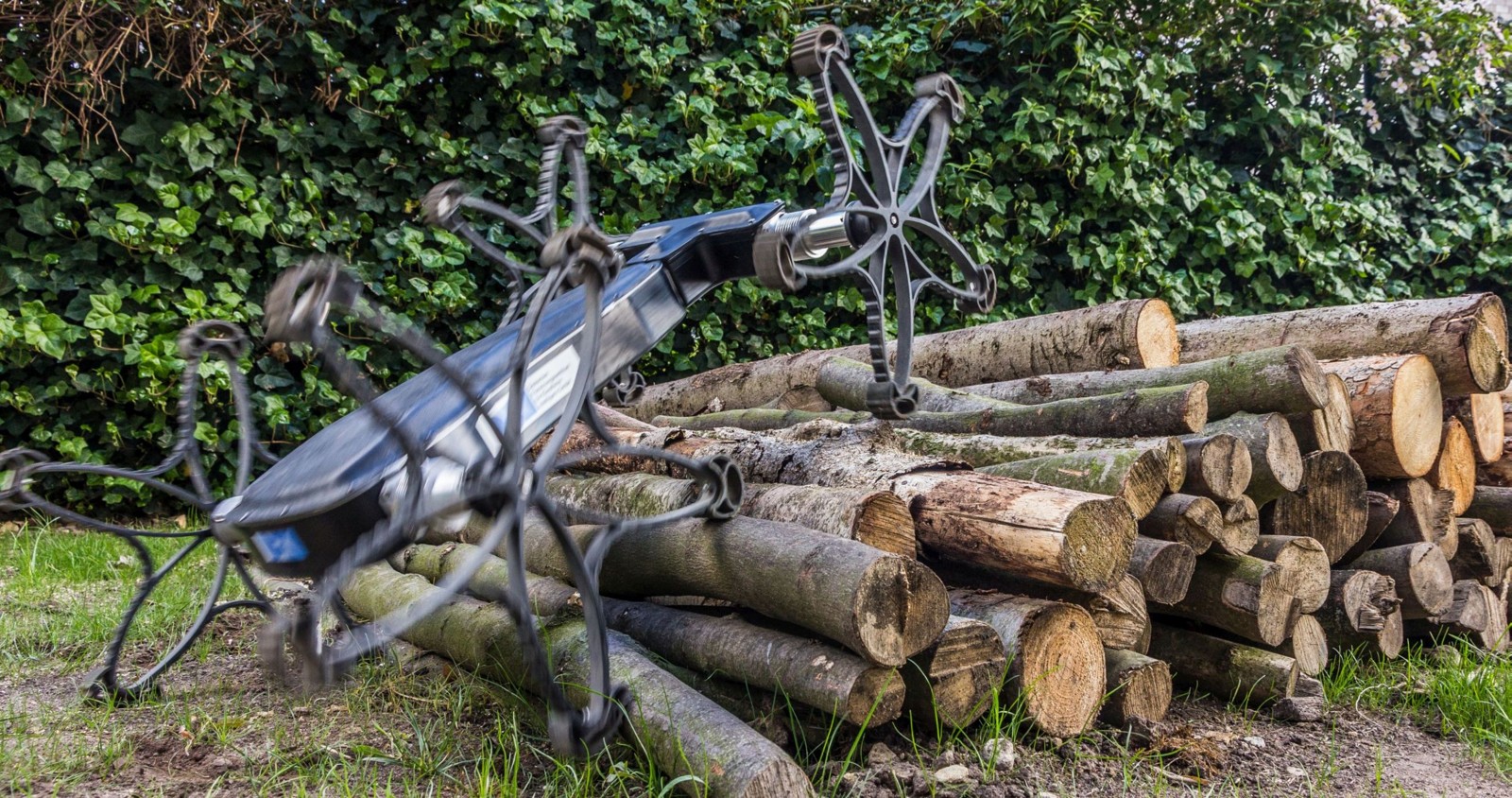

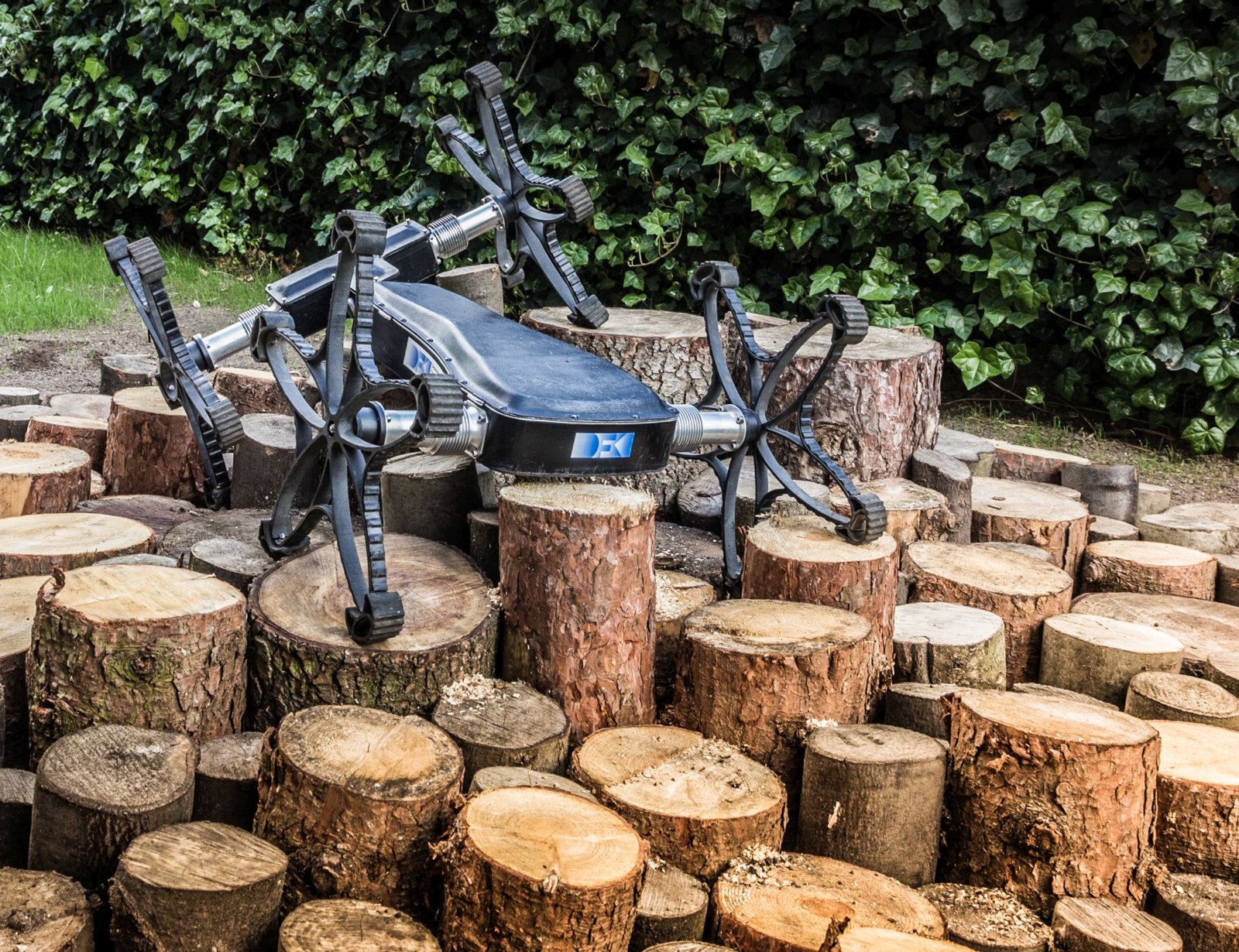

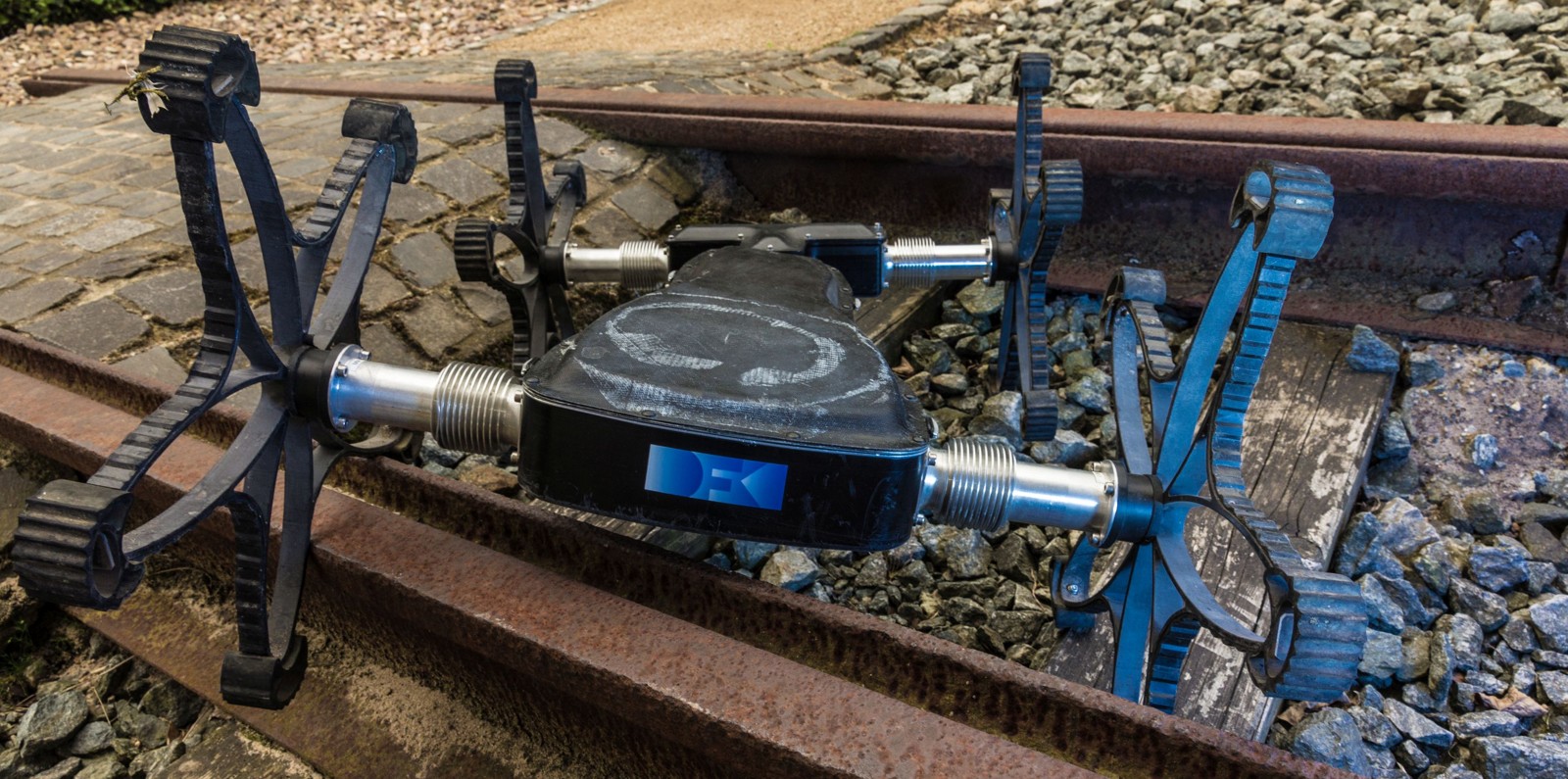

The TSV-X (terrestrial scouting vehicle) is DFKI Industrials' lighter leg-wheel hybrid rover for scouting in difficult outdoor environments. Four star-shaped leg-wheels driven by 80 W Faulhaber motors carry it over logs, rubble and rails, and it is teleoperated over a video link. It weighs 9.5 kg, measures 95 x 54 x 42 cm, carries 3 kg of payload and reaches 2 m/s with a 5 km range on a 10 Ah, 30 V lithium-polymer battery, using an 868 MHz ISM-band link for control and telemetry. Optional zoom and infrared cameras can be fitted. For more sensors, more computing and autonomous waypoint navigation, DFKI Industrials offers the TMV-X and TMV-A-X.
FEATURES
- Leg-wheel hybrid scouting rover
- teleoperated via video link
- 95 x 54 x 42 cm
- 9.5 kg
- payload 3 kg
- Up to 2 m/s
- 5 km range
- 30 V 10 Ah LiPo
- 4 x 80 W Faulhaber DC motors, planetary gear 46:1
- Motor encoders and current sensors
- optional zoom and IR cameras
- 868 MHz ISM-band control and telemetry
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 9.5 kg |
|---|---|
| Dimensions | L 950 mm × W 540 mm × H 420 mm |
| Payload | 3 kg |
| Mobility | |
| Movement Type | Hybrid |
| Speed | 7.2 km/h |
| Environment | Difficult outdoor terrain: logs, rubble, rails, gravel |
| Actuators | 4 x 80 W Faulhaber DC motors, planetary gear 46:1, leg-wheels |
| Power | |
| Battery Life | 300 Wh |
| Sensing & Compute | |
| Sensors | motor encoders, current sensors, zoom camera (option), IR camera (option) |
| Connectivity | 868 MHz ISM band |
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 9.5 kg |
|---|---|
| Dimensions | L 950 mm × W 540 mm × H 420 mm |
| Payload | 3 kg |
| Mobility | |
| Movement Type | Hybrid |
| Speed | 7.2 km/h |
| Environment | Difficult outdoor terrain: logs, rubble, rails, gravel |
| Actuators | 4 x 80 W Faulhaber DC motors, planetary gear 46:1, leg-wheels |
| Power | |
| Battery Life | 300 Wh |
| Sensing & Compute | |
| Sensors | motor encoders, current sensors, zoom camera (option), IR camera (option) |
| Connectivity | 868 MHz ISM band |
Images
martti
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the TSV-X?
The TSV-X (terrestrial scouting vehicle) is DFKI Industrials' lighter leg-wheel hybrid rover for scouting in difficult outdoor environments. Four star-shaped leg-wheels driven by 80 W Faulhaber motors carry it over logs, rubble and rails, and it is teleoperated over a video link.
Who makes the TSV-X?
The TSV-X is made by DFKI Industrials, a robotics company based in Germany.
How much does the TSV-X cost?
DFKI Industrials has not publicly announced pricing for the TSV-X. You can enquire through RobotAIGeek for current pricing.
What is the TSV-X used for?
The TSV-X is designed for exploration, inspection, monitoring, and remote scouting and reconnaissance in rough terrain. It is used in research and security & patrol settings.
What is the payload capacity of the TSV-X?
The TSV-X has a payload capacity of 3 kg.
How much does the TSV-X weigh?
The TSV-X weighs 9.5 kg.
How fast is the TSV-X?
The TSV-X can move at speeds of up to 7.2 km/h.
