DESCRIPTION
TMV-X is a Mobile-Robots from DFKI Industrials. It is built for Exploration, Inspection, Monitoring. Key figures: 16 kg, 3 kg payload.

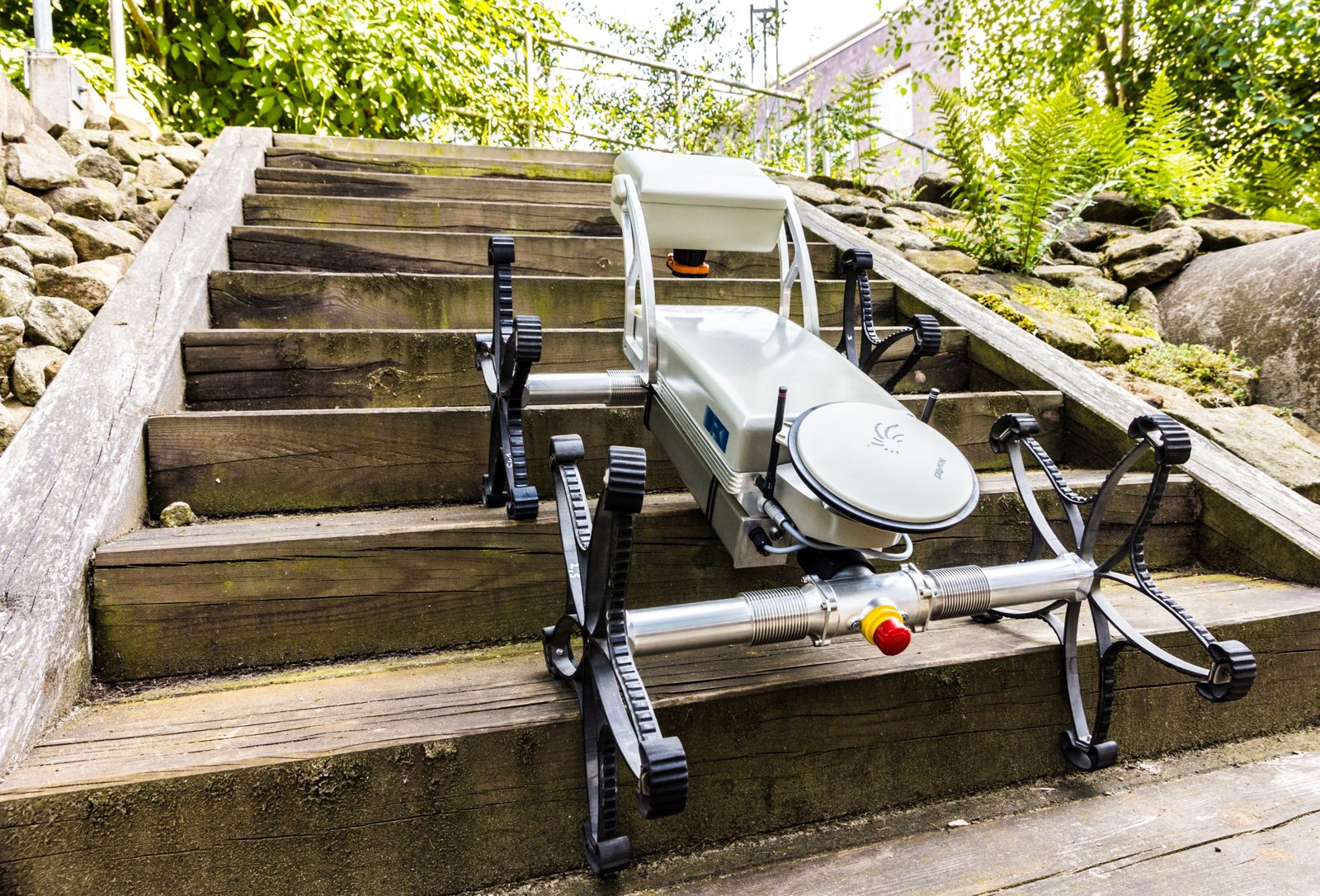

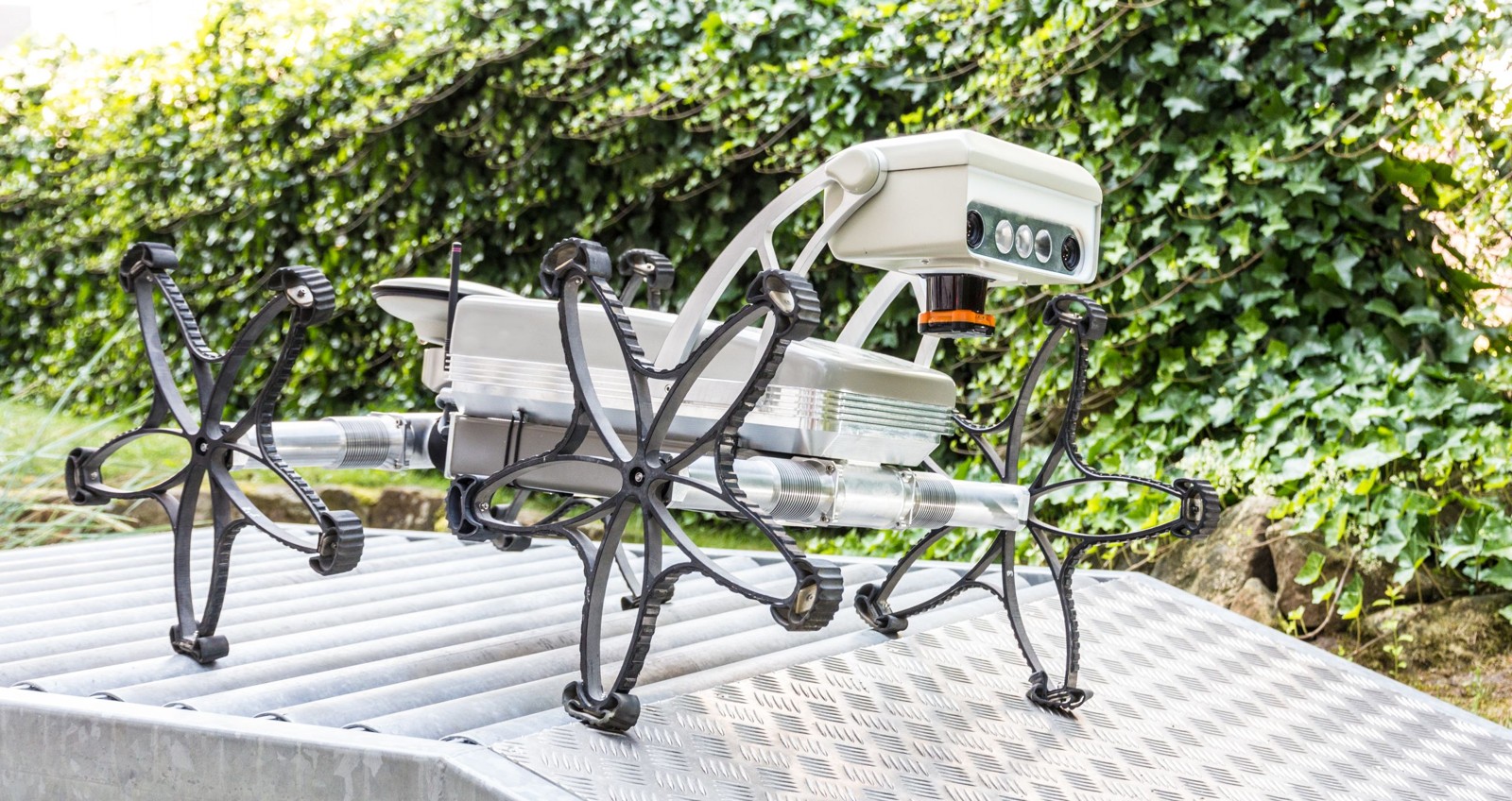

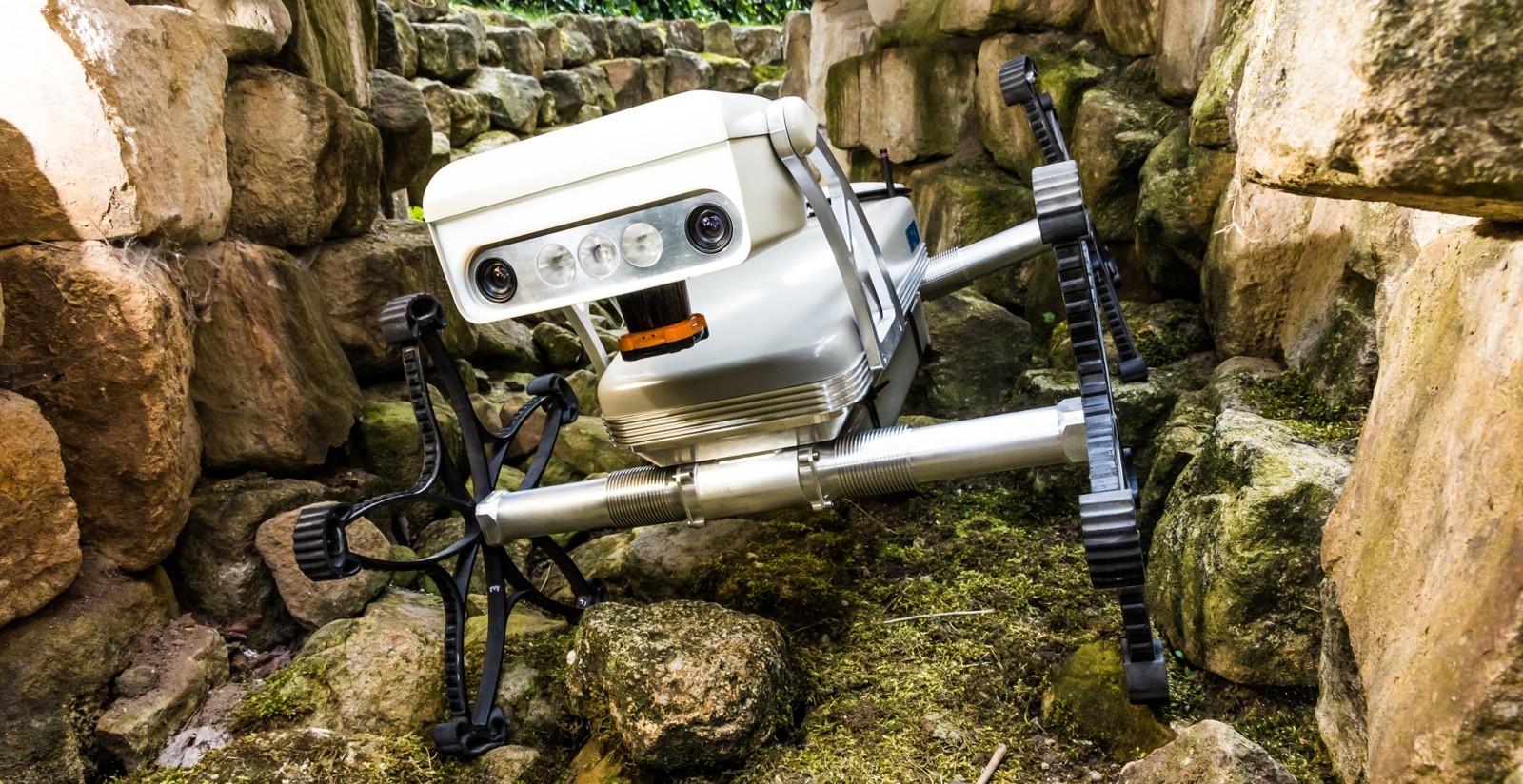

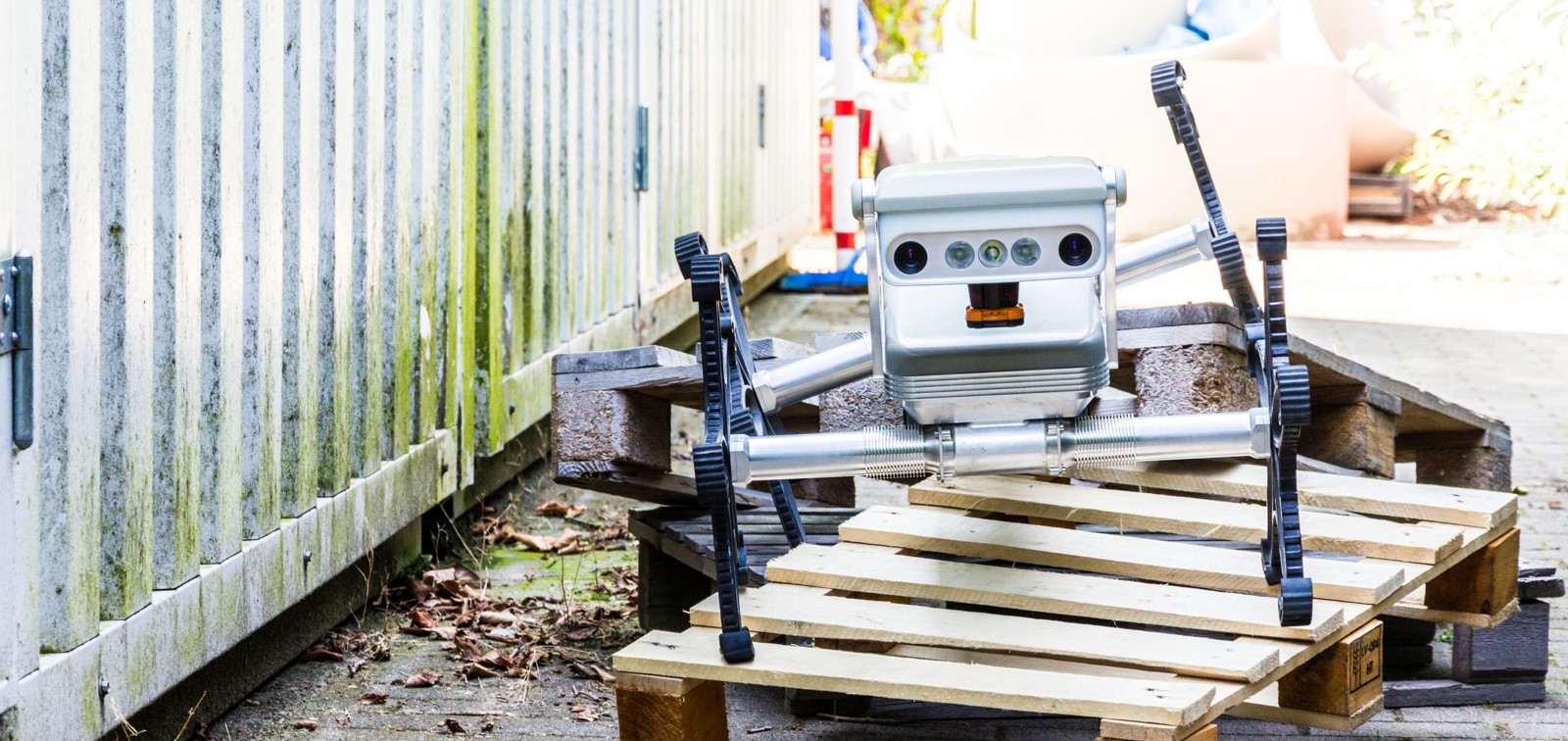

The TMV-X (terrestrial monitoring vehicle) is a leg-wheel hybrid rover from DFKI Industrials for monitoring in difficult outdoor environments. Its four star-shaped leg-wheels climb steps and rubble, and a sealed housing makes it waterproof. It weighs 16 kg, measures 0.935 x 0.56 x 0.5 m, carries 3 kg of payload and reaches 2 m/s with a 3 km range on two 32 V lithium-polymer packs. A Velodyne HDL-32E lidar (360 degrees, 70 m range) builds 3D maps, a stereo camera on a tilt head provides video for teleoperation and close-up inspection, and an Xsens IMU and RTK-GPS give orientation and position. An optional omnidirectional 'bird view' camera shows the vehicle and its surroundings from above for the operator. It is teleoperated over a video link, with telemetry on an 868 MHz long-range radio and sensor data over WLAN; the on-board quad-core PC pre-processes sensor data and builds partial 3D maps. An autonomous version, TMV-A-X, adds waypoint navigation with local obstacle avoidance.
FEATURES
- Leg-wheel hybrid rover with four 200 W motors (planetary gear 66:1)
- sealed, waterproof housing
- 0.935 x 0.56 x 0.5 m
- 16 kg
- payload 3 kg
- Up to 2 m/s
- 3 km range
- 2 x 32 V 5,000 mAh LiPo
- Velodyne HDL-32E lidar (360 deg, 70 m) for 3D mapping

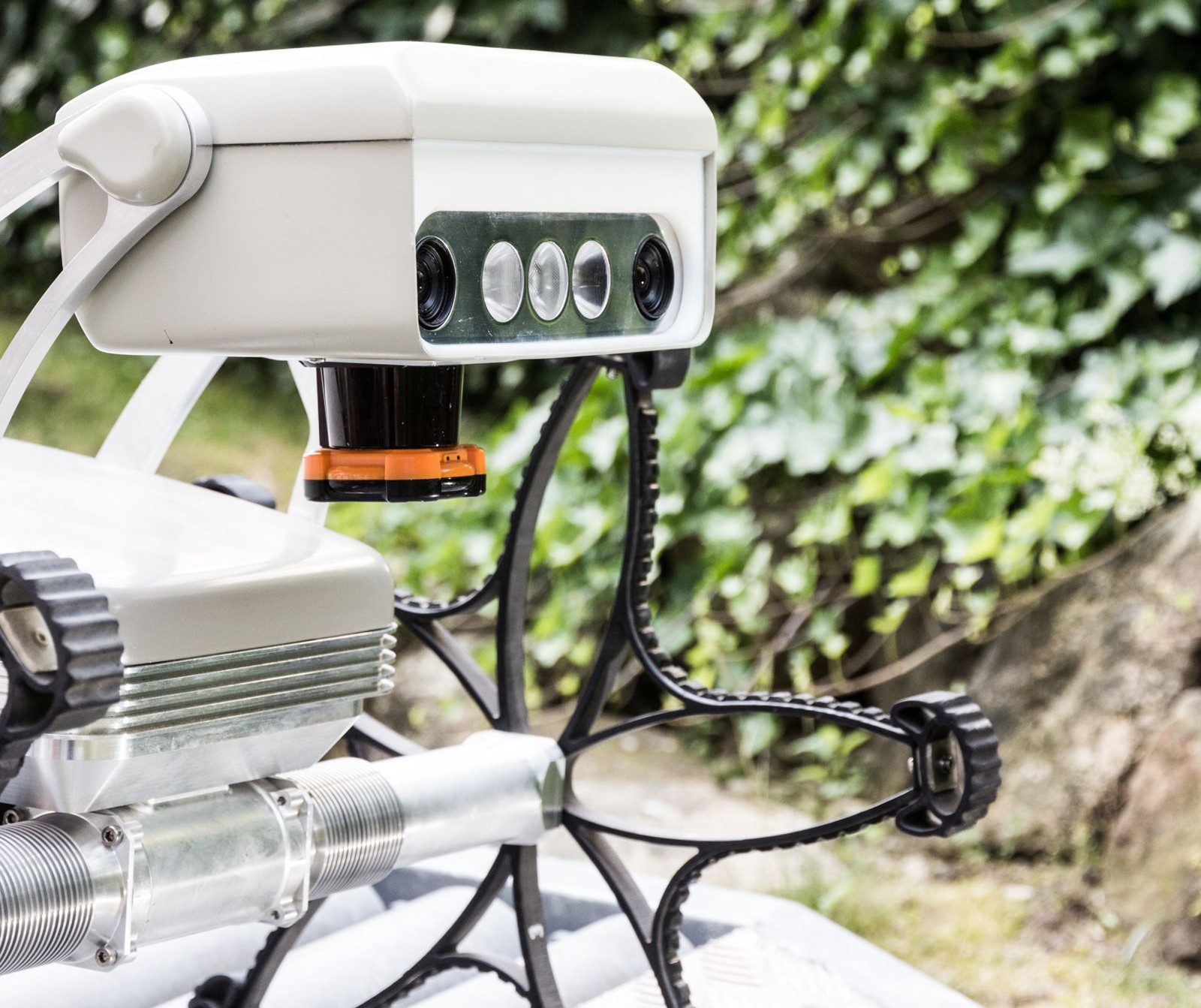

- Stereo camera on a tilt head
- Xsens IMU
- RTK-GPS
- Optional omnidirectional bird-view camera
- Teleoperation via video link
- 868 MHz long-range telemetry
- WLAN data
- Autonomous variant TMV-A-X with waypoint navigation and obstacle avoidance
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 16 kg |
|---|---|
| Dimensions | L 935 mm × W 560 mm × H 500 mm |
| Payload | 3 kg |
| Mobility | |
| Movement Type | Hybrid |
| Speed | 7.2 km/h |
| Environment | Difficult outdoor terrain, stairs, rubble and wet conditions (sealed, waterproof housing) |
| Actuators | 4 x 200 W DC motors, planetary gear 66:1, leg-wheels |
| Sensing & Compute | |
| Sensors | Velodyne HDL-32E lidar, stereo camera, Xsens IMU, RTK-GPS, omnidirectional camera (option) |
| Connectivity | WLAN; 868 MHz long-range RF modem |
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 16 kg |
|---|---|
| Dimensions | L 935 mm × W 560 mm × H 500 mm |
| Payload | 3 kg |
| Mobility | |
| Movement Type | Hybrid |
| Speed | 7.2 km/h |
| Environment | Difficult outdoor terrain, stairs, rubble and wet conditions (sealed, waterproof housing) |
| Actuators | 4 x 200 W DC motors, planetary gear 66:1, leg-wheels |
| Sensing & Compute | |
| Sensors | Velodyne HDL-32E lidar, stereo camera, Xsens IMU, RTK-GPS, omnidirectional camera (option) |
| Connectivity | WLAN; 868 MHz long-range RF modem |
Images
martti
martti
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the TMV-X?
The TMV-X (terrestrial monitoring vehicle) is a leg-wheel hybrid rover from DFKI Industrials for monitoring in difficult outdoor environments. Its four star-shaped leg-wheels climb steps and rubble, and a sealed housing makes it waterproof.
Who makes the TMV-X?
The TMV-X is made by DFKI Industrials, a robotics company based in Germany.
How much does the TMV-X cost?
DFKI Industrials has not publicly announced pricing for the TMV-X. You can enquire through RobotAIGeek for current pricing.
What is the TMV-X used for?
The TMV-X is designed for exploration, inspection, monitoring, and terrestrial monitoring, 3d mapping and remote inspection. It is used in research and security & patrol settings.
What is the payload capacity of the TMV-X?
The TMV-X has a payload capacity of 3 kg.
How much does the TMV-X weigh?
The TMV-X weighs 16 kg.
How fast is the TMV-X?
The TMV-X can move at speeds of up to 7.2 km/h.
