DESCRIPTION
TMN-FP20-HL0-AE is an Industrial-Robot from MyBull. It is built for Intralogistics, Lifting, Loading. Key figures: 480 min runtime, 2000 kg payload.

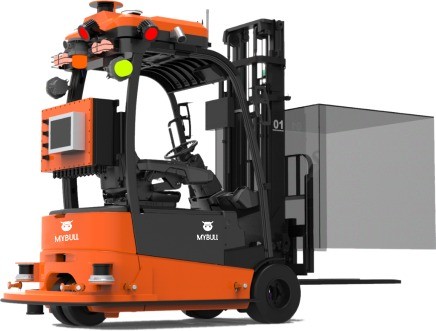

The TMN-FP20-HL0-AE is MyBull's explosion-proof autonomous counterbalance forklift for flammable and explosive environments in oil, gas and chemical plants, certified for both gas and dust hazardous atmospheres and able to keep working in rain. Like the standard FP20 it fuses 3D SLAM and inertial navigation, recognises obstacles in 3D, avoids moving obstacles and detours intelligently, and can be monitored remotely. The 3,750 x 1,420 x 2,400 mm truck lifts to 2,800 mm (customisable), positions to within +/-5 cm both on the move and at stations, travels at up to 7 km/h empty and 5 km/h loaded, turns within 2,200 mm, climbs 15 % grades (10 % loaded) and runs 6-8 hours at a mixed duty cycle, with IP54 protection.
FEATURES
- Explosion-proof for flammable and explosive gas and dust atmospheres
- works in rain
- Rated capacity 2 t (model designation)
- lift height 2,800 mm (customisable)
- 3,750 x 1,420 x 2,400 mm
- Navigation: multi-source fusion (3D SLAM + IMU)
- positioning and station repeatability within +/-5 cm
- 3D obstacle recognition
- dynamic avoidance
- intelligent detouring
- remote monitoring
- Speed 7 km/h unloaded, 5 km/h loaded
- turning radius 2,200 mm or less
- Gradeability 15 % unloaded / 10 % loaded
- Battery life 6-8 h (50 % loaded)
- IP54
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Dimensions | L 3.75 m × W 1.42 m × H 2.4 m |
|---|---|
| Payload | 2000 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 7 km/h |
| Environment | Indoor and outdoor industrial sites, -20 to 50 C, IP54 (main body) |
| Power | |
| Battery Life | 480 min |
| Sensing & Compute | |
| Sensors | 3D LiDAR (3D SLAM), IMU |
| Connectivity | FleetMind fleet scheduling; WiseBull autonomous-driving platform |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Dimensions | L 3.75 m × W 1.42 m × H 2.4 m |
|---|---|
| Payload | 2000 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 7 km/h |
| Environment | Indoor and outdoor industrial sites, -20 to 50 C, IP54 (main body) |
| Power | |
| Battery Life | 480 min |
| Sensing & Compute | |
| Sensors | 3D LiDAR (3D SLAM), IMU |
| Connectivity | FleetMind fleet scheduling; WiseBull autonomous-driving platform |
Images
martti
Image Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the TMN-FP20-HL0-AE?
The TMN-FP20-HL0-AE is MyBull's explosion-proof autonomous counterbalance forklift for flammable and explosive environments in oil, gas and chemical plants, certified for both gas and dust hazardous atmospheres and able to keep working in rain.
Who makes the TMN-FP20-HL0-AE?
The TMN-FP20-HL0-AE is made by MyBull, a robotics company based in China.
How much does the TMN-FP20-HL0-AE cost?
MyBull has not publicly announced pricing for the TMN-FP20-HL0-AE. You can enquire through RobotAIGeek for current pricing.
What is the TMN-FP20-HL0-AE used for?
The TMN-FP20-HL0-AE is designed for intralogistics, lifting, loading, and material-handling. It is used in automotive, warehouse & logistics, and manufacturing settings.
What is the payload capacity of the TMN-FP20-HL0-AE?
The TMN-FP20-HL0-AE has a payload capacity of 2,000 kg.
How fast is the TMN-FP20-HL0-AE?
The TMN-FP20-HL0-AE can move at speeds of up to 7 km/h.
What is the battery life of the TMN-FP20-HL0-AE?
The TMN-FP20-HL0-AE runs for about 480 minutes on a charge.
