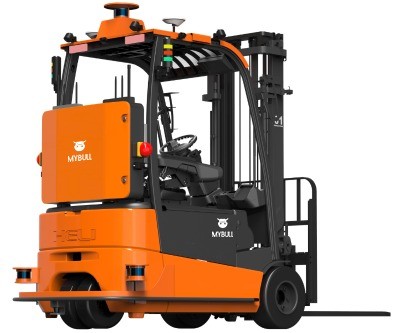

TMN-FP20

DESCRIPTION

TMN-FP20 is an Industrial-Robot from MyBull. It is built for Intralogistics, Lifting, Loading. Key figures: 4500 kg, 480 min runtime, 2000 kg payload.

The TMN-FP20 is MyBull's autonomous counterbalance forklift with a 2-tonne rated capacity and a 3,200 mm lift (customisable). Multi-line LiDAR, RTK and inertial navigation fused by SLAM give centimetre-level navigation accuracy, while visual, single-line and multi-line laser, photoelectric and collision sensors identify pallets, goods and production-line stations so it can locate, pick, transport and stack loads on its own, with 3D obstacle recognition, dynamic avoidance and intelligent detours. The 3,450 x 1,300 x 2,350 mm, 4,500 kg truck travels at 7 km/h empty and 5 km/h loaded, positions to +/-30 mm, crosses 50 mm gaps and 30 mm obstacles, climbs 15 % grades (13 % loaded), runs at least eight hours at a mixed duty cycle and works from -20 to 50 C with IP54 protection; it can be remotely monitored.

FEATURES
