DESCRIPTION

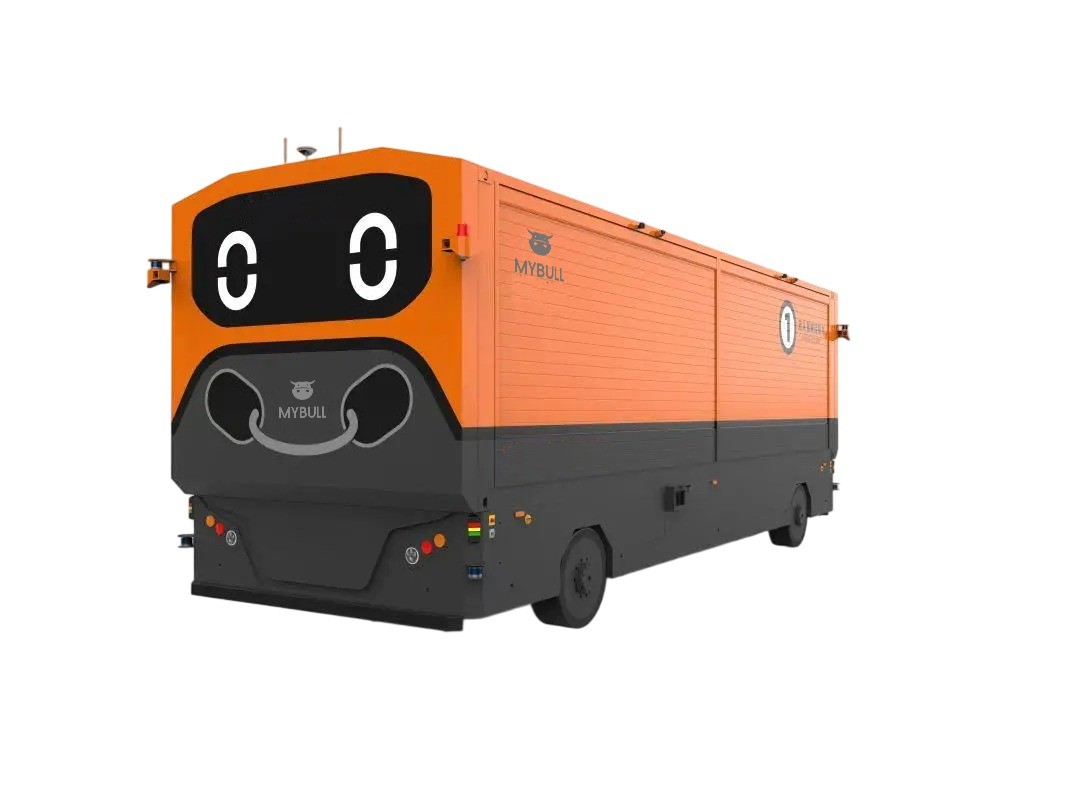

TMN-C200 is an Industrial-Robot from MyBull. It is built for Heavy-Load-Transportation, Intralogistics, Material-Handling. Key figures: 13000 kg, 480 min runtime, 20000 kg payload.
The TMN-C200 is MyBull's heavy autonomous flatbed carrier, rated to carry 20 tonnes on driverless routes through complex indoor and outdoor areas of factories, automotive plants, ports and food-processing sites; it can also tow and push. Multi-source fusion positioning (3D SLAM + RTK + IMU), multi-vehicle coordination and 360-degree safety protection with blind-spot, obstacle and collision detection let it share sites with people and other vehicles. The 8,050 x 2,800 x 3,300 mm, 13,000 kg vehicle reaches 15 km/h empty and 10 km/h loaded, positions to +/-50 mm, climbs 14 % grades (8 % loaded), clears 100 mm obstacles and runs at least eight hours between -20 and 50 C, with IP54 protection.
FEATURES
- Load capacity 20,000 kg
- can also tow and push
- 8,050 x 2,800 x 3,300 mm
- 13,000 kg
- Navigation: multi-source fusion (3D SLAM + RTK + IMU)
- multi-vehicle coordination
- Max. speed 15 km/h unloaded, 10 km/h fully loaded
- Gradeability 14 % unloaded, 8 % loaded
- obstacle clearance 100 mm
- Positioning accuracy +/-50 mm
- battery life at least 8 h
- 360-degree safety protection
- customisable digital twin
- Operating temperature -20 to 50 C
- IP54 main body
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 13000 kg |
|---|---|
| Dimensions | L 8.05 m × W 2.8 m × H 3.3 m |
| Payload | 20000 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 15 km/h |
| Environment | Indoor and outdoor industrial sites, -20 to 50 C, IP54 (main body) |
| Power | |
| Battery Life | 480 min |
| Sensing & Compute | |
| Sensors | 3D LiDAR (3D SLAM), RTK-GNSS, IMU |
| Connectivity | FleetMind fleet scheduling; WiseBull autonomous-driving platform |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 13000 kg |
|---|---|
| Dimensions | L 8.05 m × W 2.8 m × H 3.3 m |
| Payload | 20000 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 15 km/h |
| Environment | Indoor and outdoor industrial sites, -20 to 50 C, IP54 (main body) |
| Power | |
| Battery Life | 480 min |
| Sensing & Compute | |
| Sensors | 3D LiDAR (3D SLAM), RTK-GNSS, IMU |
| Connectivity | FleetMind fleet scheduling; WiseBull autonomous-driving platform |
Images
martti
Image Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the TMN-C200?
The TMN-C200 is MyBull's heavy autonomous flatbed carrier, rated to carry 20 tonnes on driverless routes through complex indoor and outdoor areas of factories, automotive plants, ports and food-processing sites; it can also tow and push.
Who makes the TMN-C200?
The TMN-C200 is made by MyBull, a robotics company based in China.
How much does the TMN-C200 cost?
MyBull has not publicly announced pricing for the TMN-C200. You can enquire through RobotAIGeek for current pricing.
What is the TMN-C200 used for?
The TMN-C200 is designed for heavy-load-transportation, intralogistics, material-handling, and transport. It is used in automotive, warehouse & logistics, and manufacturing settings.
What is the payload capacity of the TMN-C200?
The TMN-C200 has a payload capacity of 20,000 kg.
How much does the TMN-C200 weigh?
The TMN-C200 weighs 13,000 kg.
How fast is the TMN-C200?
The TMN-C200 can move at speeds of up to 15 km/h.
What is the battery life of the TMN-C200?
The TMN-C200 runs for about 480 minutes on a charge.
