DESCRIPTION

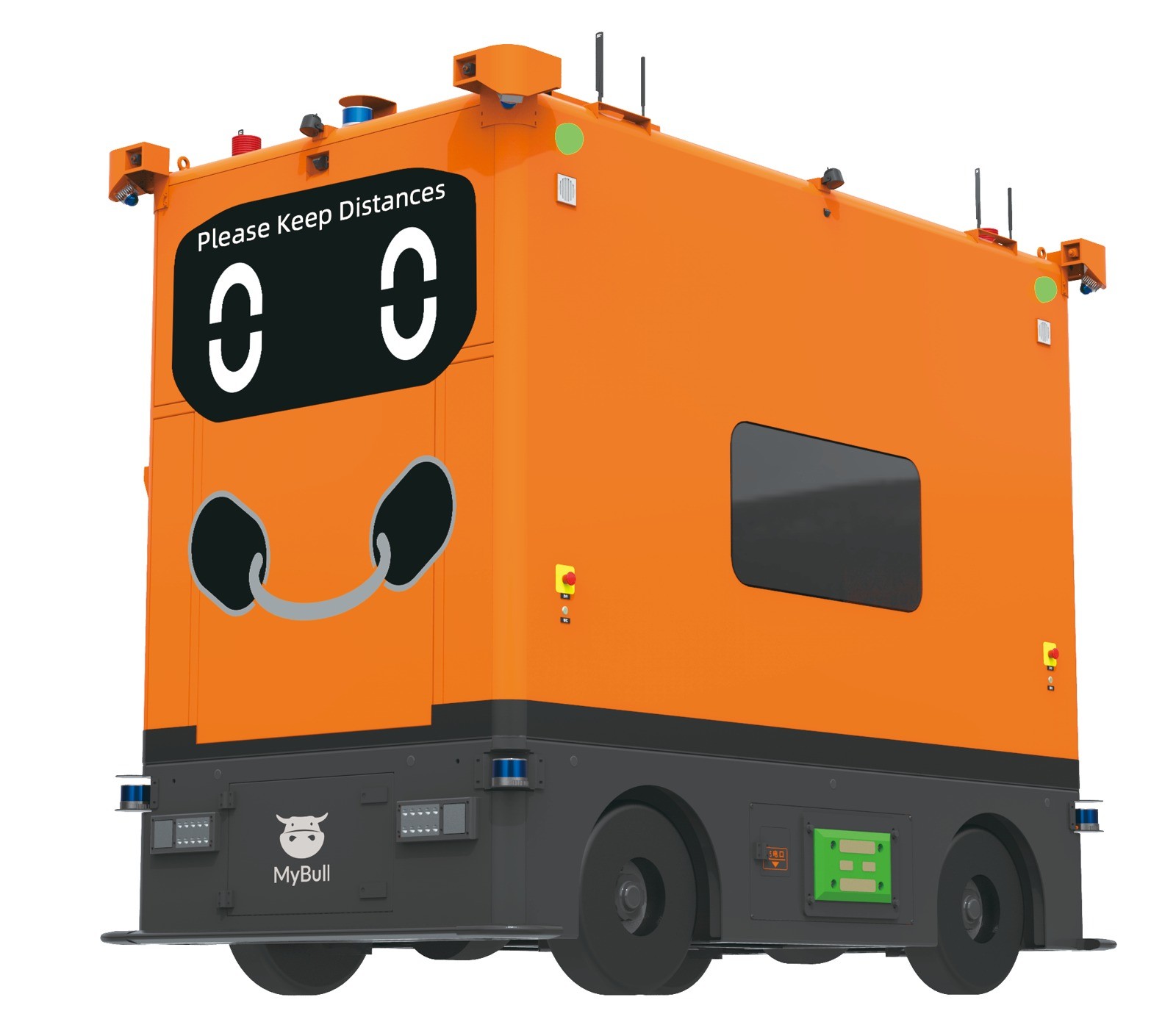

TMN-C20 is an Industrial-Robot from MyBull. It is built for Heavy-Load-Transportation, Intralogistics, Material-Handling. Key figures: 2500 kg, 480 min runtime, 2000 kg payload.
The TMN-C20 is MyBull's autonomous flatbed carrier for driverless transport of up to 2 tonnes across complex indoor and outdoor routes in factories, automotive plants, ports and food processing; it can also tow and push. It localises by multi-source fusion (3D SLAM + RTK + IMU), coordinates with other vehicles in a fleet and protects a 360-degree zone with blind-spot, obstacle and collision detection and emergency stops; MyBull reports deployments moving materials between buildings at a semiconductor plant. The 3,200 x 1,800 x 2,750 mm, 2,500 kg vehicle reaches 20 km/h empty and 15 km/h loaded, positions to +/-50 mm, climbs 14 % grades (10 % loaded), clears 80 mm obstacles and runs at least eight hours between -20 and 50 C, with IP54 protection.
FEATURES
- Load capacity 2,000 kg
- can also tow and push
- 3,200 x 1,800 x 2,750 mm
- 2,500 kg
- Navigation: multi-source fusion (3D SLAM + RTK + IMU)
- multi-vehicle coordination
- Max. speed 20 km/h unloaded, 15 km/h fully loaded
- Gradeability 14 % unloaded, 10 % loaded
- obstacle clearance 80 mm
- Positioning accuracy +/-50 mm
- battery life at least 8 h
- 360-degree safety protection
- customisable digital twin
- Operating temperature -20 to 50 C
- IP54 main body
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 2500 kg |
|---|---|
| Dimensions | L 3.2 m × W 1.8 m × H 2.75 m |
| Payload | 2000 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 20 km/h |
| Environment | Indoor and outdoor industrial sites, -20 to 50 C, IP54 (main body) |
| Power | |
| Battery Life | 480 min |
| Sensing & Compute | |
| Sensors | 3D LiDAR (3D SLAM), RTK-GNSS, IMU |
| Connectivity | FleetMind fleet scheduling; WiseBull autonomous-driving platform |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 2500 kg |
|---|---|
| Dimensions | L 3.2 m × W 1.8 m × H 2.75 m |
| Payload | 2000 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 20 km/h |
| Environment | Indoor and outdoor industrial sites, -20 to 50 C, IP54 (main body) |
| Power | |
| Battery Life | 480 min |
| Sensing & Compute | |
| Sensors | 3D LiDAR (3D SLAM), RTK-GNSS, IMU |
| Connectivity | FleetMind fleet scheduling; WiseBull autonomous-driving platform |
Images
martti
Image Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the TMN-C20?
The TMN-C20 is MyBull's autonomous flatbed carrier for driverless transport of up to 2 tonnes across complex indoor and outdoor routes in factories, automotive plants, ports and food processing; it can also tow and push.
Who makes the TMN-C20?
The TMN-C20 is made by MyBull, a robotics company based in China.
How much does the TMN-C20 cost?
MyBull has not publicly announced pricing for the TMN-C20. You can enquire through RobotAIGeek for current pricing.
What is the TMN-C20 used for?
The TMN-C20 is designed for heavy-load-transportation, intralogistics, material-handling, and transport. It is used in automotive, warehouse & logistics, and manufacturing settings.
What is the payload capacity of the TMN-C20?
The TMN-C20 has a payload capacity of 2,000 kg.
How much does the TMN-C20 weigh?
The TMN-C20 weighs 2,500 kg.
How fast is the TMN-C20?
The TMN-C20 can move at speeds of up to 20 km/h.
What is the battery life of the TMN-C20?
The TMN-C20 runs for about 480 minutes on a charge.
