DESCRIPTION
TAGON Heavy Lifter is an Industrial-Robot from 3S Robotics. It is built for Heavy-Load-Transportation, Intralogistics, Material-Handling. Key figures: 200 kg, 480 min runtime, 1000 kg payload.

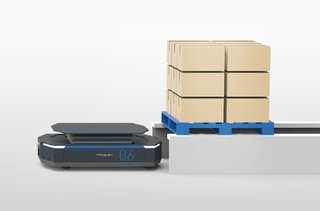

The TAGON Heavy Lifter is 3S Robotics' low-profile heavy-load AGV for factory logistics, built to move pallets and other large loads of up to 1,000 kg close to the floor. Customers can load goods directly onto the 280 mm-high chassis or fit upper modules such as a lifter or a roller conveyor, so the same base serves pallet transfer between lines, conveyors and storage. It uses a differential drive that moves forward and rotates in place at up to 1 m/s with +/-10 mm driving accuracy, follows optical or magnetic guidance, and detects obstacles 2 m ahead (up to 4 m). A 48 V, 50 Ah battery gives about 8 hours of running without load and recharges in up to 3 hours, manually or automatically, and the robot is dispatched over Wi-Fi by 3S Robotics' ILC logistics control system, which tracks every transfer in real time. It measures 1,150 x 900 x 280 mm and weighs 200 kg.
FEATURES
- Low-profile heavy-load AGV for pallets and large loads
- Rated load 1,000 kg
- direct loading or lifter / roller-conveyor attachments
- Max speed 1 m/s
- driving accuracy +/-10 mm
- Differential drive: forward and rotation
- Optical or magnetic guidance
- obstacle detection 2 m (max 4 m)
- 48 V, 50 Ah battery
- 8 h running (no load)
- charging up to 3 h, manual or automatic
- Wi-Fi
- dispatched by ILC logistics control system
- 1,150 x 900 x 280 mm
- 200 kg
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 200 kg |
|---|---|
| Dimensions | L 1.15 m × W 900 mm × H 280 mm |
| Payload | 1000 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 3.6 km/h |
| Environment | Indoor factories and warehouses |
| Power | |
| Battery Life | 480 min |
| Sensing & Compute | |
| Sensors | obstacle detection sensor (2 m, max 4 m), optical / magnetic guidance sensor |
| Connectivity | Wi-Fi; ILC fleet control |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 200 kg |
|---|---|
| Dimensions | L 1.15 m × W 900 mm × H 280 mm |
| Payload | 1000 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 3.6 km/h |
| Environment | Indoor factories and warehouses |
| Power | |
| Battery Life | 480 min |
| Sensing & Compute | |
| Sensors | obstacle detection sensor (2 m, max 4 m), optical / magnetic guidance sensor |
| Connectivity | Wi-Fi; ILC fleet control |
Images
martti
Image Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the TAGON Heavy Lifter?
The TAGON Heavy Lifter is 3S Robotics' low-profile heavy-load AGV for factory logistics, built to move pallets and other large loads of up to 1,000 kg close to the floor.
Who makes the TAGON Heavy Lifter?
The TAGON Heavy Lifter is made by 3S Robotics, a robotics company based in South Korea.
How much does the TAGON Heavy Lifter cost?
3S Robotics has not publicly announced pricing for the TAGON Heavy Lifter. You can enquire through RobotAIGeek for current pricing.
What is the TAGON Heavy Lifter used for?
The TAGON Heavy Lifter is designed for heavy-load-transportation, intralogistics, material-handling, and pallet-transportation. It is used in automotive, electronics, warehouse & logistics, and manufacturing settings.
What is the payload capacity of the TAGON Heavy Lifter?
The TAGON Heavy Lifter has a payload capacity of 1,000 kg.
How much does the TAGON Heavy Lifter weigh?
The TAGON Heavy Lifter weighs 200 kg.
How fast is the TAGON Heavy Lifter?
The TAGON Heavy Lifter can move at speeds of up to 3.6 km/h.
What is the battery life of the TAGON Heavy Lifter?
The TAGON Heavy Lifter runs for about 480 minutes on a charge.
