DESCRIPTION

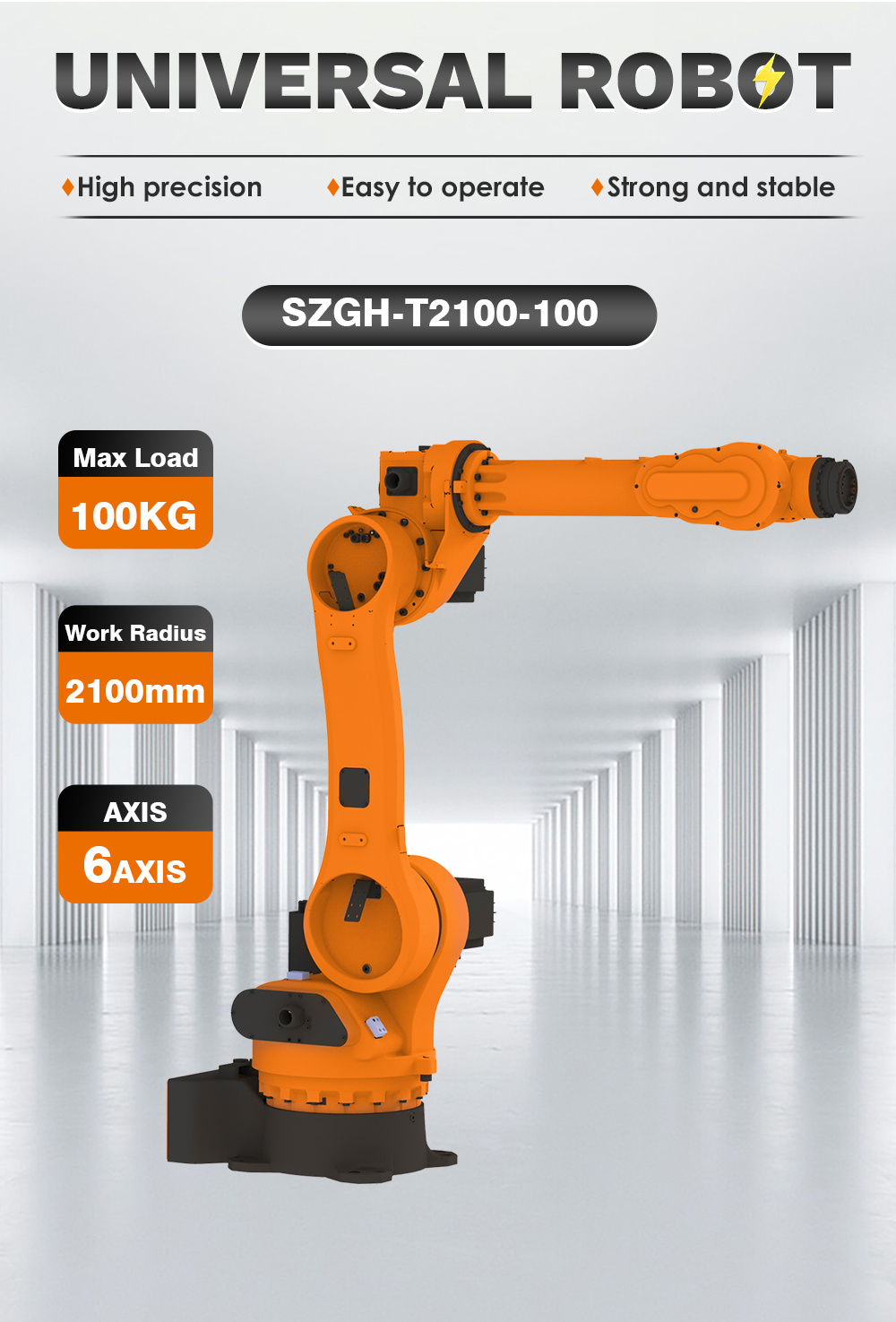

The SZGH-T2100-100C is a 6-axis industrial robot from Shenzhen Guanhong Automation (SZGH), rated to carry 100 kg with a maximum reach of 2100mm. SZGH describes it as built for high-speed, stable operation, with an aluminium body for low inertia and RV reducers for accuracy.
FEATURES
- Payload: 100kg
- Reach: 2100mm
- 6 controlled axes
- Repeatability: ±0.08mm
- Robot mass: 520kg
- Structure: Integrated
- Mounting: Floor mounted Ceiling mounted
- Ambient temperature: 0°C~45°C

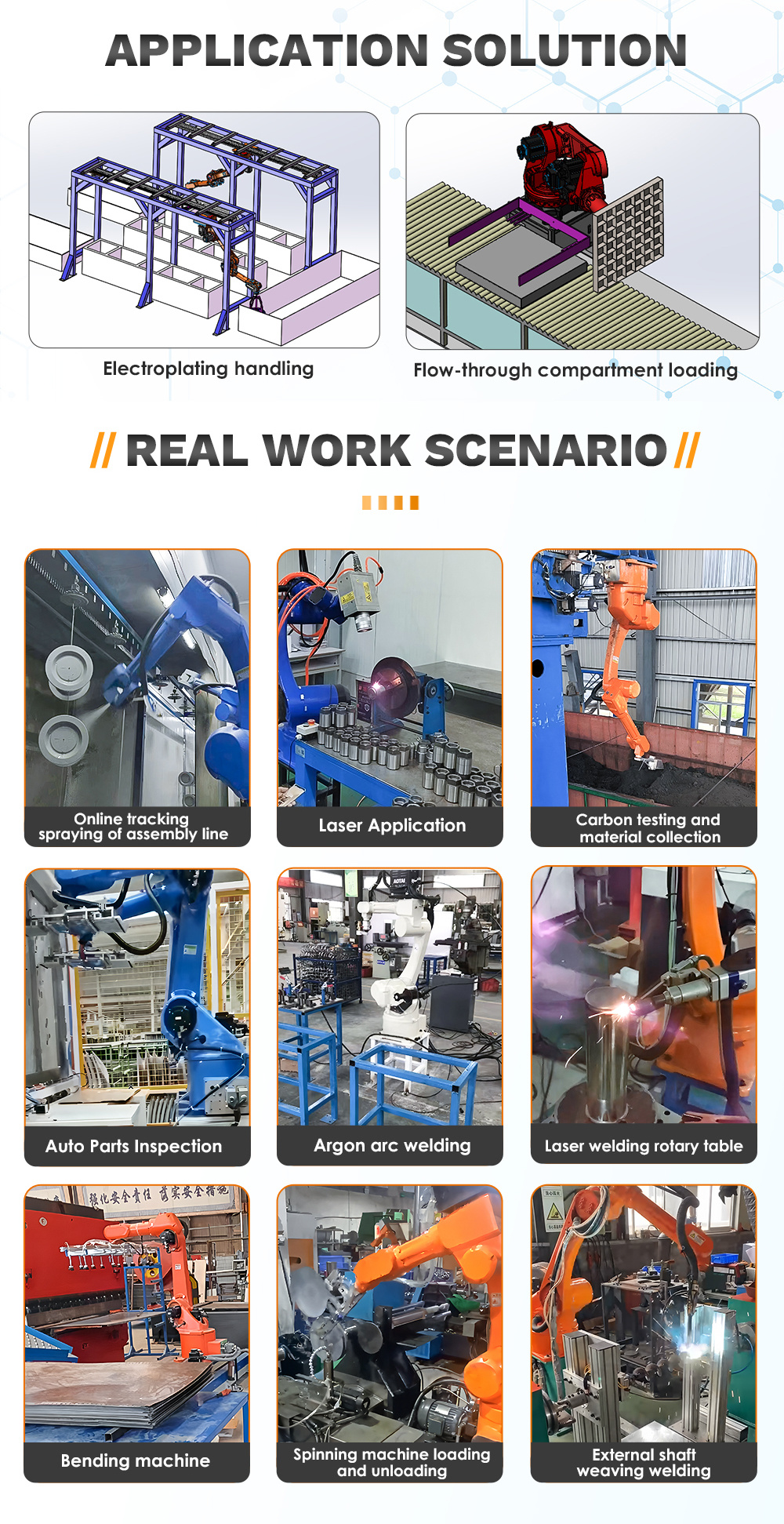

- Applications: Fully automated stamping line, Automatic loading and unloading of saw blades
- Warranty period: 2 Years
- Replaces manual palletizing, efficiency increased by 300%
- The main body is made of aluminum with lightweight design
- small inertia, 25% faster acceleration
- RV reducer has higher accuracy and reduces downtime
- Applicable material types: cartons, woven bags, plastic barrels, pallets, etc. Optional fixtures: suction cups, grippers, clamps, to achieve multi-material switching
- Supports multiple communication modes, including EtherCAT, Profinet, Ethernet/IP, OPCUACA, etc

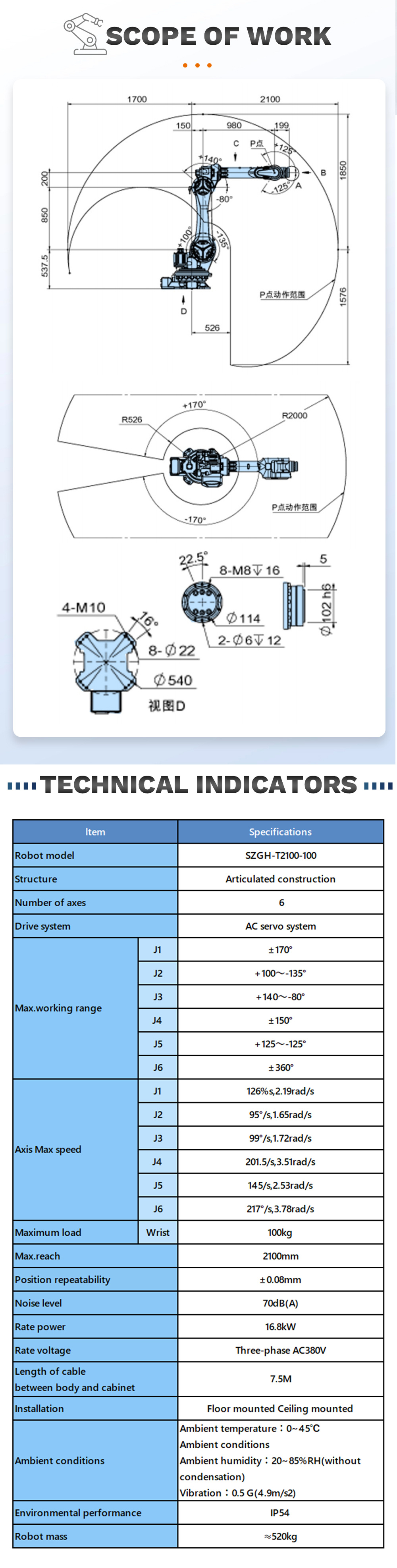

TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 520 kg |
|---|---|
| Payload | 100 kg |
| Reach | 2.1 m |
| Repeatability | ±0.08 mm |
| Mobility | |
| Movement Type | Stationary |
| Degrees of Freedom | 6 |
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 520 kg |
|---|---|
| Payload | 100 kg |
| Reach | 2.1 m |
| Repeatability | ±0.08 mm |
| Mobility | |
| Movement Type | Stationary |
| Degrees of Freedom | 6 |
Images
Image Contributions
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the SZGH-T2100-100C?
The SZGH-T2100-100C is a 6-axis industrial robot from Shenzhen Guanhong Automation (SZGH), rated to carry 100 kg with a maximum reach of 2100mm. SZGH describes it as built for high-speed, stable operation, with an aluminium body for low inertia and RV reducers for accuracy.
Who makes the SZGH-T2100-100C?
The SZGH-T2100-100C is made by Shenzhen Guanhong Automation, a robotics company based in China.
How much does the SZGH-T2100-100C cost?
Shenzhen Guanhong Automation has not publicly announced pricing for the SZGH-T2100-100C. You can enquire through RobotAIGeek for current pricing.
What is the SZGH-T2100-100C used for?
The SZGH-T2100-100C is designed for intralogistics, material-handling, and palletizing. It is used in manufacturing settings.
What is the payload capacity of the SZGH-T2100-100C?
The SZGH-T2100-100C has a payload capacity of 100 kg and a reach of 2.1 m.
How much does the SZGH-T2100-100C weigh?
The SZGH-T2100-100C weighs 520 kg.
How many degrees of freedom does the SZGH-T2100-100C have?
The SZGH-T2100-100C has 6 degrees of freedom.
