DESCRIPTION

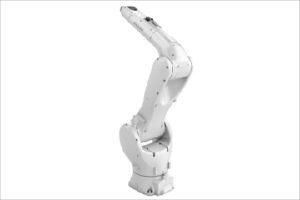

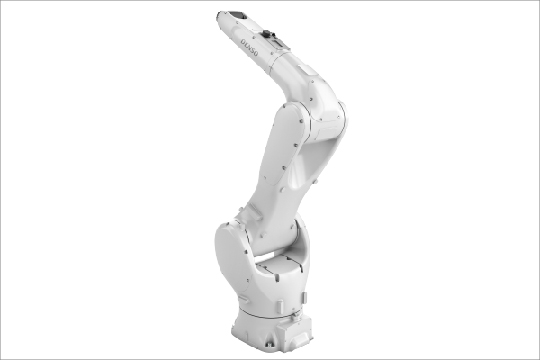

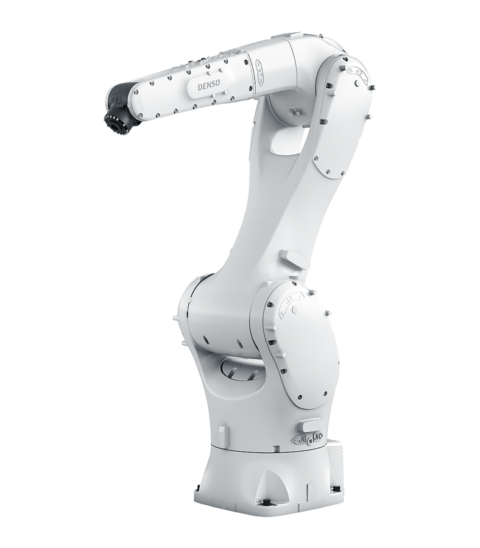

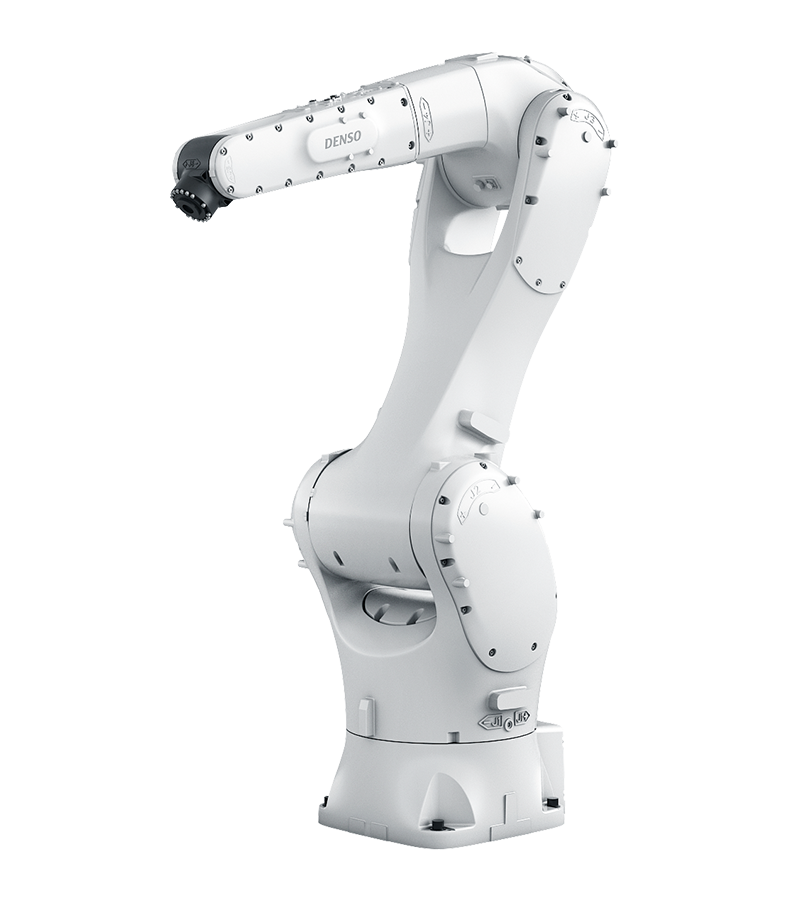

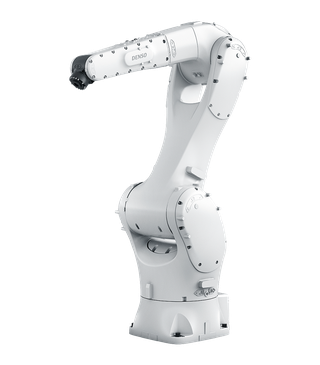

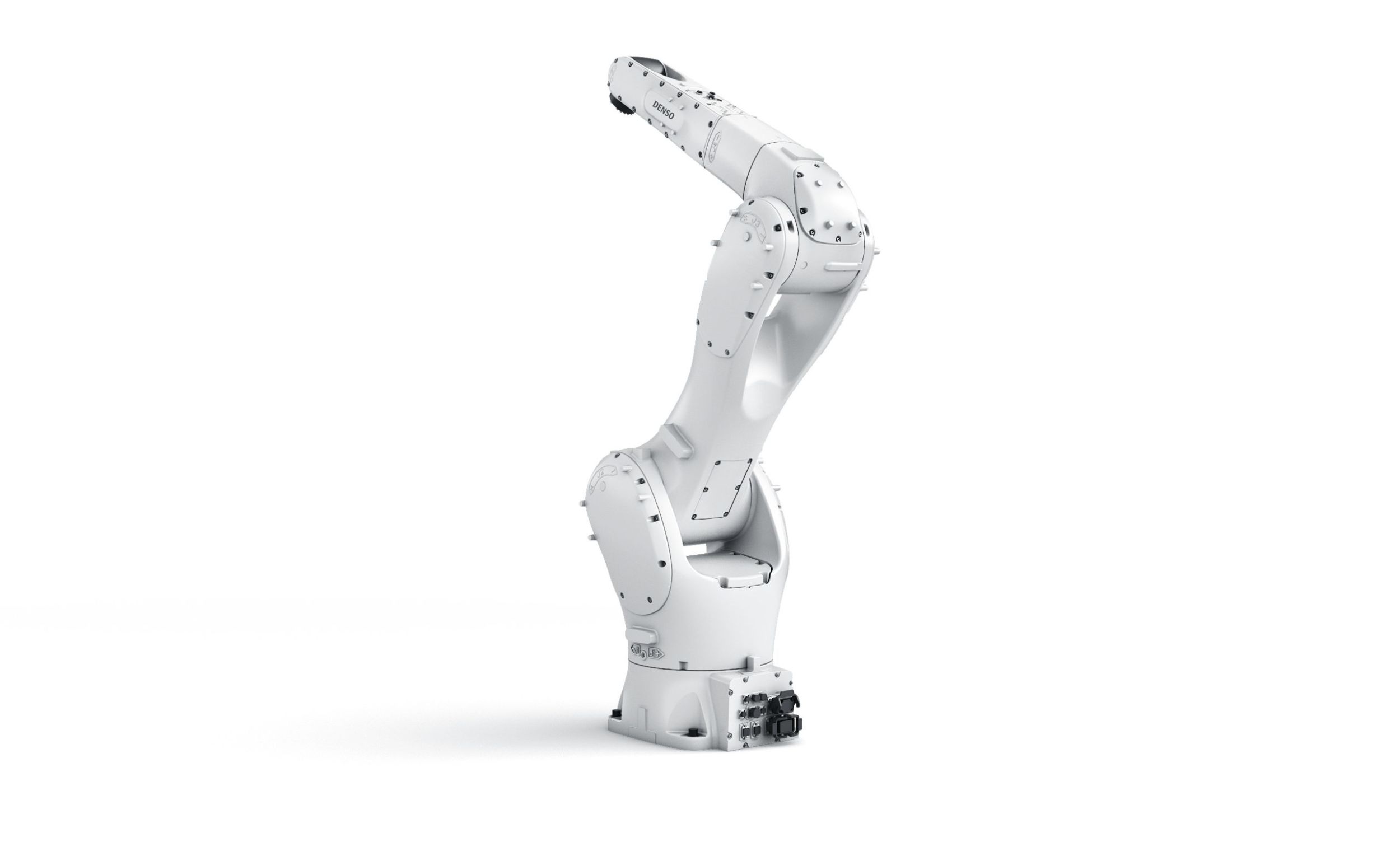

The VMB series is DENSO Robotics' large six-axis industrial robot line, offering longer reach and higher load capacity than the company's traditional models. Two variants are sold: the VMB-2515, reaching 1,506 mm and weighing 230 kg, and the VMB-2518, reaching 1,804 mm and weighing 250 kg. Both carry a 25 kg payload, repeat to +/-0.05 mm and achieve cycle times of 0.29 to 0.31 seconds. The series is built for palletizing, packaging and general material handling. External wiring and piping have been eliminated in favour of enhanced internal routing, and a full-coverage structure suits the robots to cleanroom and sanitary work. With IP67 protection and ISO Class 5 compliance available, the VMB is used on electrical-parts lines, in food manufacturing and in pharmaceutical and medical-device production. Standard, protected (IP67) and cleanroom variants are offered.
FEATURES
- Six axes
- 25 kg payload on both models
- VMB-2515: 1,506 mm maximum reach, 230 kg
- VMB-2518: 1,804 mm maximum reach, 250 kg
- +/-0.05 mm repeatability
- 0.29-0.31 second cycle time
- No external wiring or piping
- enhanced internal routing
- Full-coverage structure for cleanroom and sanitary environments
- IP67 protection available
- ISO Class 5 cleanroom compliance available
- Standard, protected and cleanroom variants
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 230 kg |
|---|---|
| Dimensions | H Long reach industrial arm |
| Payload | 25 kg |
| Reach | 1.8 m |
| Repeatability | ±0.05 mm |
| Mobility | |
| Movement Type | Stationary |
| Degrees of Freedom | 6 |
| Power | |
| Charging Type | Electric |
| Sensing & Compute | |
| Sensors | Sensors, Vision systems |
| Software / AI | WINCAPS Plus |
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 230 kg |
|---|---|
| Dimensions | H Long reach industrial arm |
| Payload | 25 kg |
| Reach | 1.8 m |
| Repeatability | ±0.05 mm |
| Mobility | |
| Movement Type | Stationary |
| Degrees of Freedom | 6 |
| Power | |
| Charging Type | Electric |
| Sensing & Compute | |
| Sensors | Sensors, Vision systems |
| Software / AI | WINCAPS Plus |
Images
Image Contributions
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the VMB Series?
The VMB series is DENSO Robotics' large six-axis industrial robot line, offering longer reach and higher load capacity than the company's traditional models. Two variants are sold: the VMB-2515, reaching 1,506 mm and weighing 230 kg, and the VMB-2518, reaching 1,804 mm and weighing 250 kg.
Who makes the VMB Series?
The VMB Series is made by DENSO Robotics, a robotics company based in Japan, United States.
How much does the VMB Series cost?
DENSO Robotics has not publicly announced pricing for the VMB Series. You can enquire through RobotAIGeek for current pricing.
What is the VMB Series used for?
The VMB Series is designed for assembly, palletizing, and pick-and-place. It is used in manufacturing settings.
What is the payload capacity of the VMB Series?
The VMB Series has a payload capacity of 25 kg and a reach of 1.8 m.
How much does the VMB Series weigh?
The VMB Series weighs 230 kg.
How many degrees of freedom does the VMB Series have?
The VMB Series has 6 degrees of freedom.
When was the VMB Series released?
The VMB Series was released in 2020.
