DESCRIPTION
SZGH-HZ2050-10K is an Industrial-Robot from SZGH Automation. It is built for Welding. Key figures: 205 kg, 10 kg payload, 2050 mm reach, 6 degrees of freedom.

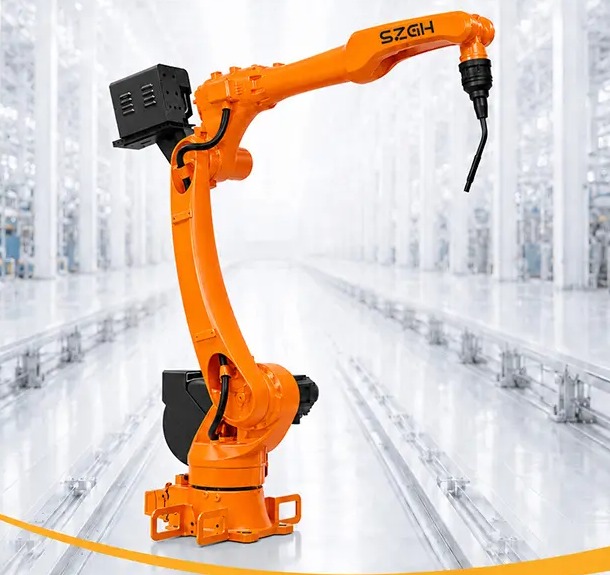

The SZGH-HZ2050-10K is a long-reach six-axis arc-welding robot from ShenZhen GuanHong Automation, the 2050 mm sibling of the HZ1500-10K. It carries 10 kg over a 2050 mm reach with ±0.03 mm repeatability and weighs about 205 kg, with an IP65-rated body and IP67 wrist, a built-in Ø8 mm air line and 16 inputs / 16 outputs for the user. SZGH pitches the extra reach at large workpieces, long seams and multi-station cells such as structural steel, automotive frames and big sheet-metal enclosures, and lists MIG/MAG, TIG, pulse, spot and laser welding of carbon steel, stainless steel, aluminium and brass.
FEATURES
- Payload: 10 kg
- Reach: 2050 mm
- Repeatability: ±0.03 mm

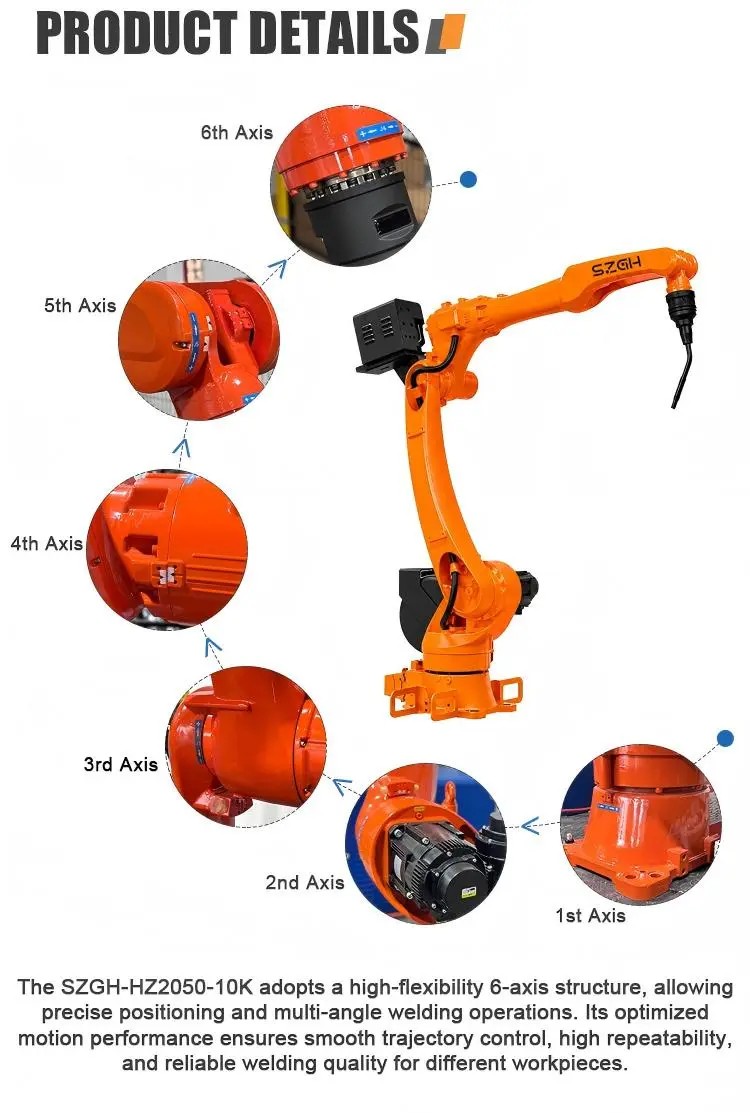

- 6 axes

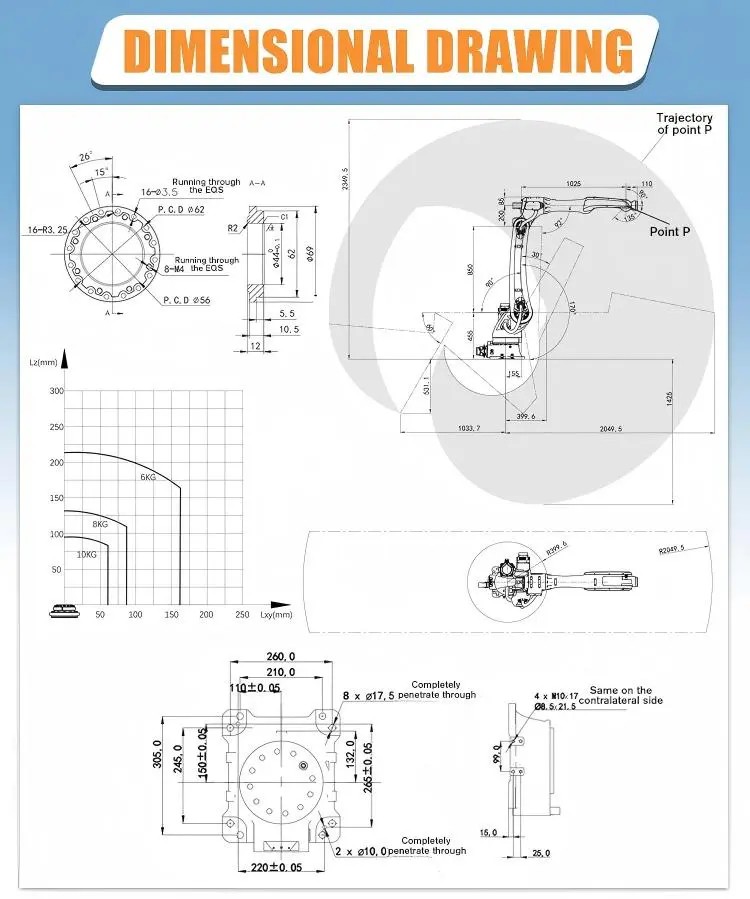

- Motion range: J1 ±170°, J2 +155°/-80°, J3 +80°/-170°, J4 ±180°, J5 +90°/-135°, J6 ±360°
- Max speed: J1 180°/s, J2 129°/s, J3 165°/s, J4 389°/s, J5 407°/s, J6 700°/s
- Rated torque: J4 22 Nm, J5 22 Nm, J6 10 Nm
- Body weight: 205 kg
- Protection: IP65 body, IP67 wrist
- Built-in Ø8 mm air pipe
- User I/O: 16 inputs / 16 outputs (24 VDC)
- Operating temperature: 0-45 °C, humidity 20-80% RH non-condensing
- Processes: MIG/MAG, TIG, pulse, spot and laser welding
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 205 kg |
|---|---|
| Payload | 10 kg |
| Reach | 2.05 m |
| Repeatability | ±0.03 mm |
| Mobility | |
| Movement Type | Stationary |
| Degrees of Freedom | 6 |
| Environment | Operating temperature 0-45 °C, humidity 20-80% RH non-condensing; IP65 body, IP67 wrist |
| Sensing & Compute | |
| Connectivity | User I/O: 16 inputs / 16 outputs (24 VDC) |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 205 kg |
|---|---|
| Payload | 10 kg |
| Reach | 2.05 m |
| Repeatability | ±0.03 mm |
| Mobility | |
| Movement Type | Stationary |
| Degrees of Freedom | 6 |
| Environment | Operating temperature 0-45 °C, humidity 20-80% RH non-condensing; IP65 body, IP67 wrist |
| Sensing & Compute | |
| Connectivity | User I/O: 16 inputs / 16 outputs (24 VDC) |
Images
Image Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the SZGH-HZ2050-10K?
The SZGH-HZ2050-10K is a long-reach six-axis arc-welding robot from ShenZhen GuanHong Automation, the 2050 mm sibling of the HZ1500-10K.
Who makes the SZGH-HZ2050-10K?
The SZGH-HZ2050-10K is made by SZGH Automation, a robotics company based in China.
How much does the SZGH-HZ2050-10K cost?
SZGH Automation has not publicly announced pricing for the SZGH-HZ2050-10K. You can enquire through RobotAIGeek for current pricing.
What is the SZGH-HZ2050-10K used for?
The SZGH-HZ2050-10K is designed for welding. It is used in automotive, construction, and manufacturing settings.
What is the payload capacity of the SZGH-HZ2050-10K?
The SZGH-HZ2050-10K has a payload capacity of 10 kg and a reach of 2.05 m.
How much does the SZGH-HZ2050-10K weigh?
The SZGH-HZ2050-10K weighs 205 kg.
How many degrees of freedom does the SZGH-HZ2050-10K have?
The SZGH-HZ2050-10K has 6 degrees of freedom.
