SZGH-B2300-100

Shenzhen Guanhong Automation
Industrial-RobotChinaChinaReleased
SZGH-B2300-100
Compare
Sources:
szghrobot.com
Industries:
Manufacturing
Uses:
IntralogisticsMaterial-Handlingpalletizing
Price:
Not announced

DESCRIPTION

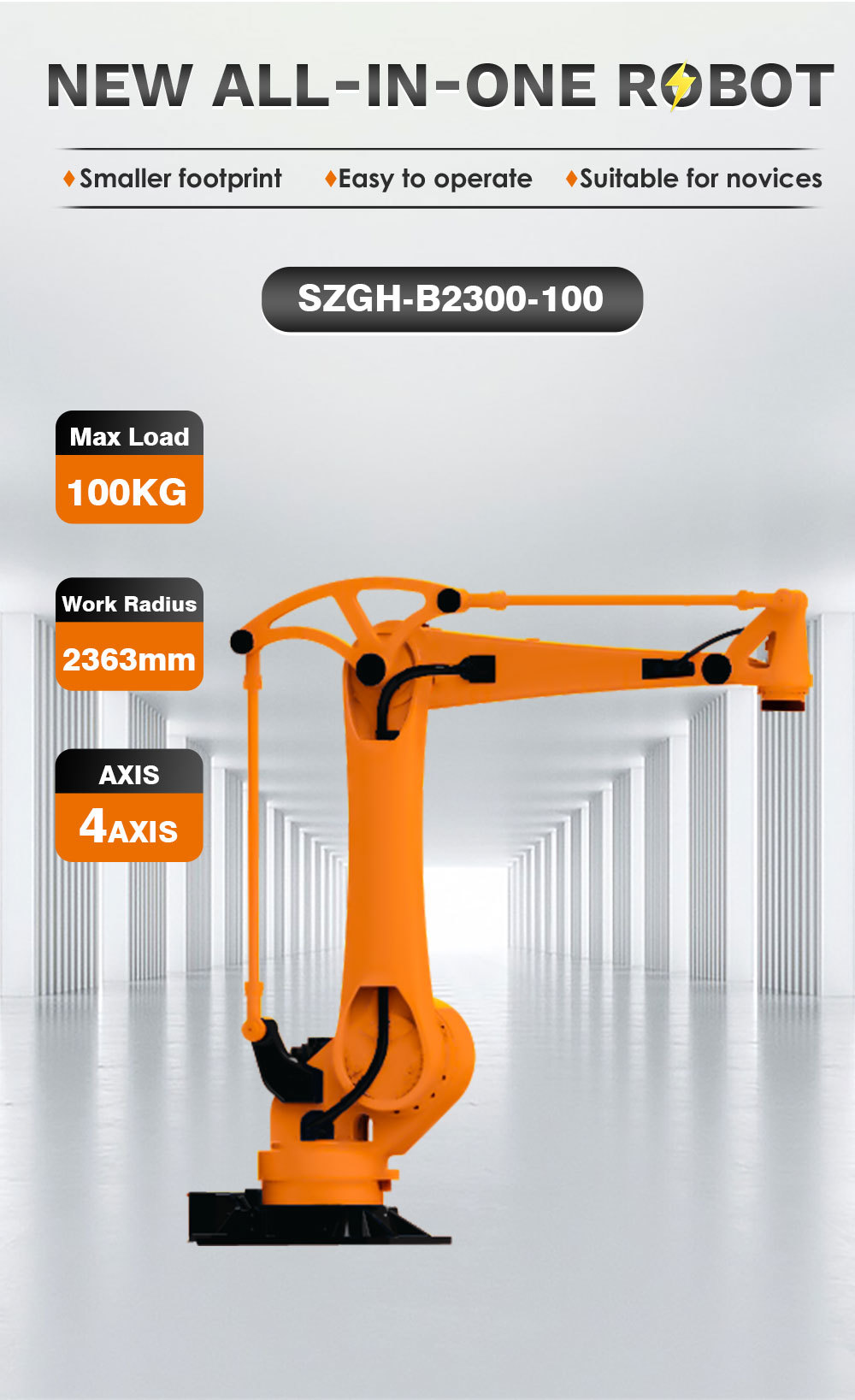

The SZGH-B2300-100 4-axis All-In-One Robot robot is designed for high-speed and stable performance. With a load capacity of 100 kg and a maximum reach of 2363 mm, this robot is engineered to deliver exceptional efficiency and reliability. It is ideal for a palletizing

FEATURES

  • Payload: 100kg
  • Reach: 2363mm
  • 4 controlled axes
  • Repeatability: ±0.15mm
  • Robot mass: 640kg
  • Structure: Integrated
  • Mounting: Ground-mounted
  • Ambient temperature: 0°C~45°C

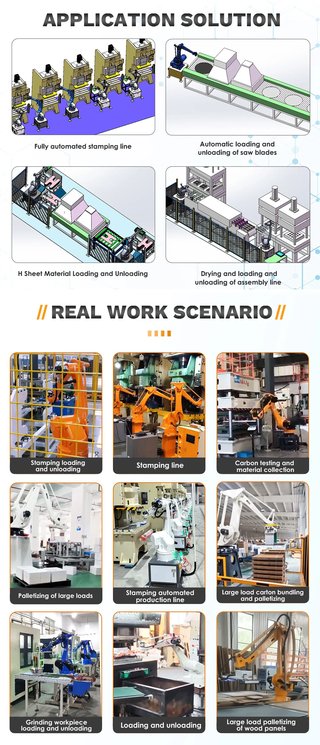

  • Applications: Fully automated stamping line, Automatic loading and unloading of saw blades
  • Warranty period: 2 Years
  • Replaces manual palletizing, efficiency increased by 300%
  • The main body is made of aluminum with lightweight design
  • small inertia, 25% faster acceleration
  • RV reducer has higher accuracy and reduces downtime
  • Applicable material types: cartons, woven bags, plastic barrels, pallets, etc. Optional fixtures: suction cups, grippers, clamps, to achieve multi-material switching
  • Supports multiple communication modes, including EtherCAT, Profinet, Ethernet/IP, OPCUACA, etc

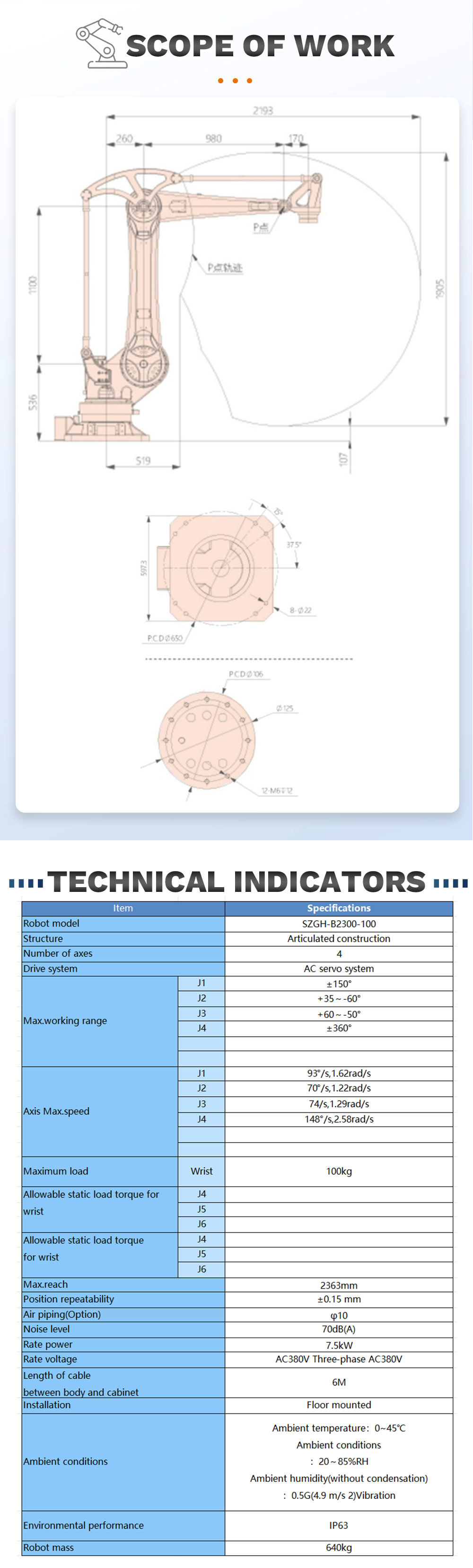

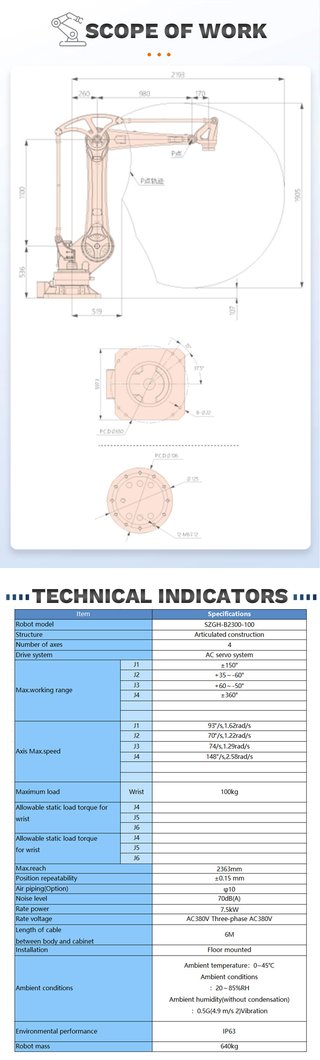

TECHNICAL SPECIFICATIONS

Verified
Physical
Weight640 kg
Payload100 kg
Reach2.36 m
Repeatability±0.15 mm
Mobility
Movement TypeStationary
Degrees of Freedom4
Manufacturer-sourcedThird-party sourcedUnsourcedSource status is based on this robot's listed sources.

Videos

Inside SZGH: CNC Machine Tools & Industrial Robot Factory Tour | Made in China, Shared Worldwide
Aug 4, 2026
Robot Video

Inside SZGH: CNC Machine Tools & Industrial Robot Factory Tour | Made in China, Shared Worldwide

marttimarttiflag
SZGH Robot Factory Tour | Industrial Robot Arms for Intelligent Manufacturing
Aug 4, 2026
Robot Video

SZGH Robot Factory Tour | Industrial Robot Arms for Intelligent Manufacturing

marttimarttiflag
SZGH-B2300-E-4 Dual Suction Cup Handling Application
Aug 4, 2026
Robot Video

SZGH-B2300-E-4 Dual Suction Cup Handling Application

marttimarttiflag

FREQUENTLY ASKED QUESTIONS

What is the SZGH-B2300-100?

The SZGH-B2300-100 4-axis All-In-One Robot robot is designed for high-speed and stable performance. With a load capacity of 100 kg and a maximum reach of 2363 mm, this robot is engineered to deliver exceptional efficiency and reliability. It is ideal for a palletizing

Who makes the SZGH-B2300-100?

The SZGH-B2300-100 is made by Shenzhen Guanhong Automation, a robotics company based in China.

How much does the SZGH-B2300-100 cost?

Shenzhen Guanhong Automation has not publicly announced pricing for the SZGH-B2300-100. You can enquire through RobotAIGeek for current pricing.

What is the SZGH-B2300-100 used for?

The SZGH-B2300-100 is designed for intralogistics, material-handling, and palletizing. It is used in manufacturing settings.

What is the payload capacity of the SZGH-B2300-100?

The SZGH-B2300-100 has a payload capacity of 100 kg and a reach of 2.36 m.

How much does the SZGH-B2300-100 weigh?

The SZGH-B2300-100 weighs 640 kg.

How many degrees of freedom does the SZGH-B2300-100 have?

The SZGH-B2300-100 has 4 degrees of freedom.
