DESCRIPTION
SZGH-B2100-F-4 is an Industrial-Robot from SZGH Automation. It is built for Intralogistics, Material-Handling, palletizing. Key figures: 650 kg, 100 kg payload, 2100 mm reach, 4 degrees of freedom.

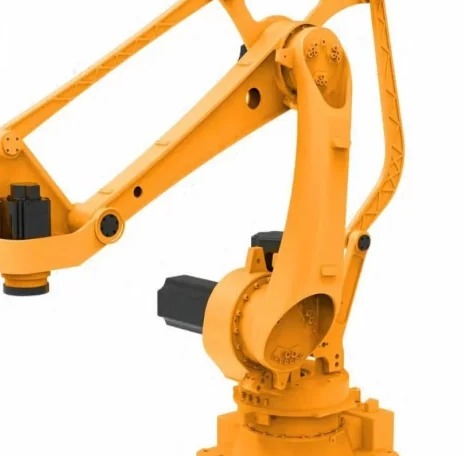

The SZGH-B2100-F-4 is a 4-axis industrial robot from Shenzhen Guanhong Automation (SZGH), rated to carry 100kg with a maximum reach of 2100mm.
FEATURES
- Payload: 100kg
- Reach: 2100mm
- 4 controlled axes
- Repeatability: ±0.2mm
- Robot mass: 650kg
- Structure: Articulated
- Mounting: Horizontal
- Ambient temperature: 5°C~45°C
- Applications: Material handling, Parts transmission, Stacking, Deburring, Cutting
- Controller display languages: Chinese, English, Russian, Vietnamese, Korean, and more language options are under development
- Warranty period: 2 Years

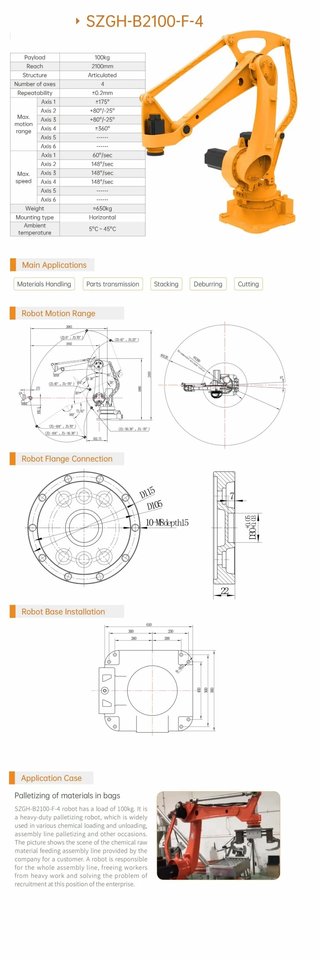

TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 650 kg |
|---|---|
| Payload | 100 kg |
| Reach | 2.1 m |
| Repeatability | ±0.2 mm |
| Mobility | |
| Movement Type | Stationary |
| Degrees of Freedom | 4 |
Videos
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 650 kg |
|---|---|
| Payload | 100 kg |
| Reach | 2.1 m |
| Repeatability | ±0.2 mm |
| Mobility | |
| Movement Type | Stationary |
| Degrees of Freedom | 4 |
Images
Image Contributions
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the SZGH-B2100-F-4?
The SZGH-B2100-F-4 is a 4-axis industrial robot from Shenzhen Guanhong Automation (SZGH), rated to carry 100kg with a maximum reach of 2100mm.
Who makes the SZGH-B2100-F-4?
The SZGH-B2100-F-4 is made by SZGH Automation, a robotics company based in China.
How much does the SZGH-B2100-F-4 cost?
SZGH Automation has not publicly announced pricing for the SZGH-B2100-F-4. You can enquire through RobotAIGeek for current pricing.
What is the SZGH-B2100-F-4 used for?
The SZGH-B2100-F-4 is designed for intralogistics, material-handling, and palletizing. It is used in manufacturing settings.
What is the payload capacity of the SZGH-B2100-F-4?
The SZGH-B2100-F-4 has a payload capacity of 100 kg and a reach of 2.1 m.
How much does the SZGH-B2100-F-4 weigh?
The SZGH-B2100-F-4 weighs 650 kg.
How many degrees of freedom does the SZGH-B2100-F-4 have?
The SZGH-B2100-F-4 has 4 degrees of freedom.
