DESCRIPTION
SZGH-Arm-1832 is a Collaborative-Robot from SZGH Automation. It is built for Dispensing, Material-Handling, Pick-and-place. Key figures: 11 kg, 1 kg payload, 320 mm reach, 4 degrees of freedom.

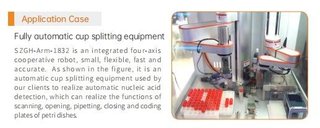

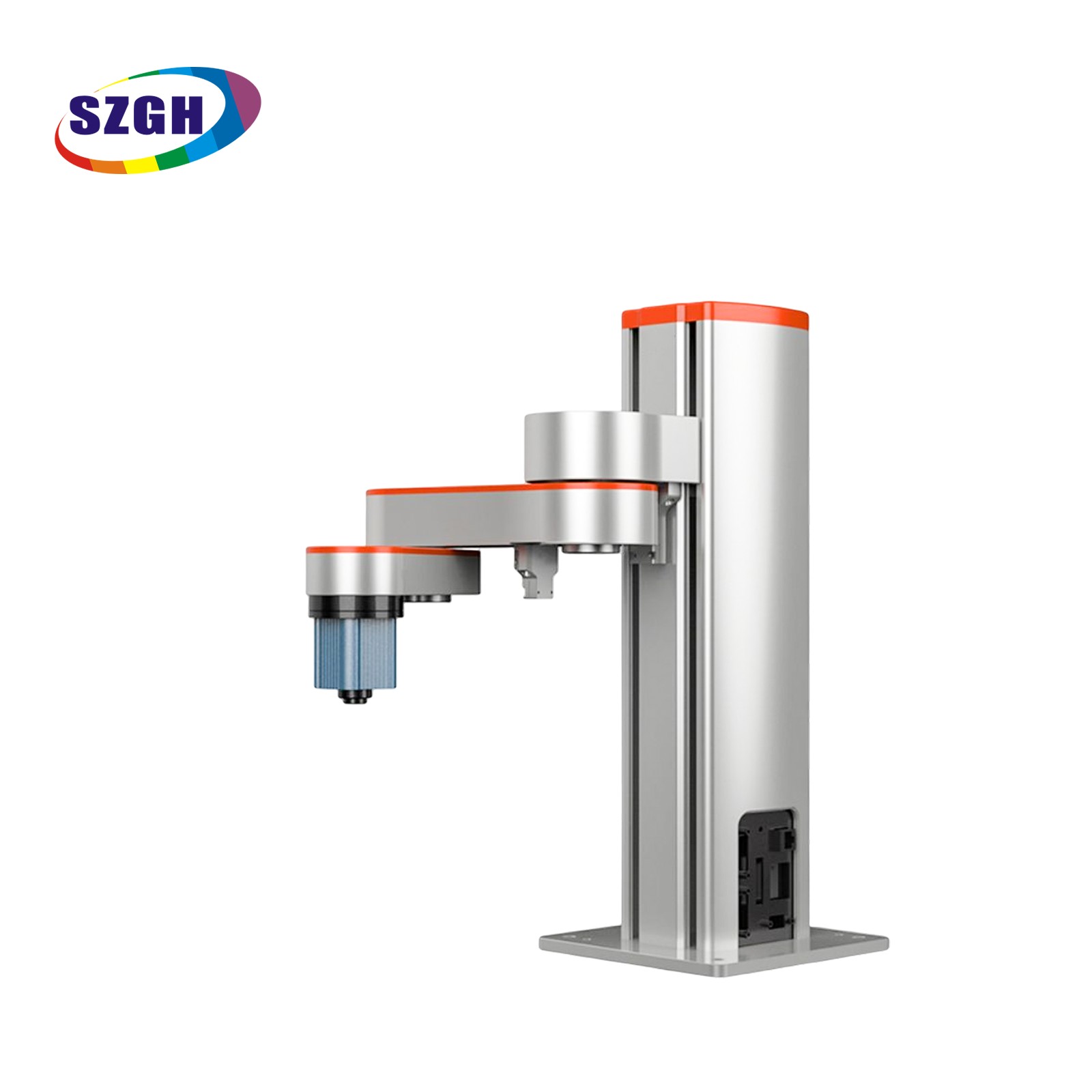

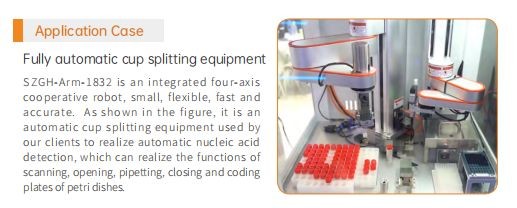

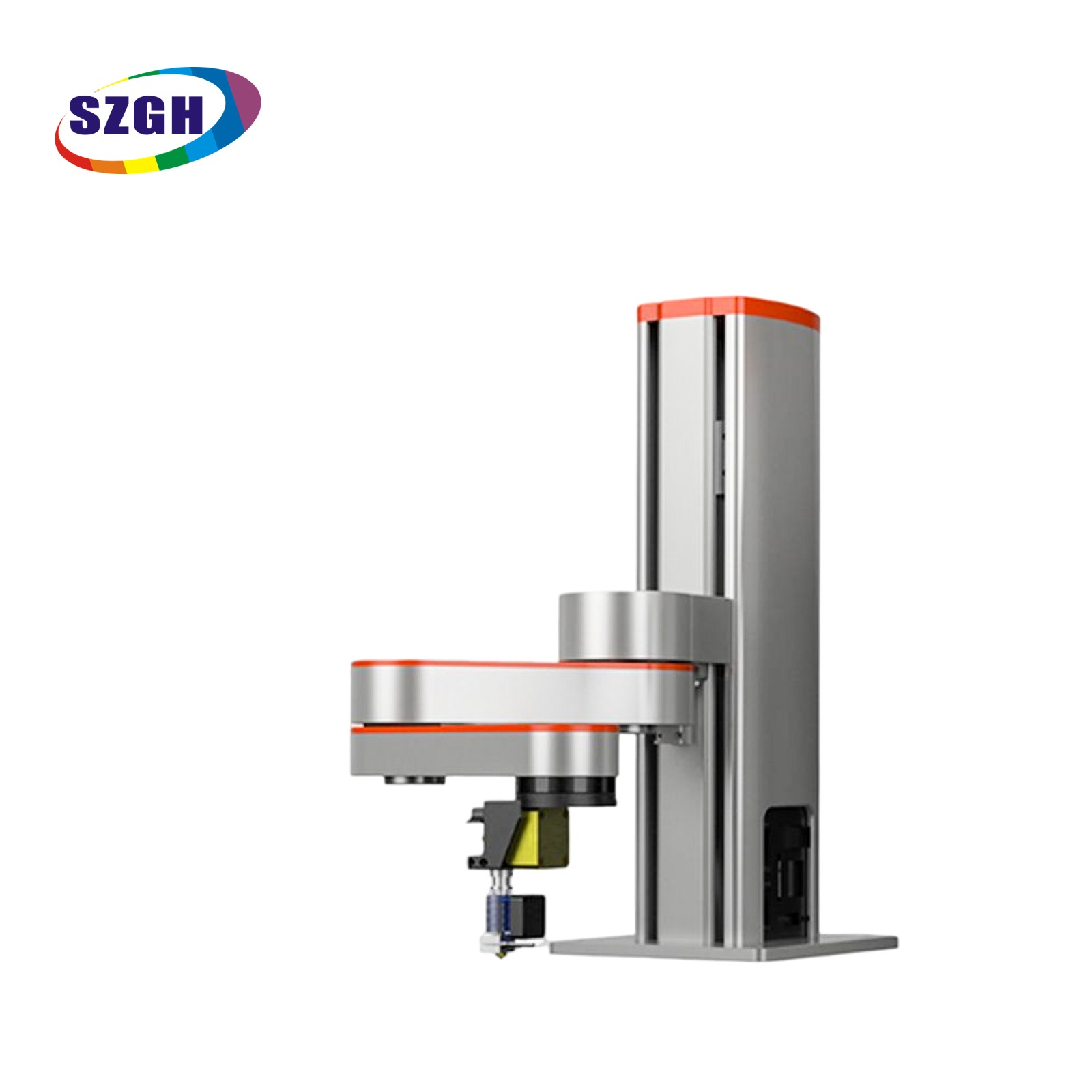

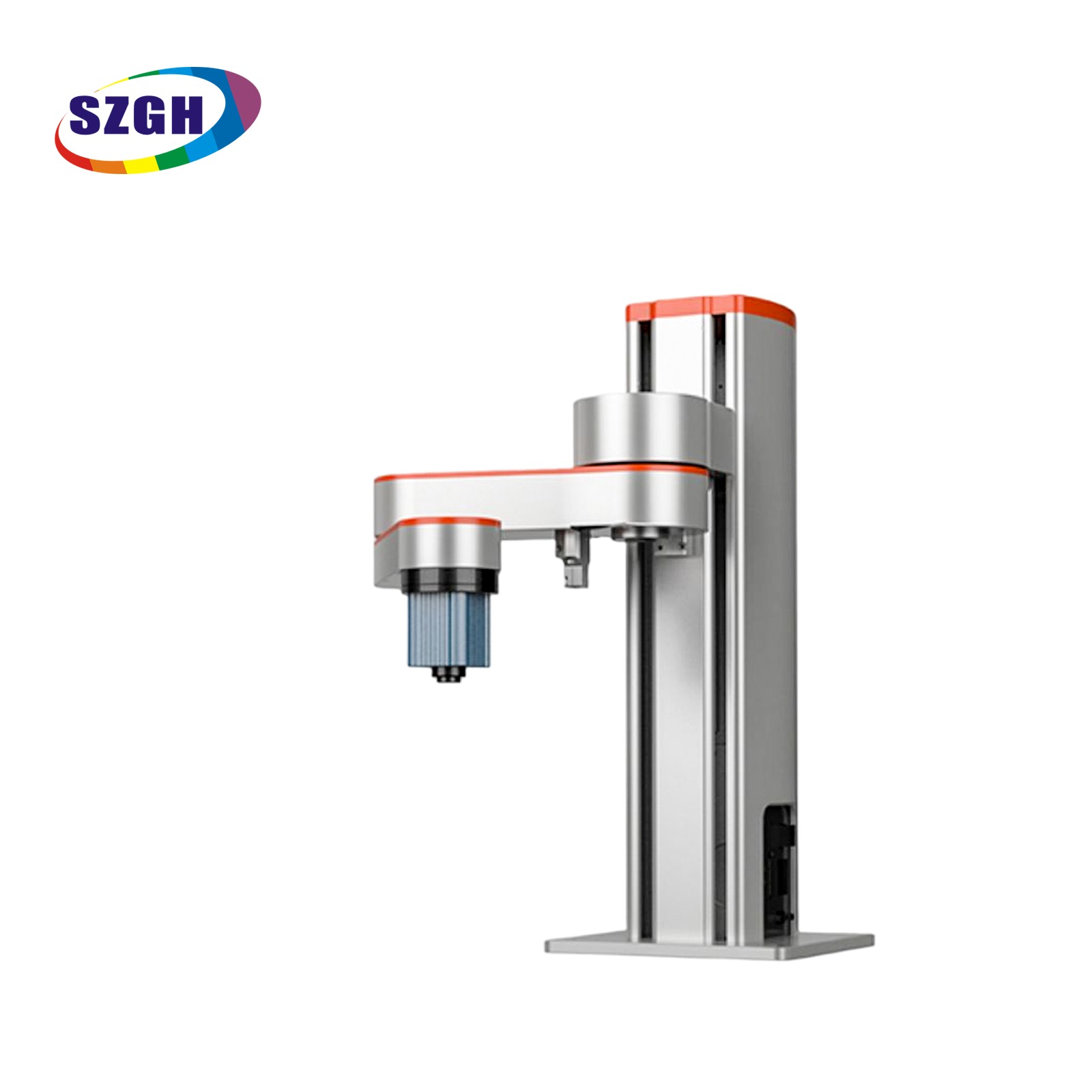

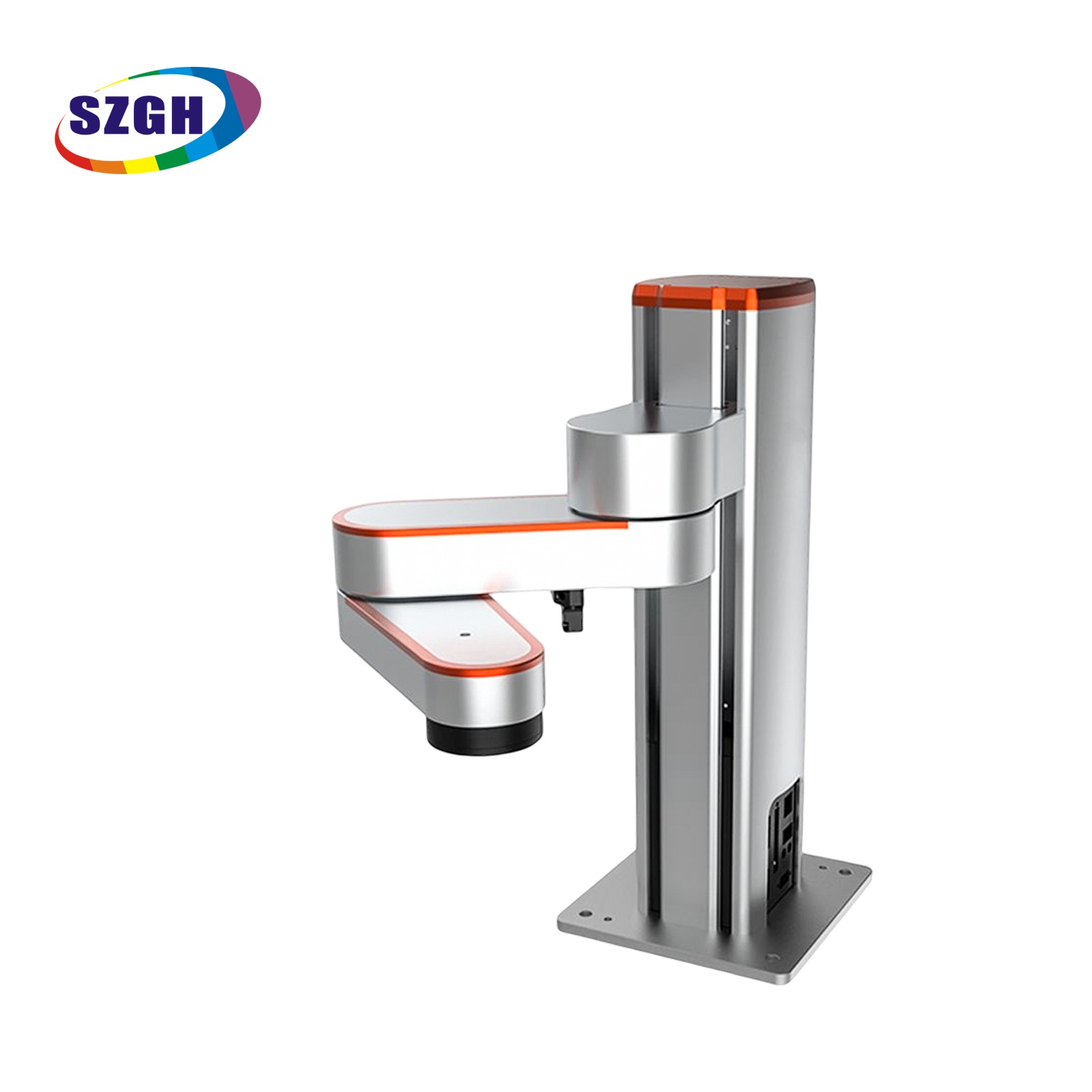

The SZGH-Arm-1832 is a small four-axis collaborative robot from ShenZhen GuanHong Automation, built as a SCARA-style desktop unit: two 160 mm horizontal arms on a vertical column, a 180 mm Z stroke and a rotating end axis. It handles 0.5 kg as standard and 1 kg at most, repeats to ±0.02 mm, moves at up to 1017 mm/s and weighs about 11 kg. It has collision detection and drag-to-teach, and connects over Ethernet or Wi-Fi. SZGH lists it for material handling, laser engraving, sorting, 3D printing, labeling and dispensing, and shows it in a customer's automatic cup-splitting machine for nucleic-acid testing that scans, opens, pipettes, closes and codes petri-dish plates.

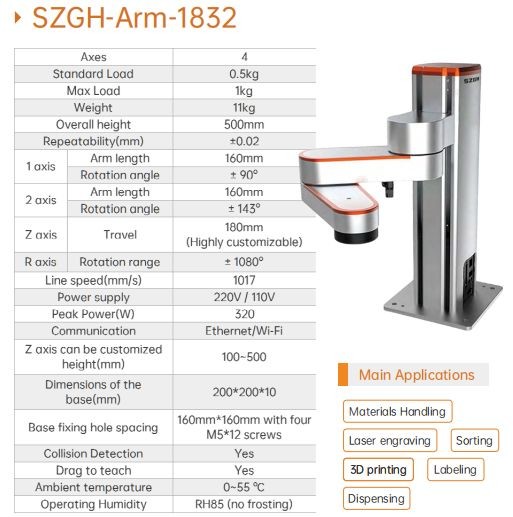

FEATURES
- Axes: 4 (SCARA-style)
- Load: 0.5 kg standard, 1 kg max
- Repeatability: ±0.02 mm
- Arm 1: 160 mm, rotation ±90°
- Arm 2: 160 mm, rotation ±143°
- Z axis travel: 180 mm (column height customisable 100-500 mm)
- R axis rotation: ±1080°
- Line speed: 1017 mm/s
- Weight: 11 kg, overall height 500 mm
- Power supply: 220 V / 110 V, peak power 320 W
- Communication: Ethernet / Wi-Fi
- Collision detection and drag-to-teach

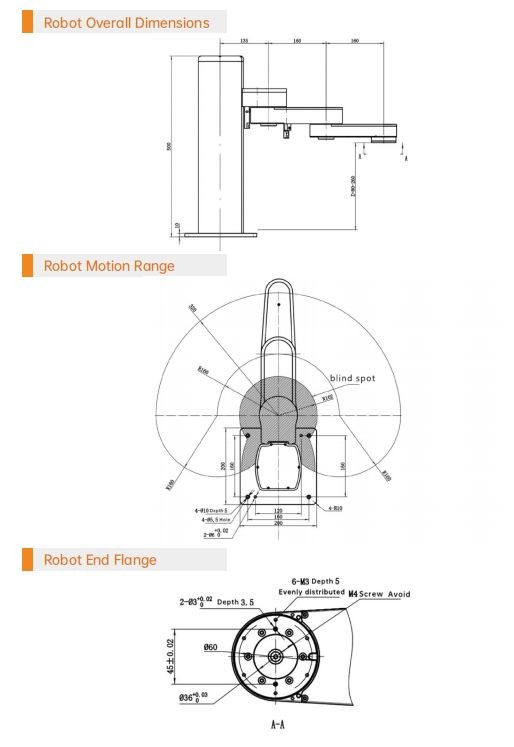

- Base: 200 x 200 x 10 mm, four M5x12 screws on a 160 x 160 mm pattern
- Ambient temperature: 0-55 °C, humidity up to RH85 (non-condensing)
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 11 kg |
|---|---|
| Dimensions | H 500 mm |
| Payload | 1 kg |
| Reach | 320 mm |
| Repeatability | ±0.02 mm |
| Mobility | |
| Movement Type | Stationary |
| Degrees of Freedom | 4 |
| Speed | 3.66 km/h |
| Environment | Ambient temperature 0-55 °C; humidity up to RH85, non-condensing |
| Sensing & Compute | |
| Connectivity | Ethernet, Wi-Fi |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 11 kg |
|---|---|
| Dimensions | H 500 mm |
| Payload | 1 kg |
| Reach | 320 mm |
| Repeatability | ±0.02 mm |
| Mobility | |
| Movement Type | Stationary |
| Degrees of Freedom | 4 |
| Speed | 3.66 km/h |
| Environment | Ambient temperature 0-55 °C; humidity up to RH85, non-condensing |
| Sensing & Compute | |
| Connectivity | Ethernet, Wi-Fi |
Images
Image Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the SZGH-Arm-1832?
The SZGH-Arm-1832 is a small four-axis collaborative robot from ShenZhen GuanHong Automation, built as a SCARA-style desktop unit: two 160 mm horizontal arms on a vertical column, a 180 mm Z stroke and a rotating end axis.
Who makes the SZGH-Arm-1832?
The SZGH-Arm-1832 is made by SZGH Automation, a robotics company based in China.
How much does the SZGH-Arm-1832 cost?
SZGH Automation has not publicly announced pricing for the SZGH-Arm-1832. You can enquire through RobotAIGeek for current pricing.
What is the SZGH-Arm-1832 used for?
The SZGH-Arm-1832 is designed for dispensing, material-handling, pick-and-place, and sorting. It is used in research, healthcare, and manufacturing settings.
What is the payload capacity of the SZGH-Arm-1832?
The SZGH-Arm-1832 has a payload capacity of 1 kg and a reach of 320 mm.
How much does the SZGH-Arm-1832 weigh?
The SZGH-Arm-1832 weighs 11 kg.
How fast is the SZGH-Arm-1832?
The SZGH-Arm-1832 can move at speeds of up to 3.66 km/h.
How many degrees of freedom does the SZGH-Arm-1832 have?
The SZGH-Arm-1832 has 4 degrees of freedom.
