DESCRIPTION
Stacker Series Forklift Robot (FMR) is an Industrial-Robot from Hangcha. It is built for Intralogistics, Material-Handling, Transport. Key figures: 360 min runtime, 6000 kg payload.

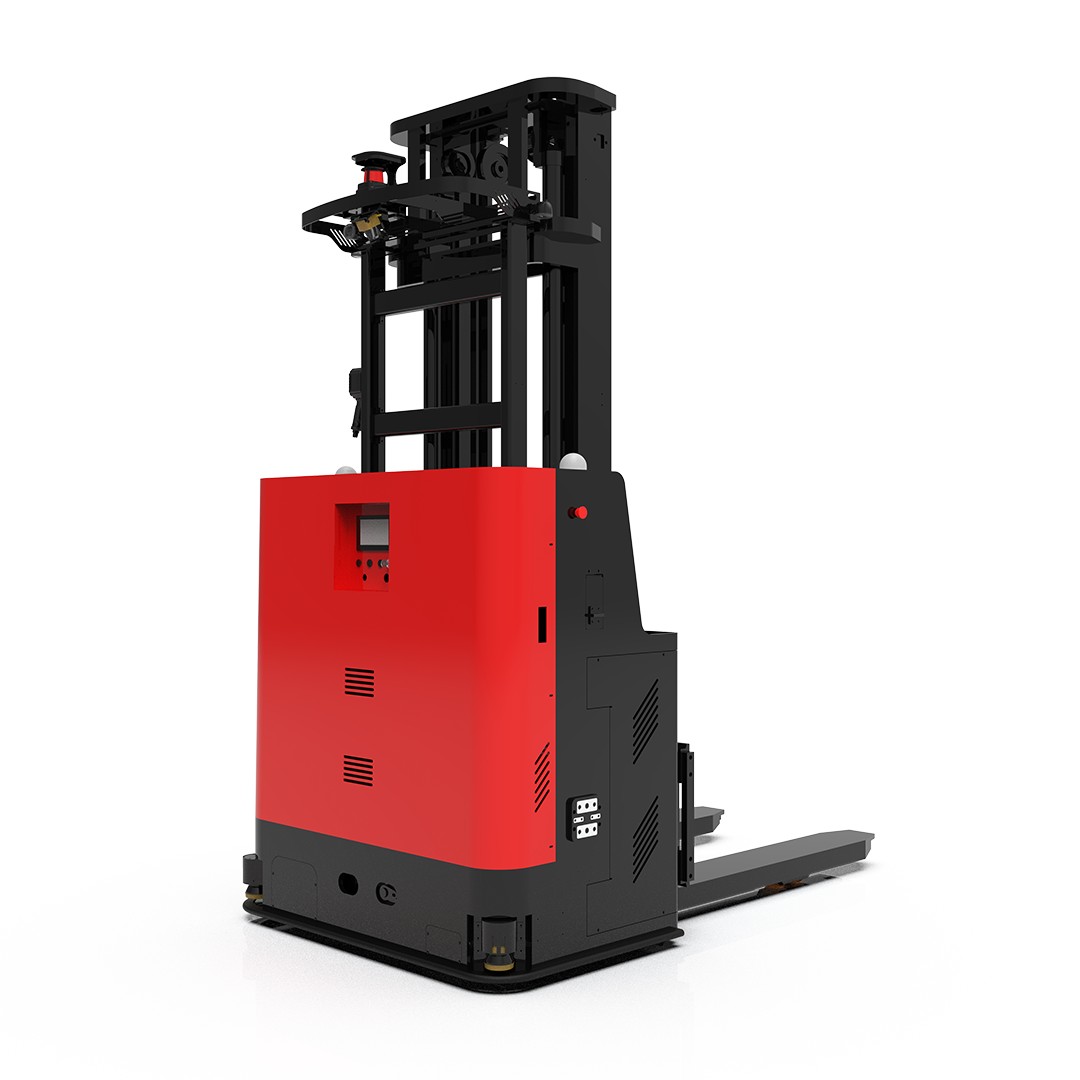

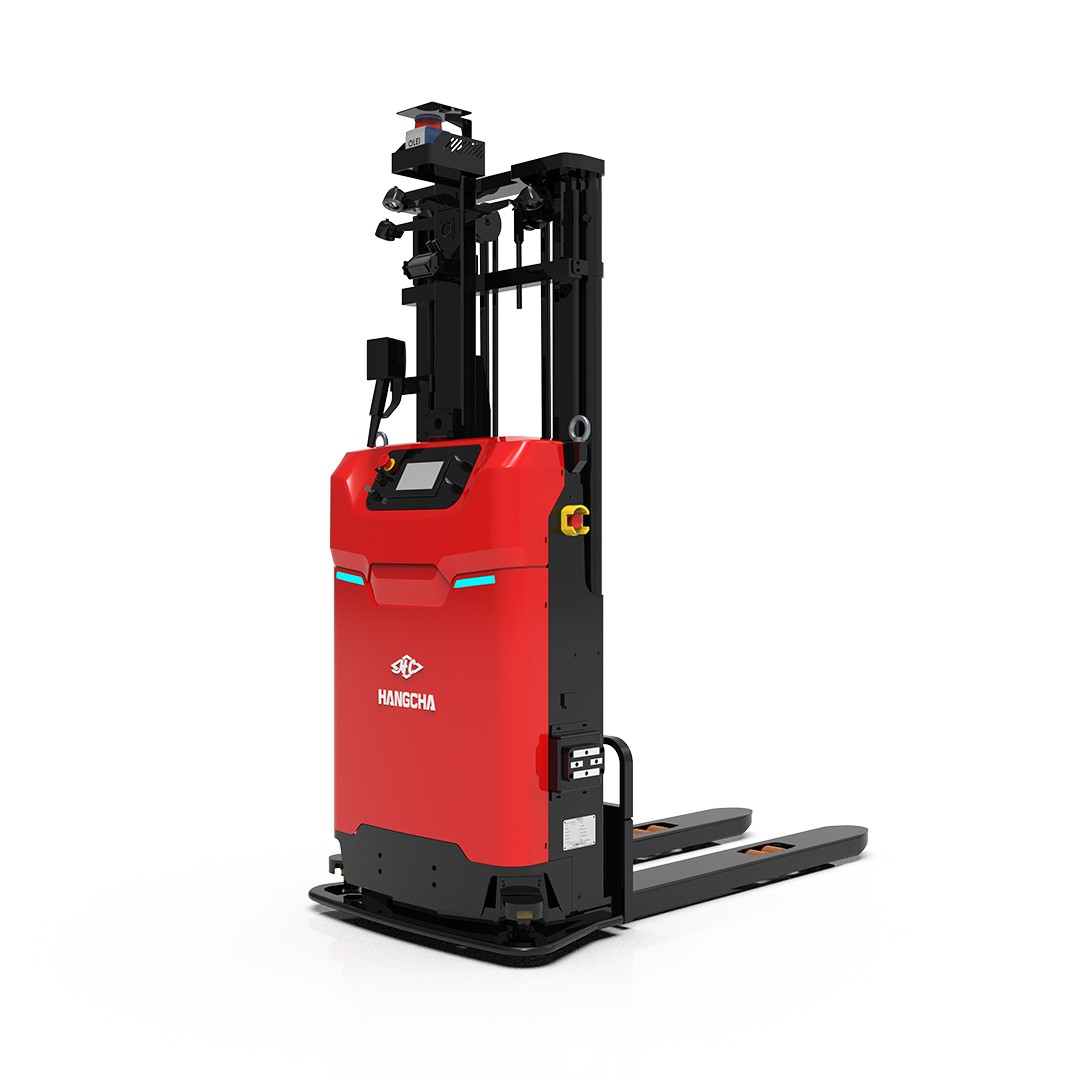

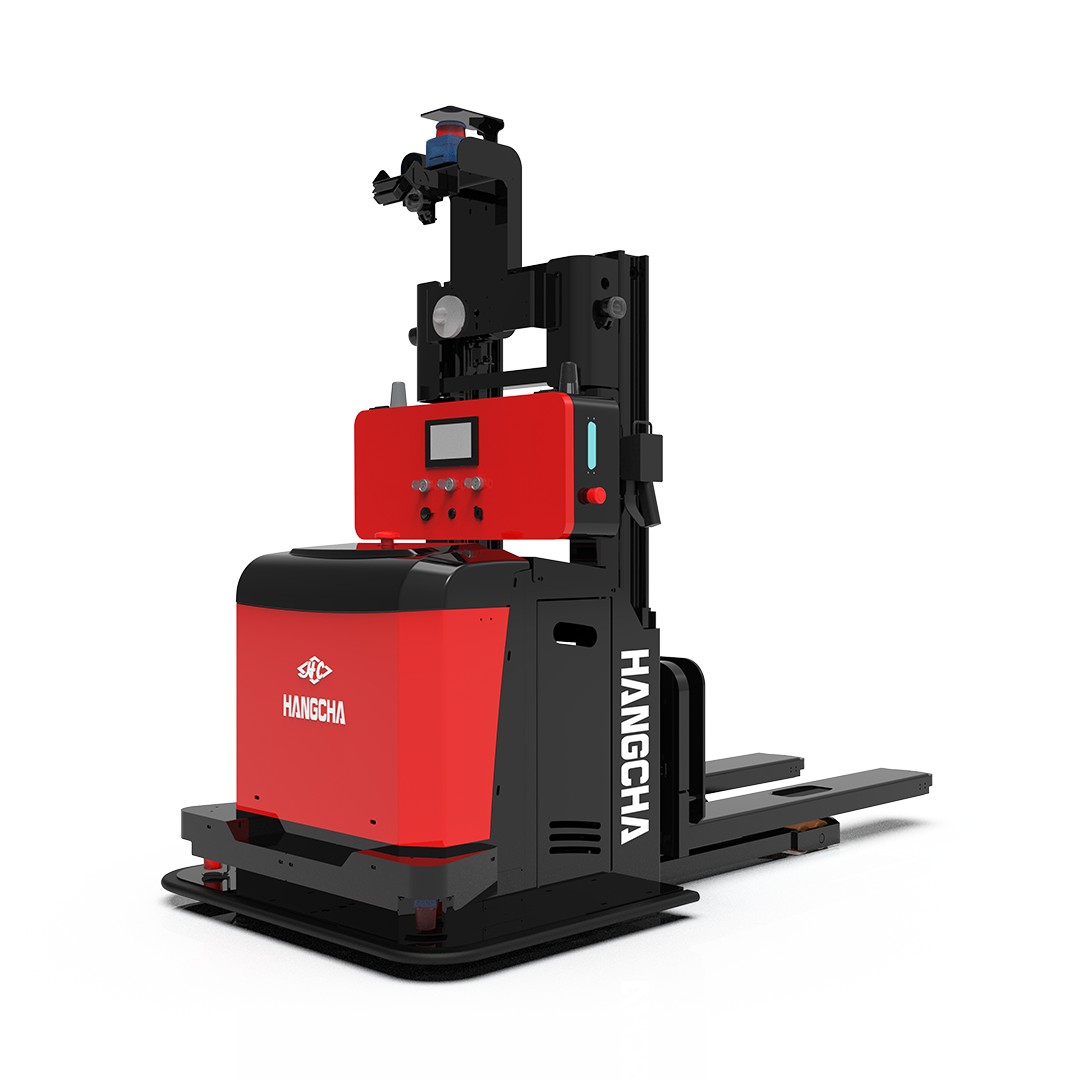

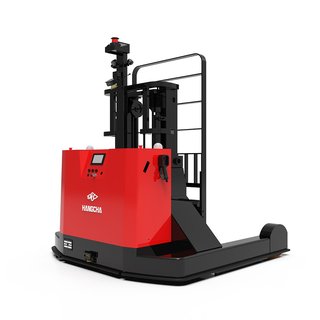

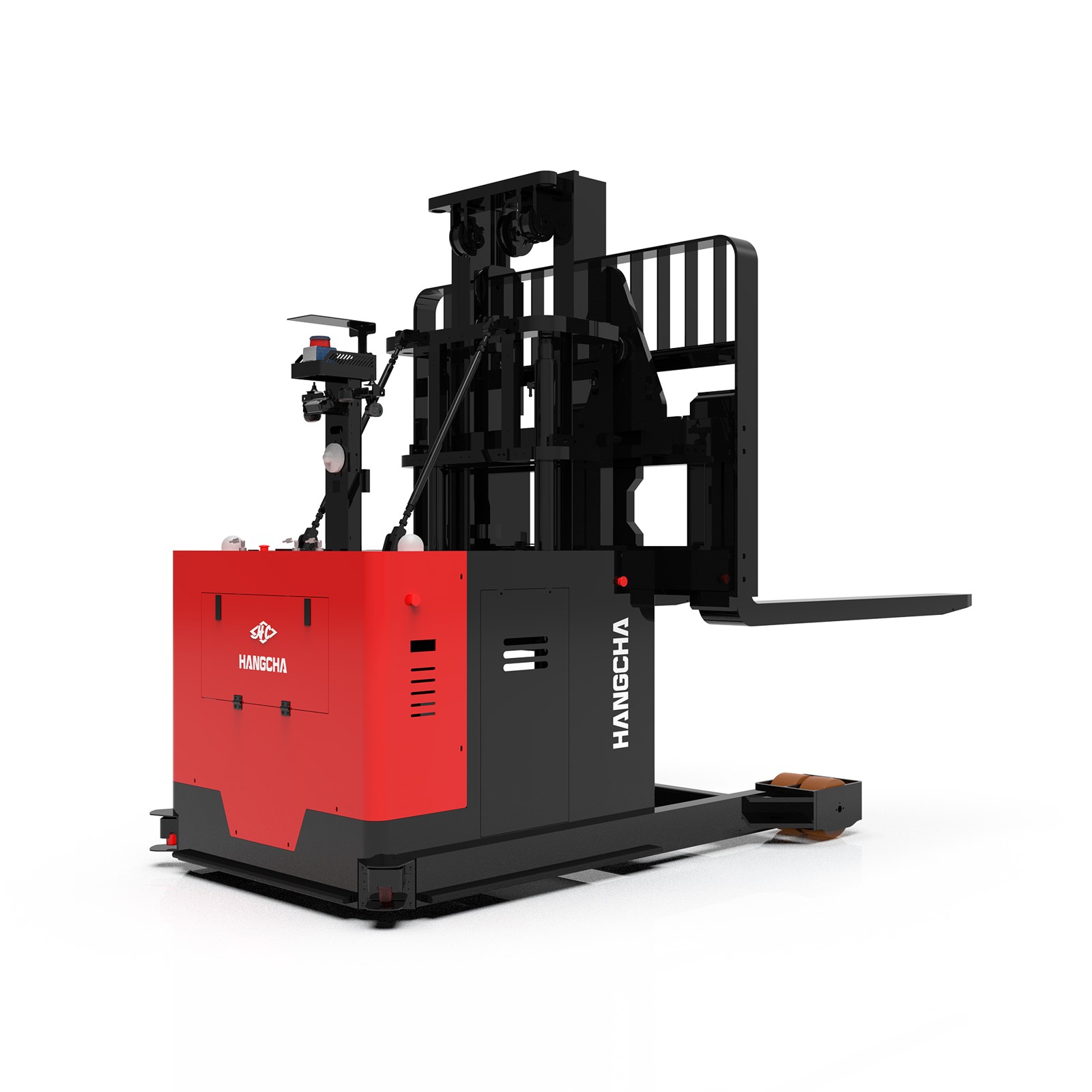

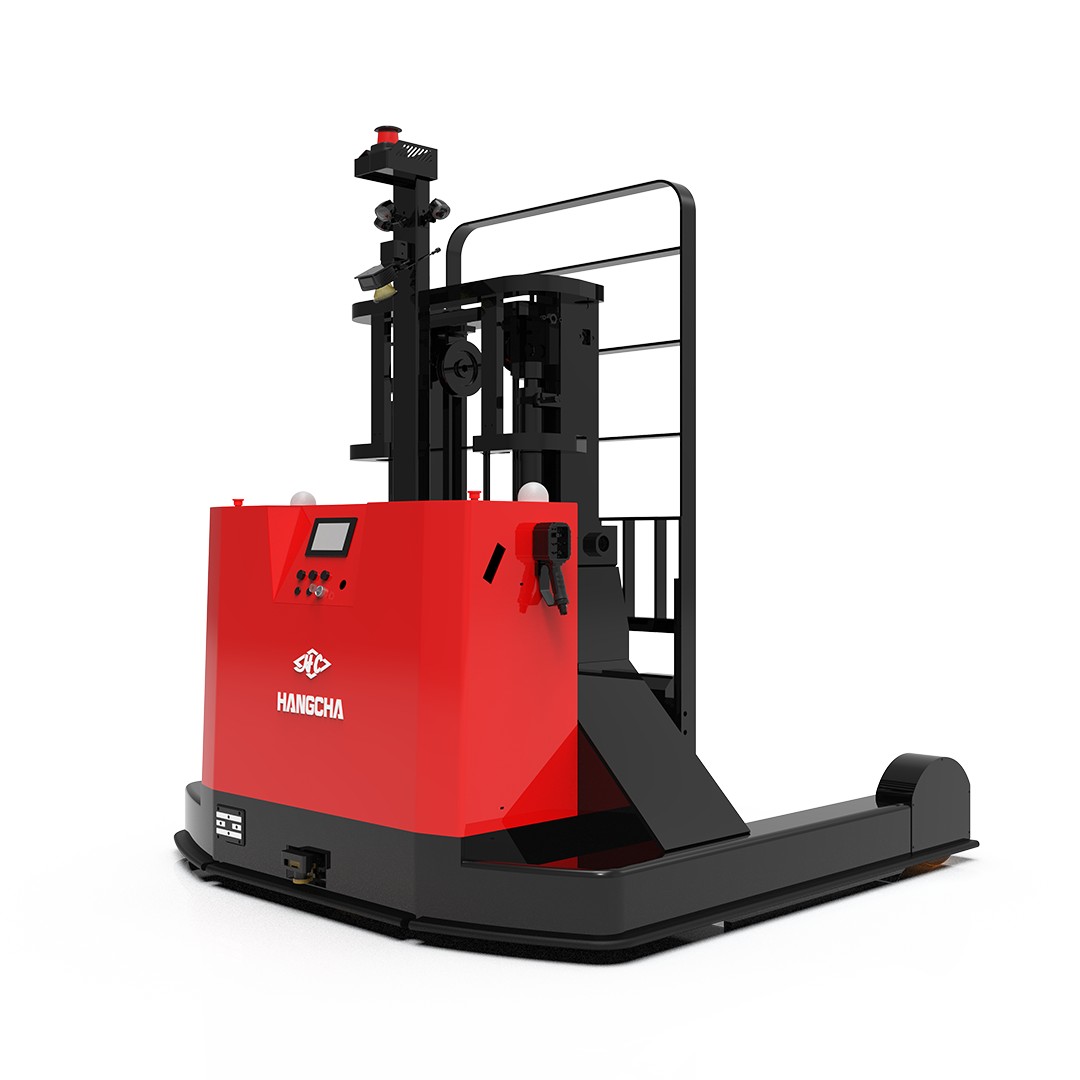

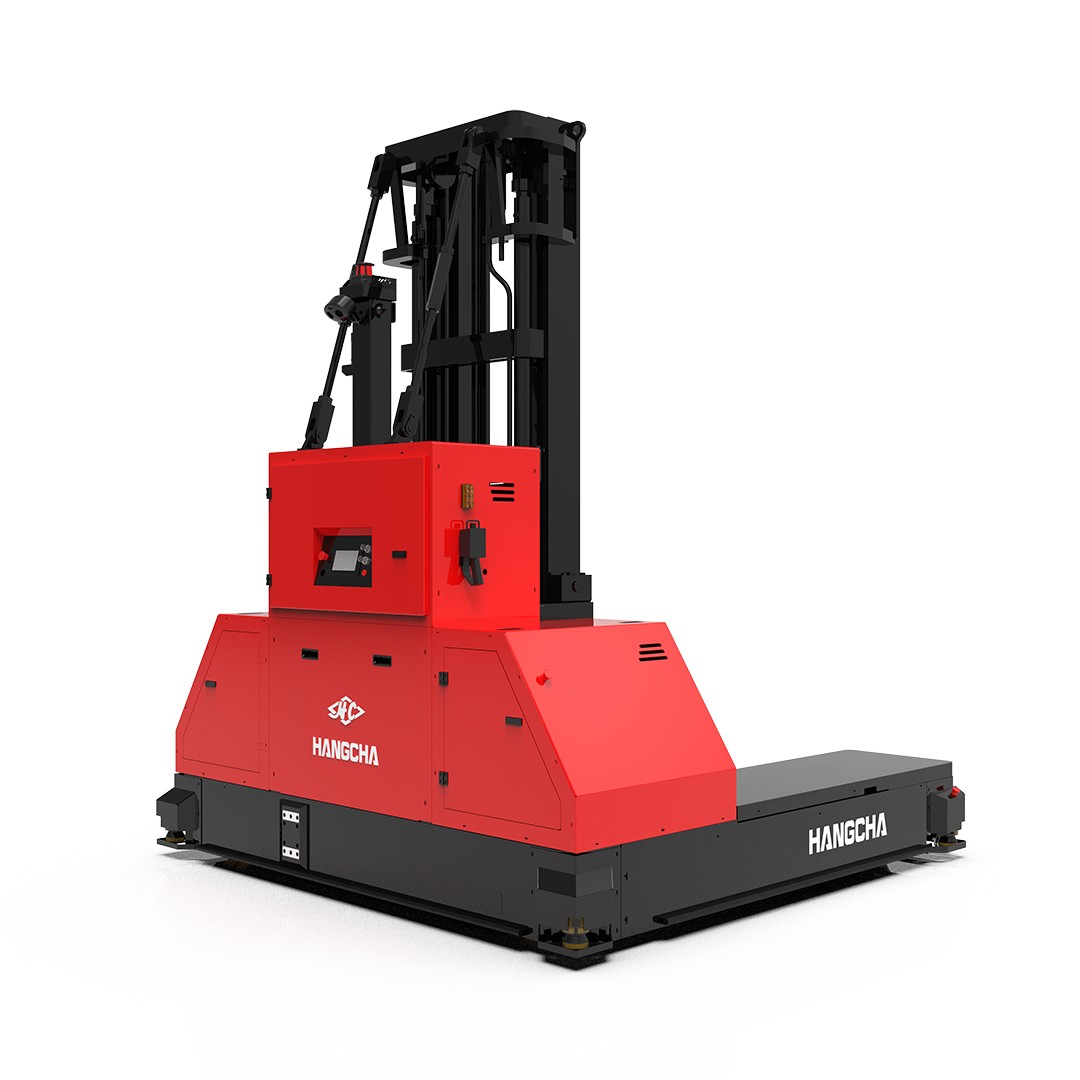

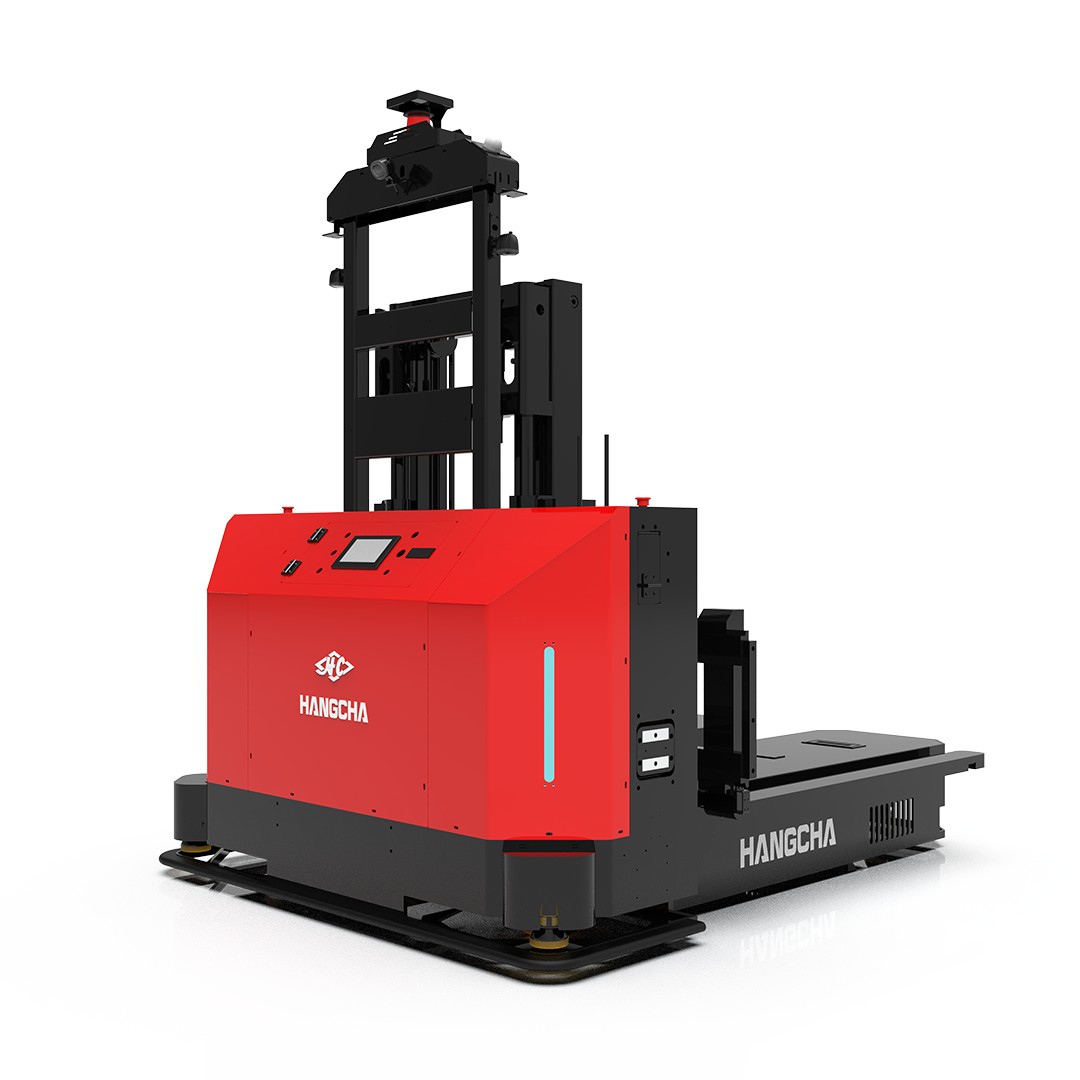

The Stacker Series is Hangcha's range of autonomous stacker forklift robots (FMR) for floor transport and loading pallets onto production-line racks. The series covers loads of 1-6 t and lift heights up to 6.5 m, and machine size, fork structure, functions and peripheral interfaces can all be customised. Listed models include the 1.5 t, 2.0 t and 3.0 t Mini Stacking FMRs, the 2.0 t and 5.0 t Standard Stackable FMRs, the 1.5 t and 3.0 t Omnidirectional Stacking FMRs that move in any direction, and the 4.0 t and 6.0 t interlocking stacking FMRs. Lift heights run from 1.6 m to 3.8 m on the listed models, and top speed is 1.0-1.5 m/s. All use 2D/3D SLAM navigation and run 6-8 hours per charge, with 360-degree safety protection.
FEATURES
- 1.5t Mini Stacking FMR: Rated load 1500 (Kg)
- Lifting height 1600 (mm)
- Minimum tunnel requirement 2489 (mm)
- Navigation methods 2D/3D SLAM
- Maximum driving speed 1500 (mm/s)
- Rated operating time 6-8 (h)
- 2.0t Mini Stacking FMR: Rated load 2000 (Kg)
- Lifting height 1600 (mm)
- Minimum tunnel requirement 2489 (mm)
- Navigation methods 2D/3D SLAM
- Maximum driving speed 1500 (mm/s)
- Rated operating time 6-8 (h)
- 3.0t Mini Stacking FMR: Rated load 3000 (Kg)
- Lifting height 3000 (mm)
- Minimum tunnel requirement 3252 (mm)
- Navigation methods 2D/3D SLAM
- Maximum driving speed 1500 (mm/s)
- Rated operating time 6-8 (h)
- 2.0t Standard Stackable FMR: Rated load 2000 (Kg)
- Lifting height 2700 (mm)
- Minimum tunnel requirement 2822 (mm)
- Navigation methods 2D/3D SLAM
- Maximum driving speed 1500 (mm/s)
- Rated operating time 6-8 (h)
- 5.0t Standard Stackable FMR: Rated load 5000 (Kg)
- Lifting height 3600 (mm)
- Minimum tunnel requirement 3284 (mm)
- Navigation methods 2D/3D SLAM
- Maximum driving speed 1000 (mm/s)
- Rated operating time 6-8 (h)
- 1.5t Omnidirectional Stacking FMR: Rated load 1500 (Kg)
- Lifting height 1600 (mm)
- Minimum tunnel requirement Omnidirectional
- Navigation methods 2D/3D SLAM
- Maximum driving speed 1000 (mm/s)
- Rated operating time 6-8 (h)
- 3.0t Omnidirectional Stacking FMR: Rated load 3000 (Kg)
- Lifting height 3000 (mm)
- Minimum tunnel requirement Omnidirectional
- Navigation methods 2D/3D SLAM
- Maximum driving speed 1000 (mm/s)
- Rated operating time 6-8 (h)
- 4.0t interlocking stacked FMR: Rated load 4000 (Kg)
- Lifting height 2500 (mm)
- Minimum tunnel requirement 3015 (mm)
- Navigation methods 2D/3D SLAM
- Maximum driving speed 1000 (mm/s)
- Rated operating time 6-8 (h)
- 6.0t interlocking stacking FMR: Rated load 6000 (Kg)
- Lifting height 3800 (mm)
- Minimum tunnel requirement 3290 (mm)
- Navigation methods 2D/3D SLAM
- Maximum driving speed 1000 (mm/s)
- Rated operating time 6-8 (h)
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Payload | 6000 kg |
|---|---|
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.4 km/h |
| Environment | Indoor factories and warehouses (electronics, PV, food and beverage, appliances, automotive) |
| Power | |
| Battery Life | 360 min |
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Payload | 6000 kg |
|---|---|
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.4 km/h |
| Environment | Indoor factories and warehouses (electronics, PV, food and beverage, appliances, automotive) |
| Power | |
| Battery Life | 360 min |
Images
martti
martti
martti
martti
martti
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the Stacker Series Forklift Robot (FMR)?
The Stacker Series is Hangcha's range of autonomous stacker forklift robots (FMR) for floor transport and loading pallets onto production-line racks. The series covers loads of 1-6 t and lift heights up to 6.5 m, and machine size, fork structure, functions and peripheral interfaces can all be customised.
Who makes the Stacker Series Forklift Robot (FMR)?
The Stacker Series Forklift Robot (FMR) is made by Hangcha, a robotics company based in China.
How much does the Stacker Series Forklift Robot (FMR) cost?
Hangcha has not publicly announced pricing for the Stacker Series Forklift Robot (FMR). You can enquire through RobotAIGeek for current pricing.
What is the Stacker Series Forklift Robot (FMR) used for?
The Stacker Series Forklift Robot (FMR) is designed for intralogistics, material-handling, transport, and slam-navigated stacker forklift robots that lift 1.5-6 t pallets onto racks and production lines. It is used in warehouse & logistics and manufacturing settings.
What is the payload capacity of the Stacker Series Forklift Robot (FMR)?
The Stacker Series Forklift Robot (FMR) has a payload capacity of 6,000 kg.
How fast is the Stacker Series Forklift Robot (FMR)?
The Stacker Series Forklift Robot (FMR) can move at speeds of up to 5.4 km/h.
What is the battery life of the Stacker Series Forklift Robot (FMR)?
The Stacker Series Forklift Robot (FMR) runs for about 360 minutes on a charge.
