DESCRIPTION

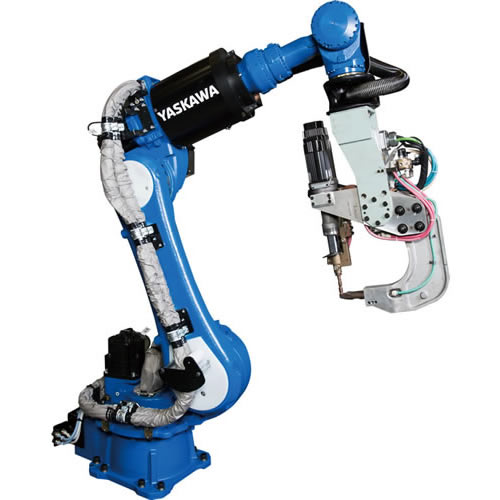

SP100 is an Industrial-Robot from YASKAWA Electric. It is built for Welding. Key figures: 695 kg, 100 kg payload, 2236 mm reach, 6 degrees of freedom.
Yaskawa Motoman SP100 is a SP Series industrial robot with 100 kg payload and 2236 mm horizontal reach (695 kg mass, ±0.03 mm repeatability).
FEATURES
- Payload 100 kg
- Horizontal reach 2236 mm
- Vertical reach 3751 mm
- Mass 695 kg
- Repeatability ±0.03 mm
- 6 controlled axes
- Applications: Spot Welding
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 695 kg |
|---|---|
| Payload | 100 kg |
| Reach | 2.24 m |
| Repeatability | ±0.03 mm |
| Mobility | |
| Movement Type | Stationary |
| Degrees of Freedom | 6 |
| Manipulation | High |
| Environment | IP67 |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 695 kg |
|---|---|
| Payload | 100 kg |
| Reach | 2.24 m |
| Repeatability | ±0.03 mm |
| Mobility | |
| Movement Type | Stationary |
| Degrees of Freedom | 6 |
| Manipulation | High |
| Environment | IP67 |
Images
martti
Image Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the SP100?
Yaskawa Motoman SP100 is a SP Series industrial robot with 100 kg payload and 2236 mm horizontal reach (695 kg mass, ±0.03 mm repeatability).
Who makes the SP100?
The SP100 is made by YASKAWA Electric, a robotics company based in Japan.
How much does the SP100 cost?
YASKAWA Electric has not publicly announced pricing for the SP100. You can enquire through RobotAIGeek for current pricing.
What is the SP100 used for?
The SP100 is designed for welding. It is used in automotive and manufacturing settings.
What is the payload capacity of the SP100?
The SP100 has a payload capacity of 100 kg and a reach of 2.24 m.
How much does the SP100 weigh?
The SP100 weighs 695 kg.
How many degrees of freedom does the SP100 have?
The SP100 has 6 degrees of freedom.
