DESCRIPTION

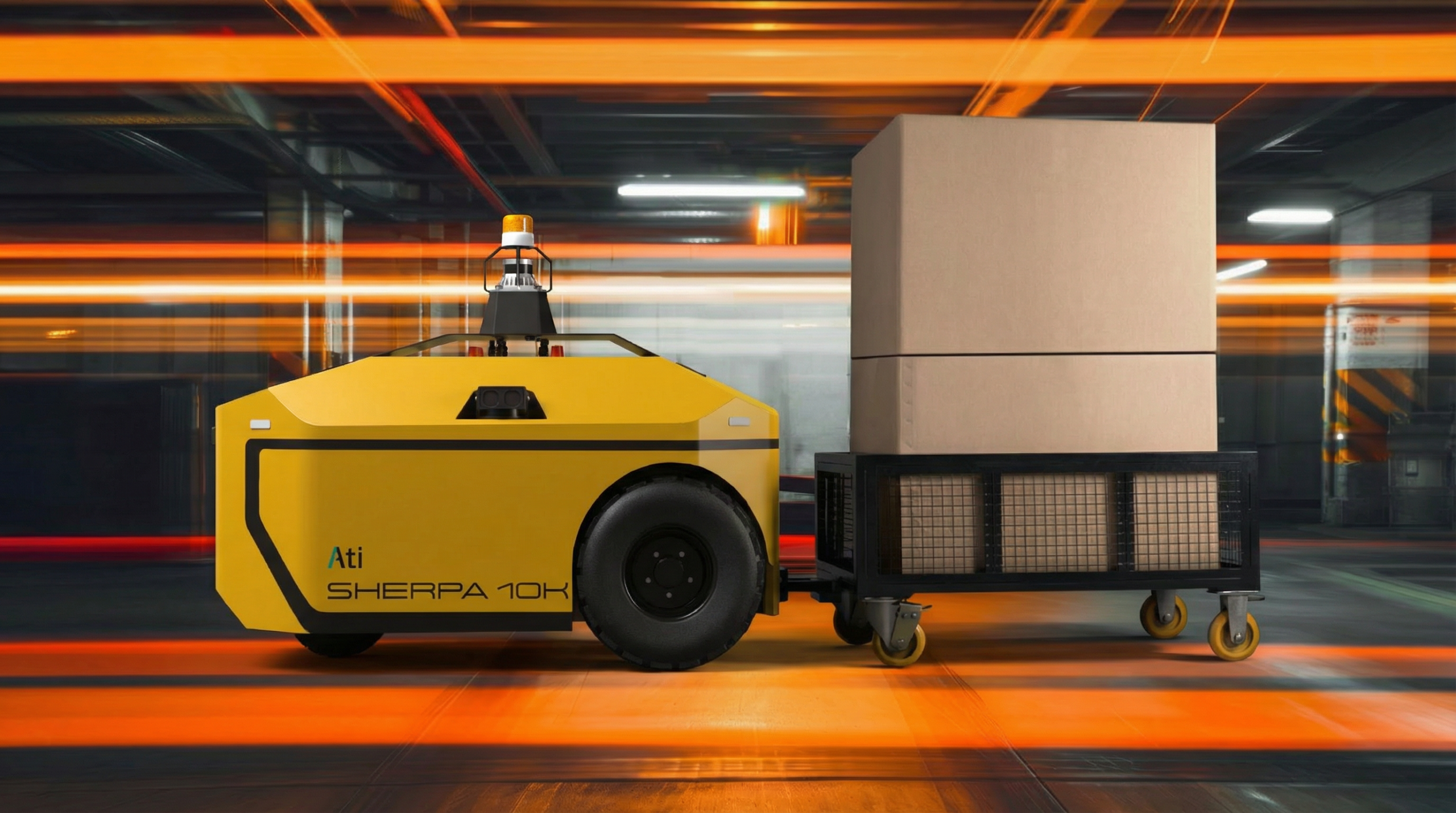

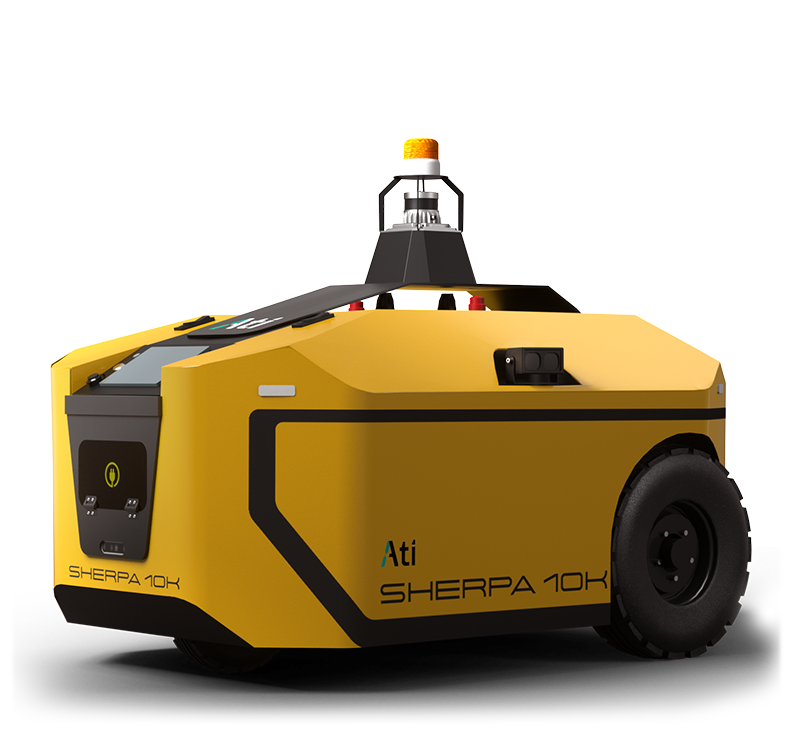

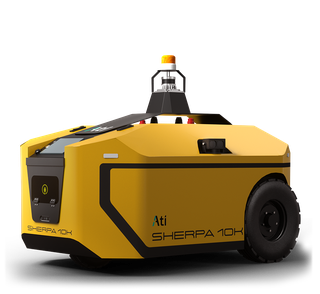

The Sherpa 10K is the most powerful robot in the Ati lineup, towing up to 10,000 lbs (4,600 kg) with 3D LiDAR navigation, full-shift battery operation, and indoor/outdoor capability. It is built tough for indoor and outdoor industrial environments.
FEATURES

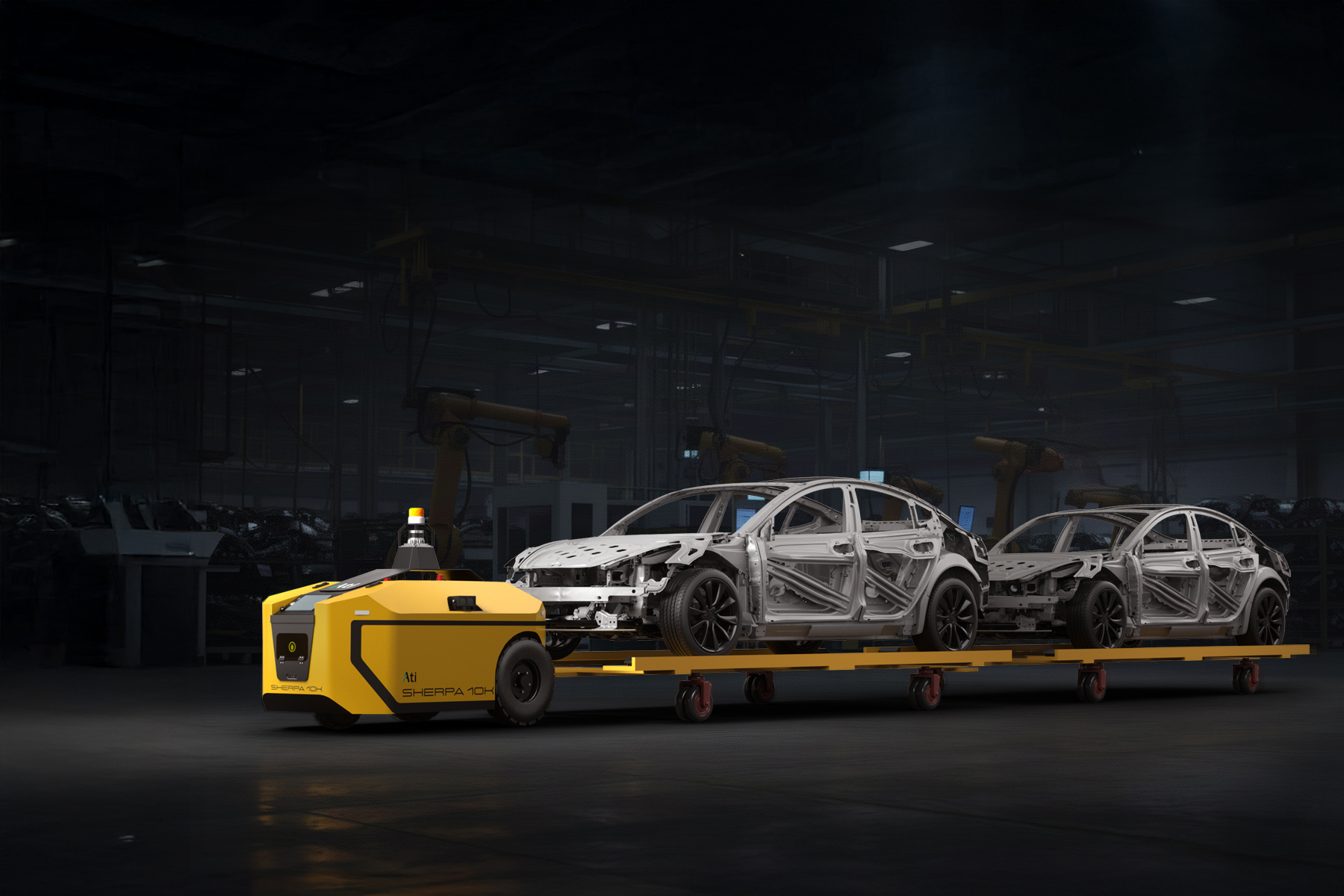

- Tugs up to 10,000 lbs (4,600 kg)

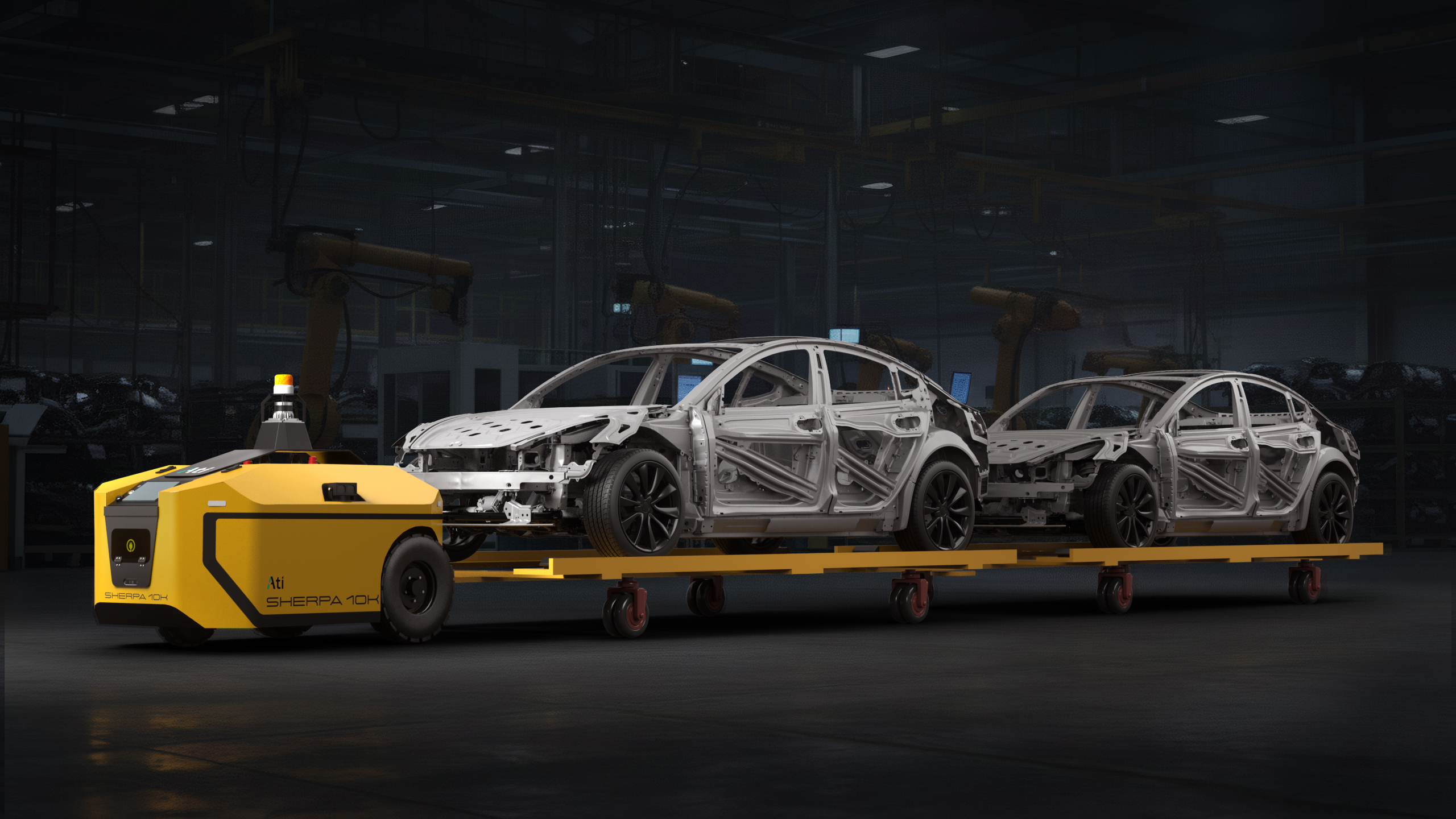

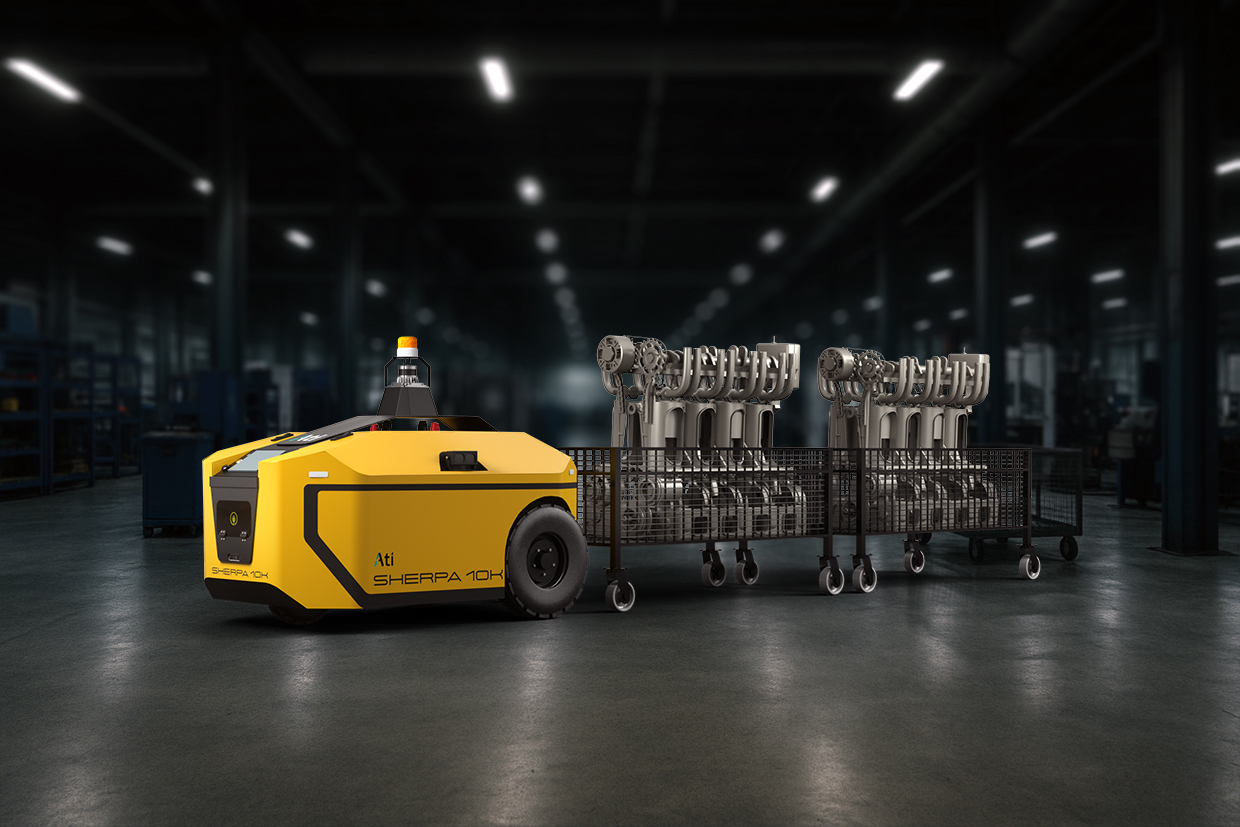

- Hauls trolley trains of up to 3 trolleys
- 1.2 m/s laden, 1.4 m/s unladen
- Natural navigation - no facility infrastructure changes required

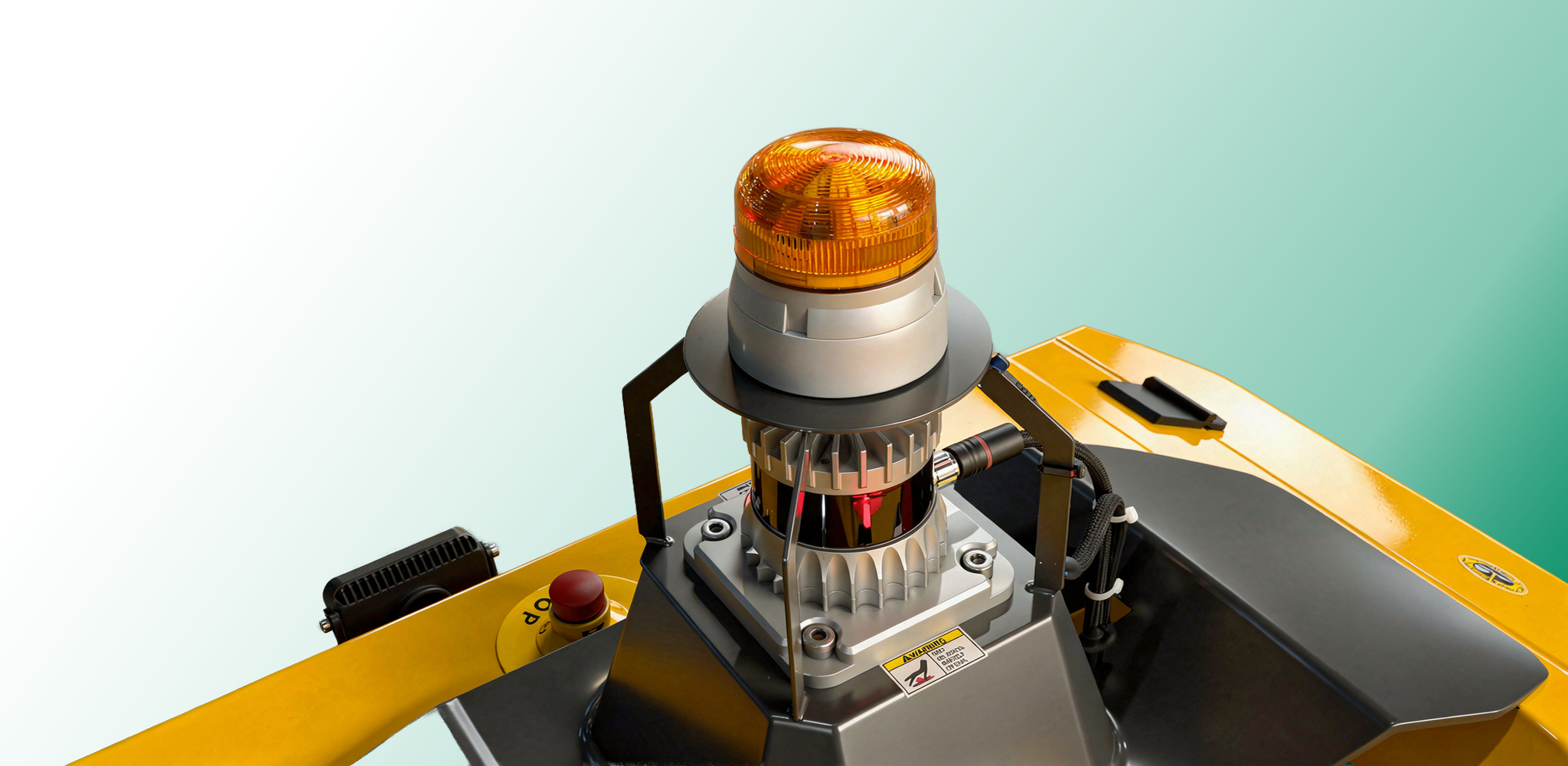

- 3D LiDAR and camera sensing
- 48V LFP battery - 8 hour run time, 1 hour charge to 80%
- 1.15 m turning radius
- Climbs gradients up to 6 degrees
- IPX4, rated +5 to +45 degrees C

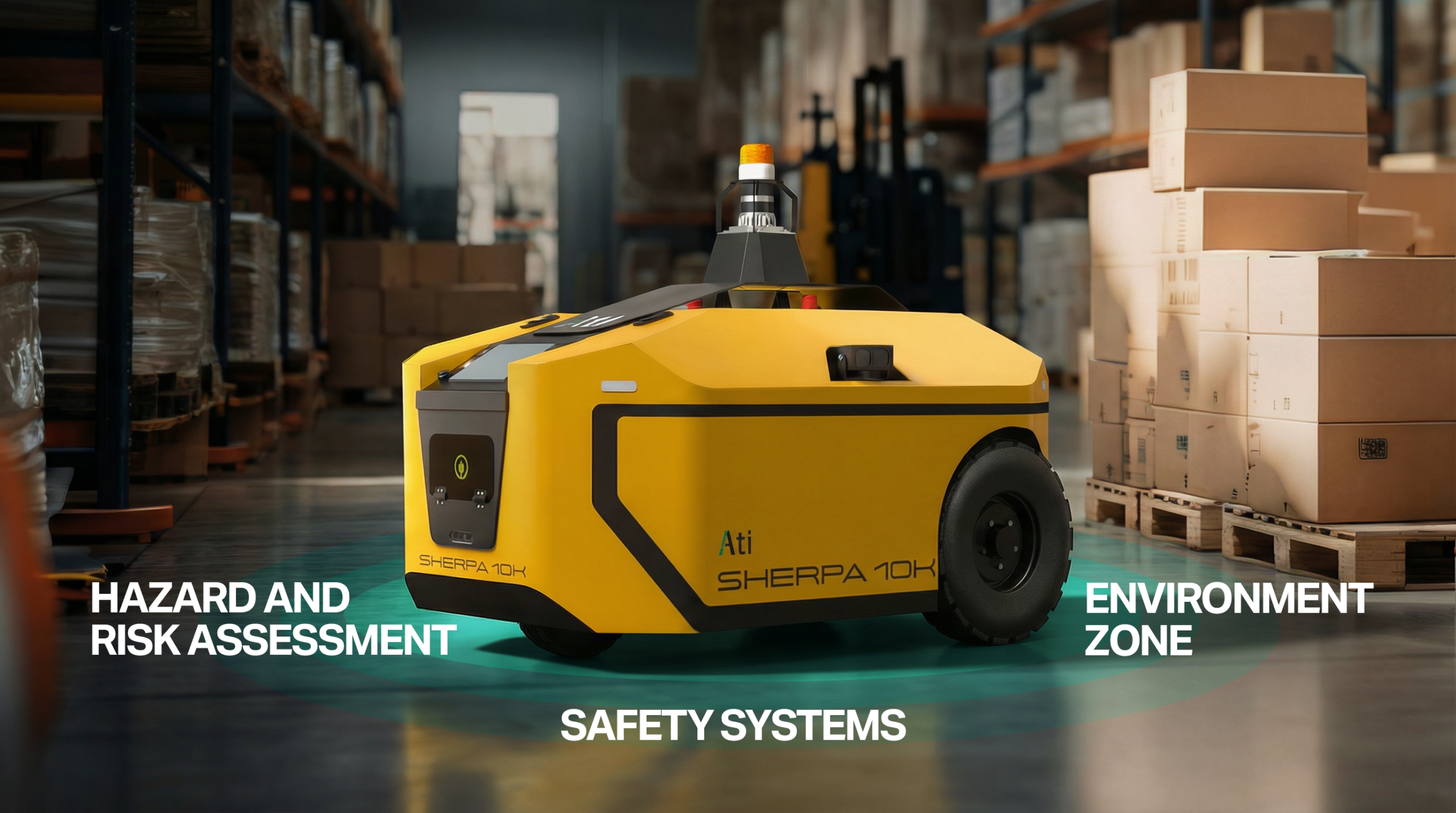

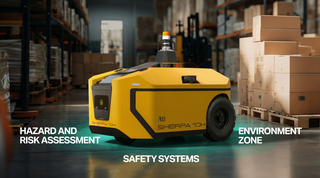

- ISO 3691-4 safety certified for shared human/vehicle spaces
- 1,561 x 926 x 1,143 mm, 700 kg
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 700 kg |
|---|---|
| Payload | 4600 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.04 km/h |
| Manipulation | Low |
| Environment | IPX4, 5.0°C to 45.0°C |
| Power | |
| Battery Life | 8 hours |
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 700 kg |
|---|---|
| Payload | 4600 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.04 km/h |
| Manipulation | Low |
| Environment | IPX4, 5.0°C to 45.0°C |
| Power | |
| Battery Life | 8 hours |
Images
martti
martti
martti
martti
martti
martti
martti
martti
martti
martti
martti
marttiImage Contributions
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the Sherpa 10K?
The Sherpa 10K is the most powerful robot in the Ati lineup, towing up to 10,000 lbs (4,600 kg) with 3D LiDAR navigation, full-shift battery operation, and indoor/outdoor capability. It is built tough for indoor and outdoor industrial environments.
Who makes the Sherpa 10K?
The Sherpa 10K is made by Ati Motors Pvt. Ltd., a robotics company based in India.
How much does the Sherpa 10K cost?
Ati Motors Pvt. Ltd. has not publicly announced pricing for the Sherpa 10K. You can enquire through RobotAIGeek for current pricing.
What is the Sherpa 10K used for?
The Sherpa 10K is designed for delivery. It is used in warehouse & logistics and manufacturing settings.
What is the payload capacity of the Sherpa 10K?
The Sherpa 10K has a payload capacity of 4,600 kg.
How much does the Sherpa 10K weigh?
The Sherpa 10K weighs 700 kg.
How fast is the Sherpa 10K?
The Sherpa 10K can move at speeds of up to 5.04 km/h.
What is the battery life of the Sherpa 10K?
The Sherpa 10K runs for 8 hours on a charge.
