DESCRIPTION
SAFELOG X1 spin is a Mobile-Robots from SAFELOG. It is built for Intralogistics, Lifting, Material-Handling. Key figures: 232 kg, 102 min runtime, 1200 kg payload.

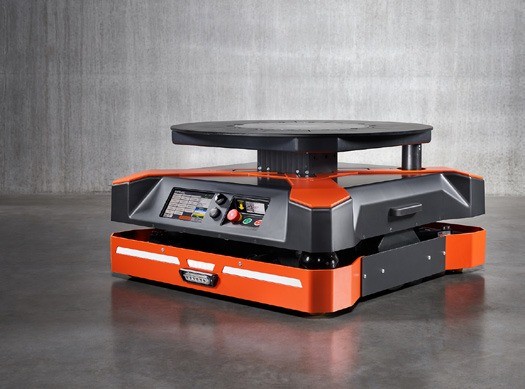

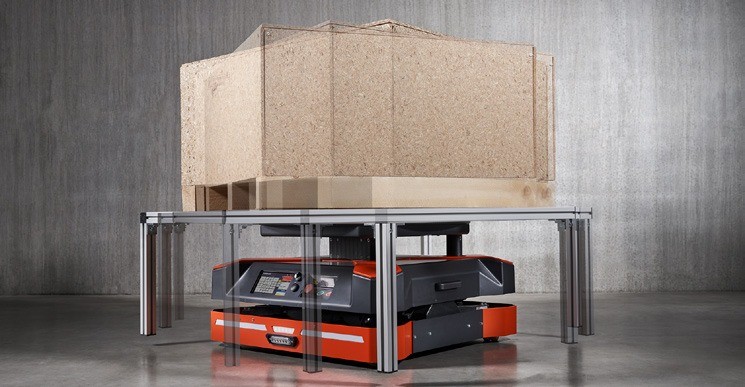

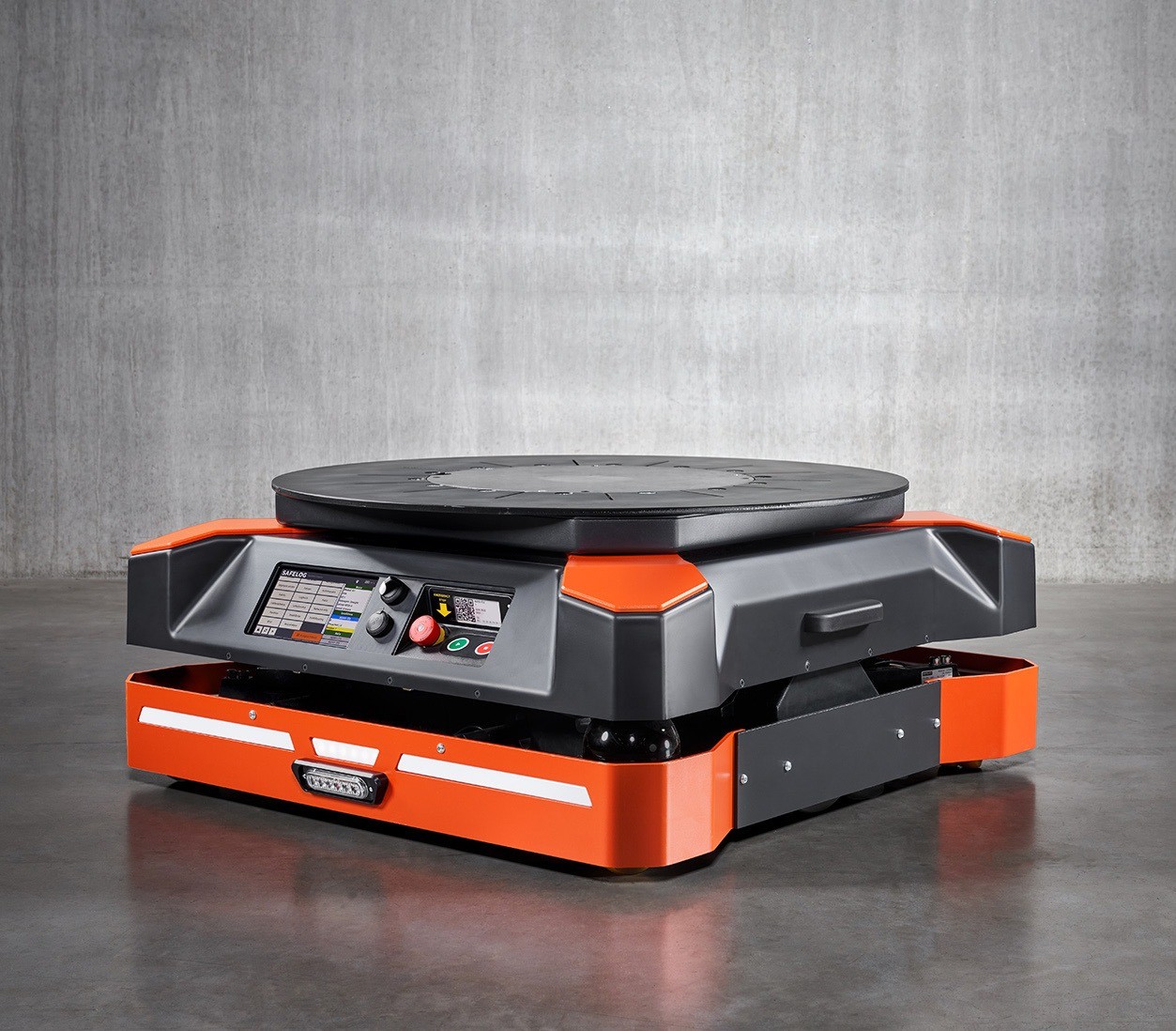

The X1 spin is the rotating-platform variant of SAFELOG's X1 series. Its central lifting unit, with 80 mm stroke, can turn independently of the robot, so racks, crates and pallets of up to 1,200 kg can be realigned without moving the vehicle - useful in confined goods-to-person stations. Like the X1 lift it has a differential drive that turns on the spot and drives at up to 1.0 m/s loaded (1.6 m/s empty). Per its datasheet it measures 840 x 820 x 367 mm, weighs 232 kg, positions to +/-5 mm and runs about 1.7 hours under load on a 24 V 21 Ah LiFePO4 battery charged inductively in about 20 minutes.
FEATURES
- Central lifting unit (80 mm) rotates independently of the robot - realigns loads in confined spaces
- Top load 1,200 kg
- Differential drive, turns on the spot
- turning radius 1 m
- Speed 0.02-1.0 m/s (1.6 m/s empty)
- Localization: magnetic track, RFID, odometry
- LiDAR, 2D camera or grid codes optional
- LiFePO4 24 V 21 Ah (42 Ah optional)
- 20 min charge
- Size 840 x 820 x 367 mm
- 232 kg
- CE, FCC
- Agent-based swarm control (SAFELOG IntelliAgent) over Wi-Fi - no central control station needed
- VDA 5050-ready for third-party fleet managers
- Inductive in-process charging
- LiFePO4 batteries
- Operating range +5 to +35 C
- VDI 2510 floors
- 24/7 operation
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 232 kg |
|---|---|
| Dimensions | L 840 mm × W 820 mm × H 367 mm |
| Payload | 1200 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.76 km/h |
| Environment | Indoor production and warehouse floors (+5 to 35 C, VDI 2510) |
| Power | |
| Battery Life | 102 min |
| Sensing & Compute | |
| Sensors | safety laser scanner, RFID / grid-code / magnetic-track sensors |
| Connectivity | Wi-Fi; VDA 5050 |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 232 kg |
|---|---|
| Dimensions | L 840 mm × W 820 mm × H 367 mm |
| Payload | 1200 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.76 km/h |
| Environment | Indoor production and warehouse floors (+5 to 35 C, VDI 2510) |
| Power | |
| Battery Life | 102 min |
| Sensing & Compute | |
| Sensors | safety laser scanner, RFID / grid-code / magnetic-track sensors |
| Connectivity | Wi-Fi; VDA 5050 |
Images
martti
martti
martti
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the SAFELOG X1 spin?
The X1 spin is the rotating-platform variant of SAFELOG's X1 series. Its central lifting unit, with 80 mm stroke, can turn independently of the robot, so racks, crates and pallets of up to 1,200 kg can be realigned without moving the vehicle - useful in confined goods-to-person stations.
Who makes the SAFELOG X1 spin?
The SAFELOG X1 spin is made by SAFELOG, a robotics company based in Germany.
How much does the SAFELOG X1 spin cost?
SAFELOG has not publicly announced pricing for the SAFELOG X1 spin. You can enquire through RobotAIGeek for current pricing.
What is the SAFELOG X1 spin used for?
The SAFELOG X1 spin is designed for intralogistics, lifting, material-handling, and transport. It is used in automotive, warehouse & logistics, and manufacturing settings.
What is the payload capacity of the SAFELOG X1 spin?
The SAFELOG X1 spin has a payload capacity of 1,200 kg.
How much does the SAFELOG X1 spin weigh?
The SAFELOG X1 spin weighs 232 kg.
How fast is the SAFELOG X1 spin?
The SAFELOG X1 spin can move at speeds of up to 5.76 km/h.
What is the battery life of the SAFELOG X1 spin?
The SAFELOG X1 spin runs for about 102 minutes on a charge.
