DESCRIPTION
RTB10 is an Industrial-Robot from i-Cow. It is built for Intralogistics, Lifting, Material-Handling. Key figures: 210 kg, 1000 kg payload.

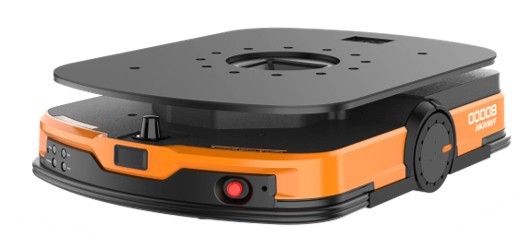

The RTB10 is a latent lifting mobile robot from i-Cow (Muniu Liuma), an autonomous mobile robot that drives under racks, carts and fixtures, lifts them on its top platform and carries them to the next station. It is rated for 1,000 kg and raises its 980 x 800 mm platform by 60 mm, weighs 210 kg and measures 1,180 x 860 x 260 mm. It travels at up to 1.7 m/s with ±10 mm positioning accuracy and a minimum turning diameter of 1265 mm, runs on a 48 V, 44 Ah battery, and is dispatched with i-Cow's other AGVs through its multi-vehicle scheduling system, which runs mixed fleets on one shared map and supports the VDA 5050 interface.
FEATURES
- Rated load 1,000 kg
- Lift height 60 mm

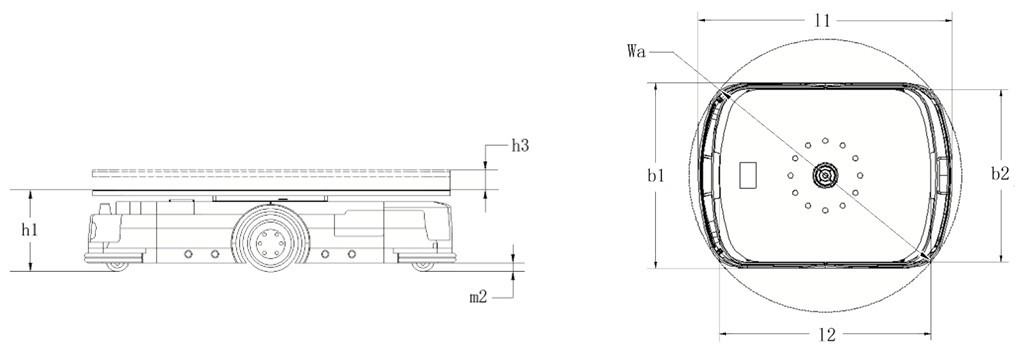

- Overall dimensions 1180 x 860 x 260 mm (L x W x H)
- Service weight 210 kg
- Lifting platform 980/800 mm
- Turning diameter 1265 mm
- Travel speed 0-1.7 m/s
- positioning accuracy ±10 mm
- Battery 48 V / 44 Ah
- Multi-vehicle scheduling on one shared map
- VDA 5050 interface
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 210 kg |
|---|---|
| Dimensions | L 1.18 m × W 860 mm × H 260 mm |
| Payload | 1000 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 6.12 km/h |
| Environment | Indoor factories and warehouses |
| Sensing & Compute | |
| Connectivity | Fleet scheduling system; VDA 5050 |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 210 kg |
|---|---|
| Dimensions | L 1.18 m × W 860 mm × H 260 mm |
| Payload | 1000 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 6.12 km/h |
| Environment | Indoor factories and warehouses |
| Sensing & Compute | |
| Connectivity | Fleet scheduling system; VDA 5050 |
Images
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the RTB10?
The RTB10 is a latent lifting mobile robot from i-Cow (Muniu Liuma), an autonomous mobile robot that drives under racks, carts and fixtures, lifts them on its top platform and carries them to the next station.
Who makes the RTB10?
The RTB10 is made by i-Cow, a robotics company based in China.
How much does the RTB10 cost?
i-Cow has not publicly announced pricing for the RTB10. You can enquire through RobotAIGeek for current pricing.
What is the RTB10 used for?
The RTB10 is designed for intralogistics, lifting, material-handling, and transport. It is used in automotive, electronics, energy, and warehouse & logistics settings.
What is the payload capacity of the RTB10?
The RTB10 has a payload capacity of 1,000 kg.
How much does the RTB10 weigh?
The RTB10 weighs 210 kg.
How fast is the RTB10?
The RTB10 can move at speeds of up to 6.12 km/h.
