DESCRIPTION
QT04 is a Mobile-Robots from Sevnce Robotics. It is built for Search-And-Rescue, Inspection, Explosion-proof inspection and emergency robotics. Key figures: 850 kg, 360 min runtime.

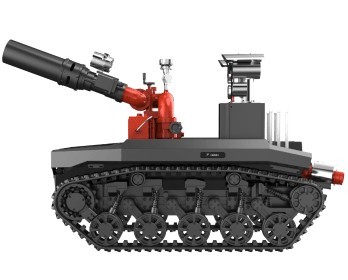

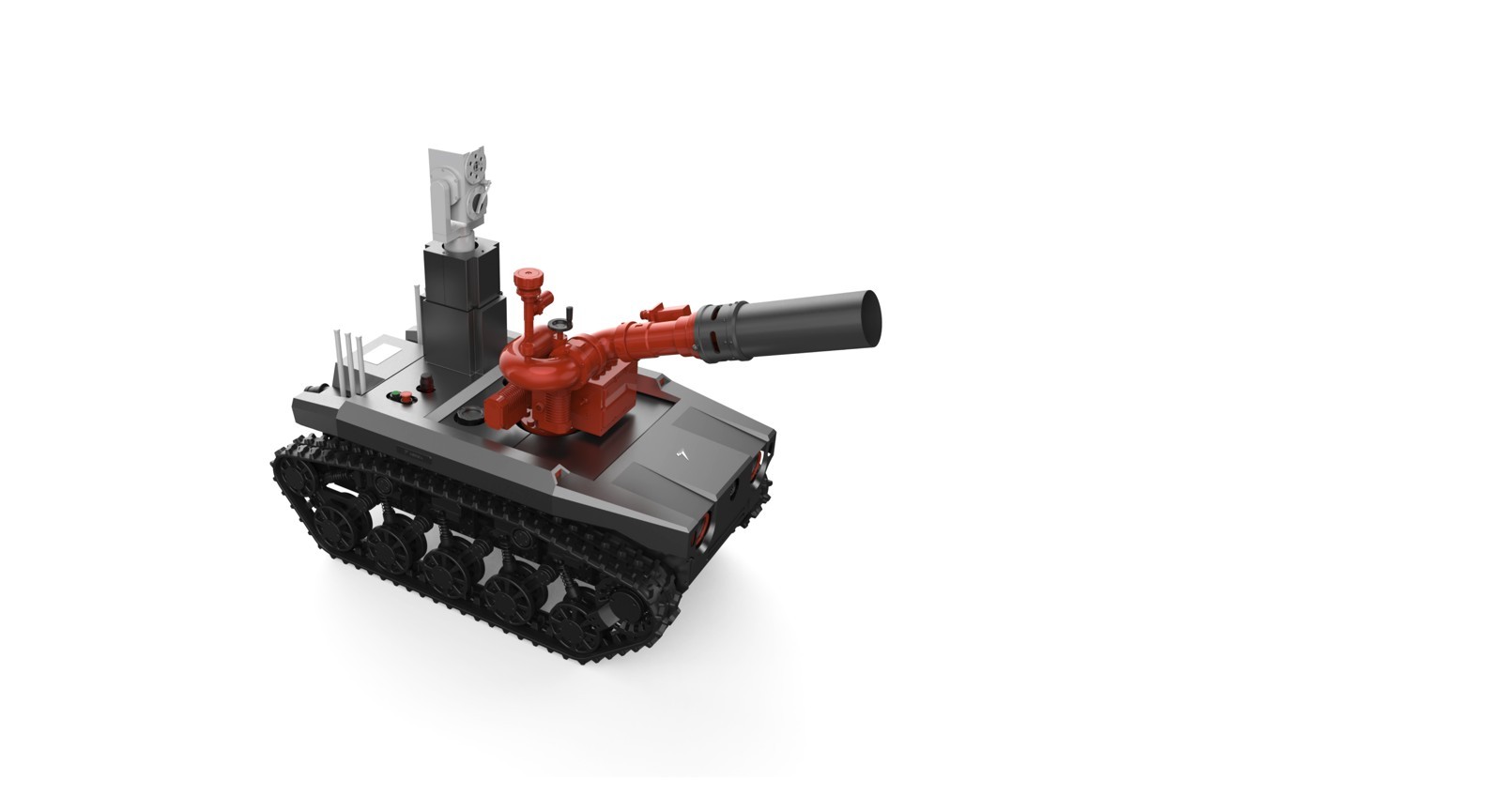

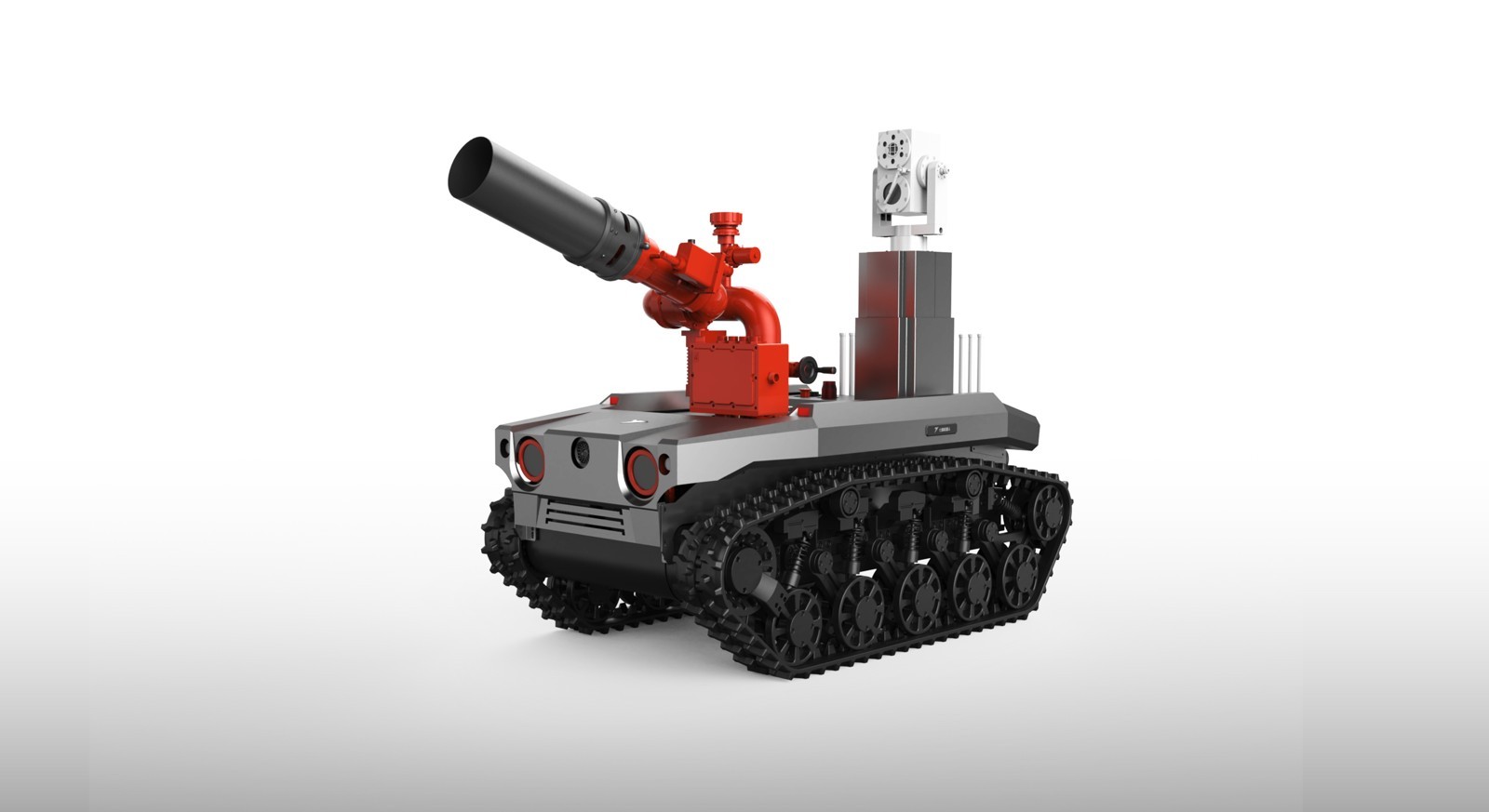

The QT04 is Sevnce's explosion-proof firefighting and reconnaissance robot (Ex IIB T6 Gb, IP66), sent into fires in chemical parks, energy-storage stations, utility tunnels, large warehouses and oil depots in place of firefighters. It carries a fire monitor that can be swung, pitched and set to sweep remotely, switching between water and foam at up to 80 L/s with a reach of up to 80 m, plus environmental and gas sensing and a twin water-curtain spray that cools the robot itself. A twin-track, skid-steer chassis gives strong obstacle-crossing and hose-pulling ability: up to 1.5 m/s, 90 % slopes, 30 cm obstacles and 50 cm wading. It is remote-controlled from up to 1,000 m over 4G, 5G and Wi-Fi with redundant links, runs up to six hours with up to six-hour charging, and measures up to 1,700 x 900 x 1,250 mm and 850 kg; options include a lifting gimbal and automatic hose release.
FEATURES
- Explosion protection Ex IIB T6 Gb
- IP66
- Fire monitor: water/foam, up to 80 L/s, range up to 80 m
- rotate, pitch and sweep
- Twin water-curtain self-cooling spray
- gas detection
- video
- Twin-track skid-steer chassis
- pulls charged hose
- Up to 1,700 x 900 x 1,250 mm
- up to 850 kg
- Speed up to 1.5 m/s
- slopes up to 90 %
- obstacles up to 30 cm
- wading 50 cm
- Remote control up to 1,000 m
- 4G / 5G / Wi-Fi with redundant links
- Working time up to 6 h
- charging up to 6 h
- Options: lifting gimbal, automatic hose release
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 850 kg |
|---|---|
| Dimensions | L 1.7 m × W 900 mm × H 1.25 m |
| Mobility | |
| Movement Type | Other |
| Speed | 5.4 km/h |
| Environment | Chemical parks, energy-storage stations, utility tunnels, large warehouses, tunnels and oil depots |
| Power | |
| Battery Life | 360 min |
| Sensing & Compute | |
| Sensors | gas sensors, cameras, thermal / environmental sensors |
| Connectivity | 4G, 5G, Wi-Fi |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 850 kg |
|---|---|
| Dimensions | L 1.7 m × W 900 mm × H 1.25 m |
| Mobility | |
| Movement Type | Other |
| Speed | 5.4 km/h |
| Environment | Chemical parks, energy-storage stations, utility tunnels, large warehouses, tunnels and oil depots |
| Power | |
| Battery Life | 360 min |
| Sensing & Compute | |
| Sensors | gas sensors, cameras, thermal / environmental sensors |
| Connectivity | 4G, 5G, Wi-Fi |
Images
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the QT04?
The QT04 is Sevnce's explosion-proof firefighting and reconnaissance robot (Ex IIB T6 Gb, IP66), sent into fires in chemical parks, energy-storage stations, utility tunnels, large warehouses and oil depots in place of firefighters.
Who makes the QT04?
The QT04 is made by Sevnce Robotics, a robotics company based in China.
How much does the QT04 cost?
Sevnce Robotics has not publicly announced pricing for the QT04. You can enquire through RobotAIGeek for current pricing.
What is the QT04 used for?
The QT04 is designed for search-and-rescue, inspection, and explosion-proof inspection and emergency robotics. It is used in energy, manufacturing, and security & patrol settings.
How much does the QT04 weigh?
The QT04 weighs 850 kg.
How fast is the QT04?
The QT04 can move at speeds of up to 5.4 km/h.
What is the battery life of the QT04?
The QT04 runs for about 360 minutes on a charge.
