Explosion-Proof Inspection Robot (EXDM200 / EXHR300 / EXHR600)

Hangcha

Mobile-Robots China

ChinaReleased

★Not rated yet

Compare

Sources:

haslagv.com

Industries:

Energy Manufacturing

Uses:

Inspection Monitoring PatrolExplosion-proof robots that inspect oil, gas and chemical plants for leaks and faults

Price:

Not announced

Model:

Hangcha Explosion-Proof Inspection Robot (EXDM200 / EXHR300 / EXHR600)

DESCRIPTION

Explosion-Proof Inspection Robot (EXDM200 / EXHR300 / EXHR600) is a Mobile-Robots from Hangcha. It is built for Inspection, Monitoring, Patrol.

Hangcha's explosion-proof inspection robots work in oil, gas and petrochemical sites where flammable gas or dust may be present. The wheeled EXDM200 navigates by 3D laser on an eight-wheel-drive omnidirectional chassis that climbs 30-degree slopes. It has a lifting platform of up to 1.1 m and is rated Ex db eb ib mb IIC T6 Gb. The EXHR300 is a dual-track rail robot rated II C T6 Gb. It runs at up to 1.0 m/s on four-wheel drive, climbs 25 degrees, covers 5 km per charge on a battery of at least 20 Ah, and detects gases and leaks. The EXHR600 is intrinsically safe and rated IP68, certified Ex ib IIC T6 Gb for gas and Ex ib IIIC T80 C Db for dust. It positions to +/-10 mm by odometry and RFID tags, carries thermal and HD cameras, gas modules and microphones, operates from -30 to +60 C and charges itself for unattended operation. The robots come from Guozi Robotics, a Hangcha Intelligent subsidiary.

FEATURES

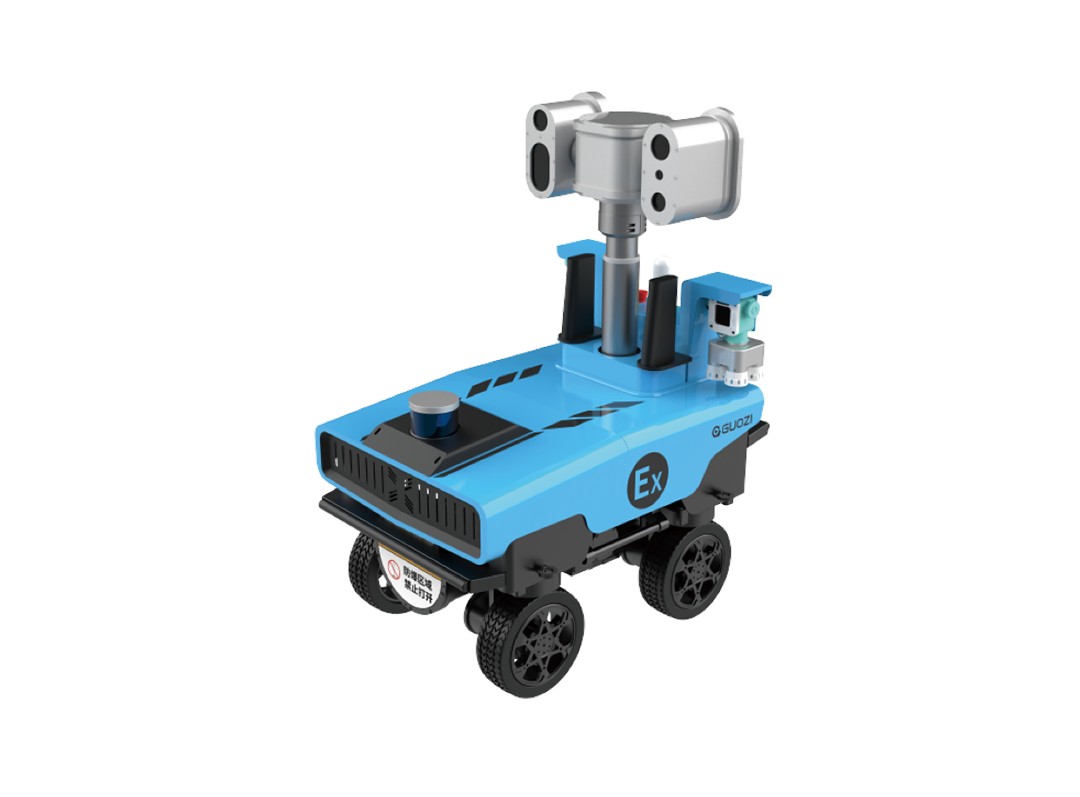

EXDM200: Employing 3D laser navigation, it matches the surrounding environment using a three-dimensional point cloud map, demonstrating superior environmental adaptability through precise positioning
EXDM200: With its eight-wheel drive omnidirectional chassis, the robot can climb slopes up to 30°, ensuring smooth traversal of rough terrain
EXDM200: Comprehensive safety protection, combining laser obstacle avoidance, anti-fall photoelectric technology, and emergency stop edge protection, ensures the safe operation of the robot
EXDM200: Customizable lifting platform up to 1.1 meters, offering the industry's largest lifting range and significantly expanding the robot's inspection field of view
EXDM200: EX db eb ib mb IIC T6 Gb explosion-proof design

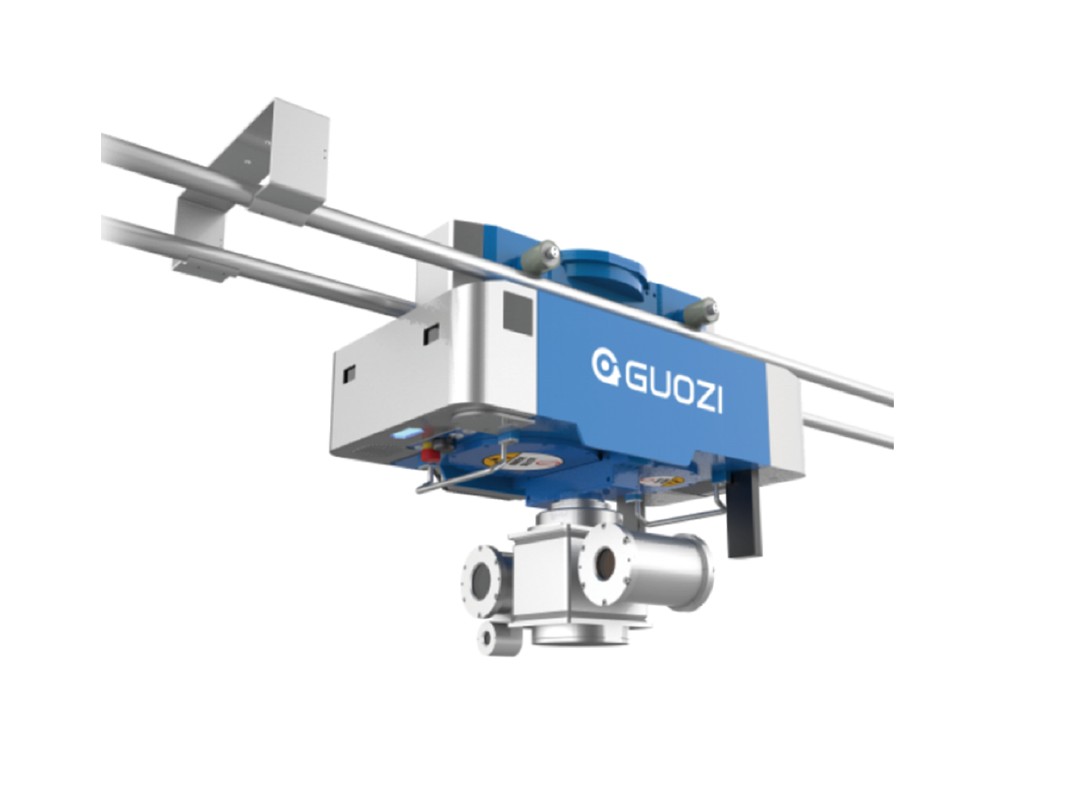

EXHR300: It has an explosion-proof rating of II C T6 Gb and adopts a dual-track design, which is structurally stable and can effectively prevent dust from accumulating above the track
EXHR300: It adopts a high-performance four-wheel drive chassis, boasting strong handling performance, a maximum operating speed of 1.0m/s, and the ability to climb slopes up to 25°
EXHR300: The robot uses a battery with a capacity of at least 20Ah to achieve long battery life and a continuous walking range of 5km
EXHR300: The robot is equipped with a photoelectric safety protection system, enabling safe detection at a distance of 0-4m
EXHR300: Equipped with multiple sensing units, it can detect different types of gases and leaks

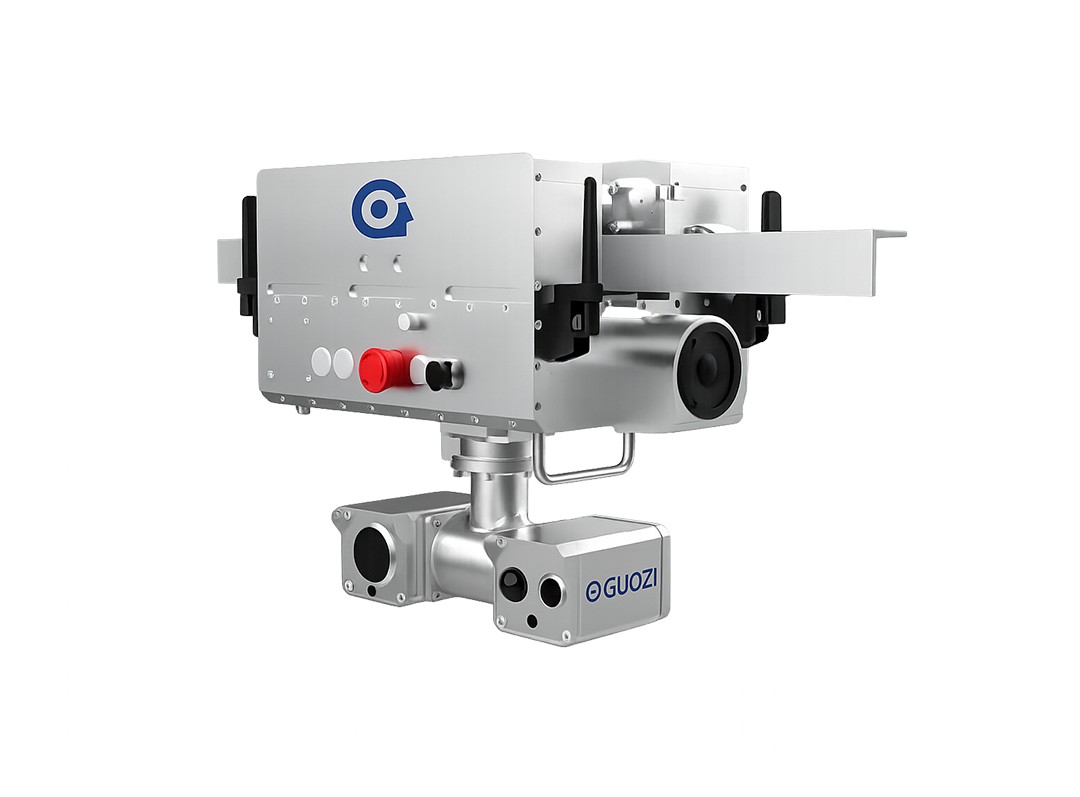

EXHR600: Adopting an intrinsically safe circuit design, the whole machine has intrinsically safe explosion protection (dual explosion protection for gas/dust) and IP68 protection level, and has obtained Ex ib II C T6 Gb (gas explosion protection) and Ex ib III C T80°C Db (dust explosion protection) certifications
EXHR600: The navigation system employs a dual verification method combining odometer and RFID passive positioning tag, coupled with a high-precision servo drive system, achieving a positioning accuracy of ±10mm and ensuring smooth operation without the risk of track slippage
EXHR600: The robot body adopts a modular design and can be flexibly equipped with sensors such as infrared thermal imagers, high-definition visible light cameras, multi-gas detection modules, and microphones according to different application scenarios
EXHR600: Equipped with IP68 protection, it can adapt to a wide temperature range of -30°C to +60°C, as well as harsh industrial environments with high temperatures and high dust
EXHR600: It supports multiple working modes such as scheduled inspection, continuous inspection, and remote control, and has an automatic charging function to achieve "unattended operation"

TECHNICAL SPECIFICATIONS

Verified

Mobility
Movement Type	Wheeled
Speed	3.6 km/h
Environment	Oil, gas and petrochemical sites with explosive atmospheres (gas/dust zones)
Power
Battery Life	>= 20 Ah (EXHR300)
Sensing & Compute
Sensors	3D laser navigation, infrared thermal imager, HD visible-light camera, multi-gas detection module, microphone, RFID positioning tags reader

Manufacturer-sourcedThird-party sourcedUnsourcedSource status is based on this robot's listed sources.

TECHNICAL SPECIFICATIONS

Verified

Mobility
Movement Type	Wheeled
Speed	3.6 km/h
Environment	Oil, gas and petrochemical sites with explosive atmospheres (gas/dust zones)
Power
Battery Life	>= 20 Ah (EXHR300)
Sensing & Compute
Sensors	3D laser navigation, infrared thermal imager, HD visible-light camera, multi-gas detection module, microphone, RFID positioning tags reader

Manufacturer-sourcedThird-party sourcedUnsourcedSource status is based on this robot's listed sources.

FREQUENTLY ASKED QUESTIONS

What is the Explosion-Proof Inspection Robot (EXDM200 / EXHR300 / EXHR600)?

Who makes the Explosion-Proof Inspection Robot (EXDM200 / EXHR300 / EXHR600)?

The Explosion-Proof Inspection Robot (EXDM200 / EXHR300 / EXHR600) is made by Hangcha, a robotics company based in China.

How much does the Explosion-Proof Inspection Robot (EXDM200 / EXHR300 / EXHR600) cost?

Hangcha has not publicly announced pricing for the Explosion-Proof Inspection Robot (EXDM200 / EXHR300 / EXHR600). You can enquire through RobotAIGeek for current pricing.

What is the Explosion-Proof Inspection Robot (EXDM200 / EXHR300 / EXHR600) used for?

The Explosion-Proof Inspection Robot (EXDM200 / EXHR300 / EXHR600) is designed for inspection, monitoring, patrol, and explosion-proof robots that inspect oil, gas and chemical plants for leaks and faults. It is used in energy and manufacturing settings.
