DESCRIPTION
PickPallet is an Industrial-Robot from Tompkins Robotics. It is built for Intralogistics, Material-Handling, Transport. Key figures: 360 min runtime, 1500 kg payload.

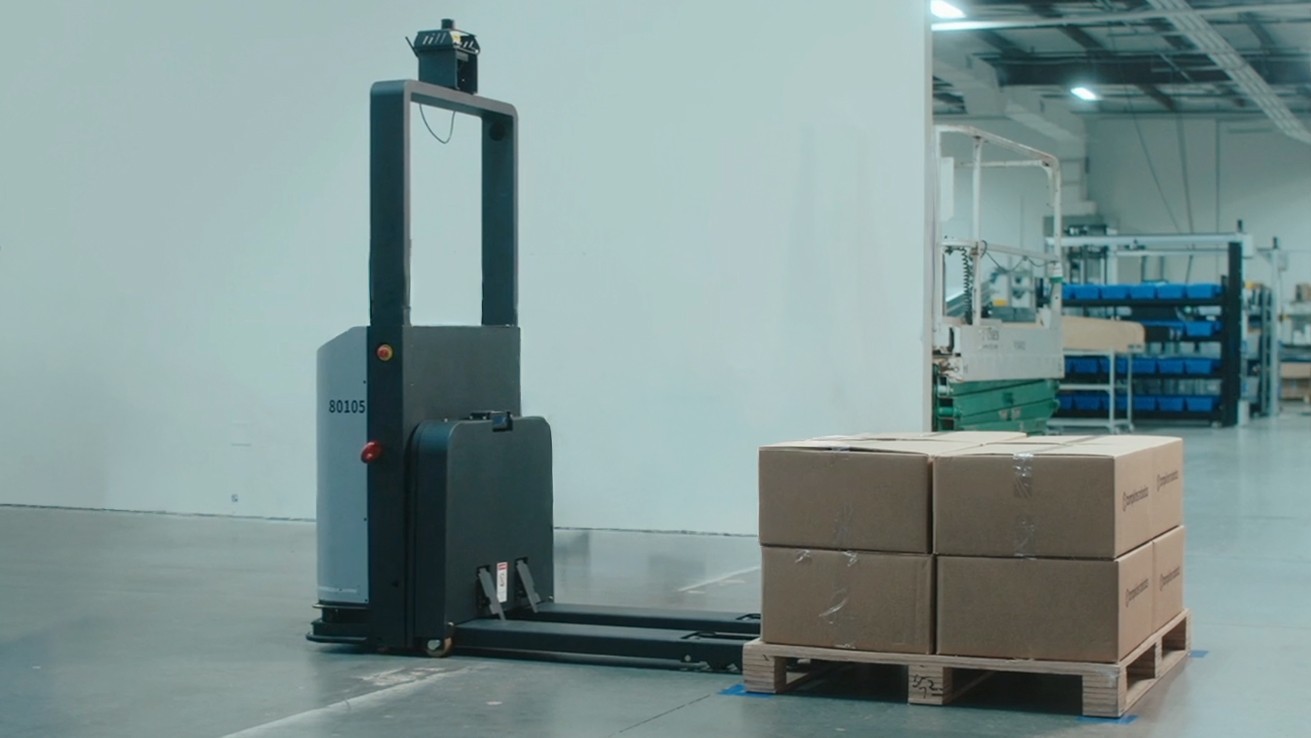

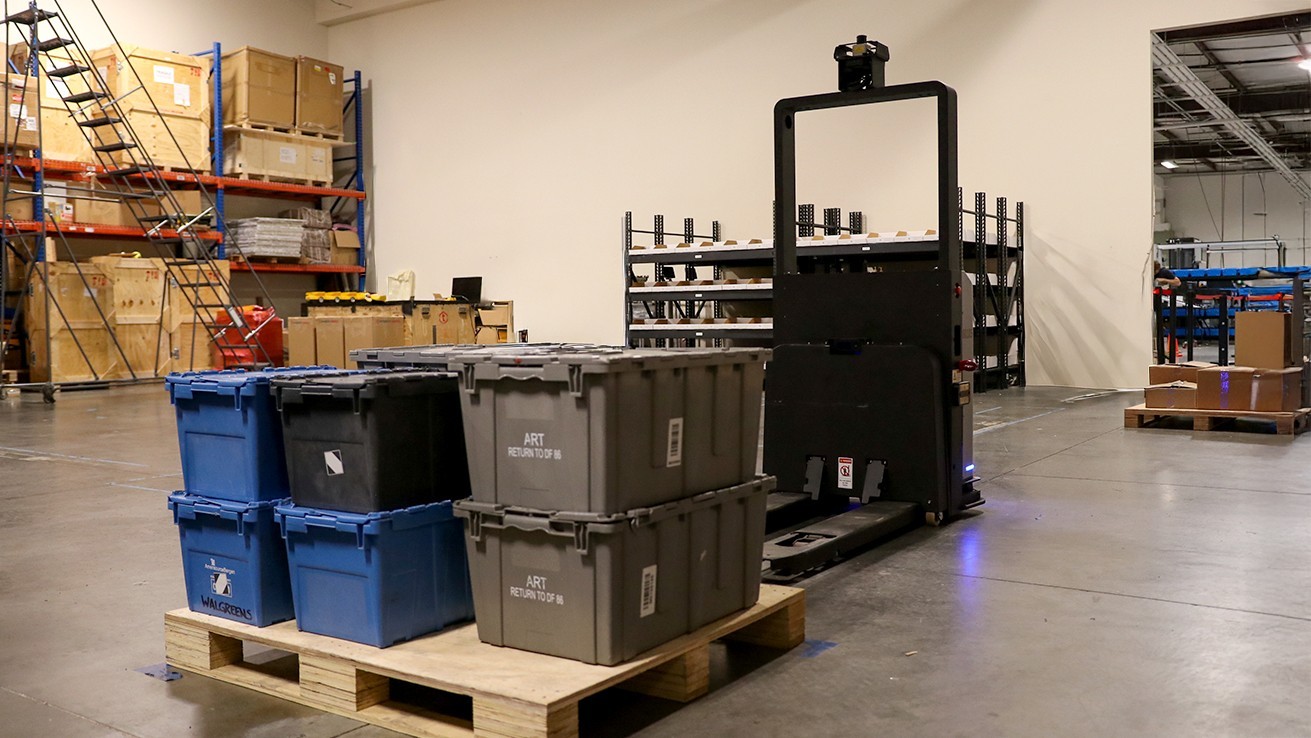

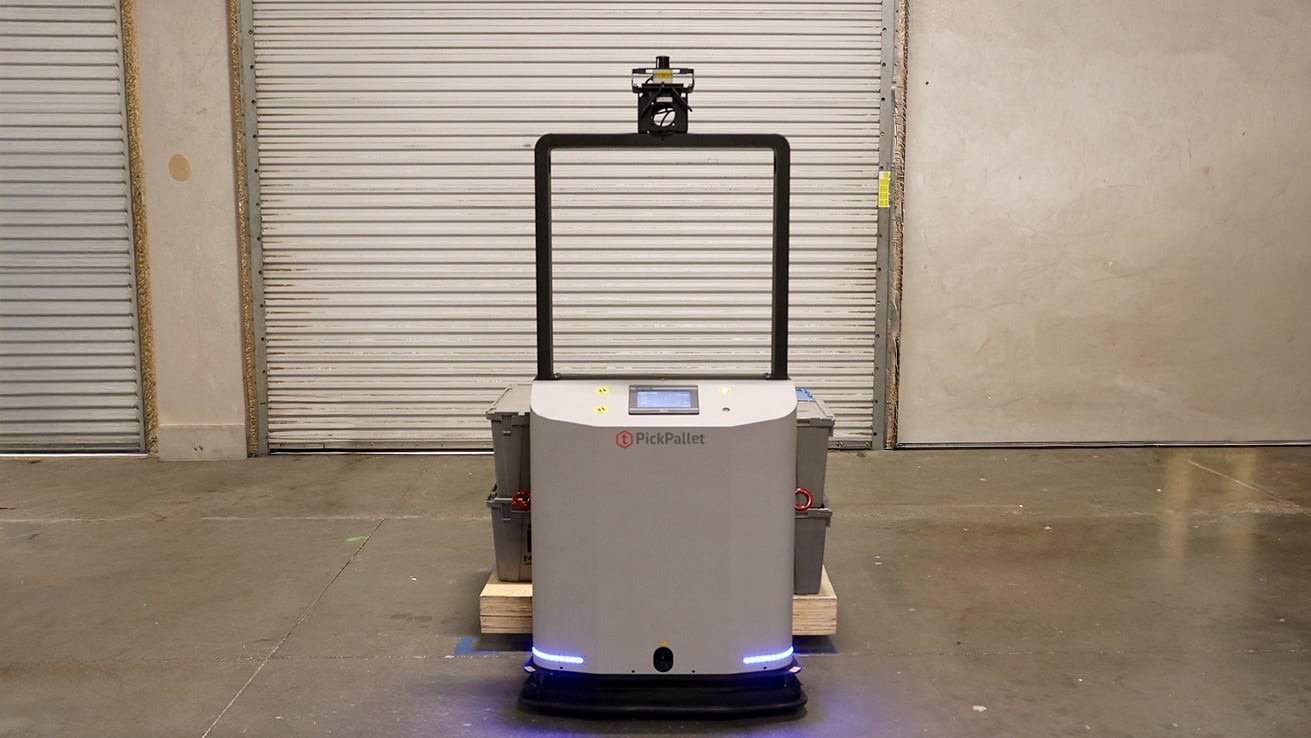

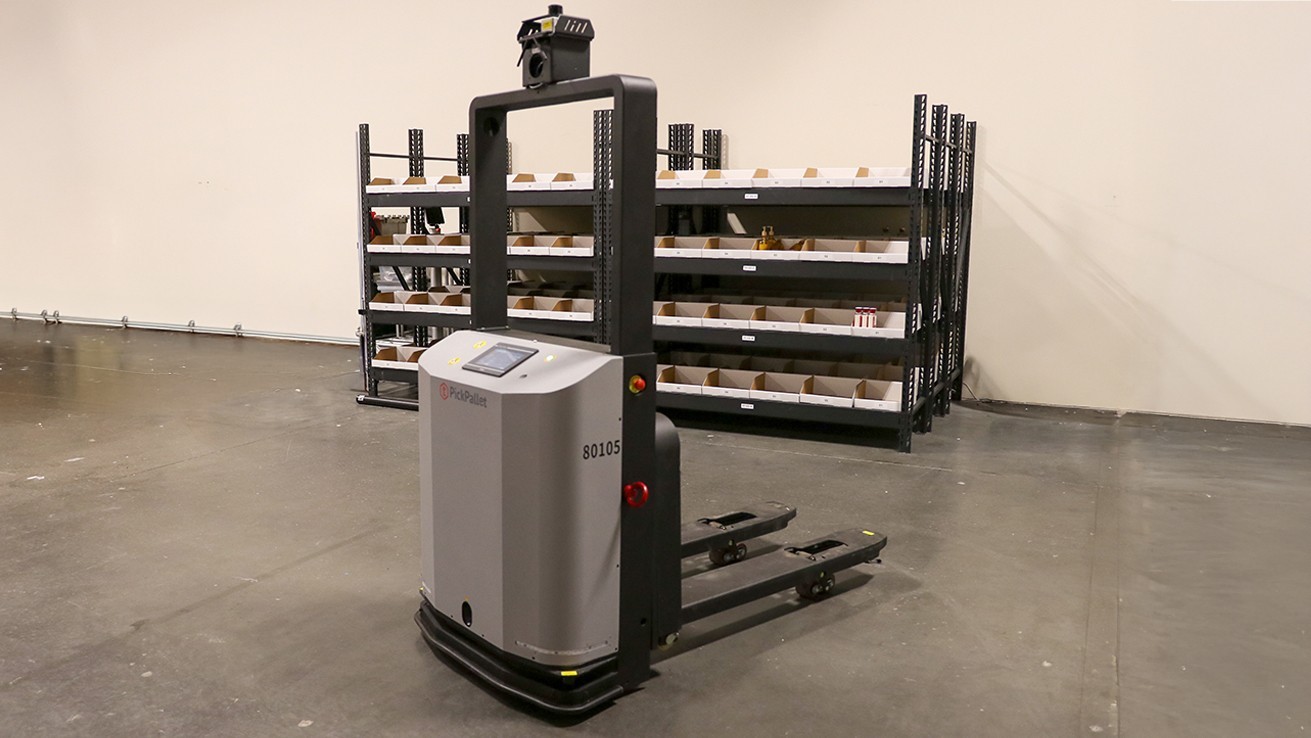

PickPallet is Tompkins Robotics' autonomous pallet mover, a self-driving pallet jack that carries palletized loads of up to 1,500 kg (3,300 lb) point-to-point between storage, staging and shipping areas and supports case-to-pallet picking. It handles open, closed and custom pallets to the major international standards with customizable forks (standard 1150 x 173 x 60 mm), lifts 100 mm and places each load within +/-10 mm of its target. The 1.7 x 0.8 x 1.9 m robot drives at up to 1.3 m/s, turns on a 1,330 mm radius and works in aisles as narrow as 1.7 m, and can climb inclines. Its sensors - LiDAR, a camera, its SkyEye system and obstacle-detection radar - let it adapt to changes in the facility in real time, and it keeps cargo sway under 5 degrees at load heights up to 2 m. It charges itself and runs for about 6 hours, and fleets grow by adding robots.
FEATURES
- Max payload 1,500 kg (3,300 lb)
- Size 1.7 x 0.8 x 1.9 m
- Fork size 1150 x 173 x 60 mm (customizable)
- Lift height 100 mm
- Max speed 1.3 m/s
- Turning radius 1,330 mm
- minimum channel width 1,700 mm
- Placement precision +/-10 mm
- Cargo sway under 5 deg at heights up to 2 m
- SkyEye system + obstacle-detection radar
- LiDAR, camera, warning lights, emergency stops, bumper strip
- 6 h runtime
- self-charging
- Open, closed and custom pallets to major international standards
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Dimensions | L 1.7 m × W 800 mm × H 1.9 m |
|---|---|
| Payload | 1500 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 4.68 km/h |
| Environment | Indoor warehouses and distribution centers |
| Power | |
| Battery Life | 360 min |
| Sensing & Compute | |
| Sensors | LiDAR, camera, SkyEye system, obstacle-detection radar, bumper strip |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Dimensions | L 1.7 m × W 800 mm × H 1.9 m |
|---|---|
| Payload | 1500 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 4.68 km/h |
| Environment | Indoor warehouses and distribution centers |
| Power | |
| Battery Life | 360 min |
| Sensing & Compute | |
| Sensors | LiDAR, camera, SkyEye system, obstacle-detection radar, bumper strip |
Images
martti
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the PickPallet?
PickPallet is Tompkins Robotics' autonomous pallet mover, a self-driving pallet jack that carries palletized loads of up to 1,500 kg (3,300 lb) point-to-point between storage, staging and shipping areas and supports case-to-pallet picking.
Who makes the PickPallet?
The PickPallet is made by Tompkins Robotics, a robotics company based in United States.
How much does the PickPallet cost?
Tompkins Robotics has not publicly announced pricing for the PickPallet. You can enquire through RobotAIGeek for current pricing.
What is the PickPallet used for?
The PickPallet is designed for intralogistics, material-handling, and transport. It is used in healthcare, warehouse & logistics, manufacturing, and retail settings.
What is the payload capacity of the PickPallet?
The PickPallet has a payload capacity of 1,500 kg.
How fast is the PickPallet?
The PickPallet can move at speeds of up to 4.68 km/h.
What is the battery life of the PickPallet?
The PickPallet runs for about 360 minutes on a charge.
