DESCRIPTION
The Noetix M1-Pro is the high-performance build of the M-series embodied wheel-arm robot, sharing the M1's 26 whole-body degrees of freedom — two in the head, seven per arm, four in the torso and six in the omnidirectional wheeled chassis — but rebuilt around precision and compute. Its arms use harmonic joints instead of planetary ones, taking repeatability from ±0.1 mm to ±0.01 mm, and each arm carries 5 kg rated and 8 kg maximum against the M1's 3 and 5. Onboard computing jumps from 6 TOPS to 2,000 TOPS, which is what moves it from teaching platform to embodied-AI research machine. Camera and IMU perception, dexterous hand or gripper end effectors and 3-4 hours of endurance carry over unchanged.
FEATURES
- 26 whole-body DoF (2 head, 7 per arm, 4 torso, 6 chassis)
- harmonic arm joints giving ±0.01 mm repeatability — 10x the M1's precision
- 5 kg rated and 8 kg maximum per arm
- 2,000 TOPS onboard computing
- dexterous hand or gripper end effectors
- camera and IMU perception
- omnidirectional wheeled chassis
- 3-4 hour endurance.
TECHNICAL SPECIFICATIONS
| Physical | |

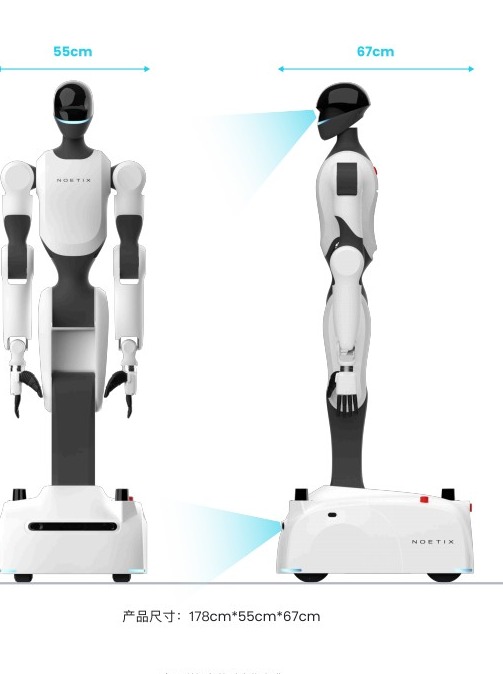

| Dimensions | H 1.8 m |
|---|---|
| Payload | 8 kg |
| Repeatability | ±0.01 mm |
| Mobility | |
| Movement Type | Wheeled |
| Degrees of Freedom | 26 |
| Manipulation | High |
| Actuators | Harmonic arm joints; 2 head, 7 per arm, 4 torso, 6 omnidirectional chassis DoF |
| Power | |
| Battery Life | 3-4 h |
| Sensing & Compute | |
| Sensors | camera, IMU |
TECHNICAL SPECIFICATIONS
| Physical | |
| Dimensions | H 1.8 m |
|---|---|
| Payload | 8 kg |
| Repeatability | ±0.01 mm |
| Mobility | |
| Movement Type | Wheeled |
| Degrees of Freedom | 26 |
| Manipulation | High |
| Actuators | Harmonic arm joints; 2 head, 7 per arm, 4 torso, 6 omnidirectional chassis DoF |
| Power | |
| Battery Life | 3-4 h |
| Sensing & Compute | |
| Sensors | camera, IMU |
Images
martti
Image Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the Noetix M1-Pro?
The Noetix M1-Pro is the high-performance build of the M-series embodied wheel-arm robot, sharing the M1's 26 whole-body degrees of freedom — two in the head, seven per arm, four in the torso and six in the omnidirectional wheeled chassis — but rebuilt around precision and compute.
Who makes the Noetix M1-Pro?
The Noetix M1-Pro is made by NOETIX Robotics, a robotics company based in China.
How much does the Noetix M1-Pro cost?
NOETIX Robotics has not publicly announced pricing for the Noetix M1-Pro. You can enquire through RobotAIGeek for current pricing.
What is the Noetix M1-Pro used for?
The Noetix M1-Pro is designed for pick-and-place, embodied-ai research, algorithm validation, and precision mobile manipulation. It is used in research, education, and manufacturing settings.
What is the payload capacity of the Noetix M1-Pro?
The Noetix M1-Pro has a payload capacity of 8 kg.
What is the battery life of the Noetix M1-Pro?
The Noetix M1-Pro runs for 3-4 h on a charge.
How many degrees of freedom does the Noetix M1-Pro have?
The Noetix M1-Pro has 26 degrees of freedom.
