DESCRIPTION

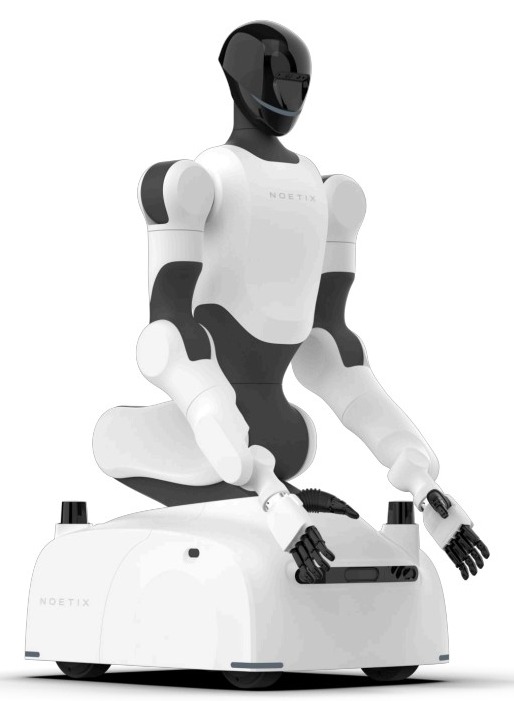

The Noetix M1 is the company's embodied wheel-arm robot: a wheeled mobile base integrated with a humanoid dual-arm manipulator, standing about 1.8 m. High-performance joint modules combine with multi-sensor fusion, and the waist uses a folding lift design that trades nothing away in stability while extending the working envelope. The whole machine is modular, supports quick battery replacement for long continuous running, exceeds four hours of endurance and moves at more than 1.5 m/s. Noetix's own motion-control algorithms let it handle varied terrain, and it accepts dexterous hands and other accessories — the platform is aimed at research and teaching, intelligent service work and embodied-AI algorithm validation.
FEATURES
- 26 whole-body DoF — 2 head, 7 per arm, 4 torso, 6 chassis
- omnidirectional wheeled base with a highly integrated force-controlled dual-arm system
- planetary arm joints with ±0.1 mm repeatability
- 3 kg rated per arm (5 kg maximum)
- dexterous hand or gripper end effectors
- 6 TOPS upgradeable compute with camera and IMU perception
- 3-4 hour endurance
- multi-sensor fusion kit for research, teaching, algorithm validation and robotics R&D.
TECHNICAL SPECIFICATIONS
| Physical | |
| Dimensions | H 1.8 m |
|---|---|
| Payload | 5 kg |
| Repeatability | ±0.1 mm |
| Mobility | |
| Movement Type | Wheeled |
| Degrees of Freedom | 26 |
| Speed | 5.4 km/h |
| Manipulation | Mid |
| Actuators | 26 whole-body DoF: 2 head, 7 per arm, 4 torso, 6 omnidirectional wheeled chassis |
| Power | |
| Battery Life | 3-4 h |
| Sensing & Compute | |
| Sensors | multi-sensor fusion system |
| Connectivity | Multi-sensor fusion perception kit |
| Software / AI | In-house motion-control algorithms; secondary development supported |
TECHNICAL SPECIFICATIONS
| Physical | |
| Dimensions | H 1.8 m |
|---|---|
| Payload | 5 kg |
| Repeatability | ±0.1 mm |
| Mobility | |
| Movement Type | Wheeled |
| Degrees of Freedom | 26 |
| Speed | 5.4 km/h |
| Manipulation | Mid |
| Actuators | 26 whole-body DoF: 2 head, 7 per arm, 4 torso, 6 omnidirectional wheeled chassis |
| Power | |
| Battery Life | 3-4 h |
| Sensing & Compute | |
| Sensors | multi-sensor fusion system |
| Connectivity | Multi-sensor fusion perception kit |
| Software / AI | In-house motion-control algorithms; secondary development supported |
Images
martti
Image Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the Noetix M1?
The Noetix M1 is the company's embodied wheel-arm robot: a wheeled mobile base integrated with a humanoid dual-arm manipulator, standing about 1.8 m.
Who makes the Noetix M1?
The Noetix M1 is made by NOETIX Robotics, a robotics company based in China.
How much does the Noetix M1 cost?
NOETIX Robotics has not publicly announced pricing for the Noetix M1. You can enquire through RobotAIGeek for current pricing.
What is the Noetix M1 used for?
The Noetix M1 is designed for pick-and-place, research and teaching, intelligent service, and embodied-ai algorithm validation. It is used in research, education, and retail settings.
What is the payload capacity of the Noetix M1?
The Noetix M1 has a payload capacity of 5 kg.
How fast is the Noetix M1?
The Noetix M1 can move at speeds of up to 5.4 km/h.
What is the battery life of the Noetix M1?
The Noetix M1 runs for 3-4 h on a charge.
How many degrees of freedom does the Noetix M1 have?
The Noetix M1 has 26 degrees of freedom.
