DESCRIPTION
NarGoD40 is a Delivery-Robots from TWINNY. It is built for Delivery, Transport. Key figures: 480 min runtime, 30 kg payload.

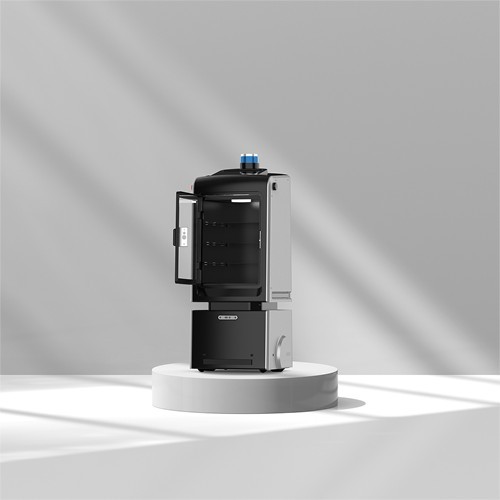

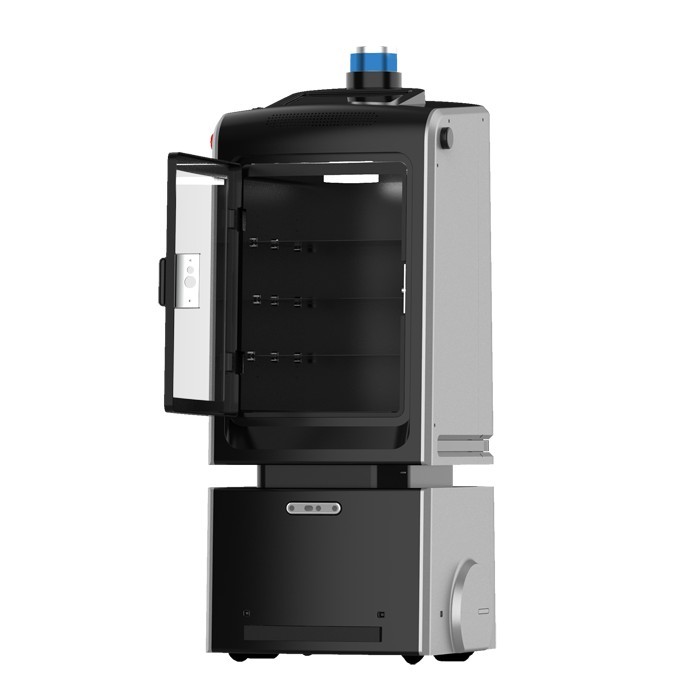

The NarGoD40 is TWINNY's delivery robot for multi-floor buildings. It delivers items autonomously across floors of high-rise buildings, operating elevators on its own, and has a display for intuitive operation and interaction. Its locking cargo box opens and closes fully automatically, shows whether it is open or closed, has interior lighting, and takes shelves at three heights (120, 240 and 360 mm from the bottom). Obstacle safety comes from a 3D LiDAR for environment recognition, a 2D LiDAR for 360-degree obstacle detection, a depth camera and a bumper. The robot measures 560 x 540 x 1,220 mm with a 340 x 308 x 410 mm cargo box and carries 30 kg at up to 1.0 m/s. A 29.4 V, 54 Ah battery gives up to 8 hours of operation with automatic or manual charging in under 3 hours; it crosses steps of +/-20 mm and gaps of 35 mm, climbs 5-degree slopes, and works at 0-40 C, up to 80% humidity and 100-1,000 lx, over Wi-Fi and LTE.
FEATURES
- Payload 30 kg
- Autonomous elevator operation for multi-floor delivery
- Auto-locking cargo box with status indication
- shelves at 120/240/360 mm
- Size 560 x 540 x 1,220 mm
- cargo box 340 x 308 x 410 mm
- Max speed 1.0 m/s
- Battery 29.4 V, 54 Ah
- up to 8 h
- charging under 3 h (auto/manual)
- Step +/-20 mm, gap 35 mm, max gradient 5 deg
- 3D LiDAR + 2D LiDAR (360 deg) + depth camera + bumper
- Display
- Wi-Fi, LTE
- Operating 0-40 C, <80% RH, 100-1000 lx
TECHNICAL SPECIFICATIONS
| Physical | |
| Dimensions | L 560 mm × W 540 mm × H 1.22 m |
|---|---|
| Payload | 30 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 3.6 km/h |
| Environment | Indoor buildings, warehouses and factories, 0°C to 40°C |
| Power | |
| Battery Life | 480 min |
| Sensing & Compute | |
| Sensors | 3D LiDAR, 2D LiDAR (360 deg), depth camera, bumper |
| Connectivity | Wi-Fi, LTE; TWINNY control system |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
| Physical | |
| Dimensions | L 560 mm × W 540 mm × H 1.22 m |
|---|---|
| Payload | 30 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 3.6 km/h |
| Environment | Indoor buildings, warehouses and factories, 0°C to 40°C |
| Power | |
| Battery Life | 480 min |
| Sensing & Compute | |
| Sensors | 3D LiDAR, 2D LiDAR (360 deg), depth camera, bumper |
| Connectivity | Wi-Fi, LTE; TWINNY control system |
Images
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the NarGoD40?
The NarGoD40 is TWINNY's delivery robot for multi-floor buildings. It delivers items autonomously across floors of high-rise buildings, operating elevators on its own, and has a display for intuitive operation and interaction.
Who makes the NarGoD40?
The NarGoD40 is made by TWINNY, a robotics company based in South Korea.
How much does the NarGoD40 cost?
TWINNY has not publicly announced pricing for the NarGoD40. You can enquire through RobotAIGeek for current pricing.
What is the NarGoD40 used for?
The NarGoD40 is designed for delivery and transport. It is used in commercial, facilities, and healthcare settings.
What is the payload capacity of the NarGoD40?
The NarGoD40 has a payload capacity of 30 kg.
How fast is the NarGoD40?
The NarGoD40 can move at speeds of up to 3.6 km/h.
What is the battery life of the NarGoD40?
The NarGoD40 runs for about 480 minutes on a charge.
