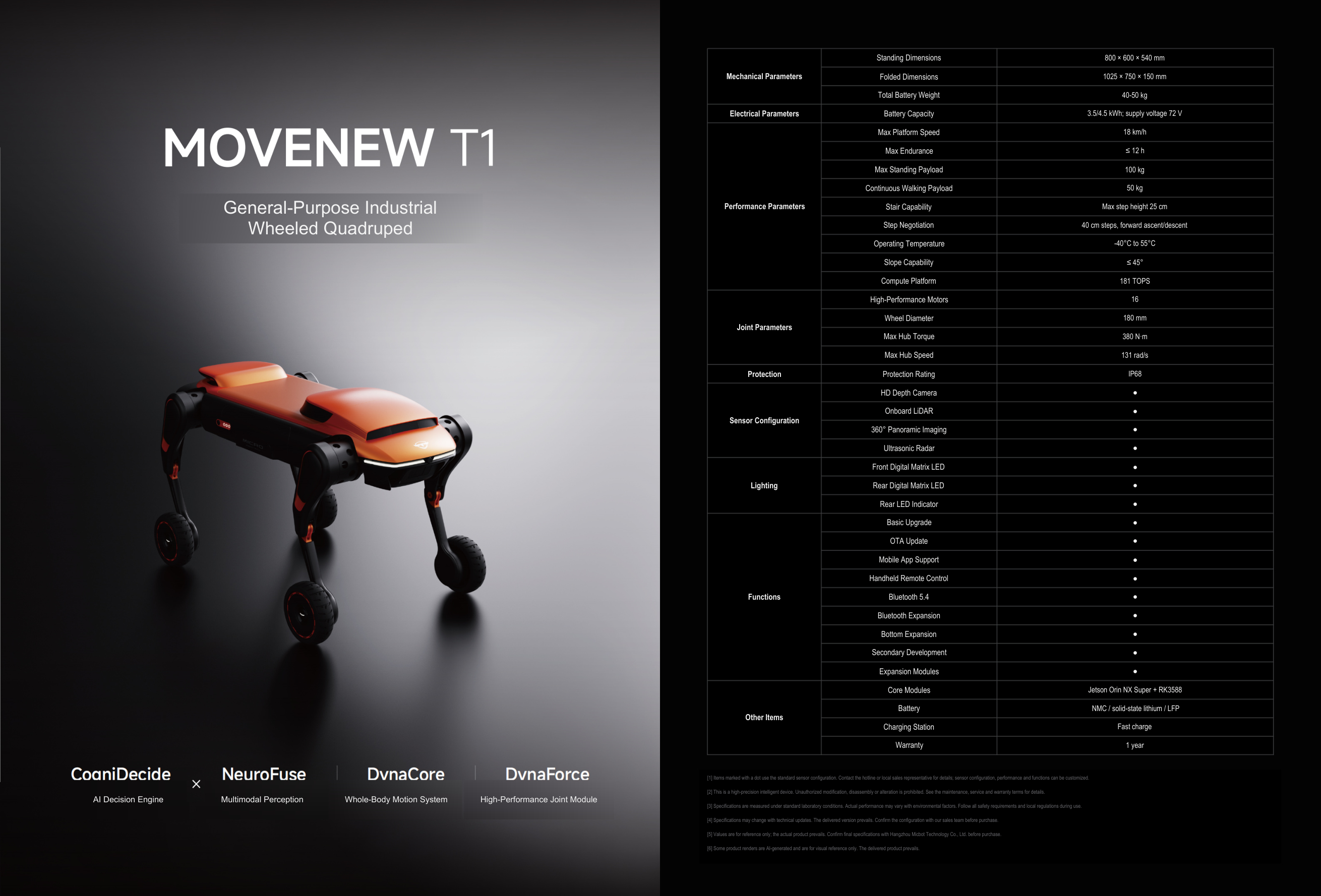

DESCRIPTION
The MOVENEW T1 is Micbot's flagship general-purpose wheeled quadruped, and where the P1 optimises for load the T1 optimises for pace and awareness. It runs to 18 km/h on 180 mm wheels driven by sixteen motors with 380 N·m of hub torque and hub speeds to 131 rad/s, carrying 100 kg standing and 50 kg walking on a chassis of 800 by 600 by 540 mm that folds to 150 mm tall. It takes 25 cm stairs in its stride and negotiates 40 cm steps forwards, up or down. A 3.5 or 4.5 kWh pack at 72 V gives up to twelve hours. Perception is the most complete in the range — onboard LiDAR, HD depth camera, 360-degree panoramic vision and ultrasonic radar — running on a Jetson Orin NX Super paired with an RK3588 for 181 TOPS, and it is the only model in the line with a full lighting set: front and rear digital matrix LED headlights plus a rear indicator. IP68 sealing throughout and a -40 °C to 55 °C range keep it working outdoors, with bottom and Bluetooth expansion plus secondary development for integrators.
FEATURES
- 18 km/h maximum speed on 180 mm wheels, the fastest of the MOVENEW line
- 16 high-performance motors with 380 N·m maximum hub torque and 131 rad/s maximum hub speed
- 100 kg standing and 50 kg continuous walking payload
- 800 x 600 x 540 mm standing, folding to 1025 x 750 x 150 mm
- 3.5 or 4.5 kWh ternary or solid-state lithium pack at 72 V for up to 12 hours
- 25 cm stair climbing and forward ascent or descent of 40 cm steps, slopes to 45 degrees
- 181 TOPS from a Jetson Orin NX Super paired with an RK3588
- onboard LiDAR, HD depth camera, 360-degree panoramic vision and ultrasonic radar
- front and rear digital matrix LED headlights with a rear LED indicator
- IP68 protection and a -40 °C to 55 °C operating range
- Bluetooth 5.4 with Bluetooth and bottom expansion, OTA update, mobile app and handheld remote control, secondary development and expansion modules
- fast-charge station and one-year warranty.
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 50 kg |
|---|---|
| Dimensions | L 800 mm × W 600 mm × H 540 mm |
| Payload | 50 kg |
| Mobility | |
| Movement Type | Quadruped, Wheeled |
| Speed | 18 km/h |
| Manipulation | Low |
| Environment | Outdoor and industrial; IP68; -40 °C to 55 °C; 25 cm stair height, 40 cm step negotiation, slope to 45°, IP68, -40°C to 55°C |
| Actuators | 16 high-performance motors; 180 mm wheels with maximum hub torque 380 N·m and maximum hub speed 131 rad/s; wheel-legged quadruped |
| Power | |
| Battery Life | <=12 h |
| Charging Type | Fast-charge station |
| Sensing & Compute | |
| Sensors | onboard LiDAR, HD depth camera, 360-degree panoramic vision, ultrasonic radar, front and rear digital matrix LED headlights, rear LED indicator |
| Connectivity | Bluetooth 5.4 with Bluetooth expansion; bottom expansion ports |
| Software / AI | Integrated sensing, planning, control and drive platform; OTA update; mobile app; secondary development |
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 50 kg |
|---|---|
| Dimensions | L 800 mm × W 600 mm × H 540 mm |
| Payload | 50 kg |
| Mobility | |
| Movement Type | Quadruped, Wheeled |
| Speed | 18 km/h |
| Manipulation | Low |
| Environment | Outdoor and industrial; IP68; -40 °C to 55 °C; 25 cm stair height, 40 cm step negotiation, slope to 45°, IP68, -40°C to 55°C |
| Actuators | 16 high-performance motors; 180 mm wheels with maximum hub torque 380 N·m and maximum hub speed 131 rad/s; wheel-legged quadruped |
| Power | |
| Battery Life | <=12 h |
| Charging Type | Fast-charge station |
| Sensing & Compute | |
| Sensors | onboard LiDAR, HD depth camera, 360-degree panoramic vision, ultrasonic radar, front and rear digital matrix LED headlights, rear LED indicator |
| Connectivity | Bluetooth 5.4 with Bluetooth expansion; bottom expansion ports |
| Software / AI | Integrated sensing, planning, control and drive platform; OTA update; mobile app; secondary development |
Images
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the MOVENEW T1?
The MOVENEW T1 is Micbot's flagship general-purpose wheeled quadruped, and where the P1 optimises for load the T1 optimises for pace and awareness.
Who makes the MOVENEW T1?
The MOVENEW T1 is made by MICBOT, a robotics company based in China.
How much does the MOVENEW T1 cost?
MICBOT has not publicly announced pricing for the MOVENEW T1. You can enquire through RobotAIGeek for current pricing.
What is the MOVENEW T1 used for?
The MOVENEW T1 is designed for inspection, patrol, industrial operations and maintenance, and infrastructure inspection. It is used in energy, mining, manufacturing, and security & patrol settings.
What is the payload capacity of the MOVENEW T1?
The MOVENEW T1 has a payload capacity of 50 kg.
How much does the MOVENEW T1 weigh?
The MOVENEW T1 weighs 50 kg.
How fast is the MOVENEW T1?
The MOVENEW T1 can move at speeds of up to 18 km/h.
What is the battery life of the MOVENEW T1?
The MOVENEW T1 runs for <=12 h on a charge.
