DESCRIPTION
Moov 2PRO is an Agricultural-Robots from JOZ. It is built for Agriculture, Transport. Key figures: 680 kg.

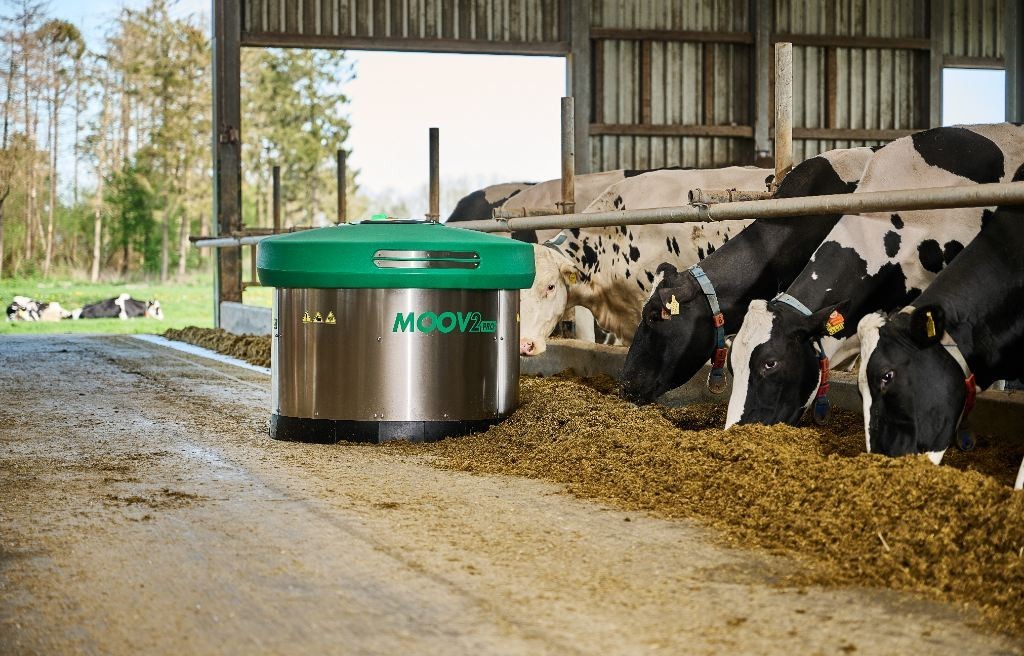

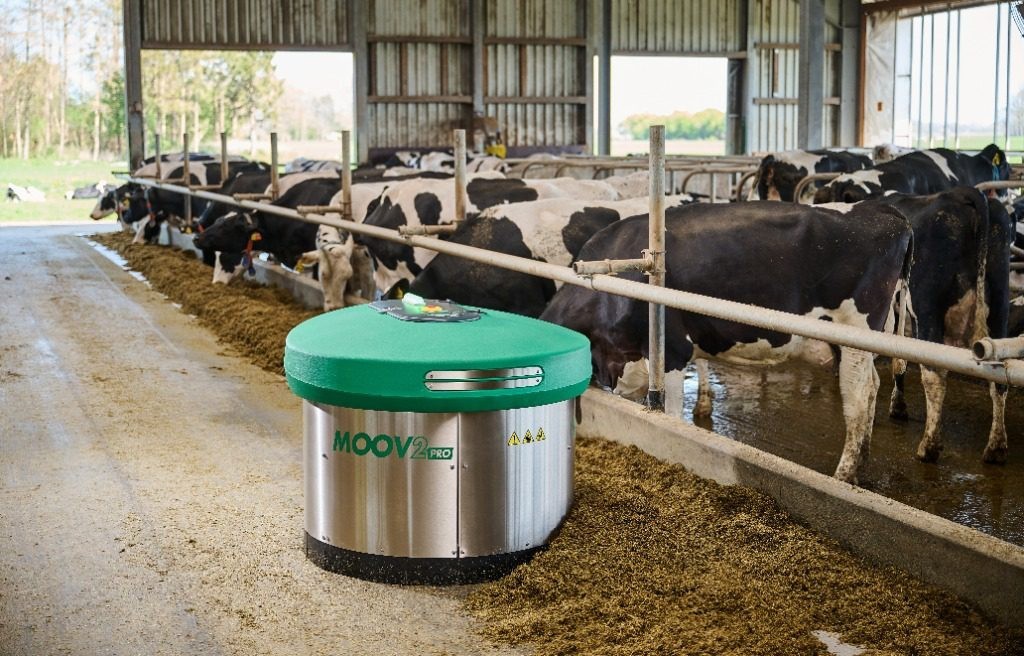

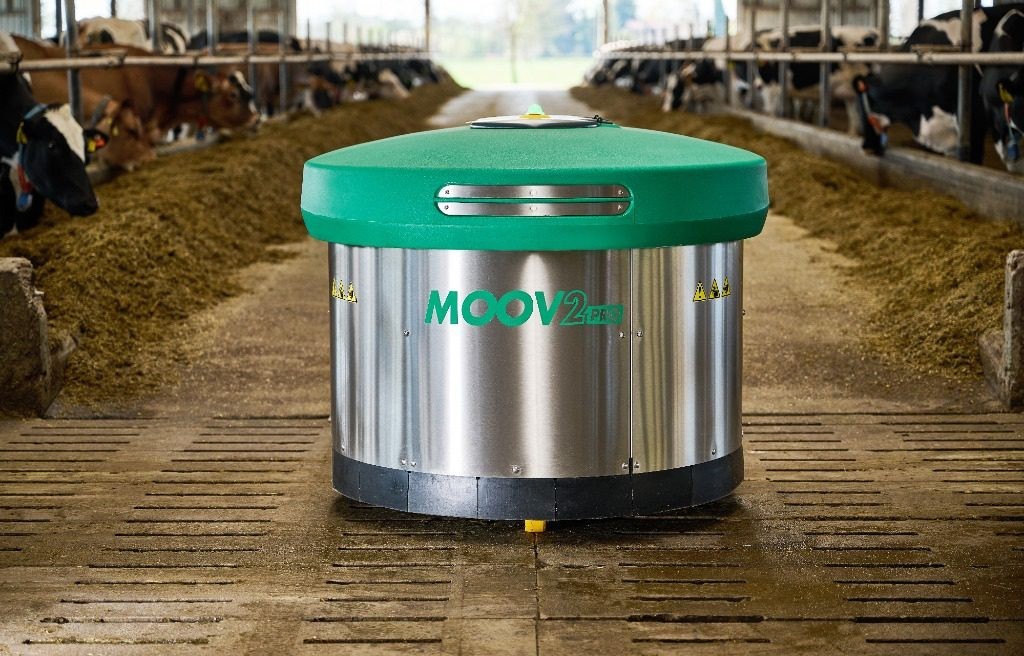

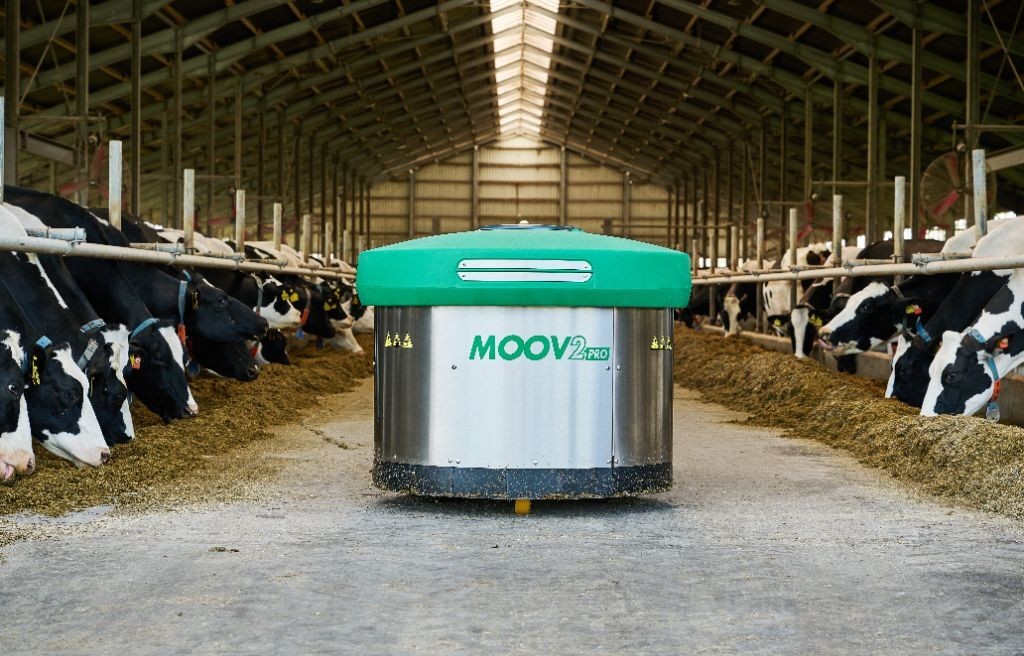

The Moov 2PRO is JOZ's fully automatic feed pusher robot, suitable for any barn. At set times, day and night, it drives the feed alley and its electrically driven stainless-steel drum pushes roughage back to the feed fence, so cows, including lower-ranking animals, always have fresh feed within reach; JOZ links this to less sorting, calmer herds, higher feed intake and more visits to the milking robot. It travels at up to 12 m per minute on two hypoid-geared drive motors with profiled wheels and a front castor, following transponders hidden in the floor along an unlimited number of routes for different groups, and can turn either way and return along the same path. The robot stands 1,013 mm high with a 1,140 mm drum and weighs 680 kg. Options lift the skirt by up to 70 mm to cross thresholds and climb slopes of up to 15 %, and open and close electric barn doors; schedules, parking and pause functions are set through J-Touch or the JOZ Management System.
FEATURES
- Stainless-steel electrically driven drum
- turns clockwise or anticlockwise
- Speed up to 12 m/min
- two drive motors with hypoid gearboxes
- 140 mm front castor
- Height 1,013 mm
- top cover 1,317 x 1,280 mm
- drum diameter 1,140 mm
- weight 680 kg
- Floor-transponder navigation
- unlimited routes
- parking, pause and jump-start functions

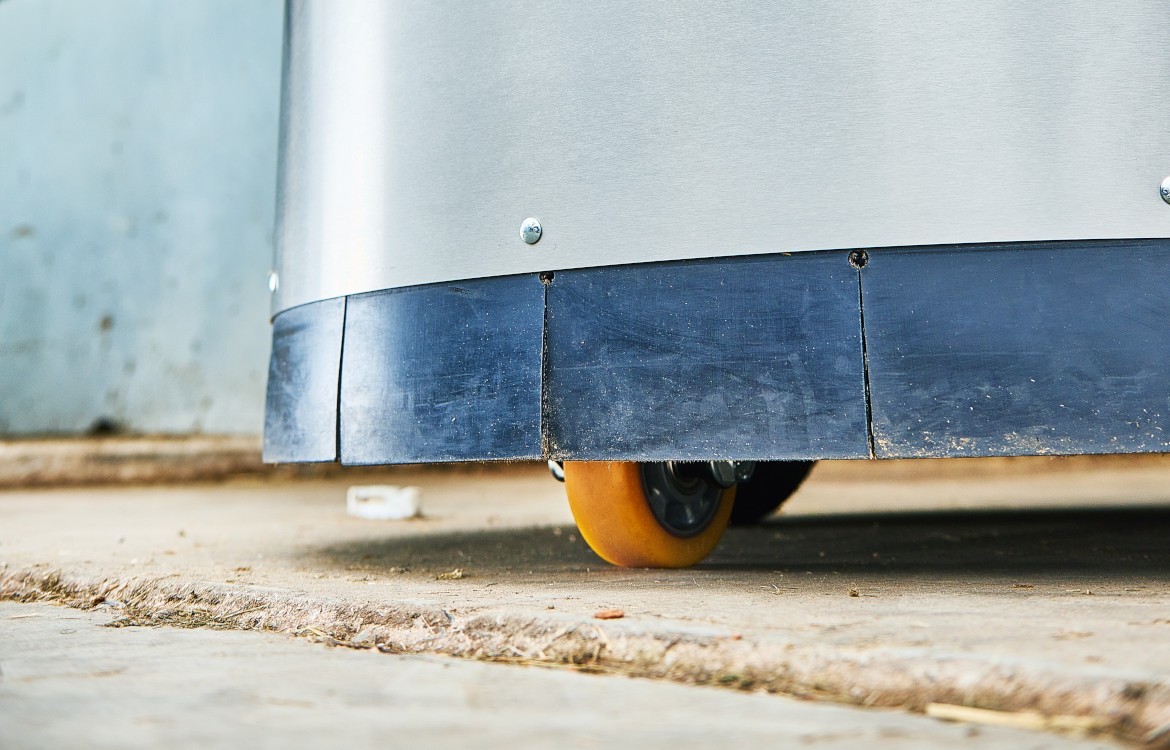

- Options: skirt lift up to 70 mm (slopes to 15 %, thresholds 2.5 cm) and automatic door opening/closing
- Three versions: standard, with skirt lift, with skirt lift and door control
- J-Touch control
- JMS connection via J-Link PRO
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 680 kg |
|---|---|
| Dimensions | L 1.32 m × W 1.28 m × H 1.01 m |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 0.72 km/h |
| Environment | Indoor livestock barns (dairy cubicle barns) |
| Sensing & Compute | |
| Sensors | floor transponder reader |
| Connectivity | J-Link PRO; JOZ Management System (JMS) |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 680 kg |
|---|---|
| Dimensions | L 1.32 m × W 1.28 m × H 1.01 m |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 0.72 km/h |
| Environment | Indoor livestock barns (dairy cubicle barns) |
| Sensing & Compute | |
| Sensors | floor transponder reader |
| Connectivity | J-Link PRO; JOZ Management System (JMS) |
Images
martti
martti
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the Moov 2PRO?
The Moov 2PRO is JOZ's fully automatic feed pusher robot, suitable for any barn. At set times, day and night, it drives the feed alley and its electrically driven stainless-steel drum pushes roughage back to the feed fence, so cows, including lower-ranking animals, always have fresh feed within reach; JOZ links this to…
Who makes the Moov 2PRO?
The Moov 2PRO is made by JOZ, a robotics company based in Netherlands.
How much does the Moov 2PRO cost?
JOZ has not publicly announced pricing for the Moov 2PRO. You can enquire through RobotAIGeek for current pricing.
What is the Moov 2PRO used for?
The Moov 2PRO is designed for agriculture and transport. It is used in agriculture settings.
How much does the Moov 2PRO weigh?
The Moov 2PRO weighs 680 kg.
How fast is the Moov 2PRO?
The Moov 2PRO can move at speeds of up to 0.72 km/h.
