DESCRIPTION

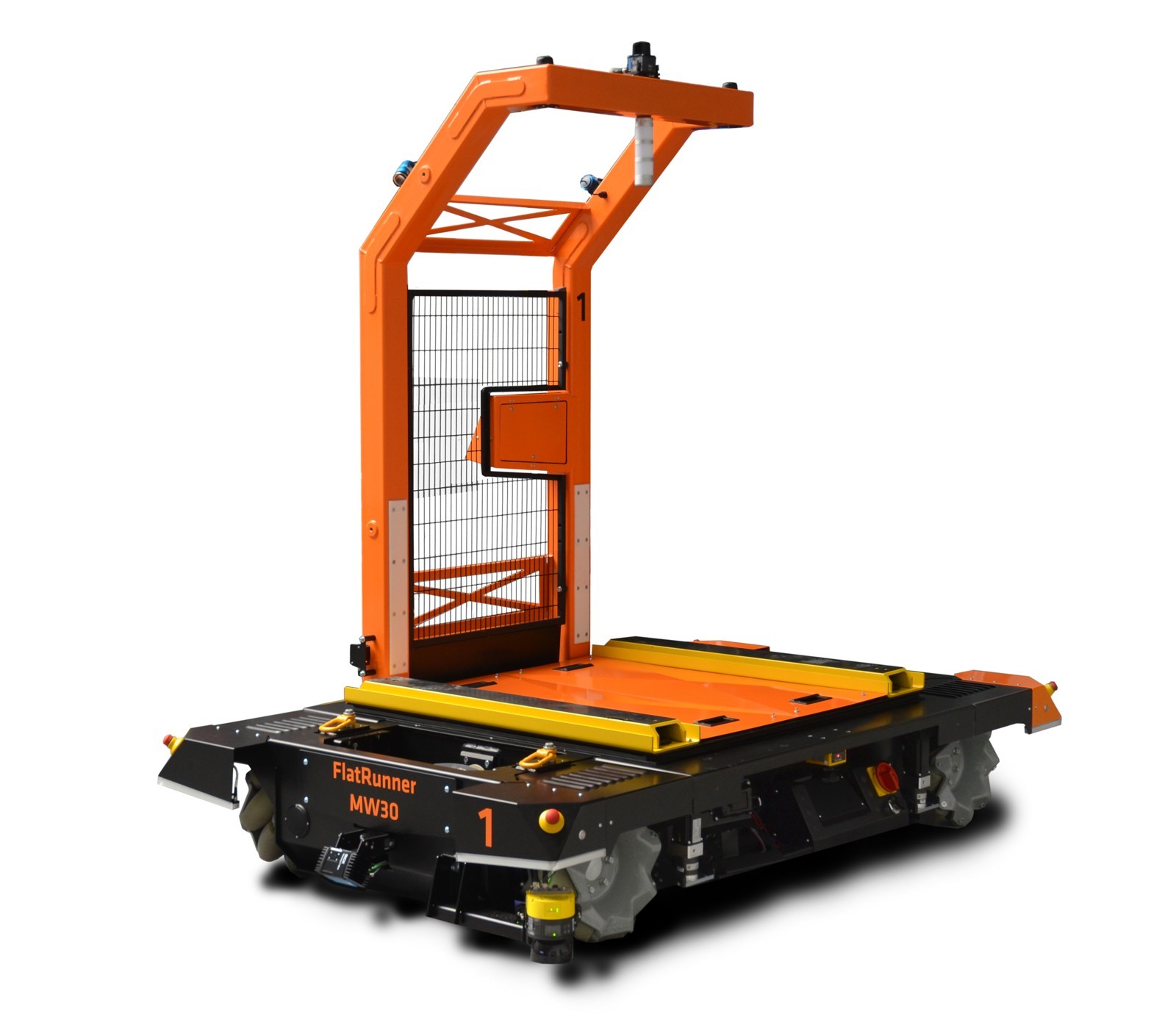

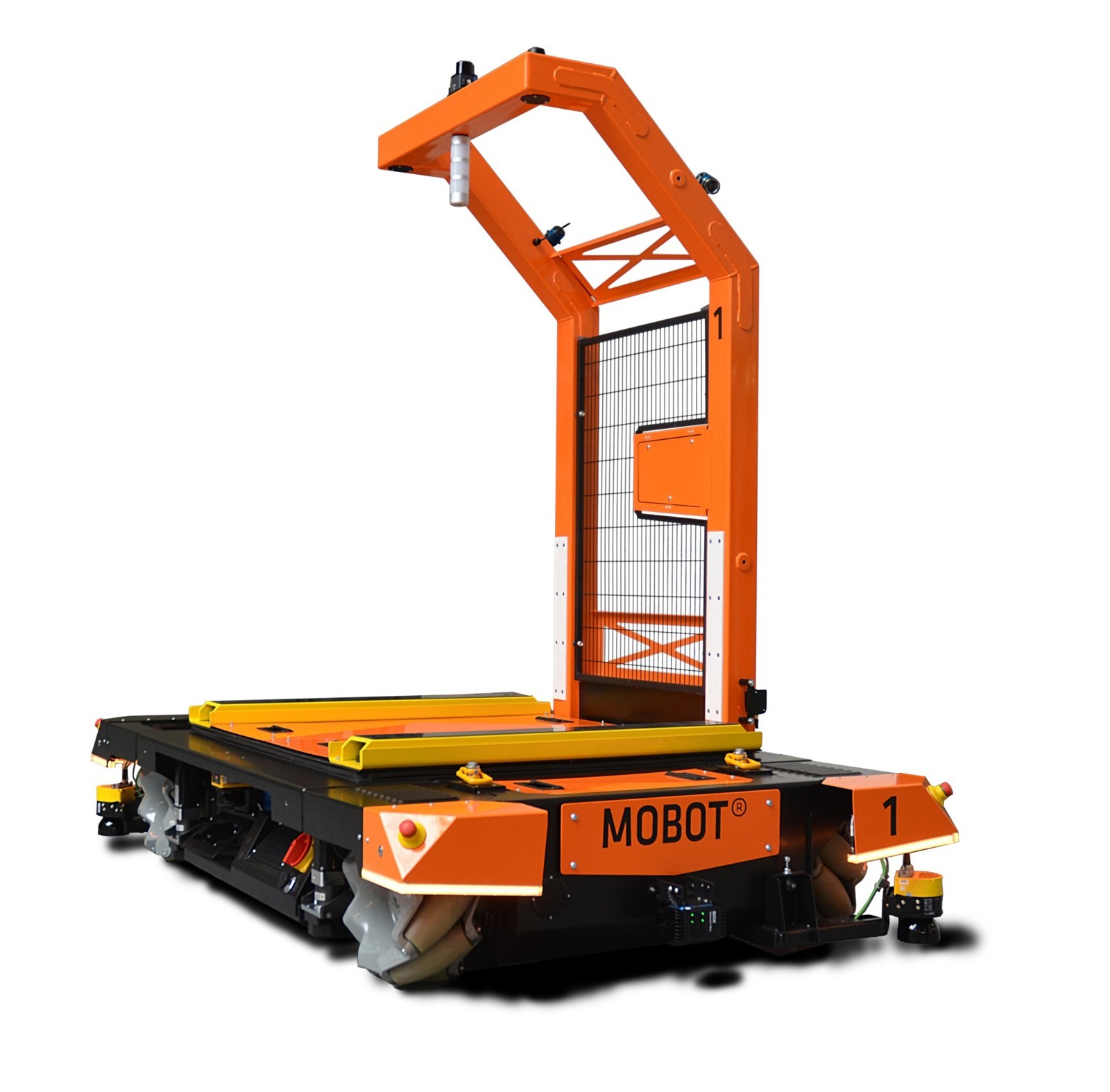

MOBOT MW FlatRunner 30 is an Industrial-Robot from WObit. It is built for Heavy-Load-Transportation, Intralogistics, Material-Handling. Key figures: 1250 kg, 3000 kg payload.
The MOBOT MW FlatRunner 30 is the heaviest of WObit's omnidirectional MW platforms: four brushless servo motors drive 360 mm Mecanum wheels so it can move in any direction and turn on the spot, carrying up to 3,000 kg bolted to its top or 2,500 kg with its load-lifting system, which raises loads by 140 mm. It charges wirelessly through an inductive system with six lithium-ion batteries, or manually at 24 V/50 A, in 3.5 or 7 hours. It navigates with LMS laser navigation plus vision line following, with two line-tracking cameras, two 2D safety laser scanners, a navigation scanner and two 3D cameras, and signals with BlueSpot lamps, direction indicators and a signal column. It reaches 1.0 m/s, has 12 kW of nominal power, is rated IP30 for 5-45 C, measures 2,378 x 1,390 x 416 mm (mast height 2,092 mm) and weighs about 1,250 kg.
FEATURES
- Payload 3,000 kg (2,500 kg with 140 mm lift system)
- Omnidirectional Mecanum drive: 4 servo motors, 360 mm wheels
- Max speed 1.0 m/s
- 12 kW
- Inductive wireless charging
- 6 Li-ion batteries
- charge 3.5 h / 7 h
- LMS laser navigation + vision line tracking
- 2x 2D safety scanners, navigation scanner, 2x 3D cameras
- IP30
- 5-45 C
- Size 2,378 x 1,390 x 416 mm (mast 2,092 mm)
- about 1,250 kg
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 1250 kg |
|---|---|
| Dimensions | L 2.38 m × W 1.39 m × H 416 mm |
| Payload | 3000 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 3.6 km/h |
| Environment | Indoor plants; 5-45 C, 5°C to 45°C |
| Sensing & Compute | |
| Sensors | 2x 2D safety laser scanner, navigation laser scanner, 2x 3D camera, 2x vision line-tracking system |
| Connectivity | 2.4 GHz Wi-Fi; MOBOT RoutePlanner |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 1250 kg |
|---|---|
| Dimensions | L 2.38 m × W 1.39 m × H 416 mm |
| Payload | 3000 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 3.6 km/h |
| Environment | Indoor plants; 5-45 C, 5°C to 45°C |
| Sensing & Compute | |
| Sensors | 2x 2D safety laser scanner, navigation laser scanner, 2x 3D camera, 2x vision line-tracking system |
| Connectivity | 2.4 GHz Wi-Fi; MOBOT RoutePlanner |
Images
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the MOBOT MW FlatRunner 30?
The MOBOT MW FlatRunner 30 is the heaviest of WObit's omnidirectional MW platforms: four brushless servo motors drive 360 mm Mecanum wheels so it can move in any direction and turn on the spot, carrying up to 3,000 kg bolted to its top or 2,500 kg with its load-lifting system, which raises loads by 140 mm.
Who makes the MOBOT MW FlatRunner 30?
The MOBOT MW FlatRunner 30 is made by WObit, a robotics company based in Poland.
How much does the MOBOT MW FlatRunner 30 cost?
WObit has not publicly announced pricing for the MOBOT MW FlatRunner 30. You can enquire through RobotAIGeek for current pricing.
What is the MOBOT MW FlatRunner 30 used for?
The MOBOT MW FlatRunner 30 is designed for heavy-load-transportation, intralogistics, material-handling, and transport. It is used in warehouse & logistics and manufacturing settings.
What is the payload capacity of the MOBOT MW FlatRunner 30?
The MOBOT MW FlatRunner 30 has a payload capacity of 3,000 kg.
How much does the MOBOT MW FlatRunner 30 weigh?
The MOBOT MW FlatRunner 30 weighs 1,250 kg.
How fast is the MOBOT MW FlatRunner 30?
The MOBOT MW FlatRunner 30 can move at speeds of up to 3.6 km/h.
