DESCRIPTION
MINICART is an Industrial-Robot from Daum und Partner Maschinenbau (dpm). It is built for Lifting, Material-Handling. Key figures: 110 kg payload.

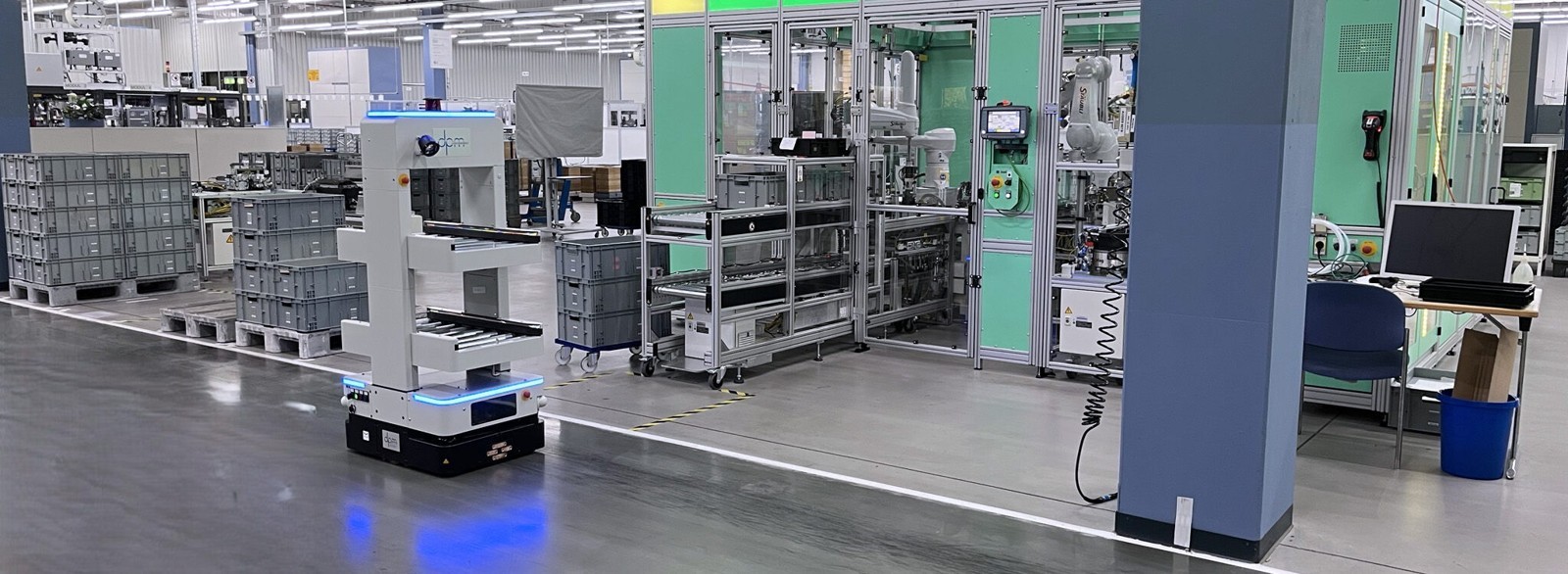

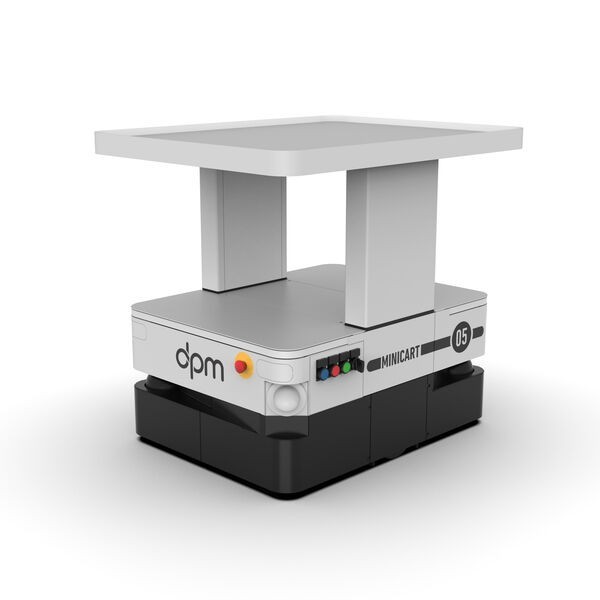

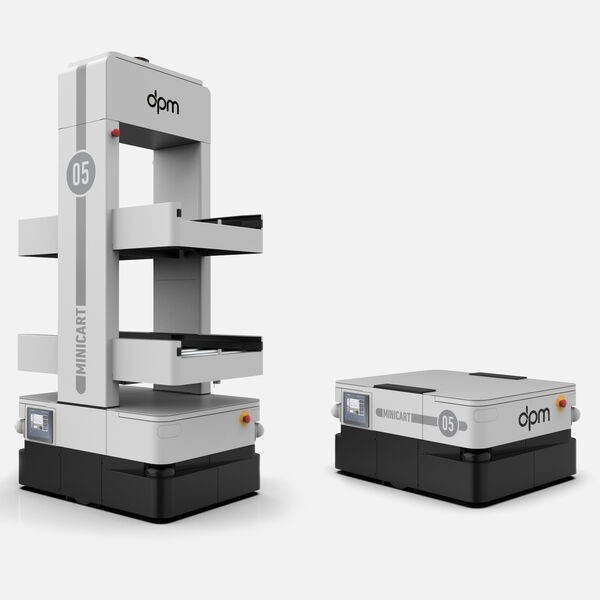

MINICART is dpm's compact autonomous mobile robot for moving small load carriers, containers, assemblies and racks around factories and warehouses. It carries up to 110 kg, measures 750 x 575 x 350 mm and drives at up to 90 m per minute using laser-based navigation with obstacle avoidance, for goods up to 600 x 400 mm. It is built as a standard vehicle with an open control architecture: a Siemens S7 controller lets customers integrate their own applications, and a VDA 5050 interface connects it to fleet management. Modular tops include a roller conveyor in various sizes, a lifting platform for height adjustment and a rigid shelf, and the robot can be called and dispatched through dpm's DriveLink app. MINICART robots run at Siemens, among other customers.
FEATURES
- Payload 110 kg
- goods up to 600 x 400 mm
- 750 x 575 x 350 mm (L x W x H)
- Speed up to 90 m/min (5.4 km/h)
- Laser-based navigation with obstacle avoidance
- Siemens S7 control - open control architecture for own applications
- VDA 5050 interface
- Modular tops: roller conveyor, lifting platform, rigid shelf, customer-specific
- DriveLink app: call, load and send vehicles
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Dimensions | L 750 mm × W 575 mm × H 350 mm |
|---|---|
| Payload | 110 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.4 km/h |
| Environment | Factories and warehouses (indoor intralogistics) |
| Sensing & Compute | |
| Sensors | laser scanner |
| Connectivity | VDA 5050; Wi-Fi; DriveLink app |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Dimensions | L 750 mm × W 575 mm × H 350 mm |
|---|---|
| Payload | 110 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.4 km/h |
| Environment | Factories and warehouses (indoor intralogistics) |
| Sensing & Compute | |
| Sensors | laser scanner |
| Connectivity | VDA 5050; Wi-Fi; DriveLink app |
Images
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the MINICART?
MINICART is dpm's compact autonomous mobile robot for moving small load carriers, containers, assemblies and racks around factories and warehouses.
Who makes the MINICART?
The MINICART is made by Daum und Partner Maschinenbau (dpm), a robotics company based in Germany.
How much does the MINICART cost?
Daum und Partner Maschinenbau (dpm) has not publicly announced pricing for the MINICART. You can enquire through RobotAIGeek for current pricing.
What is the MINICART used for?
The MINICART is designed for lifting and material-handling. It is used in automotive, warehouse & logistics, and manufacturing settings.
What is the payload capacity of the MINICART?
The MINICART has a payload capacity of 110 kg.
How fast is the MINICART?
The MINICART can move at speeds of up to 5.4 km/h.
