DESCRIPTION
L14 is an Industrial-Robot from Global AGV. It is built for Intralogistics, Loading, Material-Handling. Key figures: 1370 kg, 1400 kg payload.

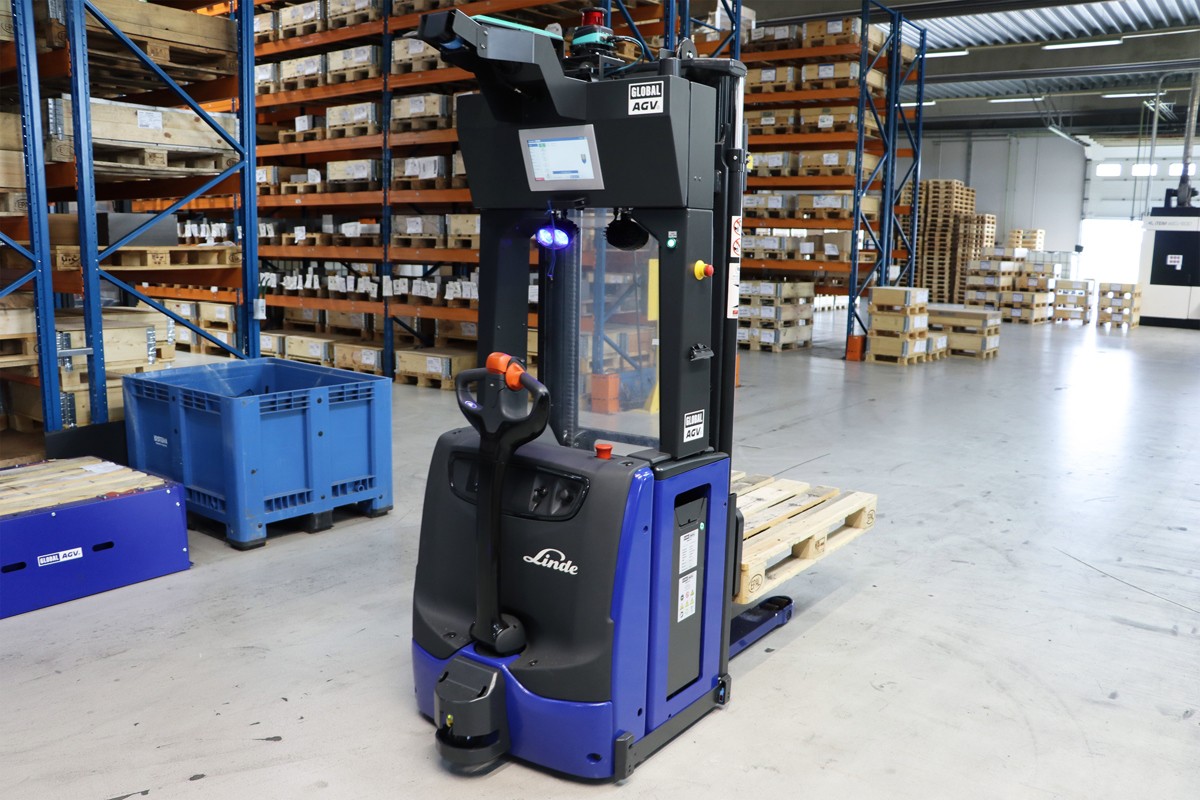

L14 is Global AGV's driverless pallet stacker for EUR and industrial pallets: a standard stacker converted into an AGV, with support wheels that let it lift up to 1400 kg on pallets with an open bottom frame. It registers where and when pallets need to be picked up and delivered and synchronises with other logistics processes, automating simple A-to-B pallet transport. It measures 2120 x 860 x 2270 mm, weighs 1040 kg plus a 330 kg battery, carries 1400 kg and travels at up to 1.2 m/s. Its mast reaches 2844 mm, with standard operation limited to 1000 mm (higher lift on request). A 1.5 kW AC motor drives a Linde LAC transmission. A Pepperl+Fuchs 2D lidar on top, at 2.2 m, navigates with a 360-degree view, front and rear SICK S300 Expert scanners guard its path, and it charges automatically during breaks and can be driven manually by its tiller.
FEATURES
- Capacity: 1400 kg / 3086 lb
- Lifting height: max. 2844 mm (112 in)
- standard operation limited to 1000 mm (39.4 in), higher lift on request
- Fork dimensions: 60 x 180 x 1150 mm (2.36 x 7.1 x 45.3 in)
- fork spacing fixed at 380 mm (15 in)
- Support wheels
- handles EUR and industrial pallets with an open bottom frame

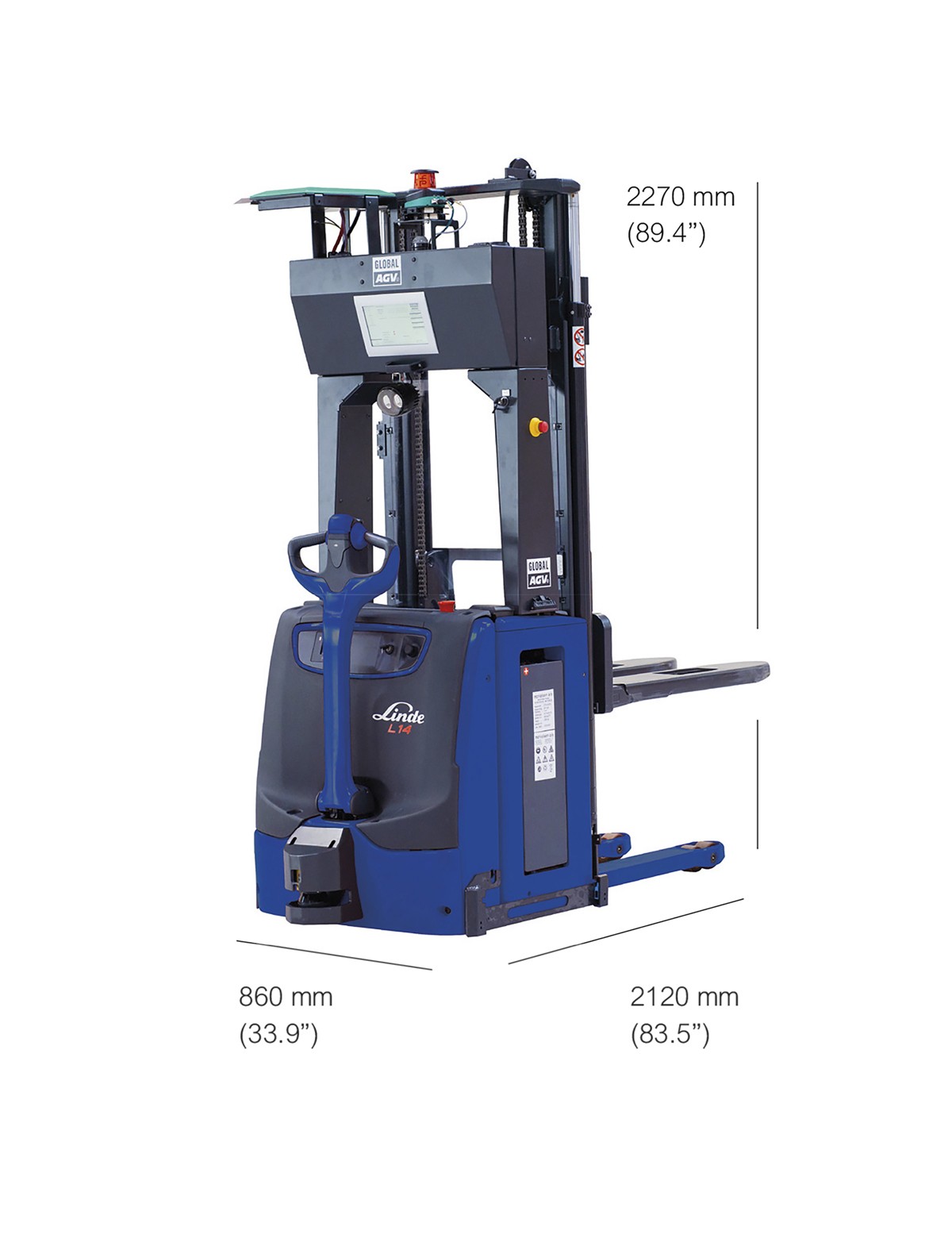

- Dimensions (L x W x H): 2120 x 860 x 2270 mm
- Weight: 1040 kg + 330 kg battery
- Max. speed: 1.2 m/s
- Drive: 1.5 kW AC motor with Linde LAC transmission
- Navigation: Pepperl+Fuchs 2D lidar top scanner with 360-degree view at 2.2 m height

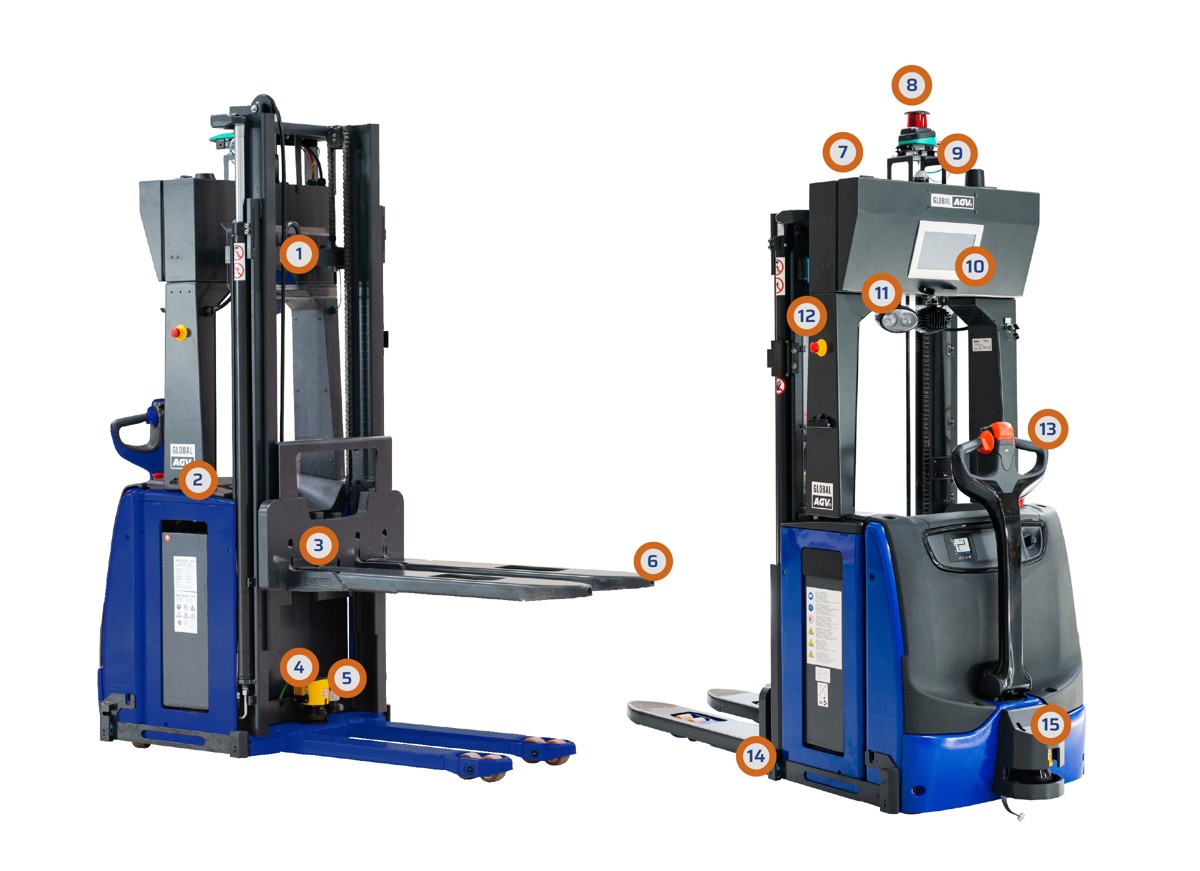

- Safety: front and rear SICK S300 Expert safety scanners, side safety sensors for feet, fork-tip sensors, load sensor on the lifting tower, marshalling-detection scanner, emergency stop, blue/red spot lamps and light-and-sound warning signals
- Automatic charging top for charging during breaks
- Touch-screen operator interface
- tiller for manual operation (dual mode)
- Installed in 2-3 days with flexible route changes
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 1370 kg |
|---|---|
| Dimensions | L 2.12 m × W 860 mm × H 2.27 m |
| Payload | 1400 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 4.32 km/h |
| Environment | Indoor factories and warehouses |
| Actuators | 1.5 kW AC motor, Linde LAC transmission |
| Power | |
| Charging Type | Automatic charging contacts (charges during breaks) |
| Sensing & Compute | |
| Sensors | Pepperl+Fuchs 2D lidar navigation scanner (360 deg), SICK S300 Expert safety scanners (front and rear), side safety sensors, fork sensors, load sensor, marshalling detection scanner |
| Connectivity | Synchronises with other logistics processes |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 1370 kg |
|---|---|
| Dimensions | L 2.12 m × W 860 mm × H 2.27 m |
| Payload | 1400 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 4.32 km/h |
| Environment | Indoor factories and warehouses |
| Actuators | 1.5 kW AC motor, Linde LAC transmission |
| Power | |
| Charging Type | Automatic charging contacts (charges during breaks) |
| Sensing & Compute | |
| Sensors | Pepperl+Fuchs 2D lidar navigation scanner (360 deg), SICK S300 Expert safety scanners (front and rear), side safety sensors, fork sensors, load sensor, marshalling detection scanner |
| Connectivity | Synchronises with other logistics processes |
Images
martti
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the L14?
L14 is Global AGV's driverless pallet stacker for EUR and industrial pallets: a standard stacker converted into an AGV, with support wheels that let it lift up to 1400 kg on pallets with an open bottom frame.
Who makes the L14?
The L14 is made by Global AGV, a robotics company based in Denmark.
How much does the L14 cost?
Global AGV has not publicly announced pricing for the L14. You can enquire through RobotAIGeek for current pricing.
What is the L14 used for?
The L14 is designed for intralogistics, loading, material-handling, and pallet-transportation. It is used in warehouse & logistics and manufacturing settings.
What is the payload capacity of the L14?
The L14 has a payload capacity of 1,400 kg.
How much does the L14 weigh?
The L14 weighs 1,370 kg.
How fast is the L14?
The L14 can move at speeds of up to 4.32 km/h.
