DESCRIPTION
L12 is an Industrial-Robot from Global AGV. It is built for Intralogistics, Loading, Material-Handling. Key figures: 2730 kg, 1200 kg payload.
L12 is Global AGV's driverless pallet stacker for US, UK and SEA pallets: a standard stacker converted into an AGV with free forks that adjust to the pallet size, so it can also take pallets that are closed at the bottom, such as CHEP pallets. It registers where and when pallets need to be picked up and delivered and synchronises with other logistics processes, automating simple A-to-B pallet transport. It measures 2760 x 980 x 2270 mm, weighs 2400 kg plus a 330 kg battery, carries 1200 kg and travels at up to 1.2 m/s. Its mast reaches 2844 mm, with standard operation limited to 1000 mm (higher lift on request). A 1.5 kW AC motor drives a Linde LAC transmission. A Pepperl+Fuchs 2D lidar on top, at 2.2 m, navigates with a 360-degree view, front and rear SICK S300 Expert scanners guard its path, and it charges automatically during breaks and can be driven manually by its tiller.
FEATURES
- Capacity: 1200 kg / 2645 lb
- Lifting height: max. 2844 mm (112 in)
- standard operation limited to 1000 mm (39.4 in), higher lift on request
- Fork dimensions: 40 x 100 x 1200 mm (1.6 x 3.9 x 47.2 in)
- free forks, centre spacing 225-640 mm (8.9-25.2 in)
- Handles EUR, industrial, UK block, US block and UK stringer pallets, including bottom-closed pallets such as CHEP

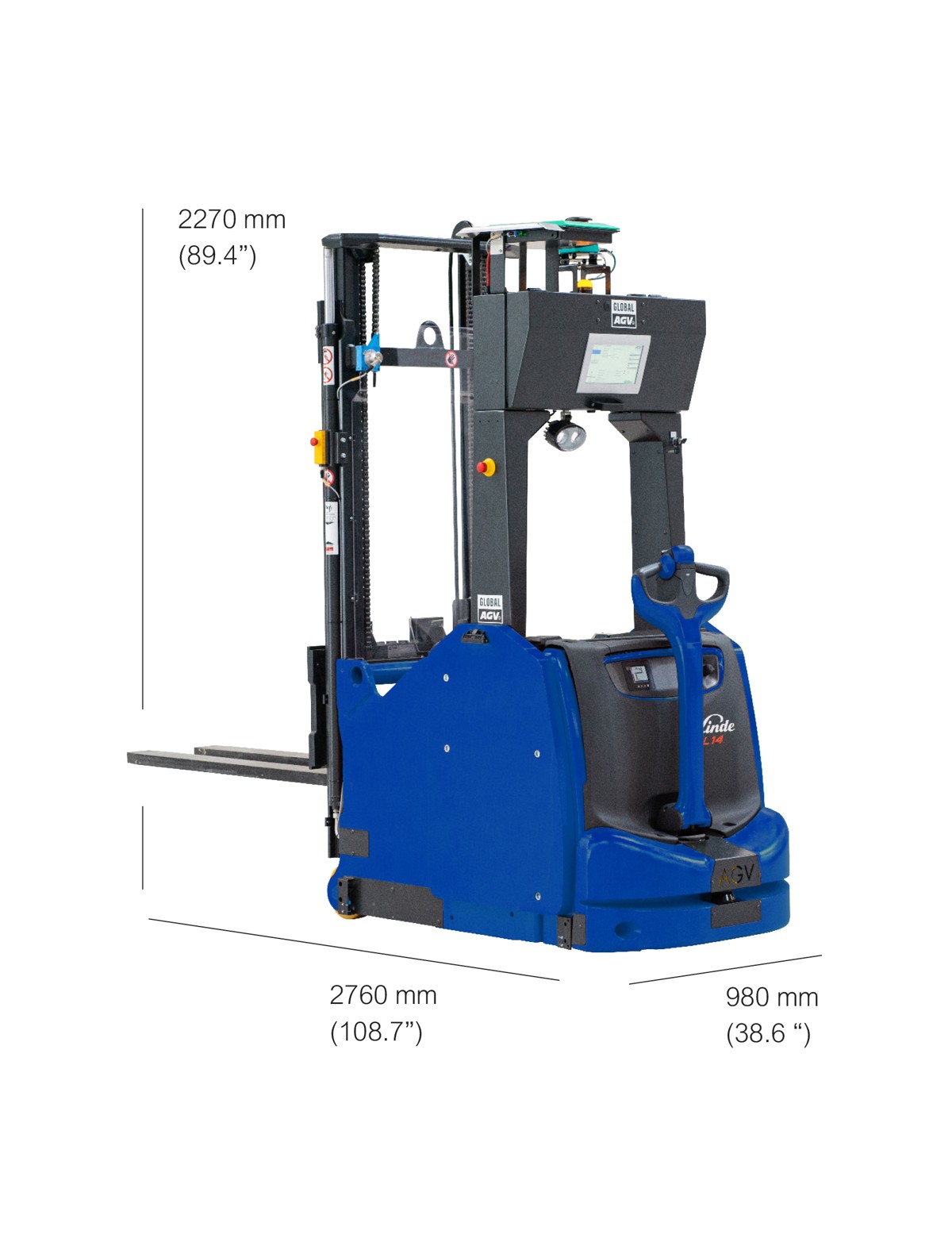

- Dimensions (L x W x H): 2760 x 980 x 2270 mm
- Weight: 2400 kg + 330 kg battery
- Max. speed: 1.2 m/s
- Drive: 1.5 kW AC motor with Linde LAC transmission
- Navigation: Pepperl+Fuchs 2D lidar top scanner with 360-degree view at 2.2 m height
- Safety: front and rear SICK S300 Expert safety scanners, side safety sensors for feet, fork-tip sensors, load sensor on the lifting tower, marshalling-detection scanner, emergency stop, blue/red spot lamps and light-and-sound warning signals
- Automatic charging top for charging during breaks
- Touch-screen operator interface
- tiller for manual operation (dual mode)
- Installed in 2-3 days with flexible route changes
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 2730 kg |
|---|---|
| Dimensions | L 2.76 m × W 980 mm × H 2.27 m |
| Payload | 1200 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 4.32 km/h |
| Environment | Indoor factories and warehouses |
| Actuators | 1.5 kW AC motor, Linde LAC transmission |
| Power | |
| Charging Type | Automatic charging contacts (charges during breaks) |
| Sensing & Compute | |
| Sensors | Pepperl+Fuchs 2D lidar navigation scanner (360 deg), SICK S300 Expert safety scanners (front and rear), side safety sensors, fork sensors, load sensor, marshalling detection scanner |
| Connectivity | Synchronises with other logistics processes |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 2730 kg |
|---|---|
| Dimensions | L 2.76 m × W 980 mm × H 2.27 m |
| Payload | 1200 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 4.32 km/h |
| Environment | Indoor factories and warehouses |
| Actuators | 1.5 kW AC motor, Linde LAC transmission |
| Power | |
| Charging Type | Automatic charging contacts (charges during breaks) |
| Sensing & Compute | |
| Sensors | Pepperl+Fuchs 2D lidar navigation scanner (360 deg), SICK S300 Expert safety scanners (front and rear), side safety sensors, fork sensors, load sensor, marshalling detection scanner |
| Connectivity | Synchronises with other logistics processes |
Images
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the L12?
L12 is Global AGV's driverless pallet stacker for US, UK and SEA pallets: a standard stacker converted into an AGV with free forks that adjust to the pallet size, so it can also take pallets that are closed at the bottom, such as CHEP pallets.
Who makes the L12?
The L12 is made by Global AGV, a robotics company based in Denmark.
How much does the L12 cost?
Global AGV has not publicly announced pricing for the L12. You can enquire through RobotAIGeek for current pricing.
What is the L12 used for?
The L12 is designed for intralogistics, loading, material-handling, and pallet-transportation. It is used in warehouse & logistics and manufacturing settings.
What is the payload capacity of the L12?
The L12 has a payload capacity of 1,200 kg.
How much does the L12 weigh?
The L12 weighs 2,730 kg.
How fast is the L12?
The L12 can move at speeds of up to 4.32 km/h.
