DESCRIPTION

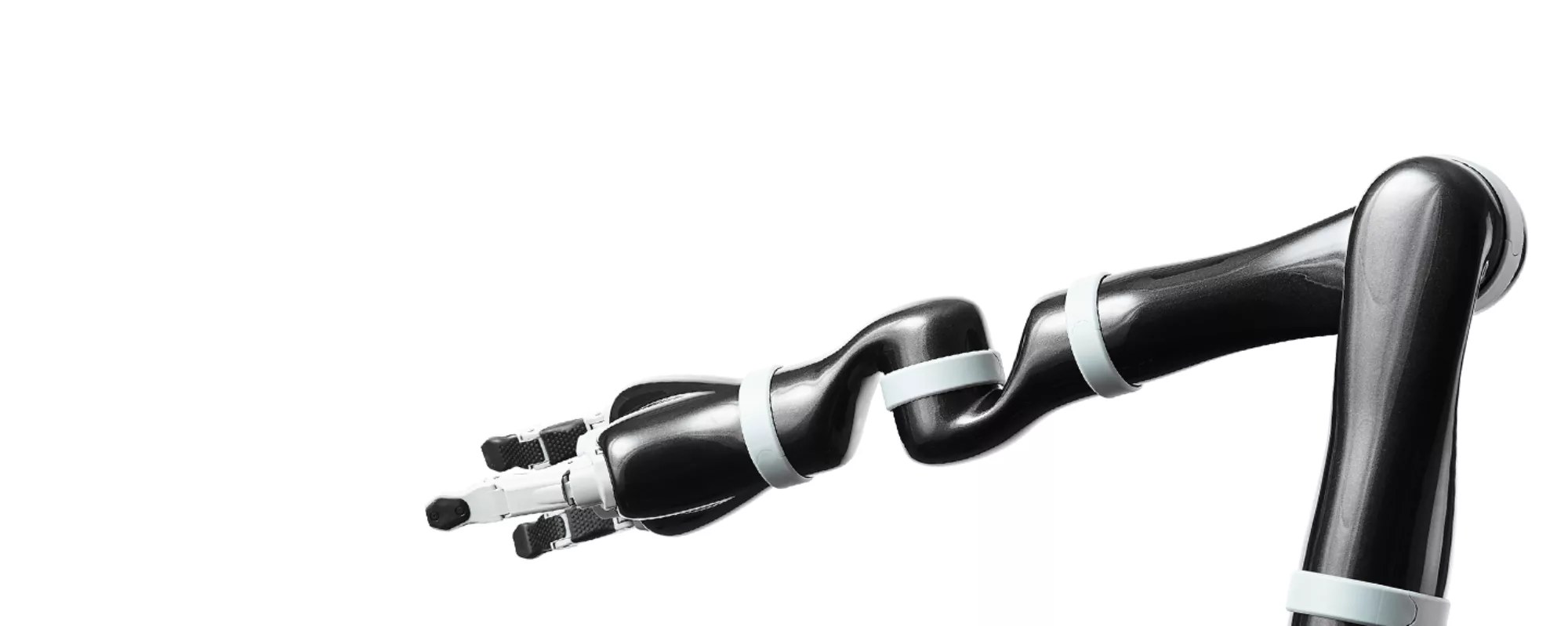

The Kinova Gen2 robot is a 6-axis robotic arm from Kinova, suitable for industrial, research, and healthcare applications. Introduced in 2013, this stationary robot is designed for tasks such as assembly and pick and place operations. The Gen2 robot is noted for its portability and power efficiency, making it adaptable for various environments. It features an embedded controller and is available with either 6 or 7 axes. Deployment evidence for the Kinova Gen2 robot is available.
FEATURES
- 6 degrees of freedom
- 2.6 kg mid-range continuous payload
- 985 mm maximum reach, 4.4 kg total weight
- 20 cm/s maximum speed
- Carbon-fibre links - exceptional payload-to-weight ratio
- Embedded controller, no external control box
- 25 W average power draw, 18-29 VDC supply
- Actuator joint range plus/minus 27.7 turns
- IPX2, rated -10 to 40 degrees C
- Inherently safe for human-robot interaction
- ROS-compatible alongside Kinova's own SDK
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 4.4 kg |
|---|---|
| Payload | 2.6 kg |
| Reach | 985 mm |
| Mobility | |
| Movement Type | Stationary |
| Degrees of Freedom | 6 |
| Speed | 0.72 km/h |
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 4.4 kg |
|---|---|
| Payload | 2.6 kg |
| Reach | 985 mm |
| Mobility | |
| Movement Type | Stationary |
| Degrees of Freedom | 6 |
| Speed | 0.72 km/h |
Images
martti
martti
martti
Image Contributions
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the Kinova Gen2 robot (6-axis)?
The Kinova Gen2 robot is a 6-axis robotic arm from Kinova, suitable for industrial, research, and healthcare applications. Introduced in 2013, this stationary robot is designed for tasks such as assembly and pick and place operations.
Who makes the Kinova Gen2 robot (6-axis)?
The Kinova Gen2 robot (6-axis) is made by Kinova, a robotics company based in Canada.
How much does the Kinova Gen2 robot (6-axis) cost?
Kinova has not publicly announced pricing for the Kinova Gen2 robot (6-axis). You can enquire through RobotAIGeek for current pricing.
What is the Kinova Gen2 robot (6-axis) used for?
The Kinova Gen2 robot (6-axis) is designed for assembly, pick-and-place, research, and inspection. It is used in research, healthcare, and manufacturing settings.
What is the payload capacity of the Kinova Gen2 robot (6-axis)?
The Kinova Gen2 robot (6-axis) has a payload capacity of 2.6 kg and a reach of 985 mm.
How much does the Kinova Gen2 robot (6-axis) weigh?
The Kinova Gen2 robot (6-axis) weighs 4.4 kg.
How fast is the Kinova Gen2 robot (6-axis)?
The Kinova Gen2 robot (6-axis) can move at speeds of up to 0.72 km/h.
How many degrees of freedom does the Kinova Gen2 robot (6-axis) have?
The Kinova Gen2 robot (6-axis) has 6 degrees of freedom.
