DESCRIPTION
KARIS is an Industrial-Robot from GEBHARDT Intralogistics Group. It is built for Intralogistics, Material-Handling, Pallet-Transportation. Key figures: 1500 kg payload.

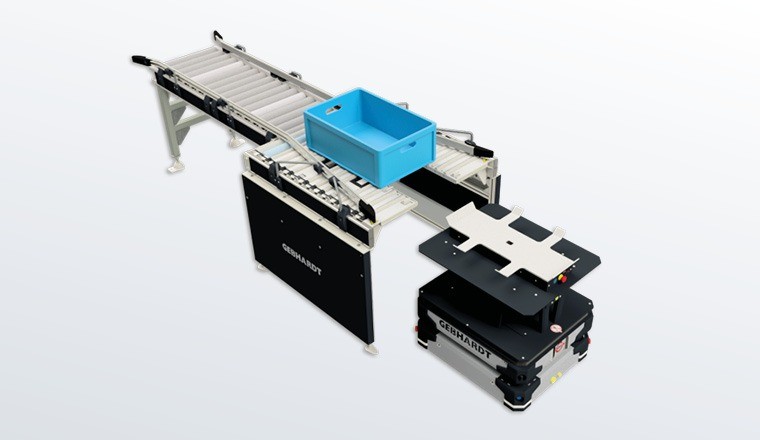

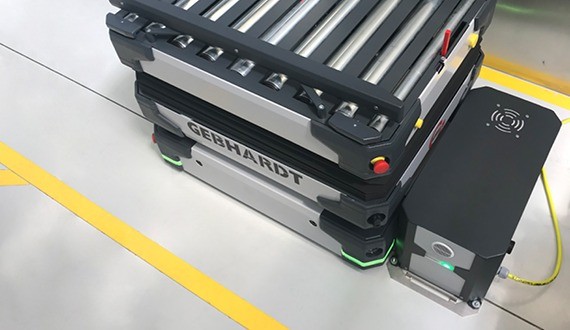

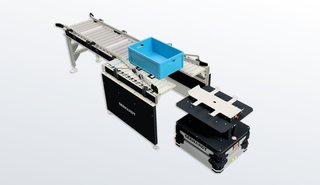

KARIS is GEBHARDT's modular automated guided vehicle for internal material flow, built from a modular system of vehicles, software, support functions and accessories. It is commissioned by contour-based navigation and teach-in, sees 360 degrees through two diagonally offset laser scanners that both navigate and guard it, adjusts its protective fields to its speed, steers around obstacles and stops at once if anyone enters its protected area. Three design classes cover small load carriers, containers, trays and cartons up to 150 kg (500 x 700 mm) or 600 kg with a double load-handling device (700 x 900 mm), and pallets and wire crates up to 1,500 kg (900 x 1,300 mm), each with active or passive load-handling devices and optional lifts or fork attachments. KARIS links workstations, CNC machines, robot cells, quality stations, storage systems and goods-in and goods-out, connects directly to GEBHARDT container and pallet conveyors, and is tasked and analysed from tablets; with MOSCA strapping machines it also automates end-of-line flows.
FEATURES

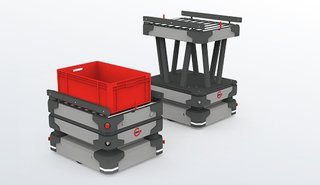

- Three design classes: up to 150 kg (500 x 700 mm load), up to 600 kg (700 x 900 mm, double LHD), up to 1,500 kg pallets/wire crates (900 x 1,300 mm)
- Active or passive load-handling devices
- optional lift

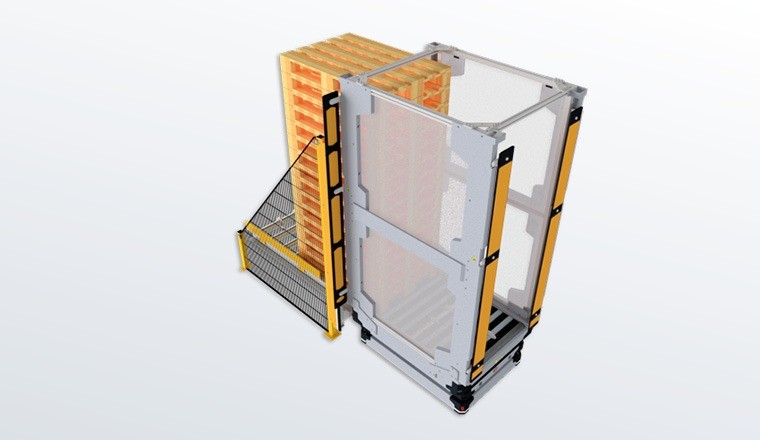

- forklift attachment on the pallet class
- Contour-based navigation with teach-in
- 360-degree view from two diagonally offset laser scanners
- Speed-dependent protective fields
- obstacle avoidance
- immediate stop when the protected area is entered
- Direct connection to GEBHARDT container and pallet conveyors
- transfer stations and accessories
- Tasking and performance analysis via tablet app
- Applications: person-to-person, person-to-machine and machine-to-machine transport, storage buffering, sequencing, end-of-line with MOSCA strapping
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Payload | 1500 kg |
|---|---|
| Mobility | |
| Movement Type | Wheeled |
| Environment | Warehouses and production plants |
| Sensing & Compute | |
| Sensors | 2 x laser scanners (360 deg navigation and safety) |
| Connectivity | Tablet / mobile app tasking |
| Software / AI | GEBHARDT logistics software |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Payload | 1500 kg |
|---|---|
| Mobility | |
| Movement Type | Wheeled |
| Environment | Warehouses and production plants |
| Sensing & Compute | |
| Sensors | 2 x laser scanners (360 deg navigation and safety) |
| Connectivity | Tablet / mobile app tasking |
| Software / AI | GEBHARDT logistics software |
Images
martti
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the KARIS?
KARIS is GEBHARDT's modular automated guided vehicle for internal material flow, built from a modular system of vehicles, software, support functions and accessories.
Who makes the KARIS?
The KARIS is made by GEBHARDT Intralogistics Group, a robotics company based in Germany.
How much does the KARIS cost?
GEBHARDT Intralogistics Group has not publicly announced pricing for the KARIS. You can enquire through RobotAIGeek for current pricing.
What is the KARIS used for?
The KARIS is designed for intralogistics, material-handling, pallet-transportation, and transport. It is used in warehouse & logistics and manufacturing settings.
What is the payload capacity of the KARIS?
The KARIS has a payload capacity of 1,500 kg.
