iroi

Dogugonggan

Mobile-Robots

South KoreaReleased

★Not rated yet

Compare

Sources:

dogugonggan.com

Industries:

Facilities Government Healthcare

Uses:

Guidance Inspection Patrol Sanitizing

Price:

Not announced

Model:

iroi indoor AI security robot (ASR package)

DESCRIPTION

iroi is a Mobile-Robots from Dogugonggan. It is built for Guidance, Inspection, Patrol. Key figures: 100 kg, 480 min runtime.

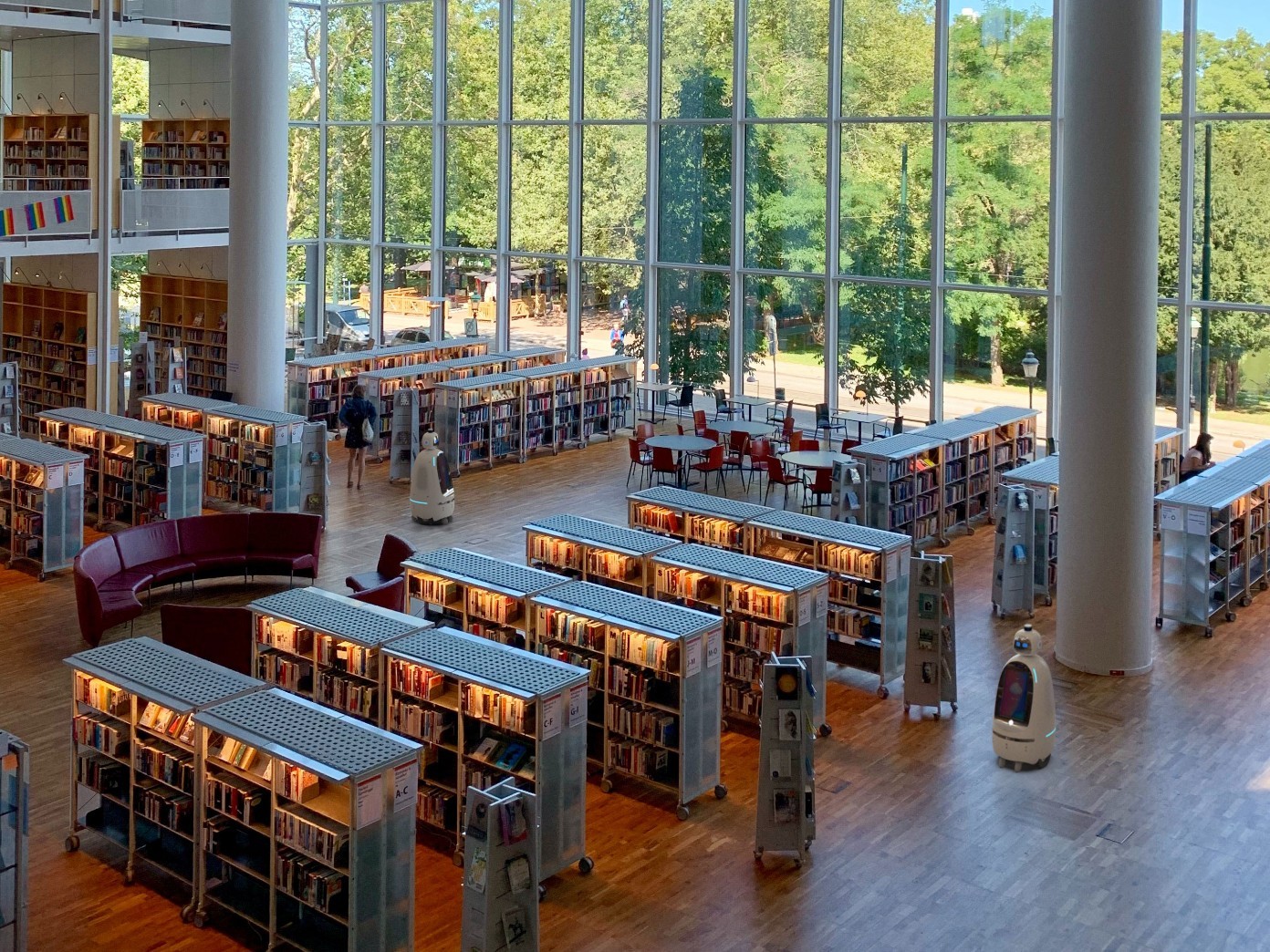

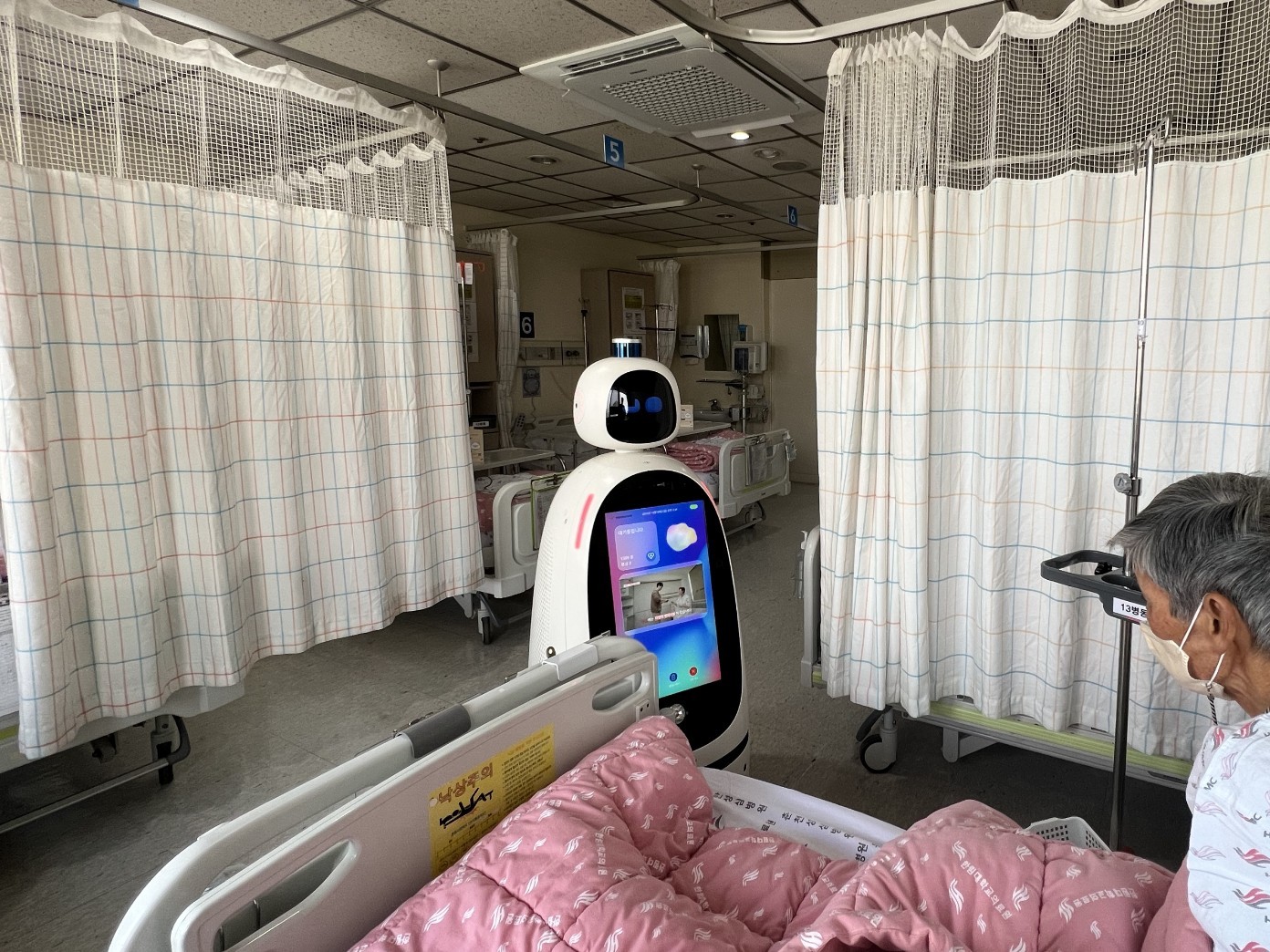

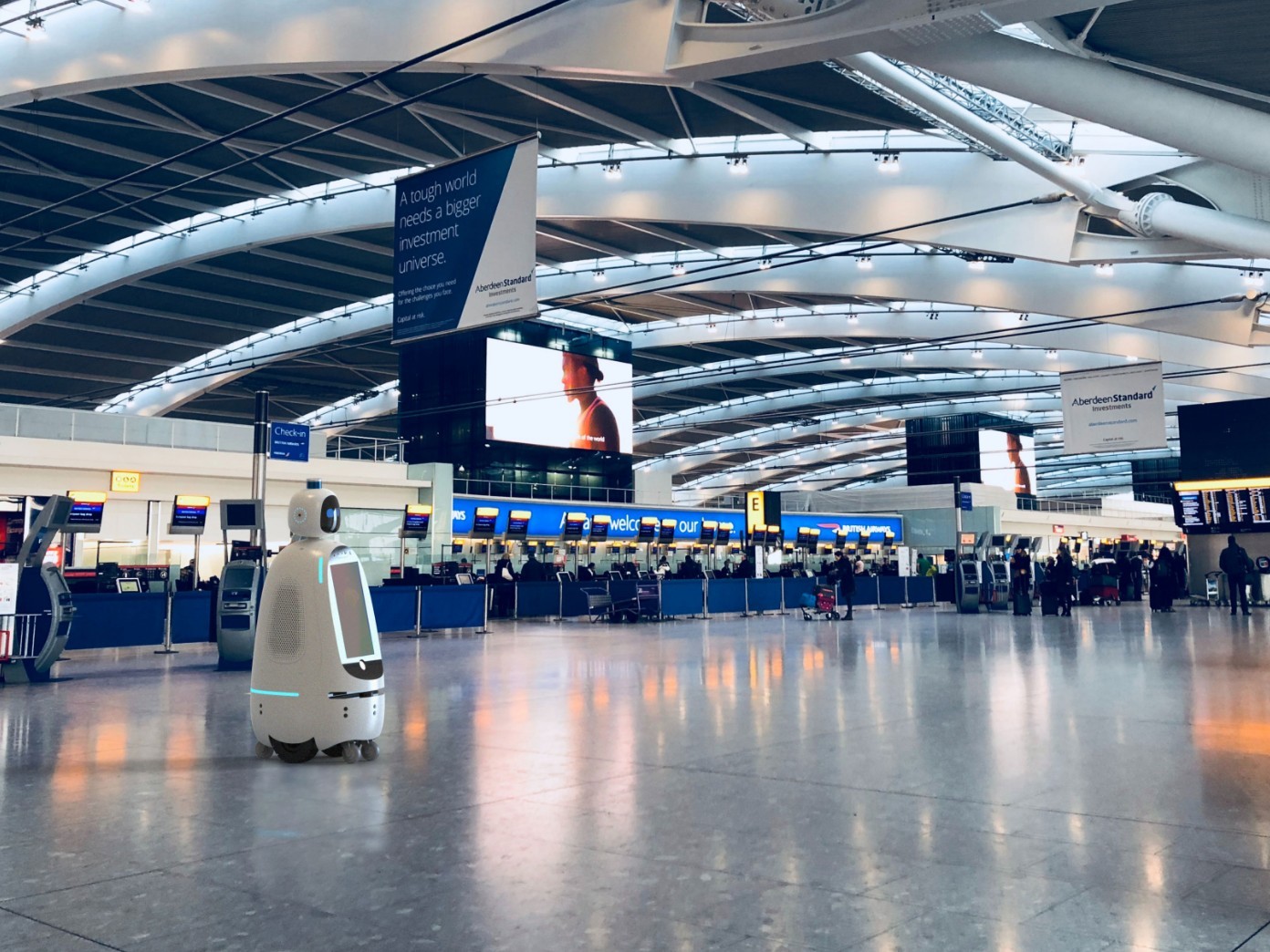

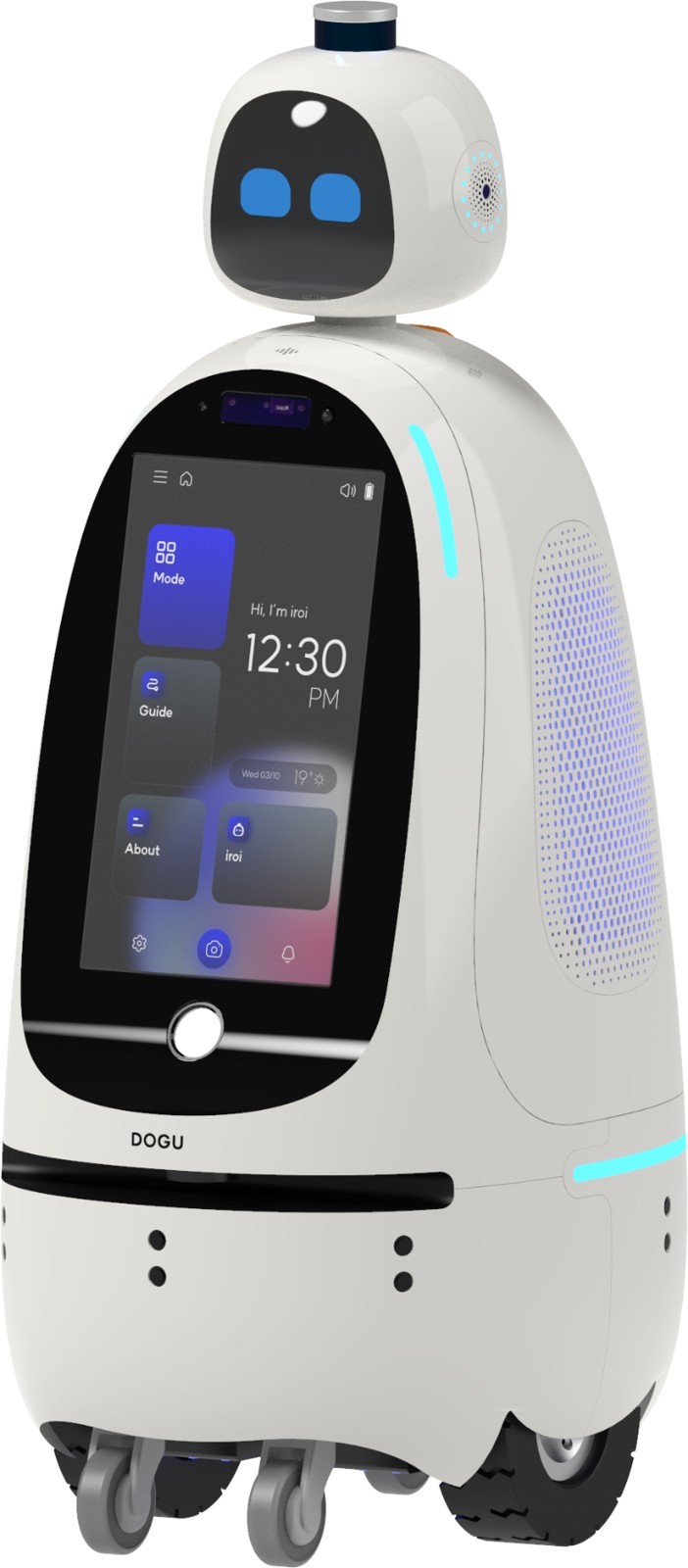

iroi is Dogugonggan's indoor autonomous security robot, a rounded white robot with an animated face display designed to share space with people in offices, hospitals, schools, libraries, airports and cultural facilities. Besides security patrols it disinfects and guides visitors: built-in UVA and UVC lamps sterilise walls and floors and pause when a person is detected, and a front touchscreen provides information and video calls with a remote manager or guard. A 3D LiDAR scanning more than 50 m around it plus a 2D LiDAR map its surroundings, ultrasonic sensors all round act as a virtual bumper, and five cameras front, back, sides and top work with a fire-detection sensor and a thermal camera. Directional microphones locate screams or intruders approaching from behind. The robot measures 695.5 x 578 x 1,440 mm, weighs 100 kg, patrols at 0.5 m/s with a maximum of 1.2 m/s on two 100 W motors, and runs up to 8 hours on two 1,536 W(h) batteries, recharging in up to 6 hours at its dock.

FEATURES

3D LiDAR (50 m+ range) and 2D LiDAR
ultrasonic sensors all round
5 cameras (front, rear, left, right, top)
fire-detection sensor
thermal camera
High-power speaker and front/rear/side microphones for sound localisation and two-way calls
UVA and UVC disinfection of walls and floors
pauses when people are near
Animated face display and full HD front touchscreen
AI detection: flames, overheated equipment, missing safety helmets, crowding, intruders, fallen persons
Can call 119/police, sound alarms and track targets with an interactive spotlight
face recognition
Gas monitoring via SOS: CO2, NO2, SO2, VOC, PM2.5, PM10
Autonomous patrol 24/7 with automatic charging station
AI stays active while charging
SOS monitoring software and Robot Planner for mapping, scheduling and scenario editing
W 695.5 x D 578 x H 1,440 mm
100 kg
Speed 0.5 m/s, max 1.2 m/s
motors 100 W x 2
Battery 1,536 W x 2 (as printed)
up to 8 h operation
up to 6 h charge

TECHNICAL SPECIFICATIONS

Physical
Weight	100 kg
Dimensions	L 578 mm × W 696 mm × H 1.44 m
Mobility
Movement Type	Wheeled
Speed	4.32 km/h
Environment	Offices, hospitals, schools, libraries, airports and cultural facilities (indoor)
Power
Battery Life	480 min
Charging Type	Automatic charging station
Sensing & Compute
Sensors	3D LiDAR, 2D LiDAR, ultrasonic sensors, 5 cameras, thermal camera, fire detection sensor, microphone array
Connectivity	Remote monitoring and control via SOS software (tablet or laptop)
