INDY Hand

Motorica
End-EffectorsRussiaRussiaReleased
INDY Hand
Compare
Sources:
motorica.org
Industries:
HealthcareHomes
Uses:
Medical-AssistanceRehabilitationHelpingUpper-limb prosthesis for activities of daily living
Price:
Not announced
Model:
Motorica INDY Hand single-grip bionic forearm prosthesis

DESCRIPTION

INDY Hand is an End-Effectors from Motorica. It is built for Medical-Assistance, Rehabilitation, Helping. Key figures: 0.5 kg, 10 kg payload.

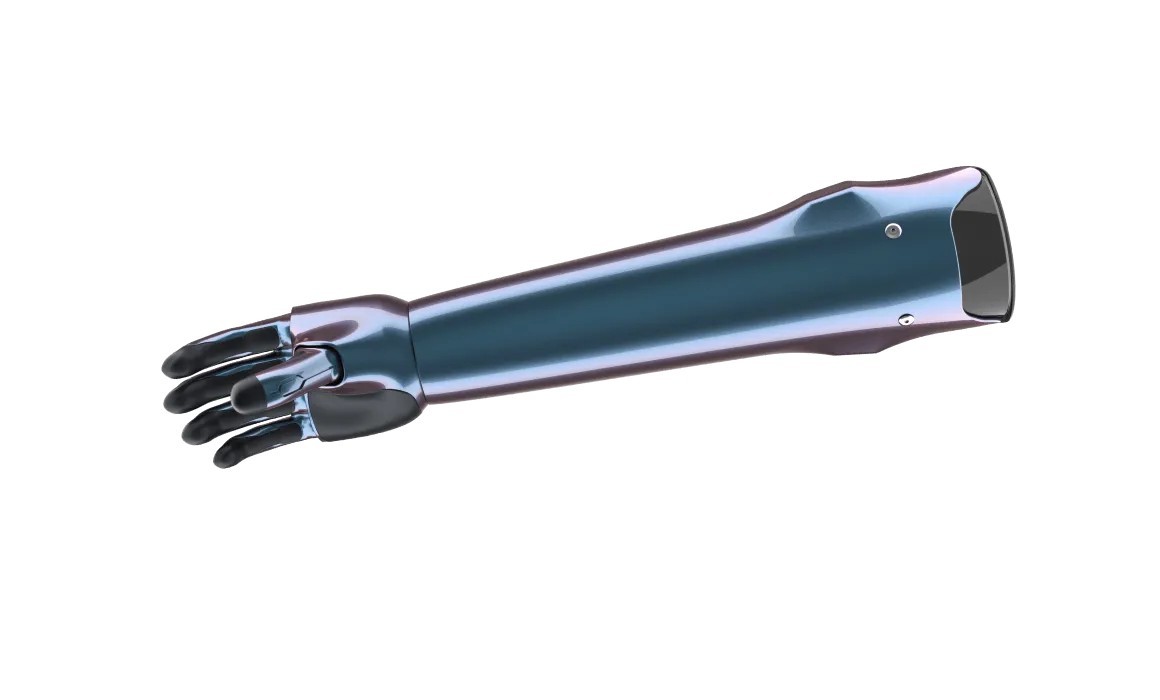

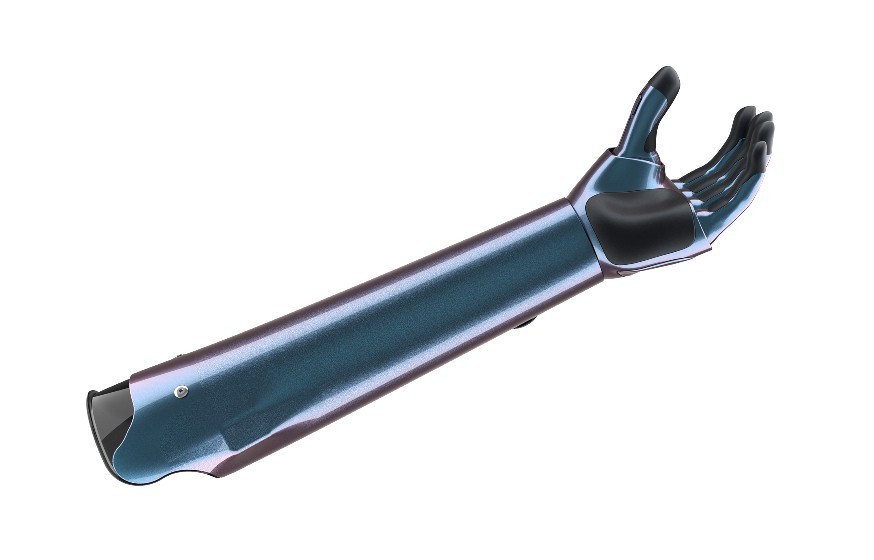

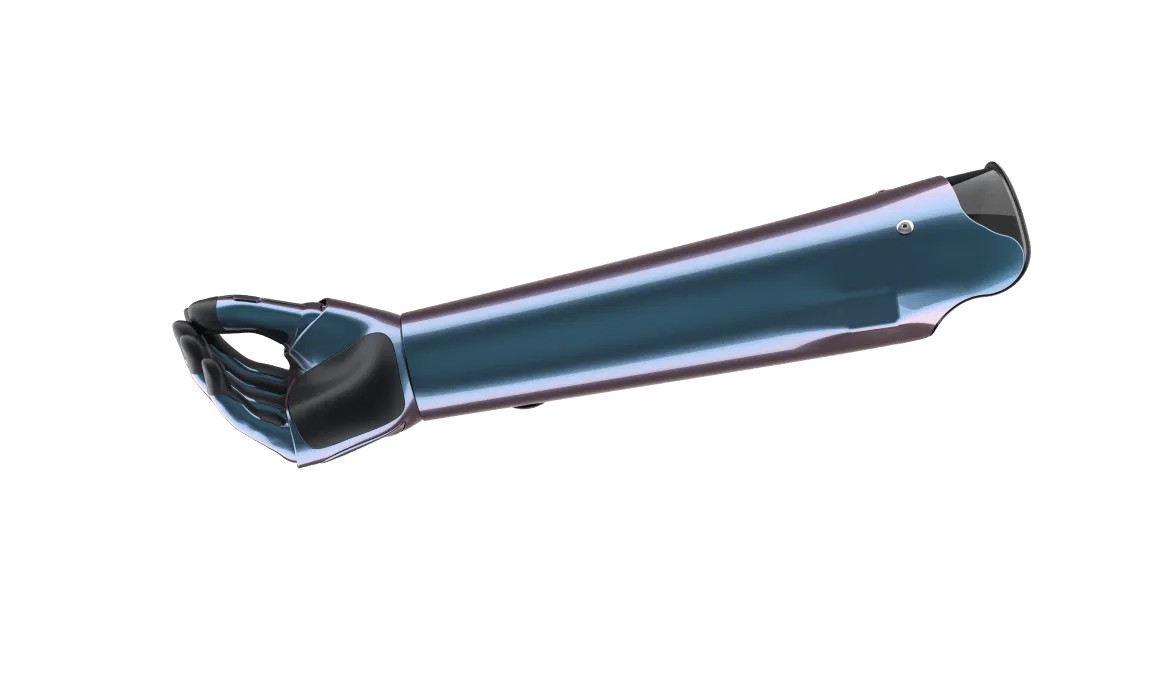

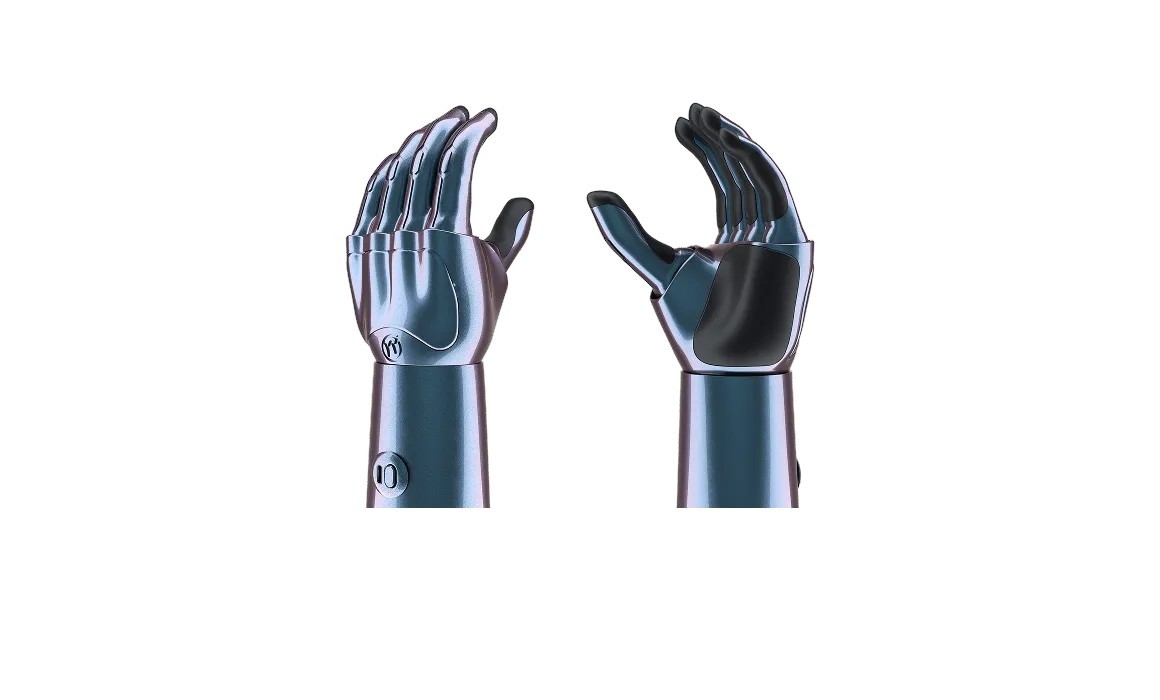

INDY Hand is Motorica's single-grip bionic forearm prosthesis, a simpler and more robust alternative to its multi-grip hands. Surface EMG sensors read the user's muscle signals - with sensitivity adjusted in an app - to open and close a universal tripod (pinch) grip that can lift up to 10 kg. The hand opens up to 98 mm and rotates passively up to 180 degrees, with an optional quick-disconnect rotator that turns 360 degrees. It is protected to IP54, uses a designer plastic shell or a cosmetic glove, gives 800 to 1,200 grips per charge at 6 V, recharges in five to six hours and works from -10 to +40 C. The hand weighs from 240 g and the complete prosthesis from 520 g; it is intended for users aged 12 and over and carries a three-year warranty.

FEATURES

  • Single-grip (tripod pinch) bionic forearm prosthesis
  • Surface EMG control
  • app-adjustable sensitivity
  • Lifts up to 10 kg
  • hand opening up to 98 mm
  • Passive rotation up to 180 deg
  • optional quick-disconnect 360 deg rotator
  • IP54
  • 800-1,200 grips per charge
  • 6 V
  • 5-6 h charging
  • Hand from 240 g, full prosthesis from 520 g
  • Ages 12+
  • 10 to +40 C
  • 3-year warranty

TECHNICAL SPECIFICATIONS

Verified
Physical
Weight0.52 kg
Payload10 kg
Mobility
Movement TypeOther
EnvironmentWorn daily by upper-limb amputees
Sensing & Compute
Sensorssurface EMG sensors
ConnectivityMobile app (sensor tuning)
Manufacturer-sourcedThird-party sourcedUnsourcedSource status is based on this robot's listed sources.

ROBOT FORUMS

Loading forums...

FREQUENTLY ASKED QUESTIONS

What is the INDY Hand?

INDY Hand is Motorica's single-grip bionic forearm prosthesis, a simpler and more robust alternative to its multi-grip hands. Surface EMG sensors read the user's muscle signals - with sensitivity adjusted in an app - to open and close a universal tripod (pinch) grip that can lift up to 10 kg.

Who makes the INDY Hand?

The INDY Hand is made by Motorica, a robotics company based in Russia.

How much does the INDY Hand cost?

Motorica has not publicly announced pricing for the INDY Hand. You can enquire through RobotAIGeek for current pricing.

What is the INDY Hand used for?

The INDY Hand is designed for medical-assistance, rehabilitation, helping, and upper-limb prosthesis for activities of daily living. It is used in healthcare and homes settings.

What is the payload capacity of the INDY Hand?

The INDY Hand has a payload capacity of 10 kg.

How much does the INDY Hand weigh?

The INDY Hand weighs 0.52 kg.
