DESCRIPTION
HW25000 is an Industrial-Robot from Invio Automation. It is built for Intralogistics, Material-Handling, Transport. Key figures: 1360 kg, 11340 kg payload.

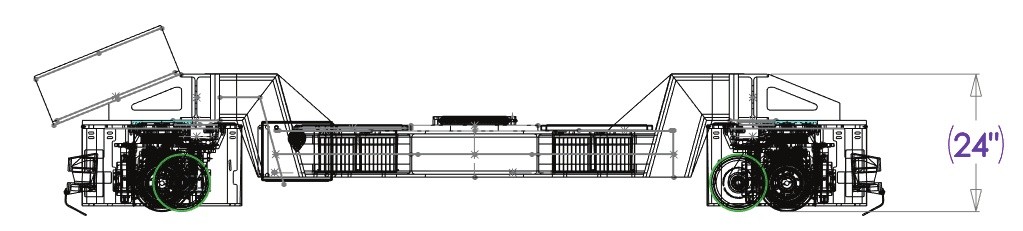

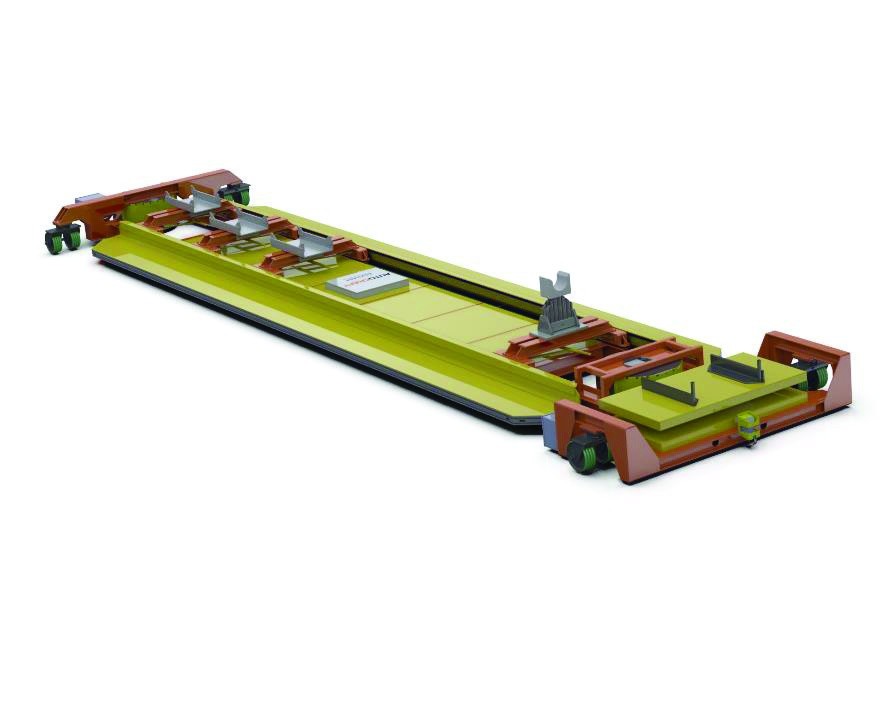

HW25000 is Invio Automation's heaviest standard AGV, rated to carry or tow 25,000 lb (11,340 kg). Semi-truck manufacturers use it to move chassis through assembly, and a skid-steer maker customised it to speed material through highly automated weld processes, with an MES coordinating and resetting the product fixturing on deck. The 3,581 x 1,448 x 610 mm vehicle weighs 1,360 kg, moves forward, in reverse or rotates at up to 0.61 m/s with up to 1.21 m/s2 acceleration, and runs a 24 V DC, 450 W drive from a 124 Ah battery with 40 A on-board plug-in and automatic charging, including floor-style IntelliChargers. All Invio standard platforms use BlueBotics natural-feature LIDAR navigation (or magnetic tape / in-floor bar guidance), safety-rated Keyence scanners with zone programming, Allen-Bradley PLC or microprocessor control with a Proface HMI and +/-13 mm positional accuracy, and take attachments such as top-deck robots, load frames, trunnions, roller conveyors and scissor lifts.
FEATURES
- On-deck load 25,000 lb (11,340 kg)
- towing load 25,000 lb (11,340 kg)
- 3,581 x 1,448 x 610 mm
- 1,360 kg
- Forward / reverse / rotate
- 48 in minimum turn radius
- Max. speed 0.61 m/s (120 ft/min)
- acceleration 1.21 m/s2
- 24 V DC drive, 450 W
- 124 Ah battery
- IntelliCharger in-process charging
- 40 A automatic
- BlueBotics natural-feature navigation
- magnetic tape or in-floor bar guidance as options
- Positional accuracy +/-0.5 in (13 mm)
- Safety-rated Keyence laser scanners with zone programming
- Allen-Bradley CompactLogix PLC or microprocessor control
- Proface HMI, control pendant
- Radio (900 MHz / 2.4 GHz), Wi-Fi (5 GHz) or UWB
- cart-to-cart RF or Master Control Panel
- Integrates with Ignition, FactoryTalk and ThingWorx
- Attachments: top-deck robots, load frames, 360-degree trunnions, powered roller conveyors, scissor lifts
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 1360 kg |
|---|---|
| Dimensions | L 3.58 m × W 1.45 m × H 610 mm |
| Payload | 11340 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 2.2 km/h |
| Environment | Manufacturing assembly lines and plant floors (indoor, 7-35 C, 25-95 % RH non-condensing) |
| Power | |
| Battery Life | 124 Ah |
| Charging Type | Automatic charging 40 A (higher available) incl. IntelliCharger; on-board plug-in 40 A |
| Sensing & Compute | |
| Sensors | Keyence safety laser scanner, BlueBotics natural-feature navigation LIDAR |
| Connectivity | Radio 900 MHz / 2.4 GHz, Wi-Fi 5 GHz, UWB |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 1360 kg |
|---|---|
| Dimensions | L 3.58 m × W 1.45 m × H 610 mm |
| Payload | 11340 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 2.2 km/h |
| Environment | Manufacturing assembly lines and plant floors (indoor, 7-35 C, 25-95 % RH non-condensing) |
| Power | |
| Battery Life | 124 Ah |
| Charging Type | Automatic charging 40 A (higher available) incl. IntelliCharger; on-board plug-in 40 A |
| Sensing & Compute | |
| Sensors | Keyence safety laser scanner, BlueBotics natural-feature navigation LIDAR |
| Connectivity | Radio 900 MHz / 2.4 GHz, Wi-Fi 5 GHz, UWB |
Images
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the HW25000?
HW25000 is Invio Automation's heaviest standard AGV, rated to carry or tow 25,000 lb (11,340 kg). Semi-truck manufacturers use it to move chassis through assembly, and a skid-steer maker customised it to speed material through highly automated weld processes, with an MES coordinating and resetting the product fixturing…
Who makes the HW25000?
The HW25000 is made by Invio Automation, a robotics company based in United States.
How much does the HW25000 cost?
Invio Automation has not publicly announced pricing for the HW25000. You can enquire through RobotAIGeek for current pricing.
What is the HW25000 used for?
The HW25000 is designed for intralogistics, material-handling, transport, and automated assembly-line conveyance and lineside delivery. It is used in automotive, warehouse & logistics, and manufacturing settings.
What is the payload capacity of the HW25000?
The HW25000 has a payload capacity of 11,340 kg.
How much does the HW25000 weigh?
The HW25000 weighs 1,360 kg.
How fast is the HW25000?
The HW25000 can move at speeds of up to 2.2 km/h.
