GP-50 Collaborative Palletizing Robot Workstation
DESCRIPTION
GP-50 Collaborative Palletizing Robot Workstation is a Collaborative-Robot from Shandong Gojon Precision Technology. It is built for Material-Handling, palletizing. Key figures: 50 kg payload, 1780 mm reach.

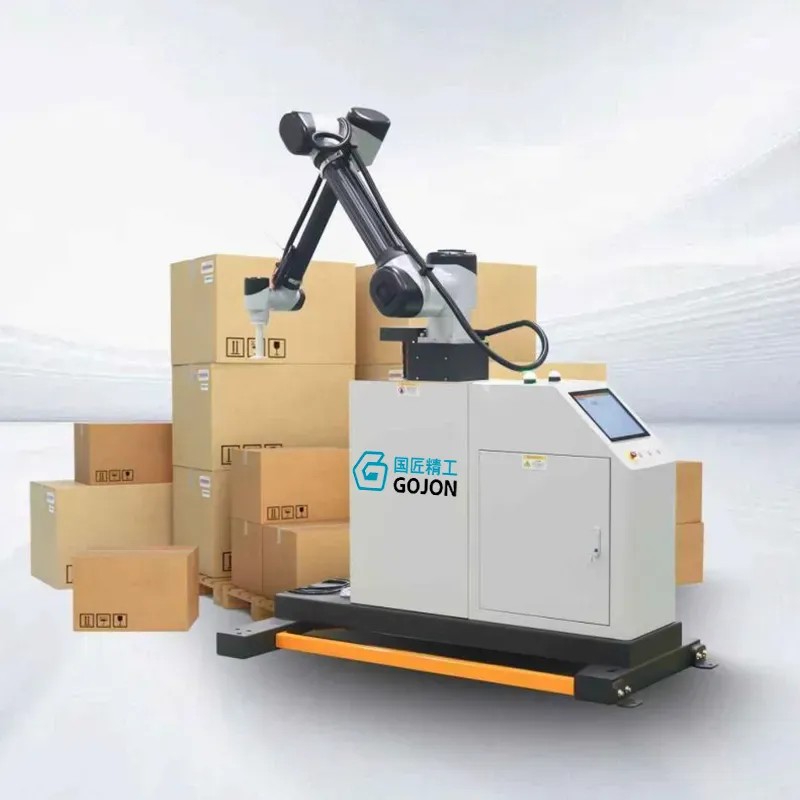

The GOJON GP-50 is the heavy-duty model of GOJON's fence-free collaborative palletizing workstations: a six-servo collaborative robot arm on a 600 mm-stroke lifting column inside a compact cabinet, with a vacuum suction gripper that stacks heavy cartons onto two pallets, one on each side. It carries 45-50 kg, reaches a stacking height of 2450 mm, comes with arm spans from 1580 to 2180 mm, and is programmed graphically on a touchscreen. GOJON aims it at end-of-line packaging of heavy boxes in food, beverage and chemical plants.
FEATURES
- Collaborative palletizing robot that works without safety fencing
- Payload 45-50 kg
- Arm span options 1580, 1780, 1980 and 2180 mm
- Lifting electric cylinder with 600 mm stroke for a maximum stacking height of 2450 mm
- Dual-station layout: two box types (A and B) palletized at once
- Stores up to 60 palletizing recipes
- Graphical programming on a 15-inch touchscreen, set up in about 5 minutes
- KEBA robot controller and 6 Inovance servo motors
- SICK photoelectric incoming-box inspection
- Soonture vacuum suction cup and Yatak solenoid valves

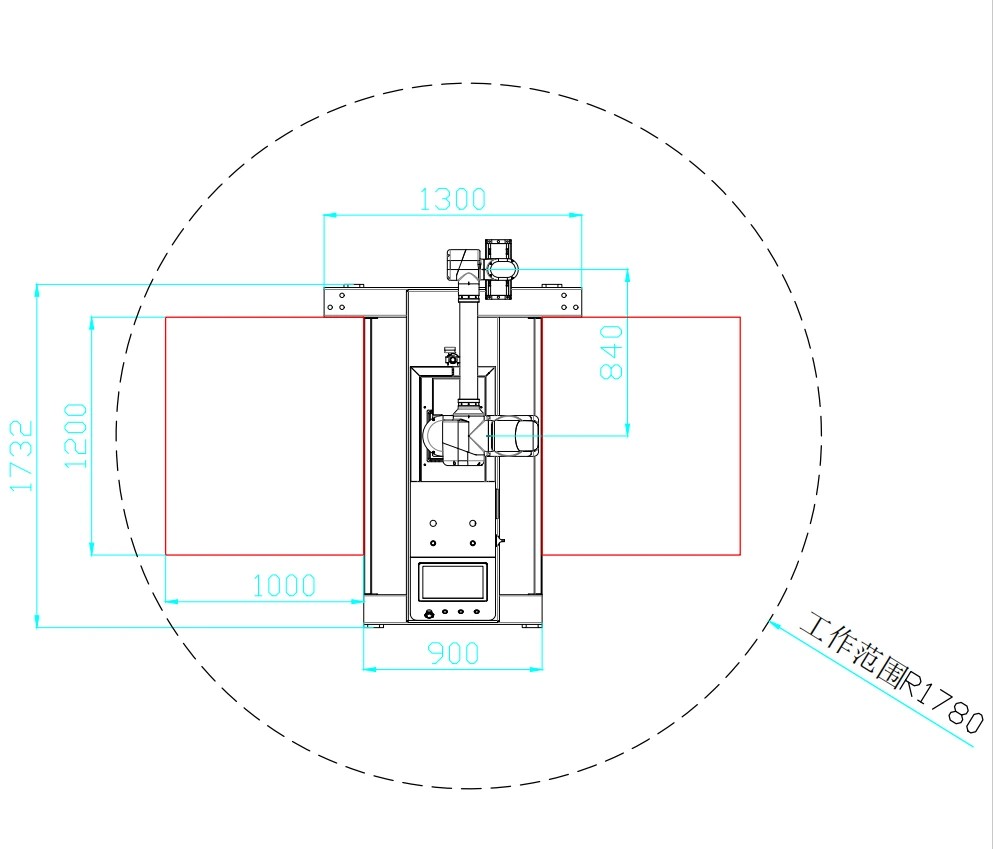

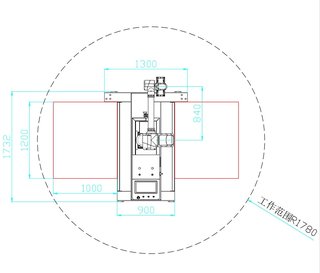

- Footprint 1732 x 1300 mm with a 1780 mm working radius (GOJON dimension drawing)
- For heavy corrugated boxes in food, beverage and chemical plants
TECHNICAL SPECIFICATIONS
| Physical | |
| Dimensions | L 1.73 m × W 1.3 m |
|---|---|
| Payload | 50 kg |
| Reach | 1.78 m |
| Mobility | |
| Movement Type | Stationary |
| Environment | Indoor factory end-of-line area; needs compressed air for the vacuum gripper |
| Actuators | Collaborative robot arm driven by 6 Inovance servo motors on a 600 mm-stroke lifting electric cylinder; pneumatic vacuum suction gripper |
| Sensing & Compute | |
| Sensors | SICK photoelectric switch for incoming-box inspection |
| Software / AI | Graphical programming on a 15-inch touchscreen; up to 60 palletizing recipes |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
| Physical | |
| Dimensions | L 1.73 m × W 1.3 m |
|---|---|
| Payload | 50 kg |
| Reach | 1.78 m |
| Mobility | |
| Movement Type | Stationary |
| Environment | Indoor factory end-of-line area; needs compressed air for the vacuum gripper |
| Actuators | Collaborative robot arm driven by 6 Inovance servo motors on a 600 mm-stroke lifting electric cylinder; pneumatic vacuum suction gripper |
| Sensing & Compute | |
| Sensors | SICK photoelectric switch for incoming-box inspection |
| Software / AI | Graphical programming on a 15-inch touchscreen; up to 60 palletizing recipes |
Images
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the GP-50 Collaborative Palletizing Robot Workstation?
The GOJON GP-50 is the heavy-duty model of GOJON's fence-free collaborative palletizing workstations: a six-servo collaborative robot arm on a 600 mm-stroke lifting column inside a compact cabinet, with a vacuum suction gripper that stacks heavy cartons onto two pallets, one on each side.
Who makes the GP-50 Collaborative Palletizing Robot Workstation?
The GP-50 Collaborative Palletizing Robot Workstation is made by Shandong Gojon Precision Technology, a robotics company based in China.
How much does the GP-50 Collaborative Palletizing Robot Workstation cost?
Shandong Gojon Precision Technology has not publicly announced pricing for the GP-50 Collaborative Palletizing Robot Workstation. You can enquire through RobotAIGeek for current pricing.
What is the GP-50 Collaborative Palletizing Robot Workstation used for?
The GP-50 Collaborative Palletizing Robot Workstation is designed for material-handling and palletizing. It is used in warehouse & logistics and manufacturing settings.
What is the payload capacity of the GP-50 Collaborative Palletizing Robot Workstation?
The GP-50 Collaborative Palletizing Robot Workstation has a payload capacity of 50 kg and a reach of 1.78 m.
