DESCRIPTION
Gemini UP Single Box is an Agricultural-Robots from BouMatic. It is built for Agriculture. Key figures: 1900 kg.

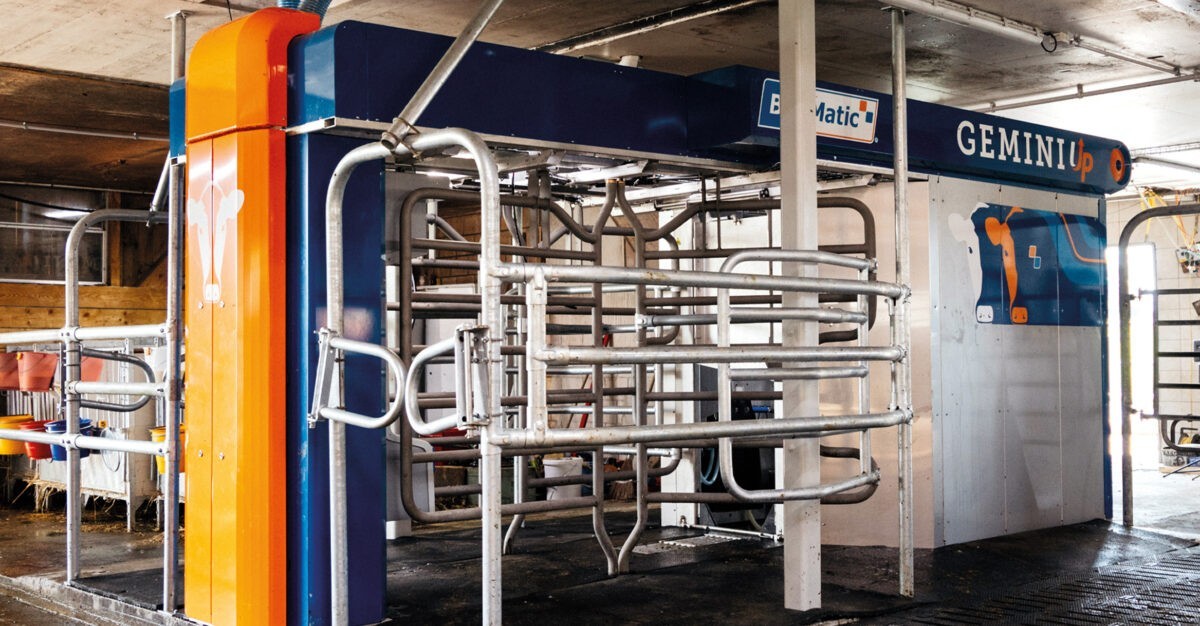

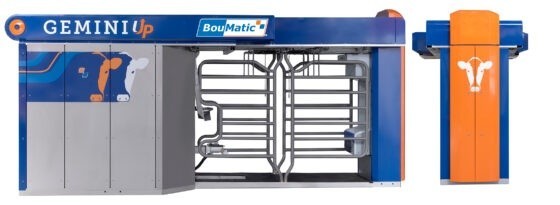

Gemini UP Single Box is BouMatic's one-stall automatic milking system, a self-contained two-in-one unit that puts the milking box and the machine room in one compact frame so it can be installed quickly in new or existing barns. Its integrated in-box selection can sort cows as they leave, so the barn needs no extra fencing or gates around the robot. The robot arm attaches the cups from behind, between the cow's rear legs, the way a milker works in a side-by-side parlour, which keeps the arm out of the cow's sight. A dual-attachment head fetches two cups at once, a stainless-steel time-of-flight 3D camera locates the teats and machine-learning vision software speeds attachment on difficult udders. Udder preparation takes 60 to 90 seconds, milk from each quarter is screened, and herd data reaches the farmer's phone, tablet or PC through the OneView software. The box is 5.6 m long, 1.6 m wide and 2.4 m high and weighs 1,900 kg.
FEATURES
- Self-contained 2-in-1 unit: milking box plus integrated machine room
- In-box selection (sort capable) - no extra fencing or gates needed
- Milks from behind, between the rear legs, like a side-by-side parlour

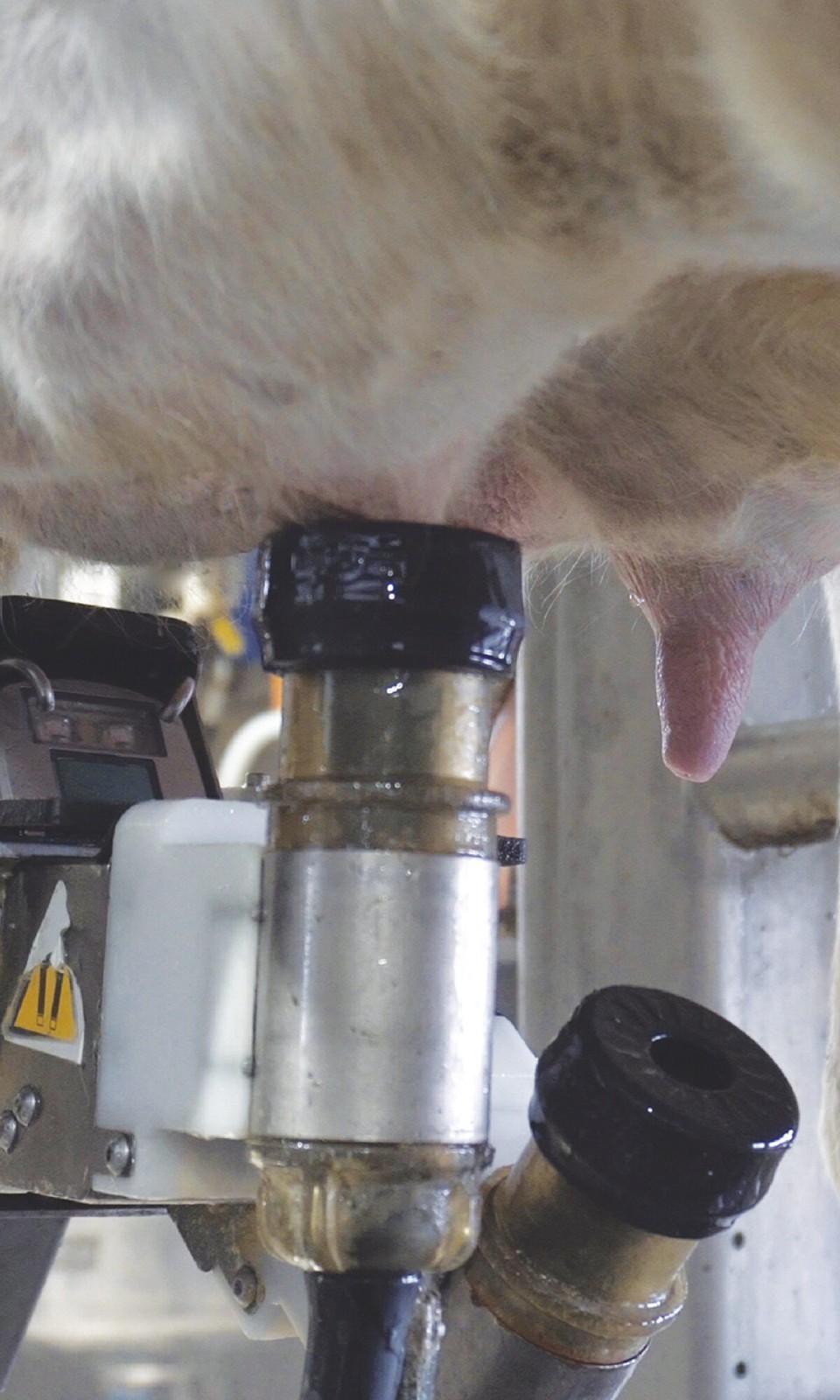

- Dual-attachment head fetches two teat cups at once
- Waterproof stainless-steel time-of-flight 3D camera for teat location
- Vision AI (machine learning) teat attachment
- average attach time approaching under 2 minutes
- Udder preparation 60-90 s for optimal let-down
- per-quarter milk screening
- Open frame gives the cow an unobstructed view
- 15% more room than the previous Gemini
- OneView management system
- touchscreen at the robot plus smartphone, tablet and PC access
- Circulation cleaning (CIP) with energy and water savings
- Upgradeable with new equipment and software
- RealTime Activity cow monitoring option
- 5.6 x 1.6 x 2.4 m (L x W x H)
- 1,900 kg
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 1900 kg |
|---|---|
| Dimensions | L 5.6 m × W 1.6 m × H 2.4 m |
| Mobility | |
| Movement Type | Stationary |
| Environment | Dairy barns (free-stall and grazing systems) |
| Sensing & Compute | |
| Sensors | time-of-flight 3D camera, per-quarter milk sensors |
| Connectivity | Touchscreen; PC, tablet and smartphone access (OneView) |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 1900 kg |
|---|---|
| Dimensions | L 5.6 m × W 1.6 m × H 2.4 m |
| Mobility | |
| Movement Type | Stationary |
| Environment | Dairy barns (free-stall and grazing systems) |
| Sensing & Compute | |
| Sensors | time-of-flight 3D camera, per-quarter milk sensors |
| Connectivity | Touchscreen; PC, tablet and smartphone access (OneView) |
Images
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the Gemini UP Single Box?
Gemini UP Single Box is BouMatic's one-stall automatic milking system, a self-contained two-in-one unit that puts the milking box and the machine room in one compact frame so it can be installed quickly in new or existing barns.
Who makes the Gemini UP Single Box?
The Gemini UP Single Box is made by BouMatic, a robotics company based in United States.
How much does the Gemini UP Single Box cost?
BouMatic has not publicly announced pricing for the Gemini UP Single Box. You can enquire through RobotAIGeek for current pricing.
What is the Gemini UP Single Box used for?
The Gemini UP Single Box is designed for agriculture. It is used in agriculture settings.
How much does the Gemini UP Single Box weigh?
The Gemini UP Single Box weighs 1,900 kg.
