DESCRIPTION
Gemini UP Double Box is an Agricultural-Robots from BouMatic. It is built for Agriculture. Key figures: 2600 kg.

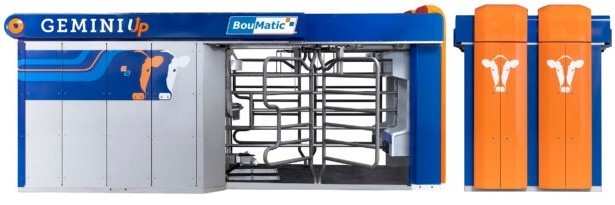

Gemini UP Double Box is BouMatic's two-stall automatic milking robot: two milking stalls stand side by side and one robot arm serves both, milking two cows at the same time from between their rear legs. Sharing one arm across two cows raises throughput per robot, and the side-by-side layout uses cows' social behaviour, since one cow draws another into the box and both keep an open view of the herd. It uses the same milking technology as the single box: a dual-attachment head that fetches two cups at once, a stainless-steel time-of-flight 3D camera and machine-learning vision for teat attachment, 60 to 90 seconds of udder preparation and per-quarter milk screening, managed through the OneView software from a touchscreen, phone, tablet or PC. Several double boxes can be grouped in one milking area as a Gemini UP MAX installation for large herds. The double box is 5.9 m long, 2.8 m wide and 2.4 m high and weighs 2,600 kg.
FEATURES
- Two side-by-side stalls served by one robot arm - milks two cows at once
- Social design: cows attract each other into the box and keep an open view
- Milks from behind, between the rear legs, like a side-by-side parlour

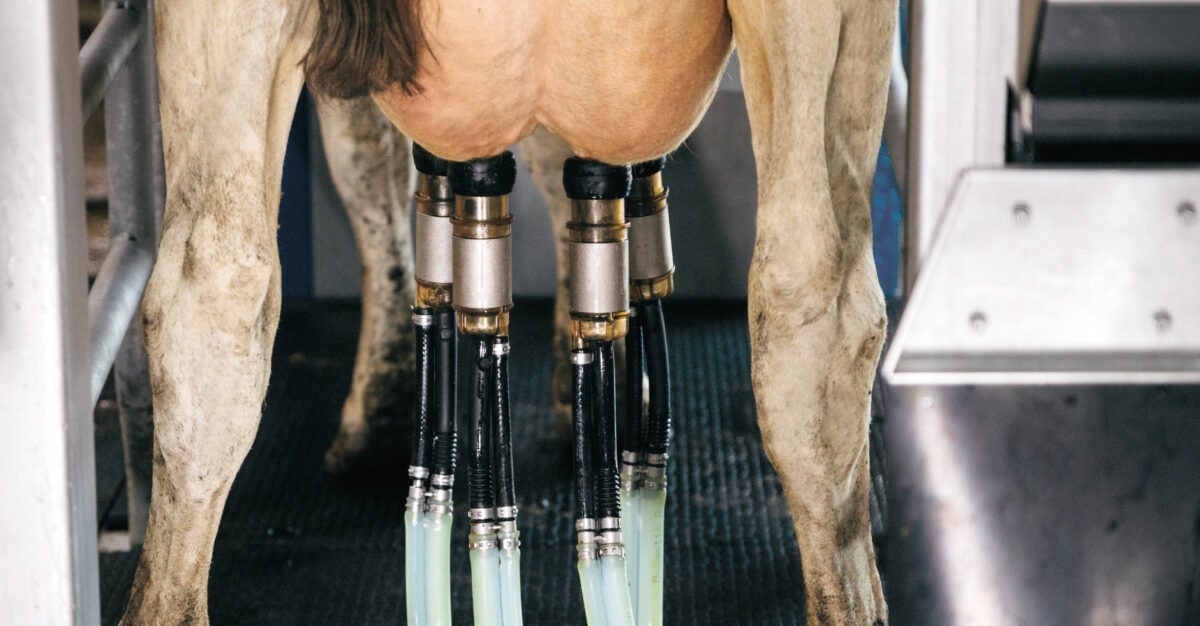

- Dual-attachment head fetches two teat cups at once
- Waterproof stainless-steel time-of-flight 3D camera for teat location
- Vision AI (machine learning) teat attachment
- average attach time approaching under 2 minutes
- Udder preparation 60-90 s for optimal let-down
- per-quarter milk screening
- Open frame gives the cow an unobstructed view
- 15% more room than the previous Gemini
- OneView management system
- touchscreen at the robot plus smartphone, tablet and PC access
- Circulation cleaning (CIP) with energy and water savings
- Upgradeable with new equipment and software
- RealTime Activity cow monitoring option

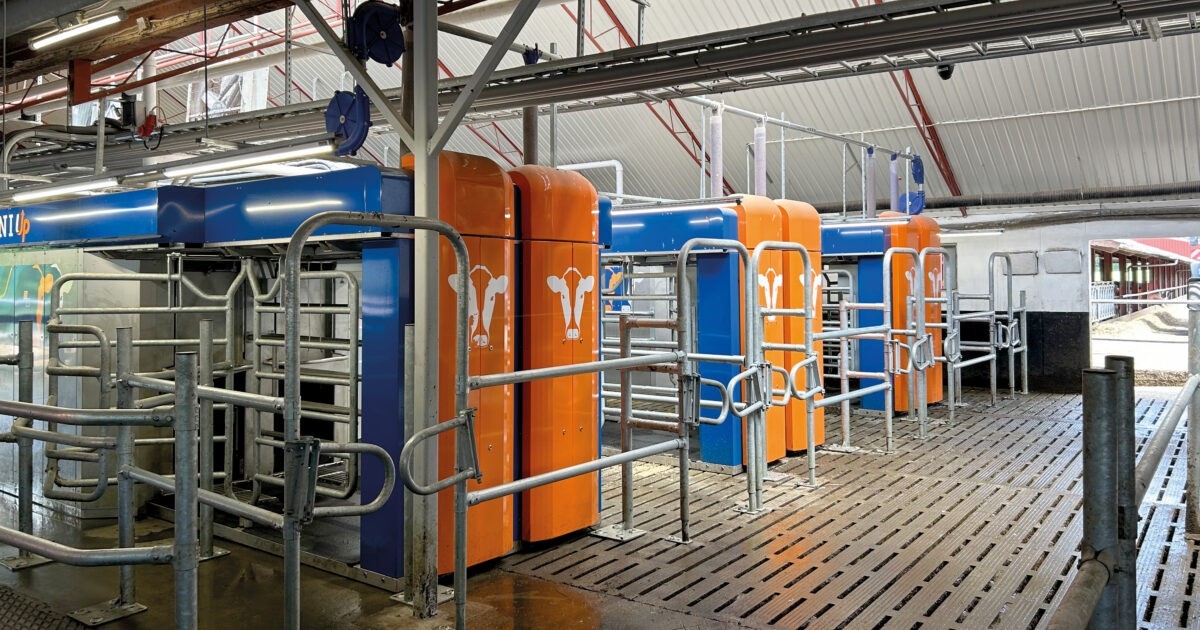

- Can be grouped into a Gemini UP MAX batch-milking centre
- 5.9 x 2.8 x 2.4 m (L x W x H)
- 2,600 kg
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 2600 kg |
|---|---|
| Dimensions | L 5.9 m × W 2.8 m × H 2.4 m |
| Mobility | |
| Movement Type | Stationary |
| Environment | Dairy barns; also grouped in Gemini UP MAX milking centres |
| Sensing & Compute | |
| Sensors | time-of-flight 3D camera, per-quarter milk sensors |
| Connectivity | Touchscreen; PC, tablet and smartphone access (OneView) |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 2600 kg |
|---|---|
| Dimensions | L 5.9 m × W 2.8 m × H 2.4 m |
| Mobility | |
| Movement Type | Stationary |
| Environment | Dairy barns; also grouped in Gemini UP MAX milking centres |
| Sensing & Compute | |
| Sensors | time-of-flight 3D camera, per-quarter milk sensors |
| Connectivity | Touchscreen; PC, tablet and smartphone access (OneView) |
Images
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the Gemini UP Double Box?
Gemini UP Double Box is BouMatic's two-stall automatic milking robot: two milking stalls stand side by side and one robot arm serves both, milking two cows at the same time from between their rear legs.
Who makes the Gemini UP Double Box?
The Gemini UP Double Box is made by BouMatic, a robotics company based in United States.
How much does the Gemini UP Double Box cost?
BouMatic has not publicly announced pricing for the Gemini UP Double Box. You can enquire through RobotAIGeek for current pricing.
What is the Gemini UP Double Box used for?
The Gemini UP Double Box is designed for agriculture. It is used in agriculture settings.
How much does the Gemini UP Double Box weigh?
The Gemini UP Double Box weighs 2,600 kg.
