DESCRIPTION
FX32V is an Industrial-Robot from MAXAGV. It is built for Intralogistics, Lifting, Material-Handling. Key figures: 1000 kg payload.

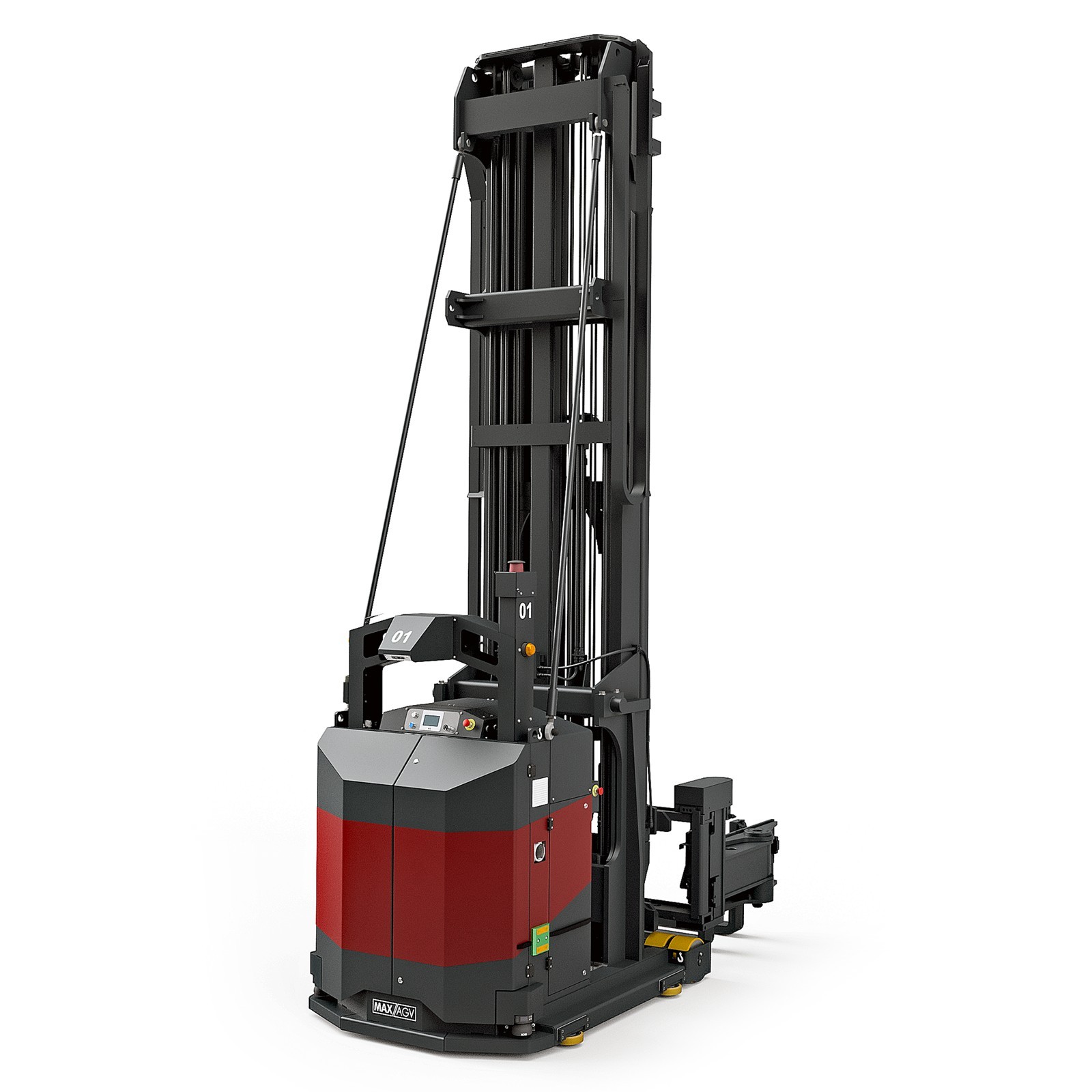

The FX32V is a very-narrow-aisle (VNA) AGV for warehouses with little space between racks. Its fork carriage can be a trilateral head with fork rotation, reach and side shift, or bilateral telescopic forks with side shift, handling pallets up to 1,000 kg at heights up to 11,500 mm. It can be guided by laser, rails or wire to suit the site.\nLike all MAXAGV vehicles it navigates mainly by laser, carries a personal-safety system of emergency stops, safety laser scanners, side edges and bumpers to ISO 3691-4:2020, and runs under the Max software platform with opportunity charging when idle. Options include barcode and RFID readers and MAXAGV's DeZone and Blue Point accessories.
FEATURES
- Trilateral head (rotate, reach, side shift) or bilateral telescopic forks
- Laser, rail or wire guidance in the aisle
- High-bay lifts up to 11,500 mm
- Unit load: EUR - CHEP - GKN pallets, containers, stillages
- Maximum weight: 1000 kg
- Transfer/lift height: 65 - 11500 mm
- Battery: Wet lead-acid, gel or lithium-ion
- Charging: Opportunity charging, fast charge or battery exchange
- Options: barcode scanner - RFID - DeZone - Blue Point - Blue Arc - PalletLocator
- Laser navigation as standard
- magnetic, optical or wire guidance where required
- Personal safety system: emergency stops, front/rear safety laser scanners, side edges and bumpers
- ISO 3691-4:2020
- Sonix on-board controller
- managed by the Max software platform
TECHNICAL SPECIFICATIONS
| Physical | |
| Payload | 1000 kg |
|---|---|
| Mobility | |
| Movement Type | Wheeled |
| Environment | Indoor production, warehouses and distribution centres |
| Sensing & Compute | |
| Sensors | safety laser scanners, navigation laser, bumpers and safety edges |
| Connectivity | Max software platform (fleet control) |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
| Physical | |
| Payload | 1000 kg |
|---|---|
| Mobility | |
| Movement Type | Wheeled |
| Environment | Indoor production, warehouses and distribution centres |
| Sensing & Compute | |
| Sensors | safety laser scanners, navigation laser, bumpers and safety edges |
| Connectivity | Max software platform (fleet control) |
Images
martti
Image Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the FX32V?
The FX32V is a very-narrow-aisle (VNA) AGV for warehouses with little space between racks. Its fork carriage can be a trilateral head with fork rotation, reach and side shift, or bilateral telescopic forks with side shift, handling pallets up to 1,000 kg at heights up to 11,500 mm.
Who makes the FX32V?
The FX32V is made by MAXAGV, a robotics company based in Sweden.
How much does the FX32V cost?
MAXAGV has not publicly announced pricing for the FX32V. You can enquire through RobotAIGeek for current pricing.
What is the FX32V used for?
The FX32V is designed for intralogistics, lifting, material-handling, and pallet-transportation. It is used in warehouse & logistics and manufacturing settings.
What is the payload capacity of the FX32V?
The FX32V has a payload capacity of 1,000 kg.
