DESCRIPTION
FX32R is an Industrial-Robot from MAXAGV. It is built for Intralogistics, Lifting, Material-Handling. Key figures: 1500 kg payload.

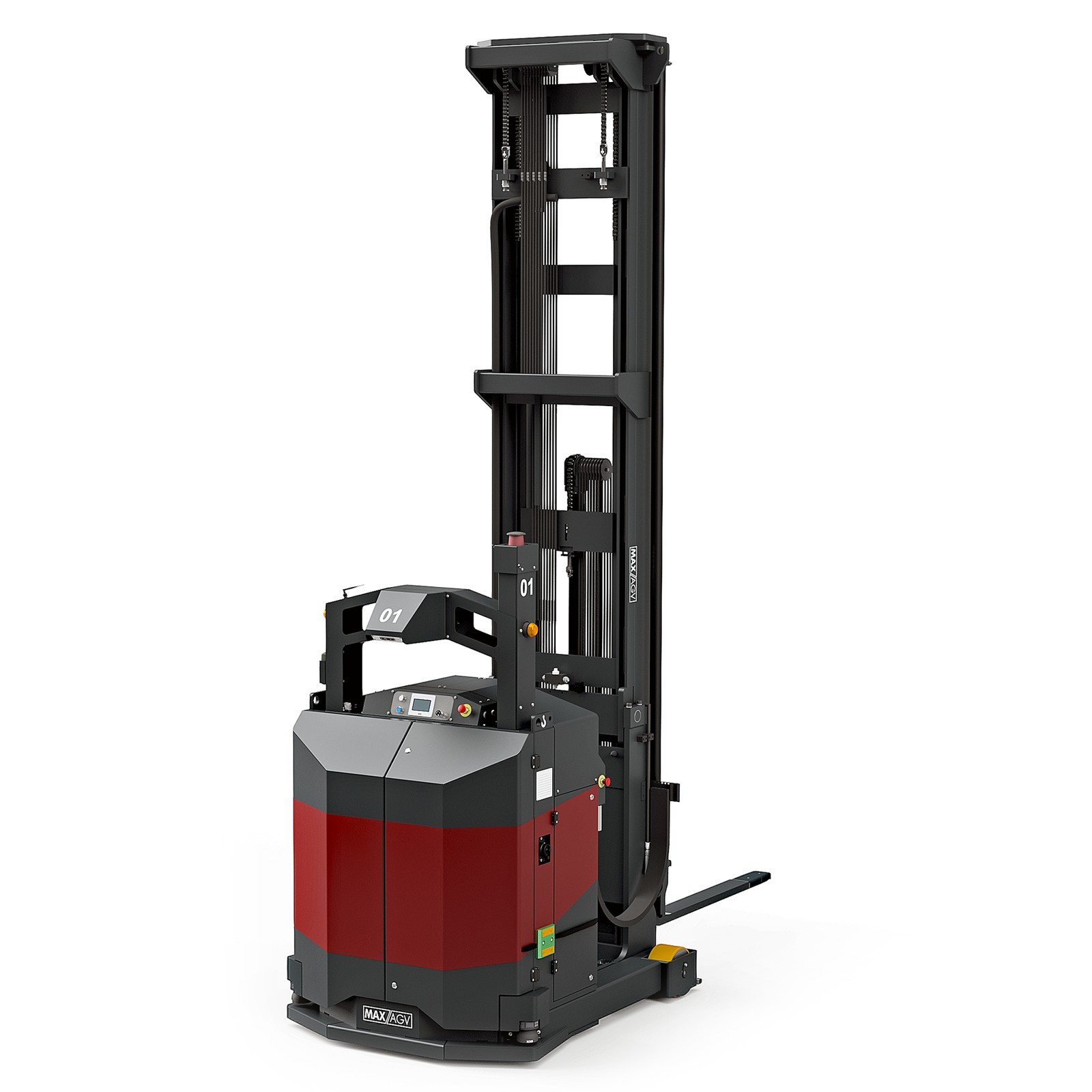

The FX32R Compact Reach is a warehouse AGV for narrow aisles and high lifts. Its reach mast reaches into racks without straddle-leg tunnels, and the fork carriage can have fork spread and side shift for precise handling of different pallets in high-bay warehouses, with loads up to 1,500 kg and lift heights up to 11,500 mm.\nLike all MAXAGV vehicles it navigates mainly by laser, carries a personal-safety system of emergency stops, safety laser scanners, side edges and bumpers to ISO 3691-4:2020, and runs under the Max software platform with opportunity charging when idle. Options include barcode and RFID readers and MAXAGV's DeZone and Blue Point accessories.
FEATURES
- Reach mast - no straddle-leg tunnels needed in racks
- Optional fork spread and side shift
- High-bay lifts up to 11,500 mm
- Unit load: EUR - CHEP - GKN pallets, containers, stillages
- Maximum weight: 1500 kg
- Transfer/lift height: 65 - 11500 mm
- Battery: Wet lead-acid, gel or lithium-ion
- Charging: Opportunity charging, fast charge or battery exchange
- Options: barcode scanner - RFID - DeZone - Blue Point - Blue Arc - PalletLocator
- Laser navigation as standard
- magnetic, optical or wire guidance where required
- Personal safety system: emergency stops, front/rear safety laser scanners, side edges and bumpers
- ISO 3691-4:2020
- Sonix on-board controller
- managed by the Max software platform
TECHNICAL SPECIFICATIONS
| Physical | |
| Payload | 1500 kg |
|---|---|
| Mobility | |
| Movement Type | Wheeled |
| Environment | Indoor production, warehouses and distribution centres |
| Sensing & Compute | |
| Sensors | safety laser scanners, navigation laser, bumpers and safety edges |
| Connectivity | Max software platform (fleet control) |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
| Physical | |
| Payload | 1500 kg |
|---|---|
| Mobility | |
| Movement Type | Wheeled |
| Environment | Indoor production, warehouses and distribution centres |
| Sensing & Compute | |
| Sensors | safety laser scanners, navigation laser, bumpers and safety edges |
| Connectivity | Max software platform (fleet control) |
Images
martti
Image Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the FX32R?
The FX32R Compact Reach is a warehouse AGV for narrow aisles and high lifts. Its reach mast reaches into racks without straddle-leg tunnels, and the fork carriage can have fork spread and side shift for precise handling of different pallets in high-bay warehouses, with loads up to 1,500 kg and lift heights up to 11,500…
Who makes the FX32R?
The FX32R is made by MAXAGV, a robotics company based in Sweden.
How much does the FX32R cost?
MAXAGV has not publicly announced pricing for the FX32R. You can enquire through RobotAIGeek for current pricing.
What is the FX32R used for?
The FX32R is designed for intralogistics, lifting, material-handling, and pallet-transportation. It is used in warehouse & logistics and manufacturing settings.
What is the payload capacity of the FX32R?
The FX32R has a payload capacity of 1,500 kg.
