DESCRIPTION

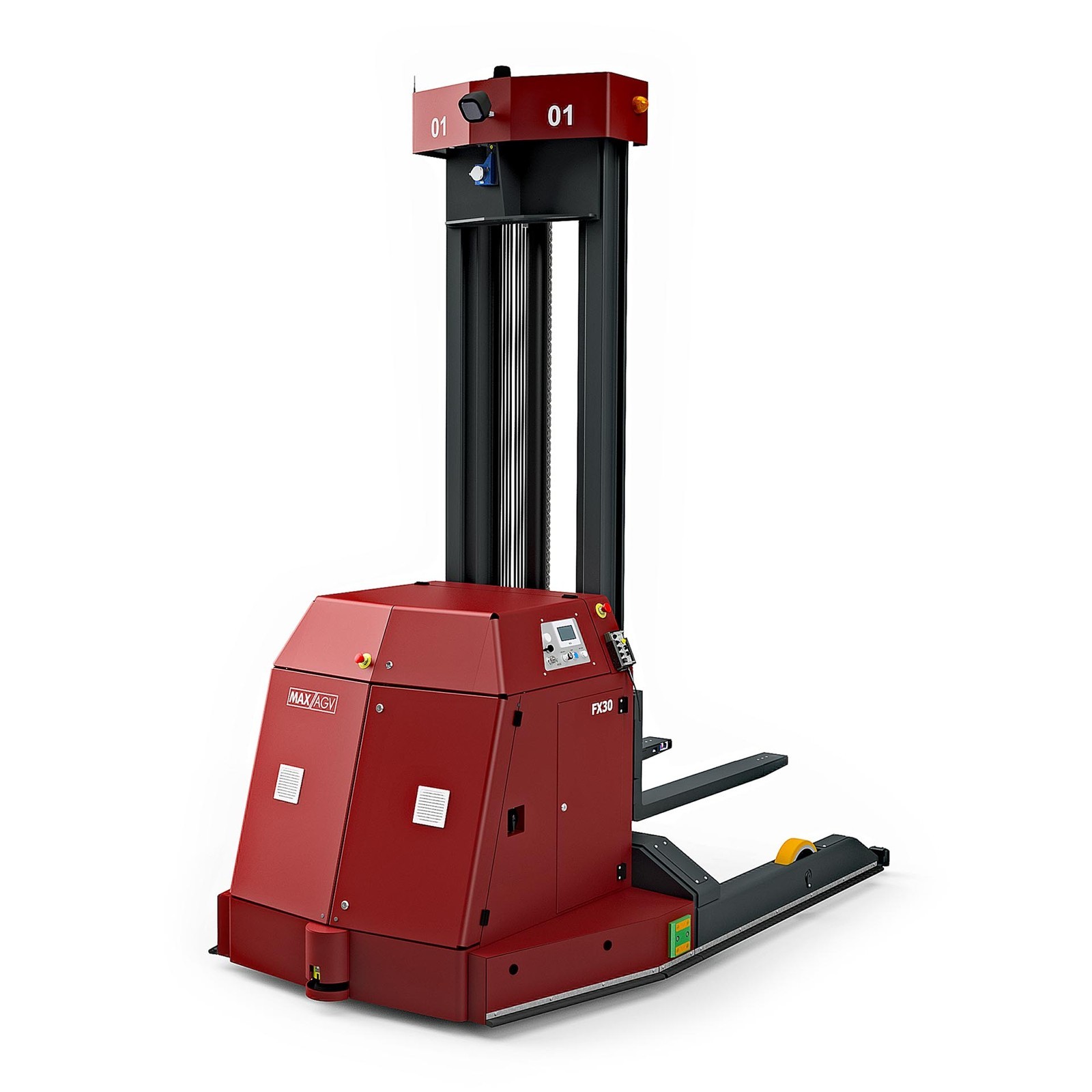

FX30 is an Industrial-Robot from MAXAGV. It is built for Intralogistics, Lifting, Material-Handling. Key figures: 2000 kg payload.

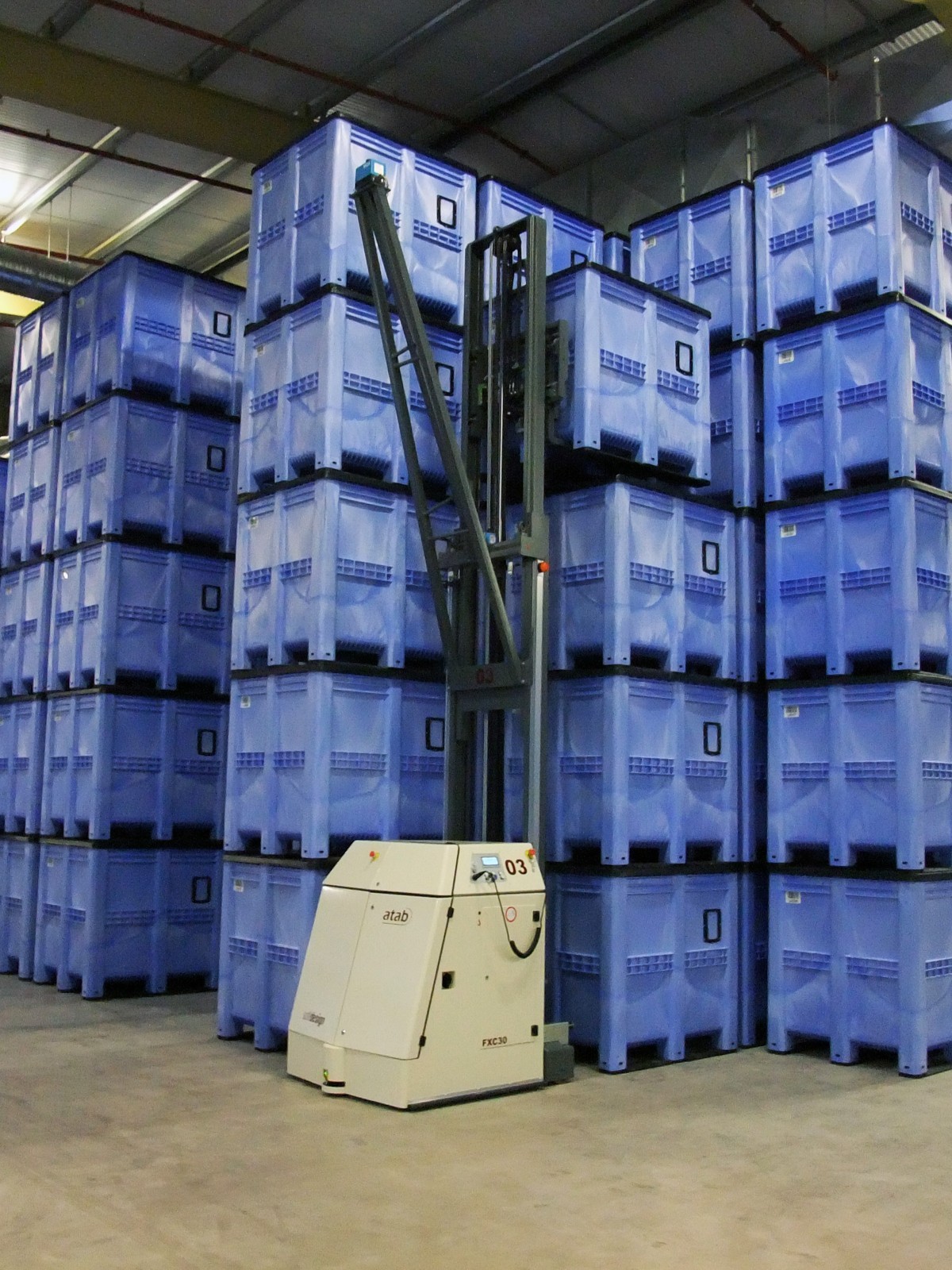

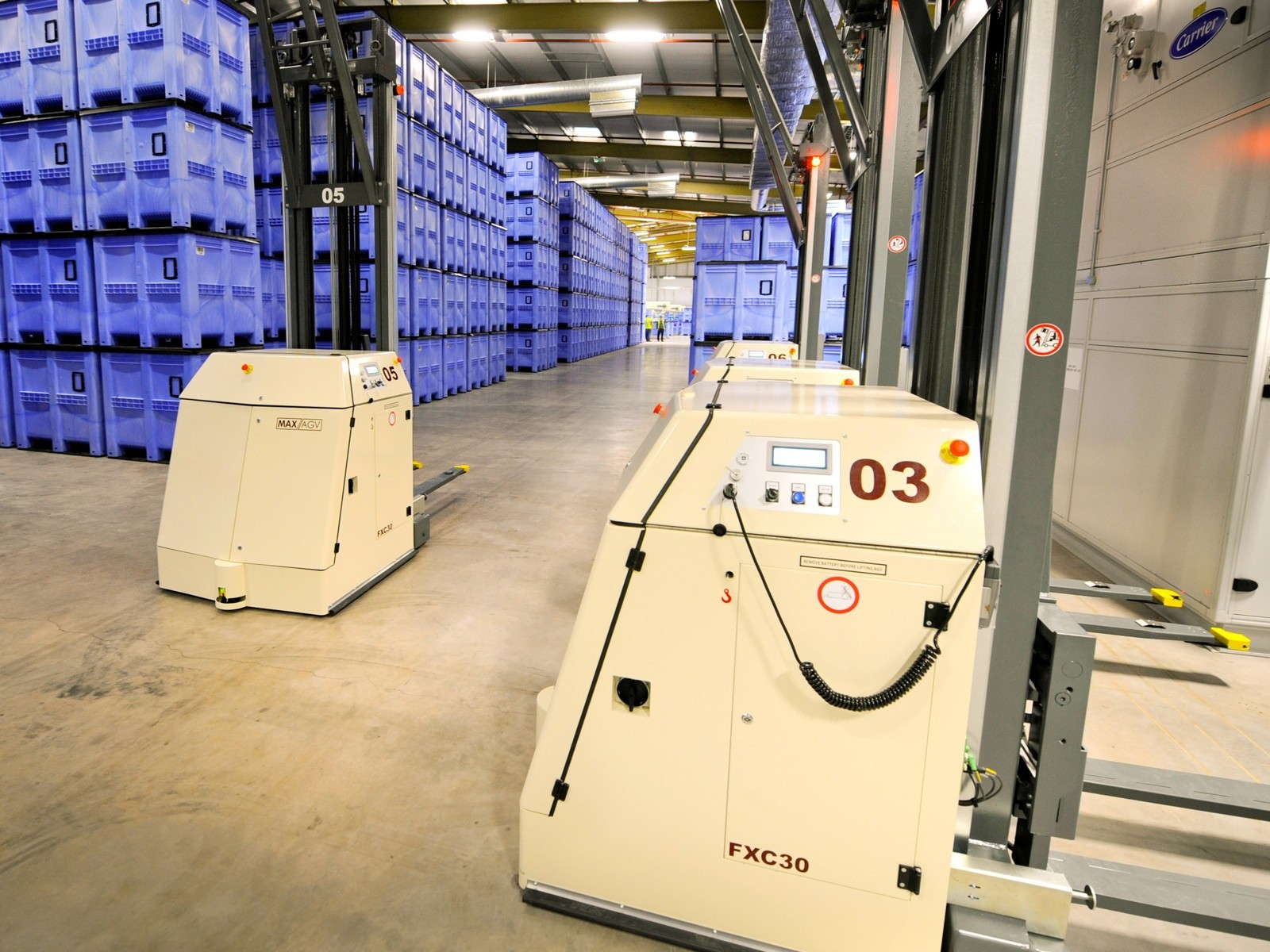

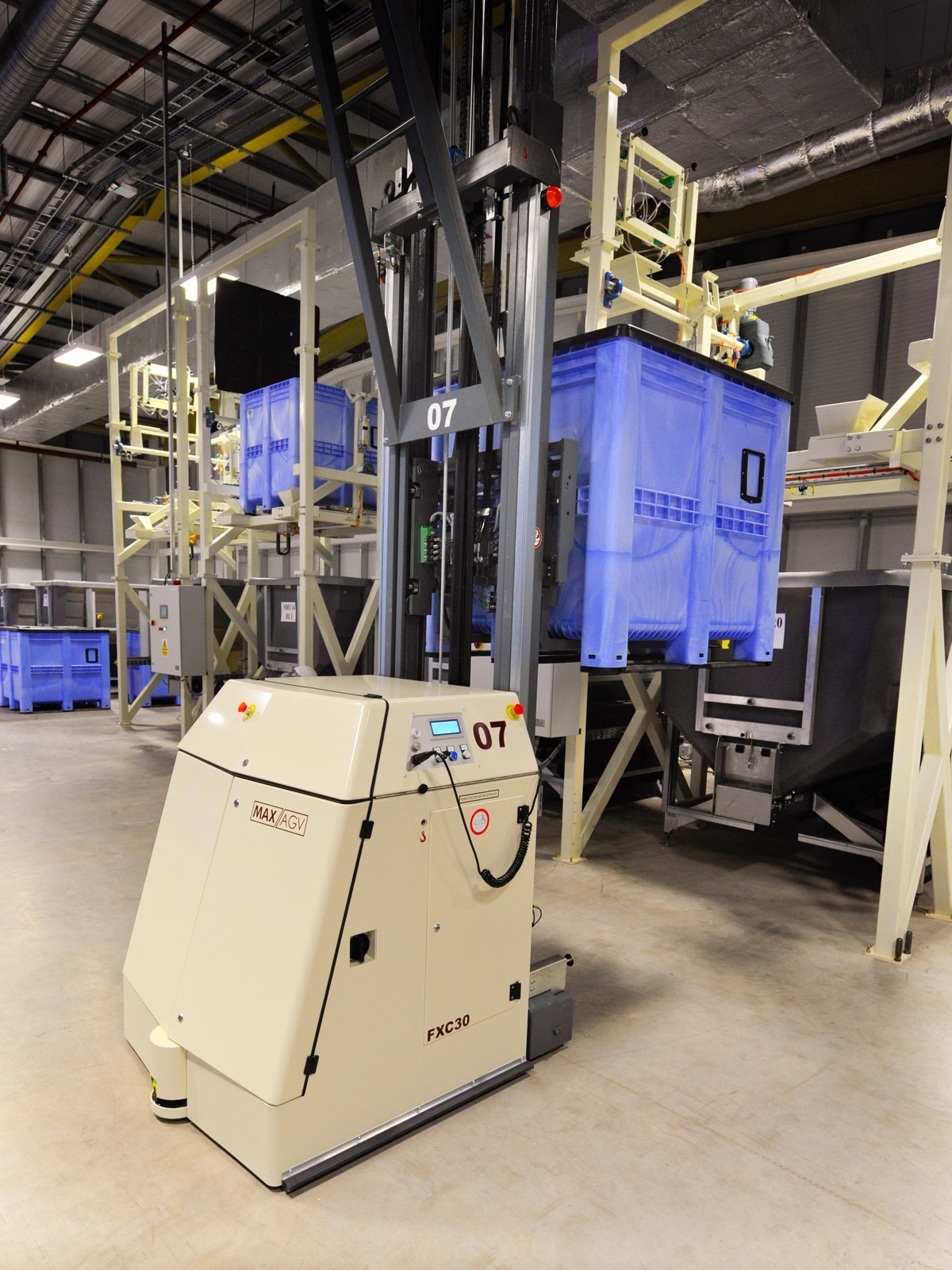

The FX30 Load Straddle is a fork AGV with horizontal straddle legs for better load stability. That stability suits it to pallets, paper reels, containers, stillages and customer-specific loads, and MAXAGV calls it in many cases the preferred heavy-load stacking AGV, lifting up to 2,000 kg to 8,000 mm.\nLike all MAXAGV vehicles it navigates mainly by laser, carries a personal-safety system of emergency stops, safety laser scanners, side edges and bumpers to ISO 3691-4:2020, and runs under the Max software platform with opportunity charging when idle. Options include barcode and RFID readers and MAXAGV's DeZone and Blue Point accessories.
FEATURES
- Horizontal straddle legs for load stability
- Heavy-load stacking up to 8,000 mm
- Unit load: Pallet - Container - Stillage - Paper reels
- Maximum weight: 2000 kg
- Transfer/lift height: 85 - 8000 mm
- Battery: Wet lead-acid, gel or lithium-ion
- Charging: Opportunity charging, fast charge or battery exchange
- Options: barcode scanner - RFID - DeZone - Blue Point
- Laser navigation as standard
- magnetic, optical or wire guidance where required
- Personal safety system: emergency stops, front/rear safety laser scanners, side edges and bumpers
- ISO 3691-4:2020
- Sonix on-board controller
- managed by the Max software platform
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Payload | 2000 kg |
|---|---|
| Mobility | |
| Movement Type | Wheeled |
| Environment | Indoor production, warehouses and distribution centres |
| Sensing & Compute | |
| Sensors | safety laser scanners, navigation laser, bumpers and safety edges |
| Connectivity | Max software platform (fleet control) |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Payload | 2000 kg |
|---|---|
| Mobility | |
| Movement Type | Wheeled |
| Environment | Indoor production, warehouses and distribution centres |
| Sensing & Compute | |
| Sensors | safety laser scanners, navigation laser, bumpers and safety edges |
| Connectivity | Max software platform (fleet control) |
Images
martti
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the FX30?
The FX30 Load Straddle is a fork AGV with horizontal straddle legs for better load stability. That stability suits it to pallets, paper reels, containers, stillages and customer-specific loads, and MAXAGV calls it in many cases the preferred heavy-load stacking AGV, lifting up to 2,000 kg to 8,000 mm.\nLike all MAXAGV…
Who makes the FX30?
The FX30 is made by MAXAGV, a robotics company based in Sweden.
How much does the FX30 cost?
MAXAGV has not publicly announced pricing for the FX30. You can enquire through RobotAIGeek for current pricing.
What is the FX30 used for?
The FX30 is designed for intralogistics, lifting, material-handling, and pallet-transportation. It is used in warehouse & logistics and manufacturing settings.
What is the payload capacity of the FX30?
The FX30 has a payload capacity of 2,000 kg.
