DESCRIPTION
FX15 is an Industrial-Robot from MAXAGV. It is built for Intralogistics, Lifting, Material-Handling. Key figures: 2000 kg payload.

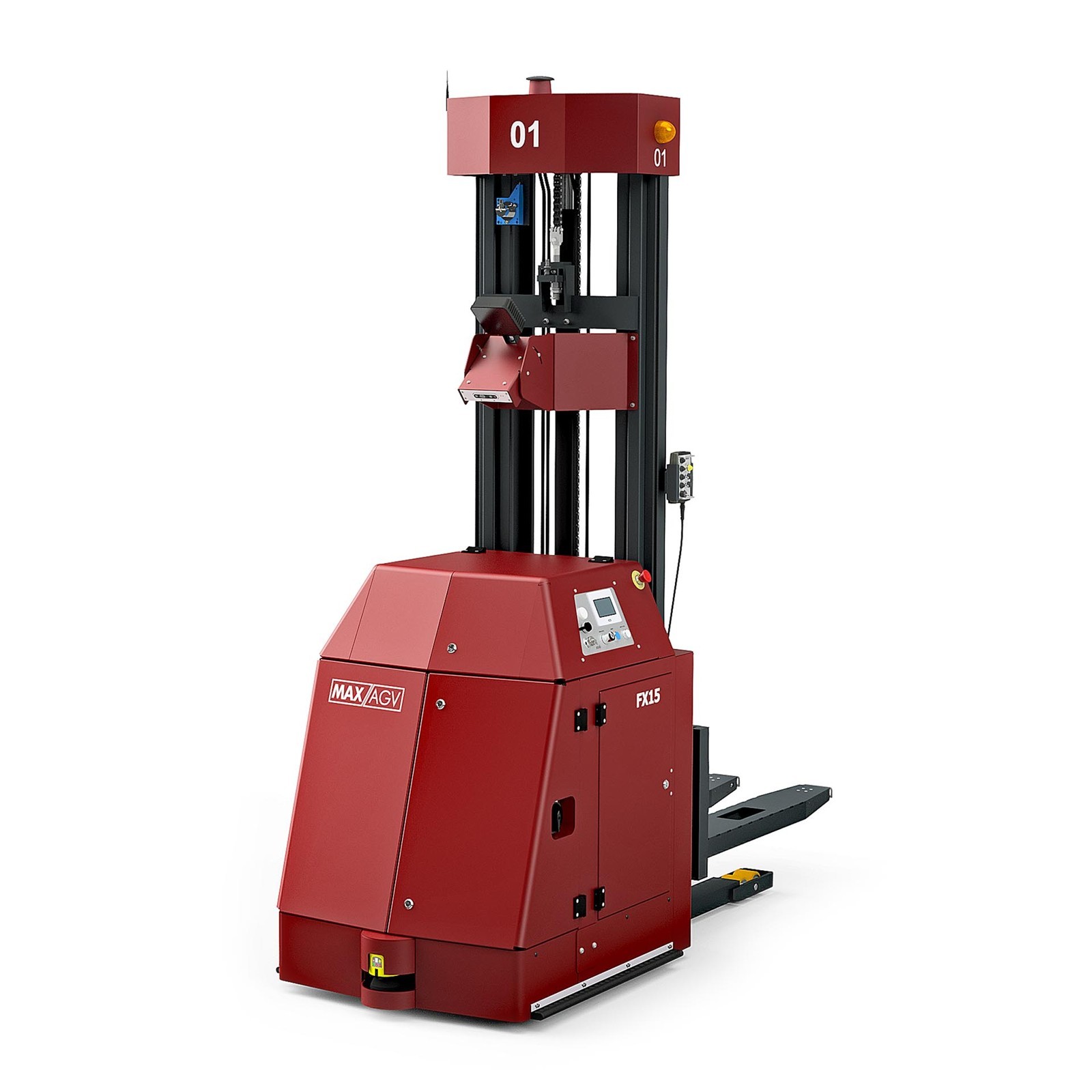

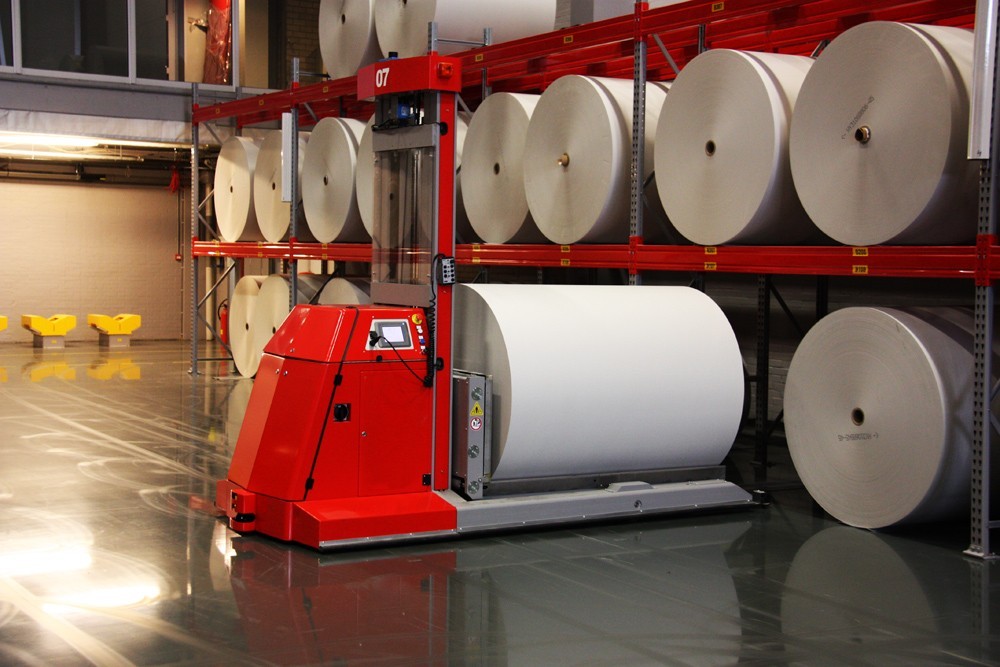

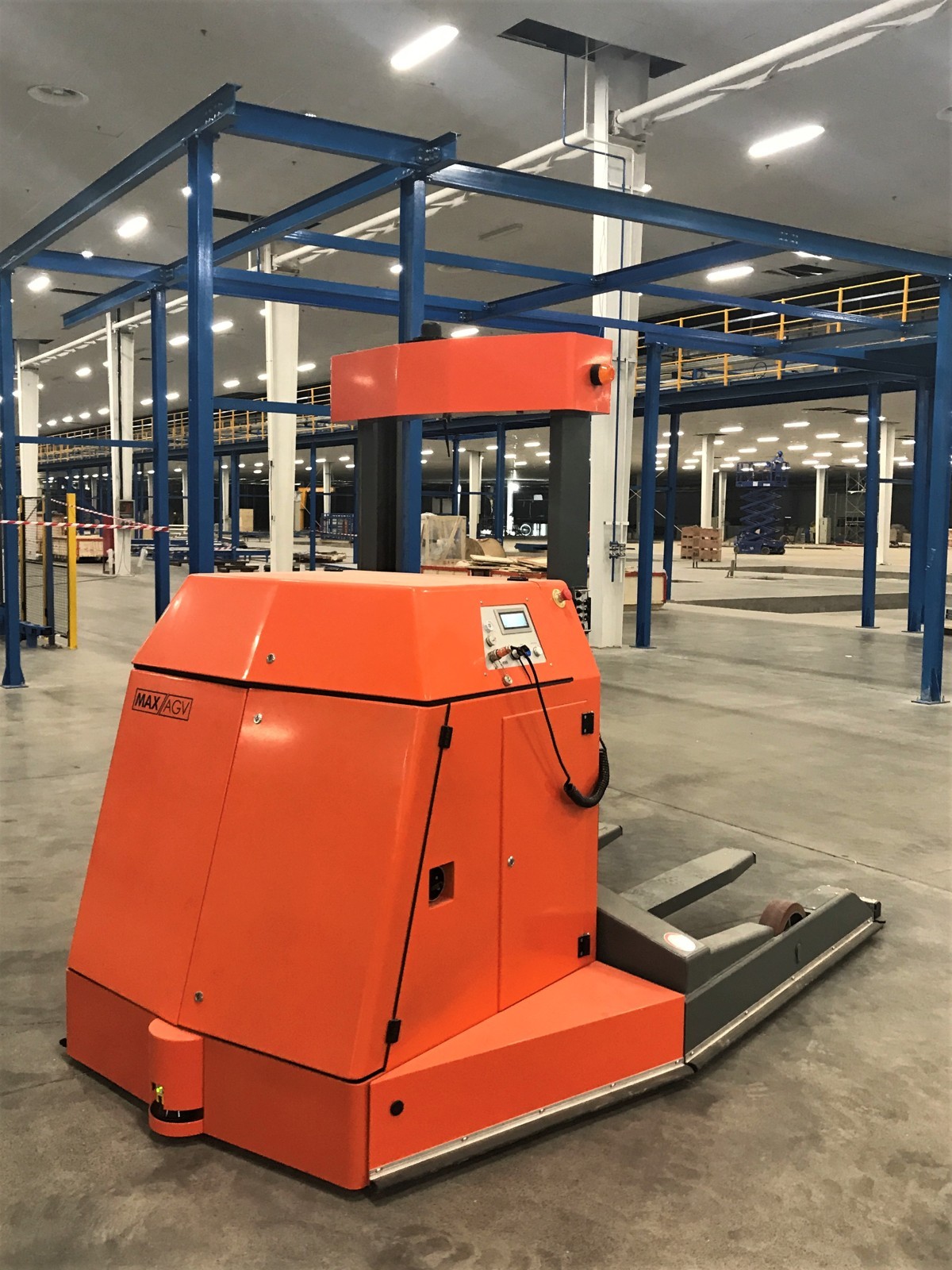

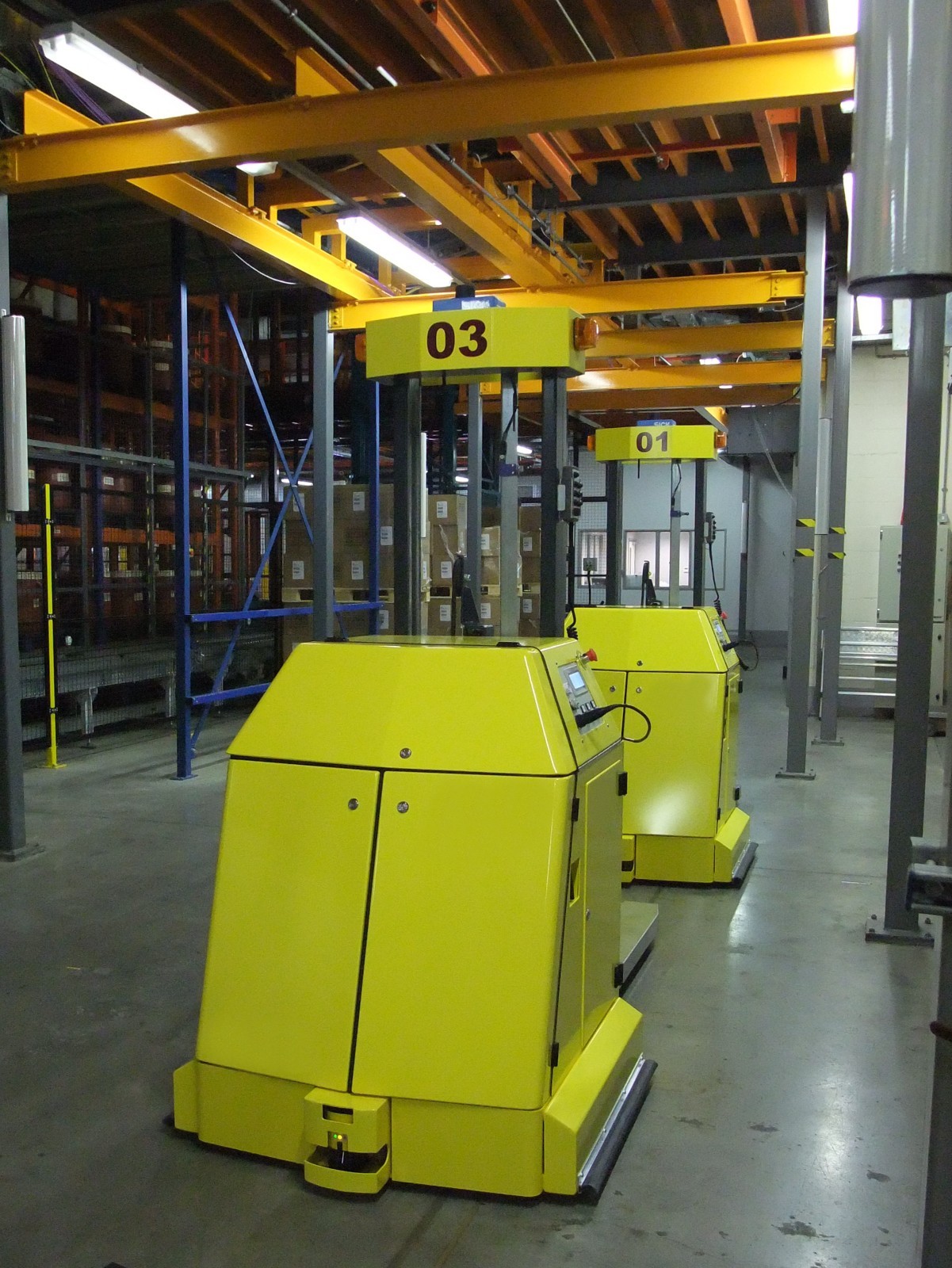

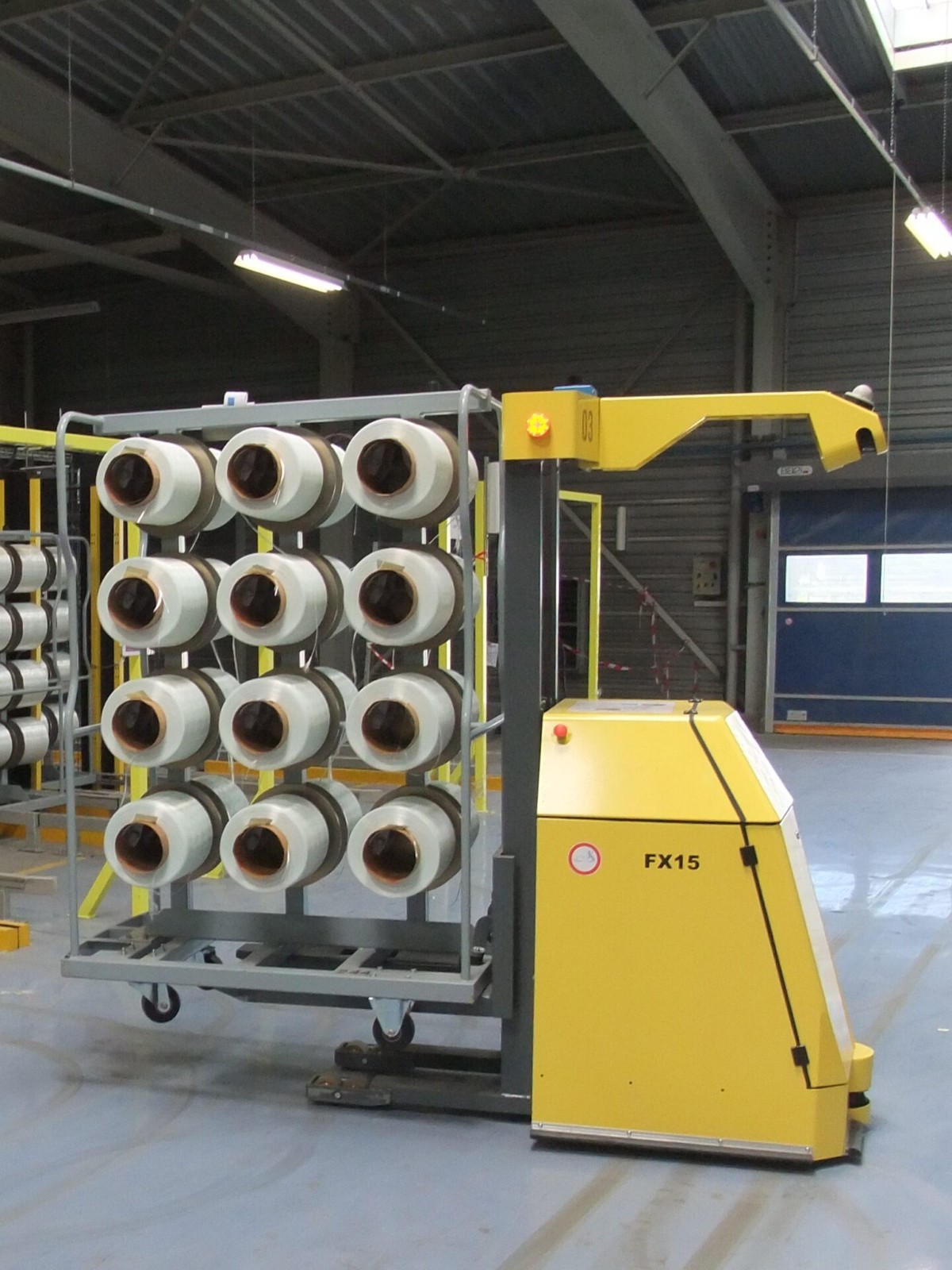

The FX15 Multi-Purpose Lifter is a fork AGV available with a variety of load-handling devices. It moves any material on a pallet or stillage, up to 2,000 kg, and handles deep stacking, block stacking and floor-to-floor work with lift heights up to 6,000 mm.\nLike all MAXAGV vehicles it navigates mainly by laser, carries a personal-safety system of emergency stops, safety laser scanners, side edges and bumpers to ISO 3691-4:2020, and runs under the Max software platform with opportunity charging when idle. Options include barcode and RFID readers and MAXAGV's DeZone and Blue Point accessories.
FEATURES
- Variety of load-handling devices
- Deep stacking, block stacking and floor-to-floor operation
- Unit load: Open entry: EUR pallet - container - stillage
- Maximum weight: 2000 kg
- Transfer/lift height: 85 - 6000 mm
- Battery: Wet lead-acid, gel or lithium-ion
- Charging: Opportunity charging, fast charge or battery exchange
- Options: barcode scanner - RFID - DeZone - Blue Point
- Laser navigation as standard
- magnetic, optical or wire guidance where required
- Personal safety system: emergency stops, front/rear safety laser scanners, side edges and bumpers
- ISO 3691-4:2020
- Sonix on-board controller
- managed by the Max software platform
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Payload | 2000 kg |
|---|---|
| Mobility | |
| Movement Type | Wheeled |
| Environment | Indoor production, warehouses and distribution centres |
| Sensing & Compute | |
| Sensors | safety laser scanners, navigation laser, bumpers and safety edges |
| Connectivity | Max software platform (fleet control) |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Payload | 2000 kg |
|---|---|
| Mobility | |
| Movement Type | Wheeled |
| Environment | Indoor production, warehouses and distribution centres |
| Sensing & Compute | |
| Sensors | safety laser scanners, navigation laser, bumpers and safety edges |
| Connectivity | Max software platform (fleet control) |
Images
martti
martti
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the FX15?
The FX15 Multi-Purpose Lifter is a fork AGV available with a variety of load-handling devices. It moves any material on a pallet or stillage, up to 2,000 kg, and handles deep stacking, block stacking and floor-to-floor work with lift heights up to 6,000 mm.\nLike all MAXAGV vehicles it navigates mainly by laser, carrie…
Who makes the FX15?
The FX15 is made by MAXAGV, a robotics company based in Sweden.
How much does the FX15 cost?
MAXAGV has not publicly announced pricing for the FX15. You can enquire through RobotAIGeek for current pricing.
What is the FX15 used for?
The FX15 is designed for intralogistics, lifting, material-handling, and pallet-transportation. It is used in warehouse & logistics and manufacturing settings.
What is the payload capacity of the FX15?
The FX15 has a payload capacity of 2,000 kg.
