DESCRIPTION
FX08 is an Industrial-Robot from MAXAGV. It is built for Intralogistics, Lifting, Material-Handling. Key figures: 1000 kg payload.

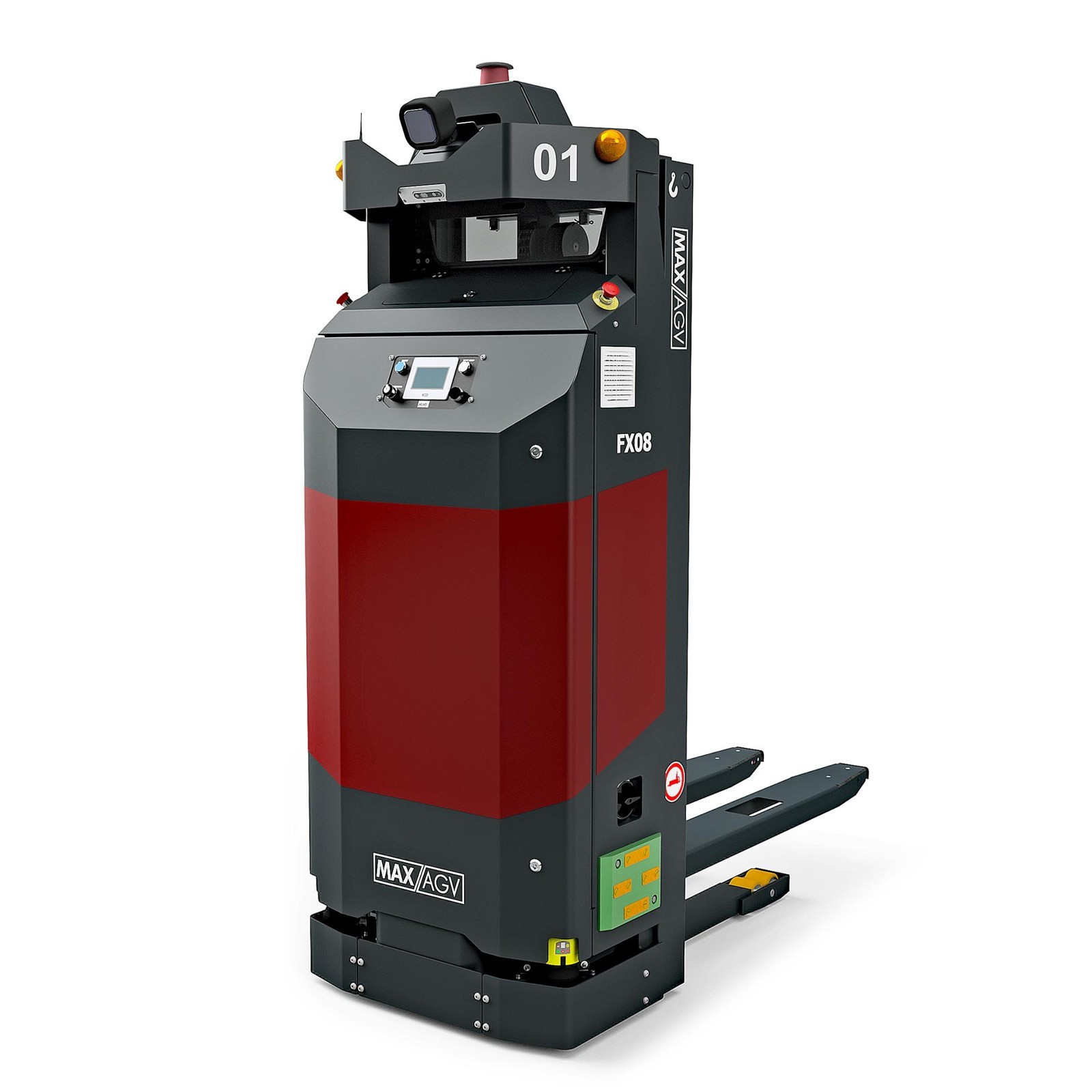

The FX08 Versatile Compact Lifter is a compact fork AGV for Euro pallet and container handling. It can be specified with different mast types and fork lengths, lifts loads of up to 1,000 kg to 2,800 mm, and its compact build suits pallet handling in small aisles and marshalling lanes.\nLike all MAXAGV vehicles it navigates mainly by laser, carries a personal-safety system of emergency stops, safety laser scanners, side edges and bumpers to ISO 3691-4:2020, and runs under the Max software platform with opportunity charging when idle. Options include barcode and RFID readers and MAXAGV's DeZone and Blue Point accessories.
FEATURES
- Various mast types and fork lengths
- Compact for small aisles and marshalling lanes
- Unit load: Open entry: EUR pallet - container - roll cage
- Maximum weight: 1000 kg
- Transfer/lift height: 85 - 2800 mm
- Battery: Lithium-ion
- Charging: Opportunity charging - fast charge
- Options: barcode scanner - RFID - DeZone - Blue Point
- Laser navigation as standard
- magnetic, optical or wire guidance where required
- Personal safety system: emergency stops, front/rear safety laser scanners, side edges and bumpers
- ISO 3691-4:2020
- Sonix on-board controller
- managed by the Max software platform
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Payload | 1000 kg |
|---|---|
| Mobility | |
| Movement Type | Wheeled |
| Environment | Indoor production, warehouses and distribution centres |
| Sensing & Compute | |
| Sensors | safety laser scanners, navigation laser, bumpers and safety edges |
| Connectivity | Max software platform (fleet control) |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Payload | 1000 kg |
|---|---|
| Mobility | |
| Movement Type | Wheeled |
| Environment | Indoor production, warehouses and distribution centres |
| Sensing & Compute | |
| Sensors | safety laser scanners, navigation laser, bumpers and safety edges |
| Connectivity | Max software platform (fleet control) |
Images
martti
Image Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the FX08?
The FX08 Versatile Compact Lifter is a compact fork AGV for Euro pallet and container handling. It can be specified with different mast types and fork lengths, lifts loads of up to 1,000 kg to 2,800 mm, and its compact build suits pallet handling in small aisles and marshalling lanes.\nLike all MAXAGV vehicles it navig…
Who makes the FX08?
The FX08 is made by MAXAGV, a robotics company based in Sweden.
How much does the FX08 cost?
MAXAGV has not publicly announced pricing for the FX08. You can enquire through RobotAIGeek for current pricing.
What is the FX08 used for?
The FX08 is designed for intralogistics, lifting, material-handling, and pallet-transportation. It is used in warehouse & logistics and manufacturing settings.
What is the payload capacity of the FX08?
The FX08 has a payload capacity of 1,000 kg.
